Visuals for Website Design

1.

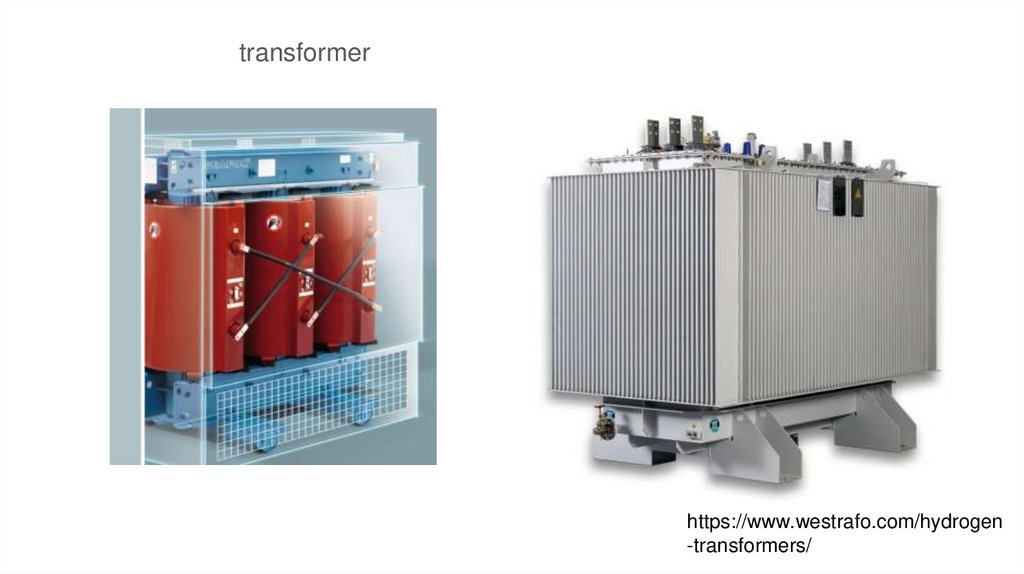

transformer
https://www.westrafo.com/hydrogen
-transformers/

2.

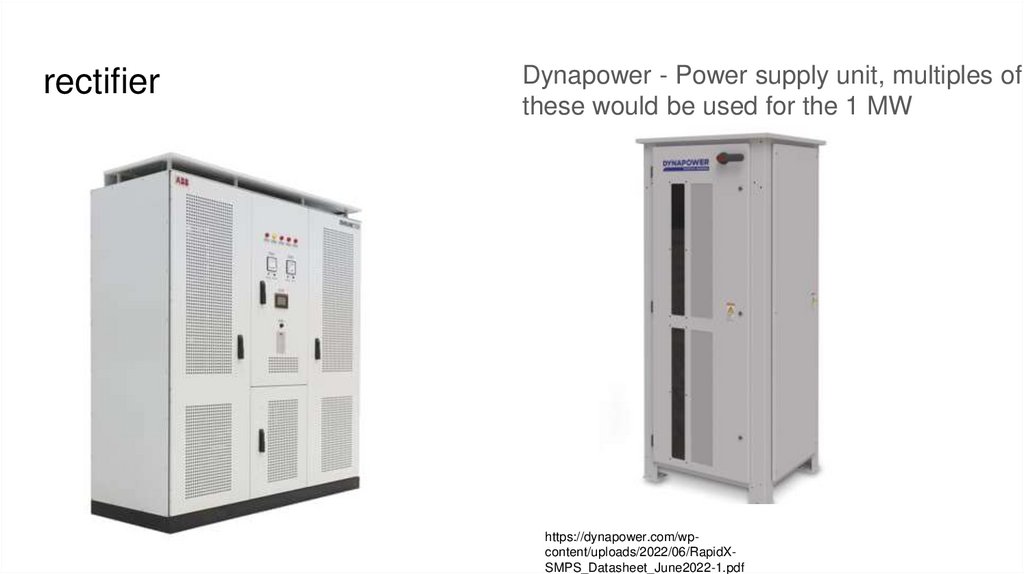

rectifier
Dynapower - Power supply unit, multiples of
these would be used for the 1 MW
https://dynapower.com/wpcontent/uploads/2022/06/RapidXSMPS_Datasheet_June2022-1.pdf

3.

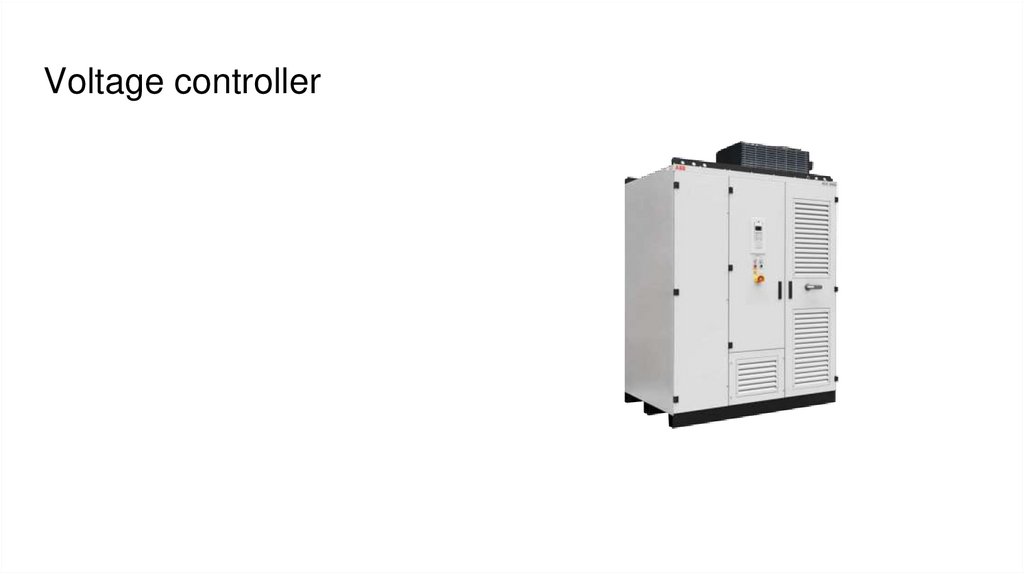

Voltage controller

4.

DIU
ca. 4’ x 3’ x 6’ (L x W x H)
https://www.evoqua.com/siteassets/documents/product
s/filtration/pwsm41rsds.pdf

5.

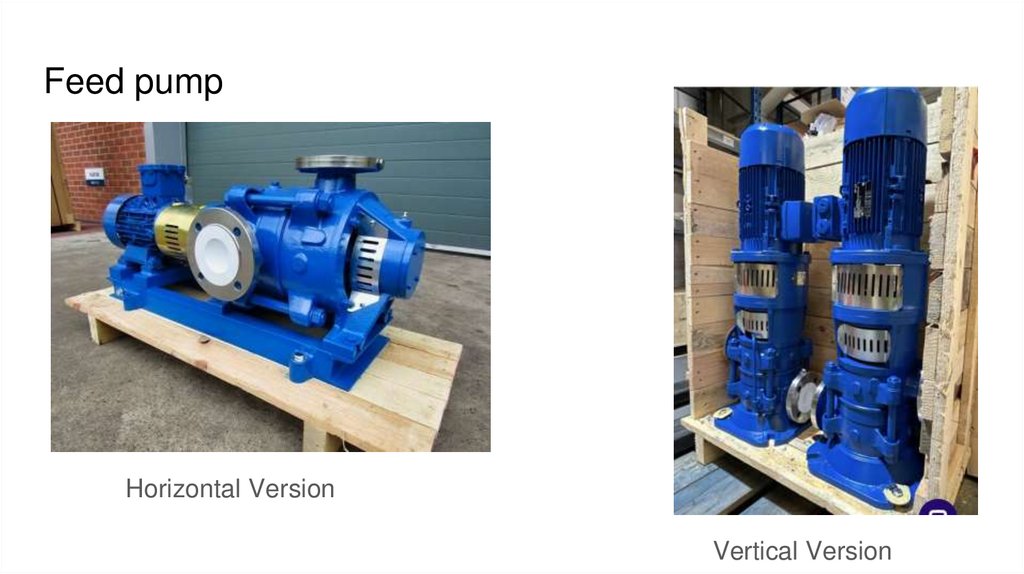

Feed pump
Horizontal Version
Vertical Version

6.

Liqui/Gas
separator

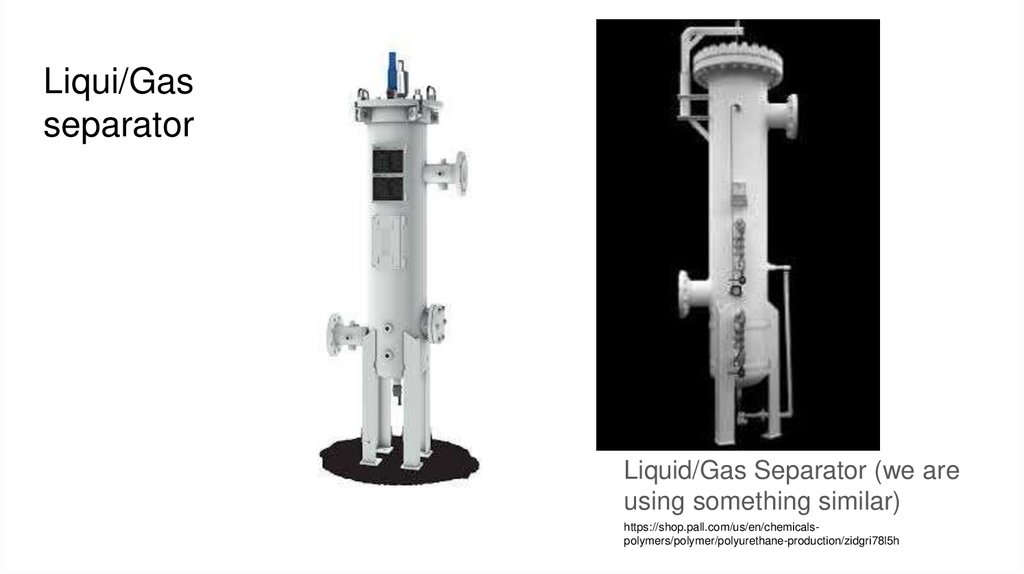

Liquid/Gas Separator (we are
using something similar)
https://shop.pall.com/us/en/chemicalspolymers/polymer/polyurethane-production/zidgri78l5h

7.

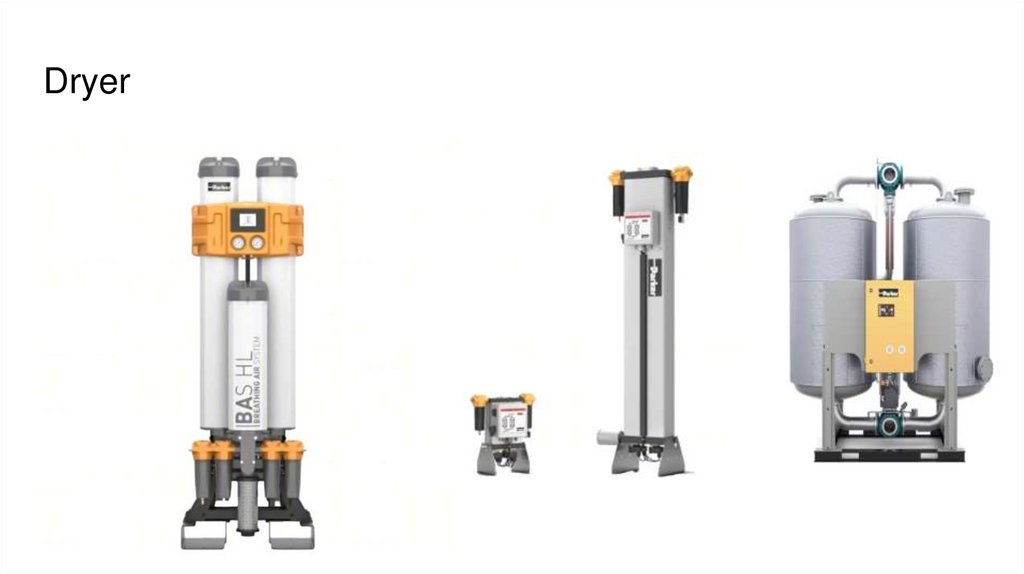

Dryer

8.

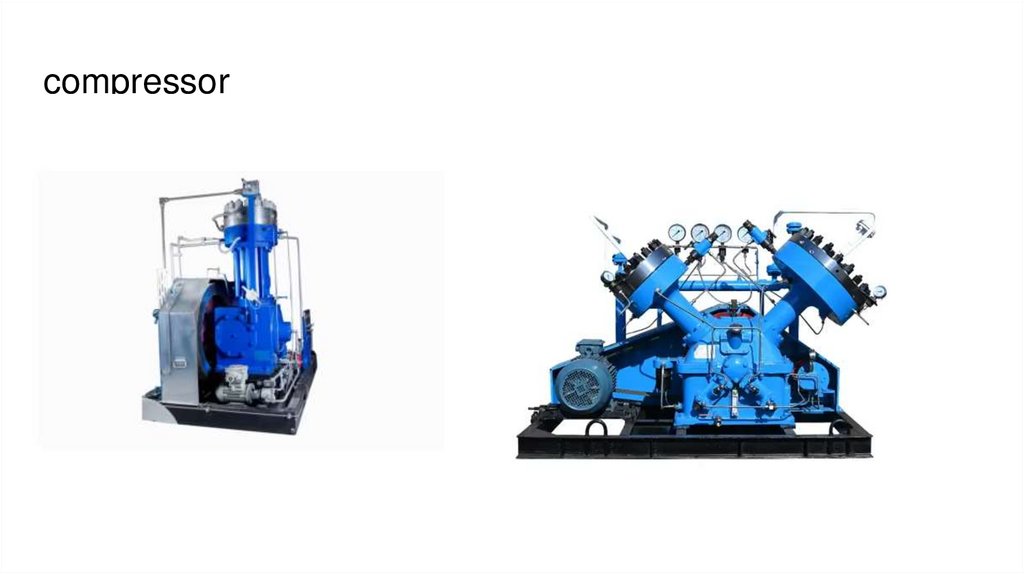

compressor

9.

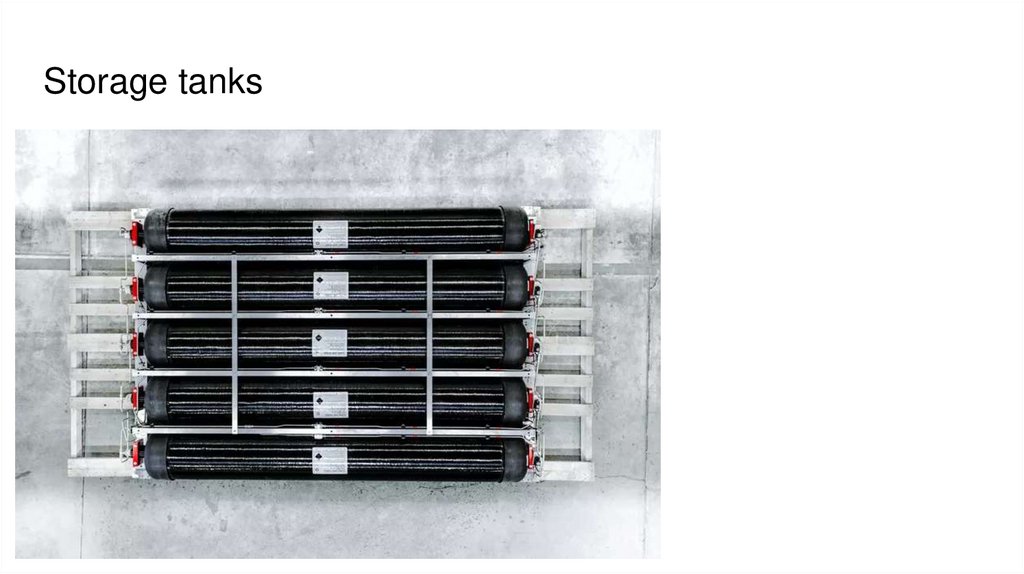

Storage tanks

10.

PLC

11.

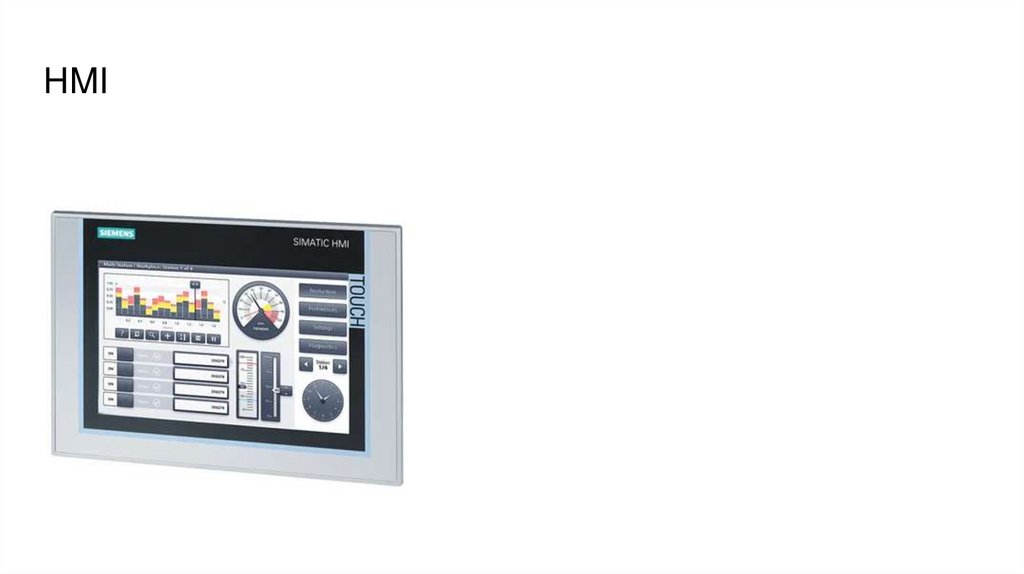

HMI

12.

DATA LOGGER

13.

SENSORS
H2 Sensors
https://en.jumo.pl/web/aboutus/blog-pl/hydrogen-electrolyzer
Sensors on H2
storage tanks
Pressure
Sensors

14.

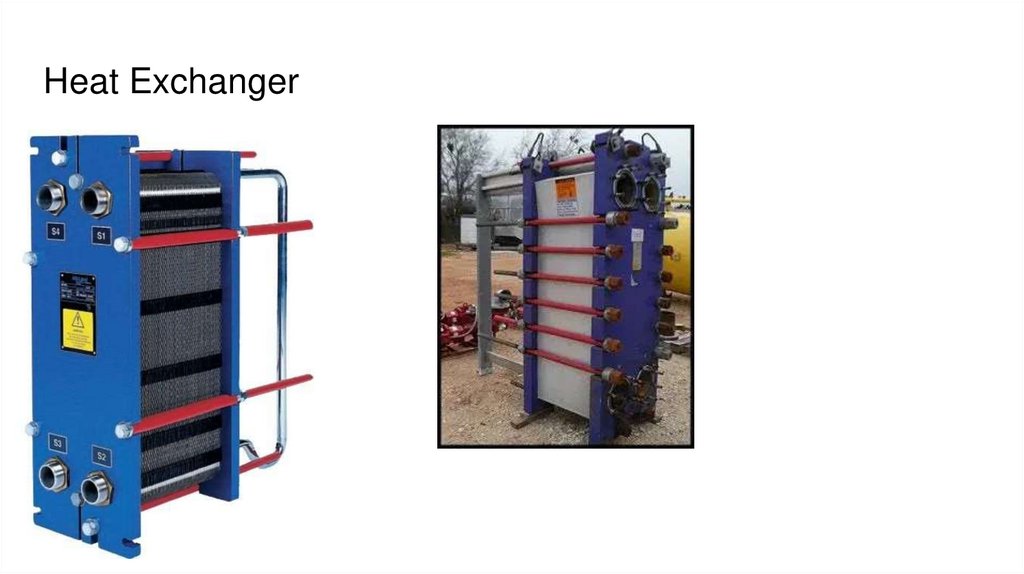

Heat Exchanger

15.

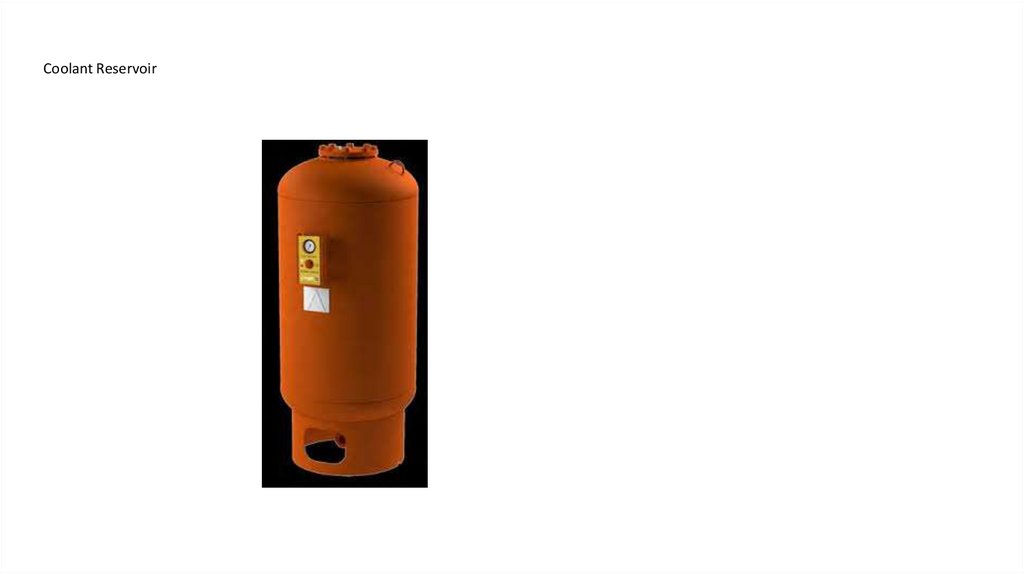

Coolant Reservoir

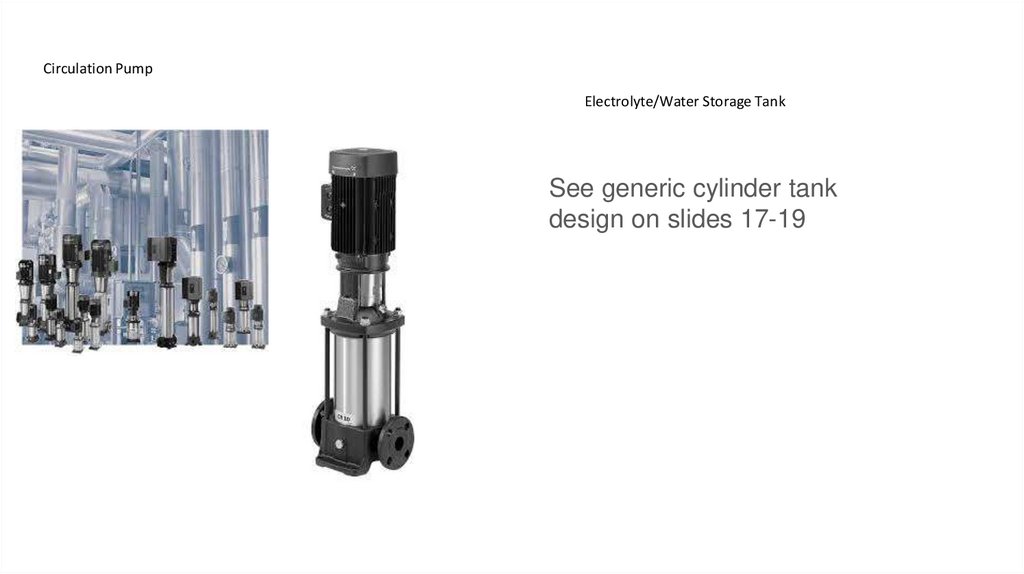

16.

Circulation Pump
Electrolyte/Water Storage Tank
See generic cylinder tank
design on slides 17-19

17.

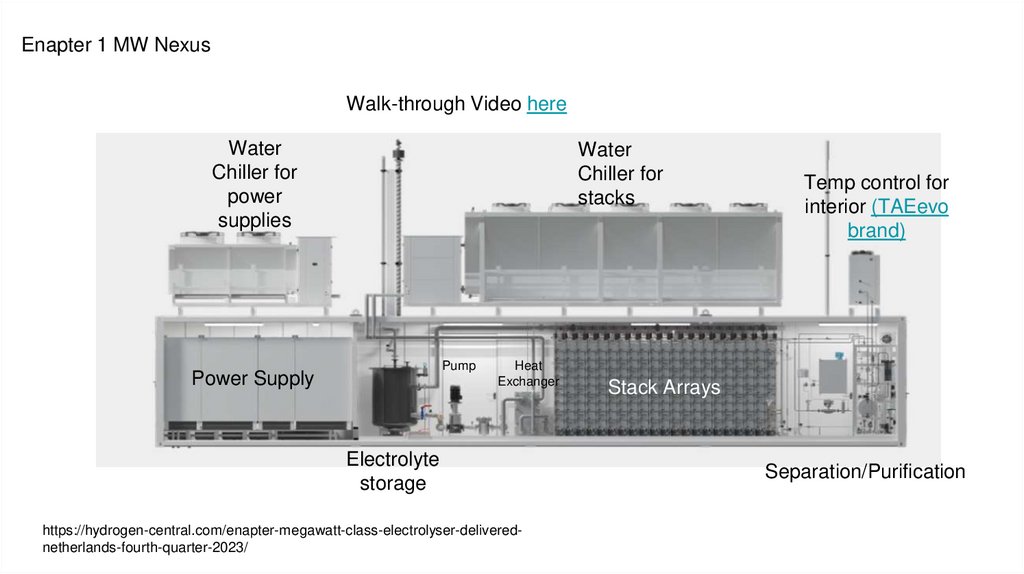

Enapter 1 MW Nexus
Walk-through Video here
Water
Chiller for
power
supplies
Water
Chiller for
stacks
Pump
Power Supply
Heat
Exchanger
Electrolyte
storage
https://hydrogen-central.com/enapter-megawatt-class-electrolyser-deliverednetherlands-fourth-quarter-2023/
Temp control for
interior (TAEevo
brand)
Stack Arrays
Separation/Purification

18.

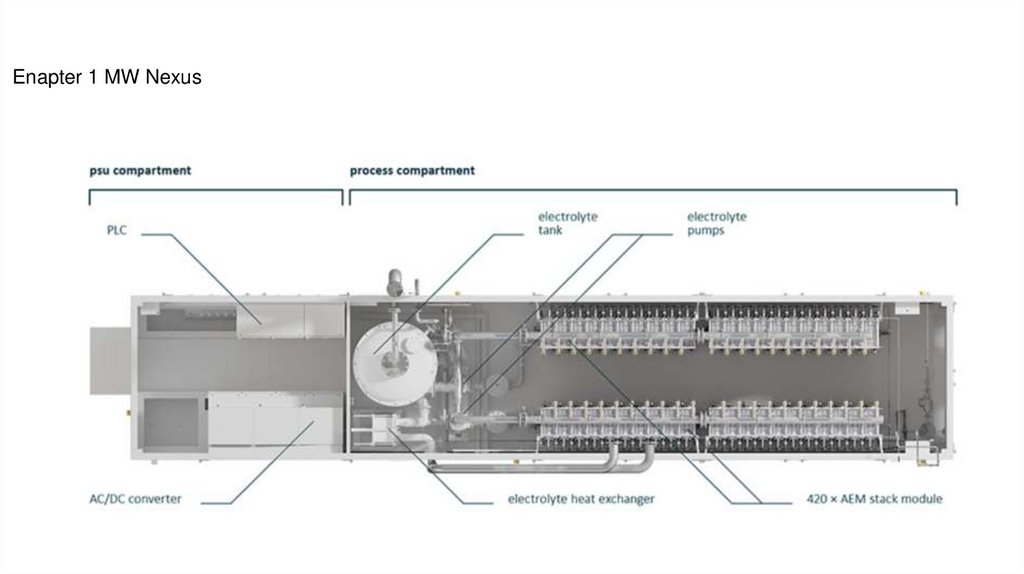

Enapter 1 MW Nexus

19.

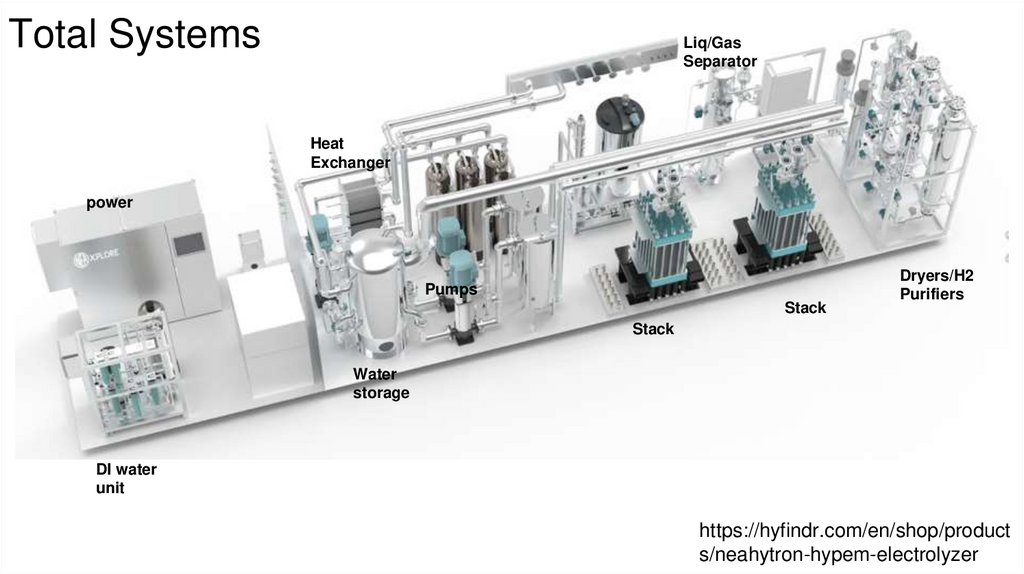

Total Systems
Liq/Gas
Separator
Heat
Exchanger
power
Pumps
Stack
Dryers/H2
Purifiers
Stack
Water
storage
DI water
unit
https://hyfindr.com/en/shop/product
s/neahytron-hypem-electrolyzer

20.

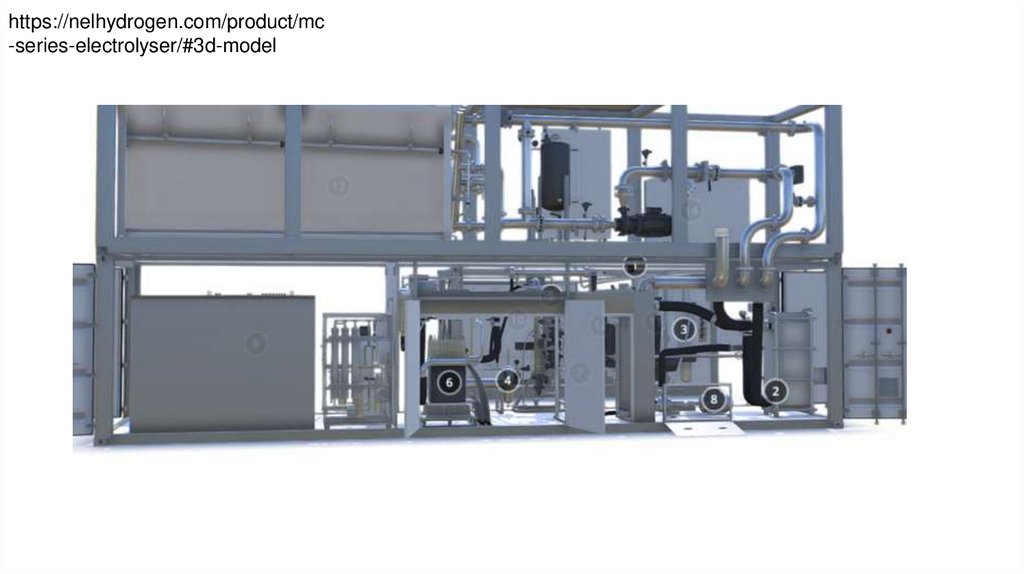

https://nelhydrogen.com/product/mc
-series-electrolyser/#3d-model

21.

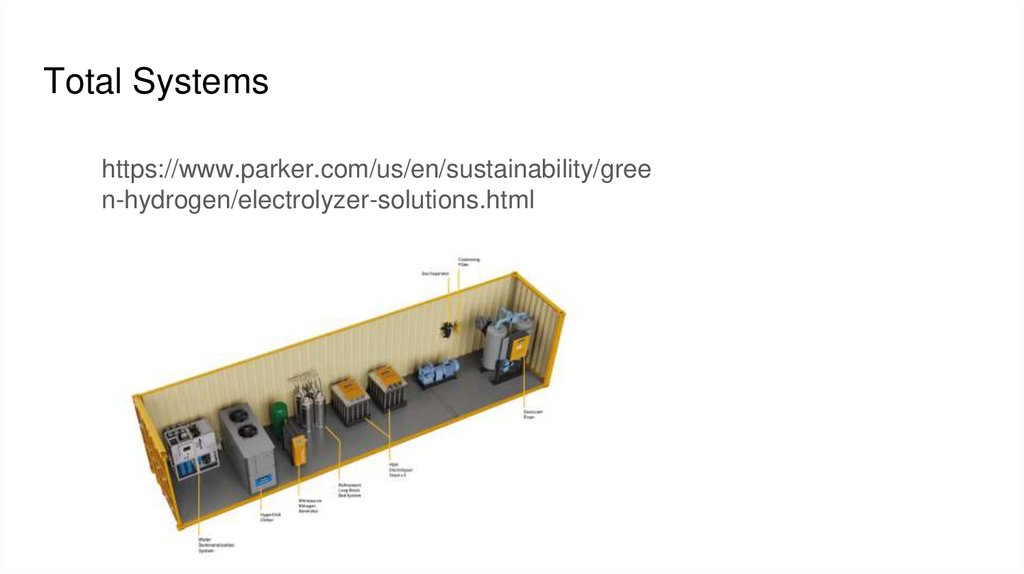

Total Systems
https://www.parker.com/us/en/sustainability/gree
n-hydrogen/electrolyzer-solutions.html

22.

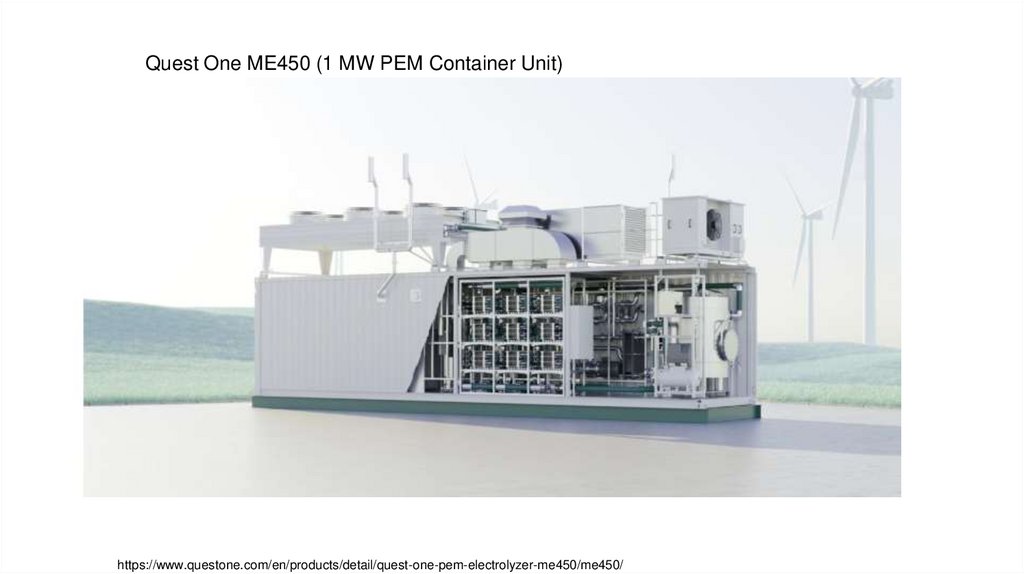

Quest One ME450 (1 MW PEM Container Unit)
https://www.questone.com/en/products/detail/quest-one-pem-electrolyzer-me450/me450/

23.

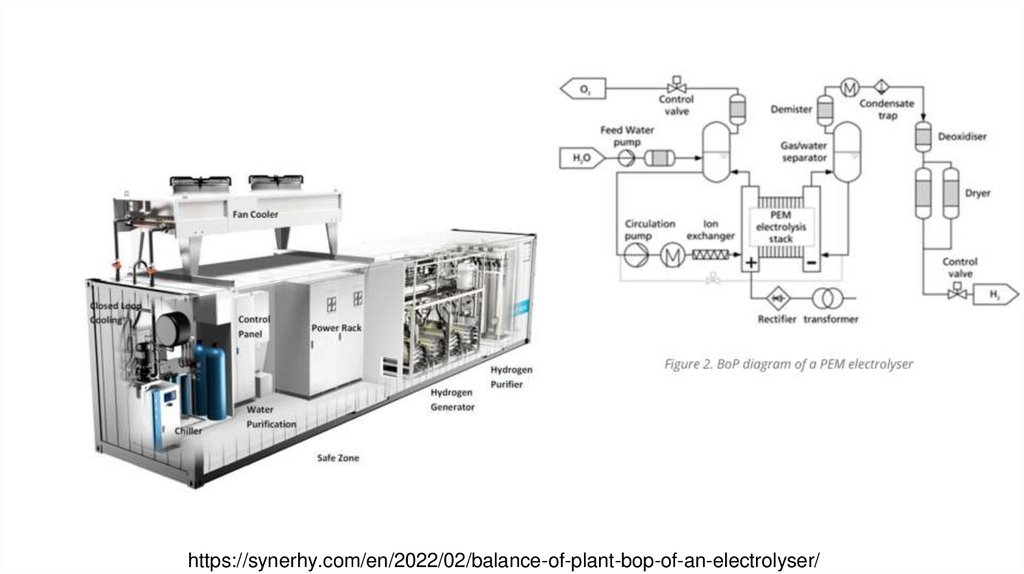

https://synerhy.com/en/2022/02/balance-of-plant-bop-of-an-electrolyser/
