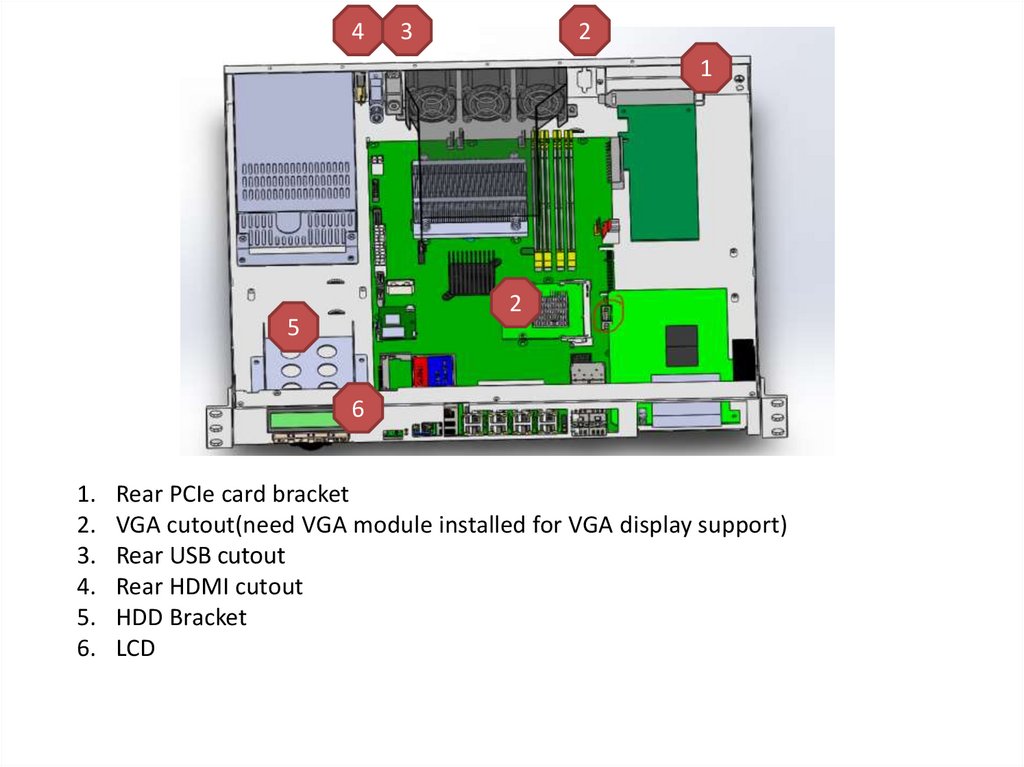

GIS Chassis

1.

4
3
2
1
2
5
6
1.
2.
3.
4.
5.
6.
Rear PCIe card bracket
VGA cutout(need VGA module installed for VGA display support)
Rear USB cutout
Rear HDMI cutout
HDD Bracket
LCD

2.

2
1
A

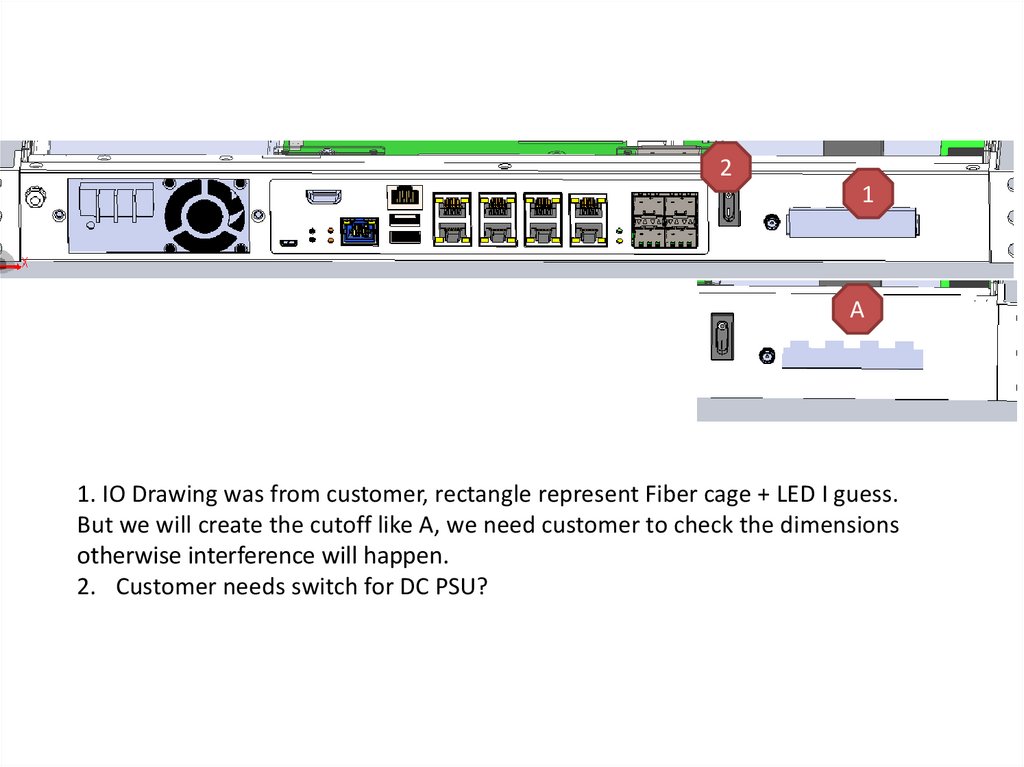

1. IO Drawing was from customer, rectangle represent Fiber cage + LED I guess.
But we will create the cutoff like A, we need customer to check the dimensions
otherwise interference will happen.
2. Customer needs switch for DC PSU?

3.

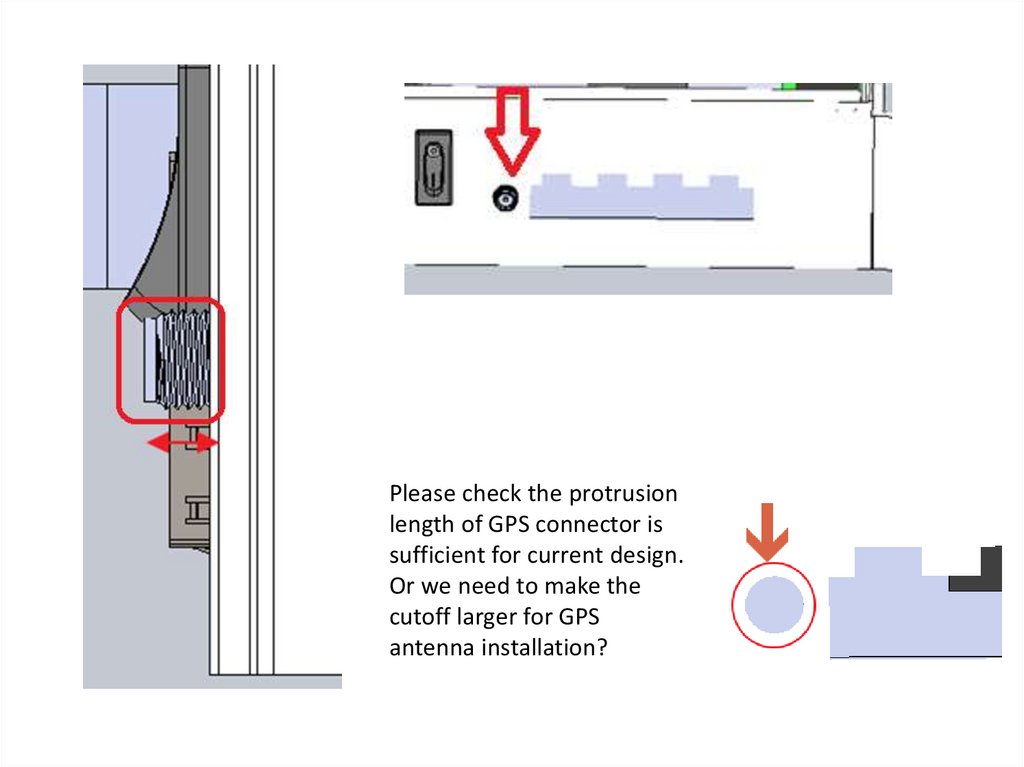

Please check the protrusion
length of GPS connector is
sufficient for current design.
Or we need to make the
cutoff larger for GPS
antenna installation?
