3490 Series Universal Controller General Overview

1. 3490 Series Universal Controller

2. 3490 Series Universal Controller General Overview

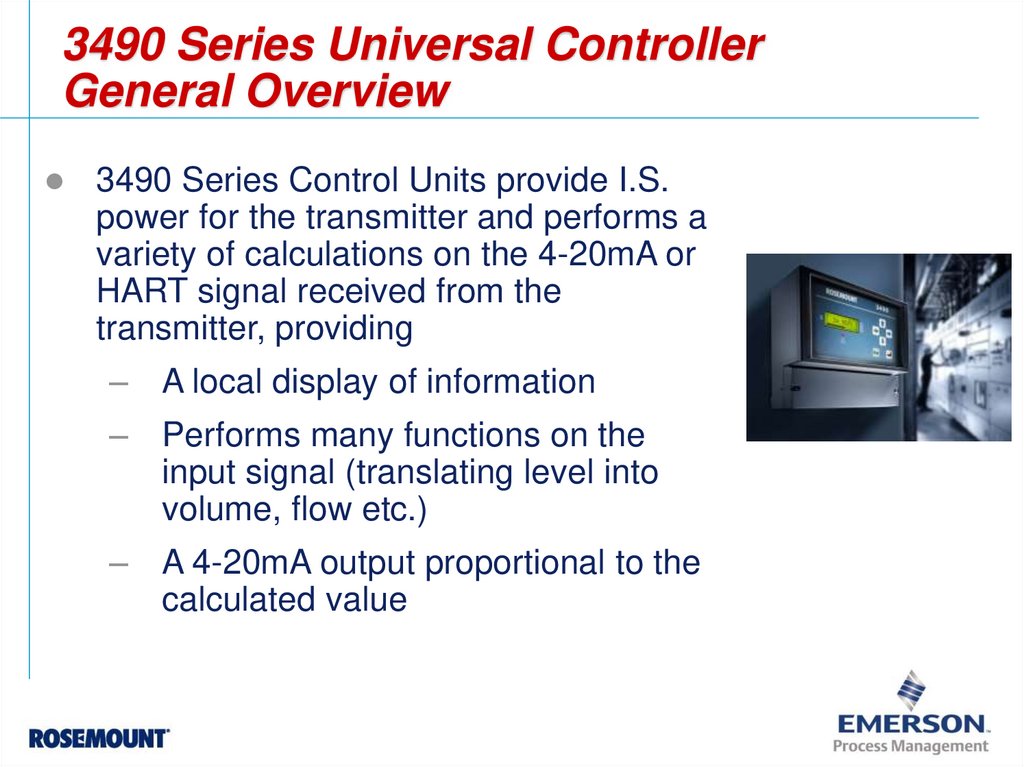

3490 Series Control Units provide I.S.
power for the transmitter and performs a
variety of calculations on the 4-20mA or
HART signal received from the
transmitter, providing
– A local display of information
– Performs many functions on the
input signal (translating level into
volume, flow etc.)
– A 4-20mA output proportional to the
calculated value

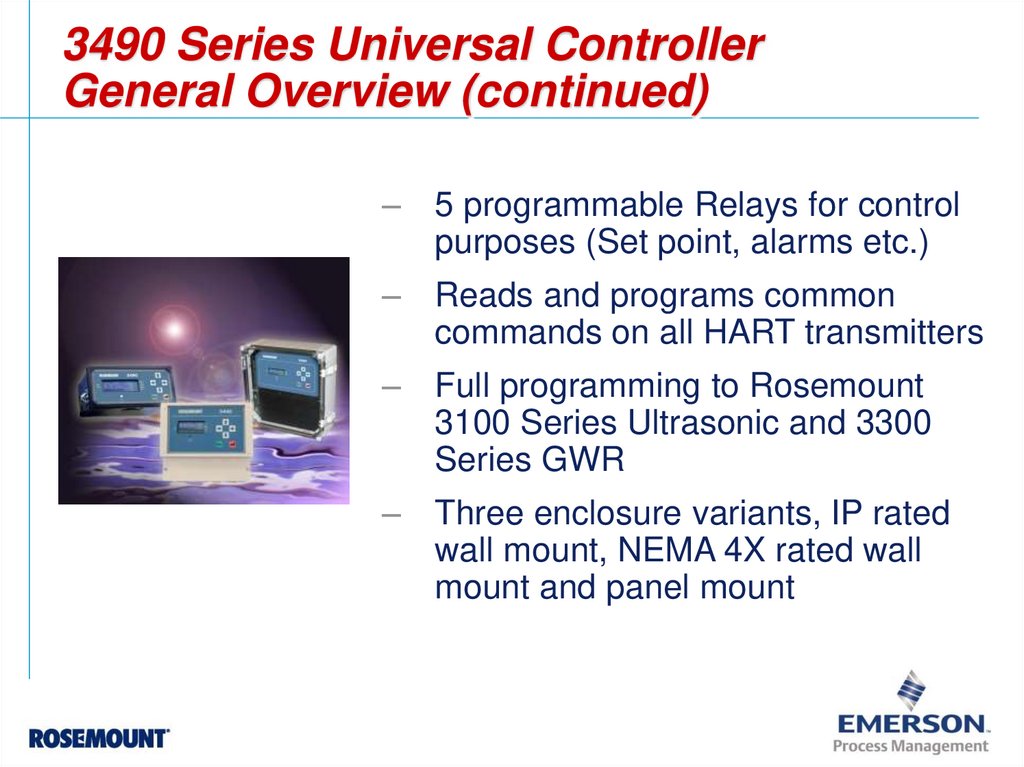

3. 3490 Series Universal Controller General Overview (continued)

– 5 programmable Relays for control
purposes (Set point, alarms etc.)
– Reads and programs common
commands on all HART transmitters
– Full programming to Rosemount
3100 Series Ultrasonic and 3300
Series GWR
– Three enclosure variants, IP rated
wall mount, NEMA 4X rated wall
mount and panel mount

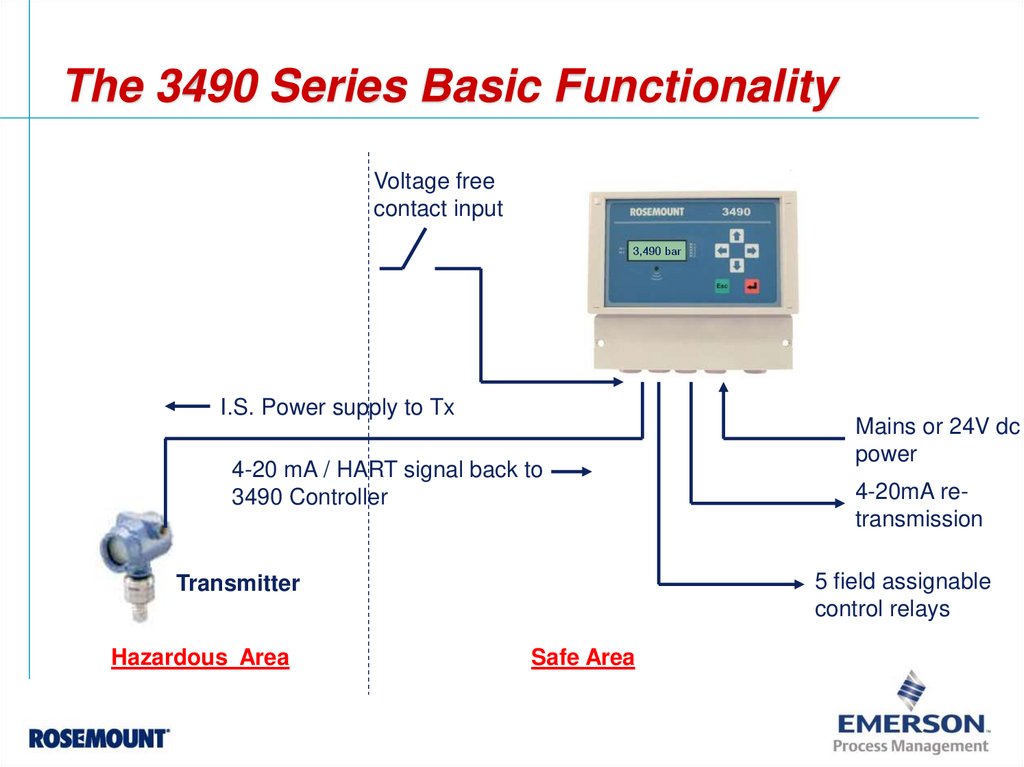

4. The 3490 Series Basic Functionality

Voltage free
contact input
3,490 bar
I.S. Power supply to Tx
4-20 mA / HART signal back to
3490 Controller
4-20mA retransmission
5 field assignable
control relays
Transmitter
Hazardous Area
Mains or 24V dc
power
Safe Area

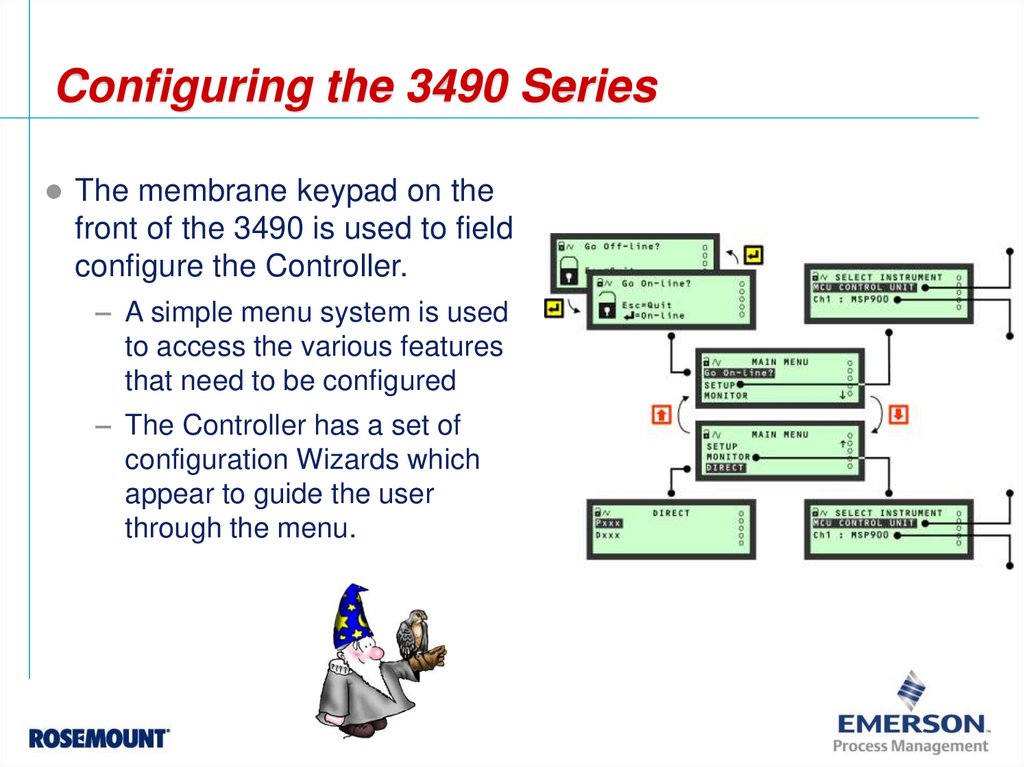

5. Configuring the 3490 Series

The membrane keypad on the
front of the 3490 is used to field
configure the Controller.
– A simple menu system is used
to access the various features
that need to be configured
– The Controller has a set of
configuration Wizards which
appear to guide the user
through the menu.

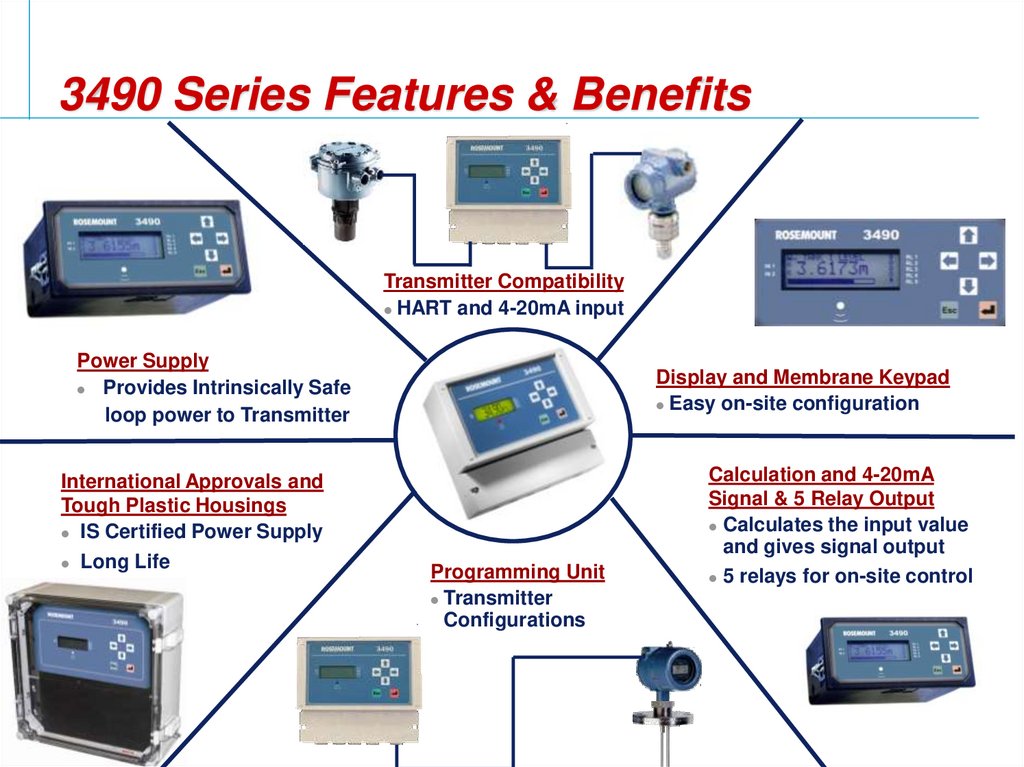

6. 3490 Series Features & Benefits

3490 Series Features & Benefits
Transmitter Compatibility
HART and 4-20mA input
Power Supply
Provides Intrinsically Safe
loop power to Transmitter
International Approvals and
Tough Plastic Housings
IS Certified Power Supply
Long Life
Display and Membrane Keypad
Easy on-site configuration
Programming Unit
Transmitter
Configurations
Calculation and 4-20mA
Signal & 5 Relay Output
Calculates the input value
and gives signal output
5 relays for on-site control

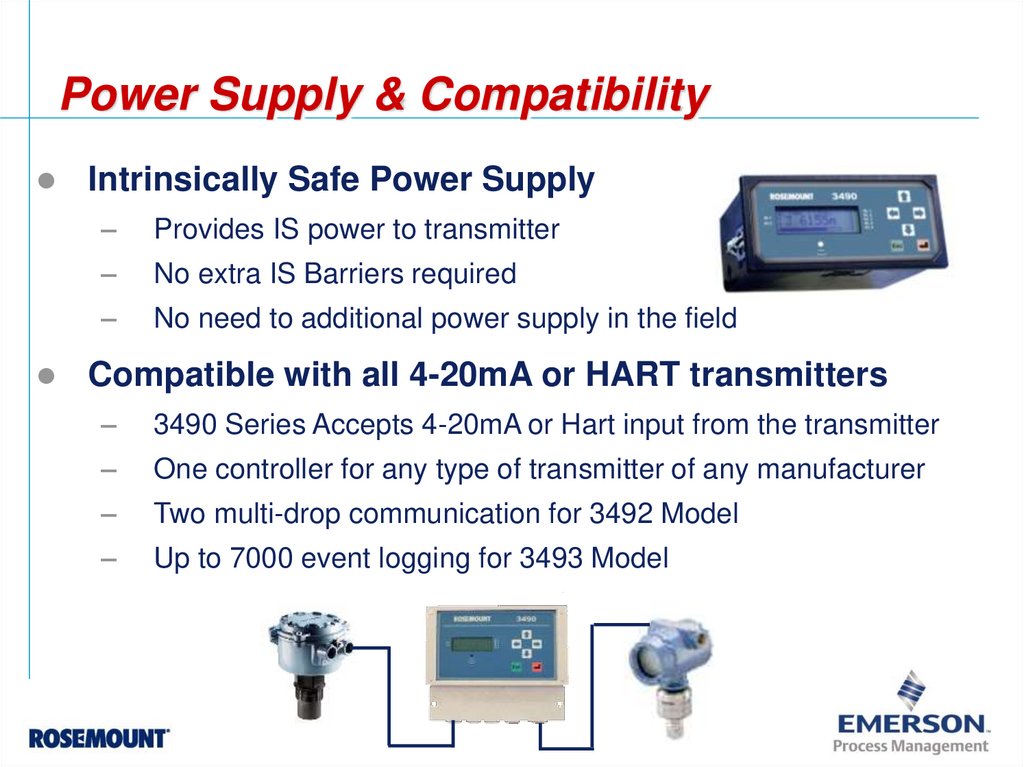

7. Power Supply & Compatibility

Power Supply & Compatibility
Intrinsically Safe Power Supply
–
Provides IS power to transmitter
–
No extra IS Barriers required
–
No need to additional power supply in the field
Compatible with all 4-20mA or HART transmitters
–
3490 Series Accepts 4-20mA or Hart input from the transmitter
–
One controller for any type of transmitter of any manufacturer
–
Two multi-drop communication for 3492 Model
–
Up to 7000 event logging for 3493 Model

8. Display & Keypad Calculation & Outputs

Display & Keypad
Calculation & Outputs
Backlit Display & Membrane Keypad
–
Displays any transmitter’s HART or
analogue signal values
–
Fast and simple on-site configuration
with membrane keypad
On-site calculation and 4-20mA & 5 Relay
outputs
–
Pre-programmed library for tank-shapes, flow
algorithms and pump control routines for display and
control functions
–
4-20mA signal output proportional to calculated value.
–
5 SPDT (SPCO) Relays for Control

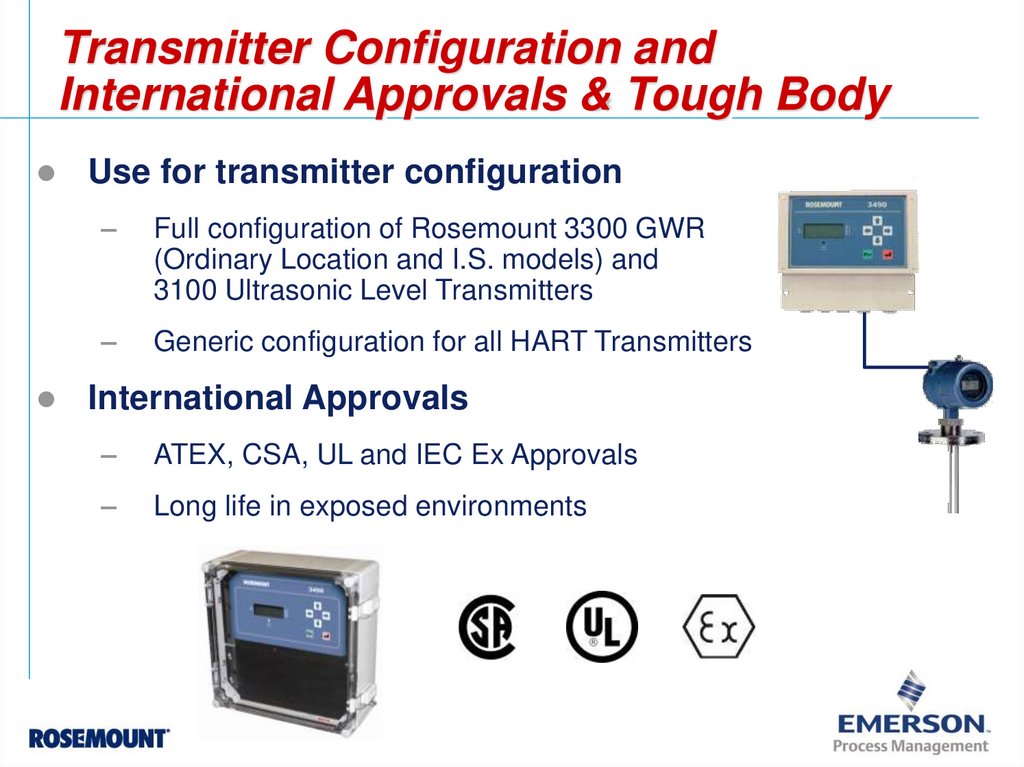

9. Transmitter Configuration and International Approvals & Tough Body

Transmitter Configuration and
International Approvals & Tough Body
Use for transmitter configuration
–
Full configuration of Rosemount 3300 GWR
(Ordinary Location and I.S. models) and
3100 Ultrasonic Level Transmitters
–
Generic configuration for all HART Transmitters
International Approvals
–
ATEX, CSA, UL and IEC Ex Approvals
–
Long life in exposed environments

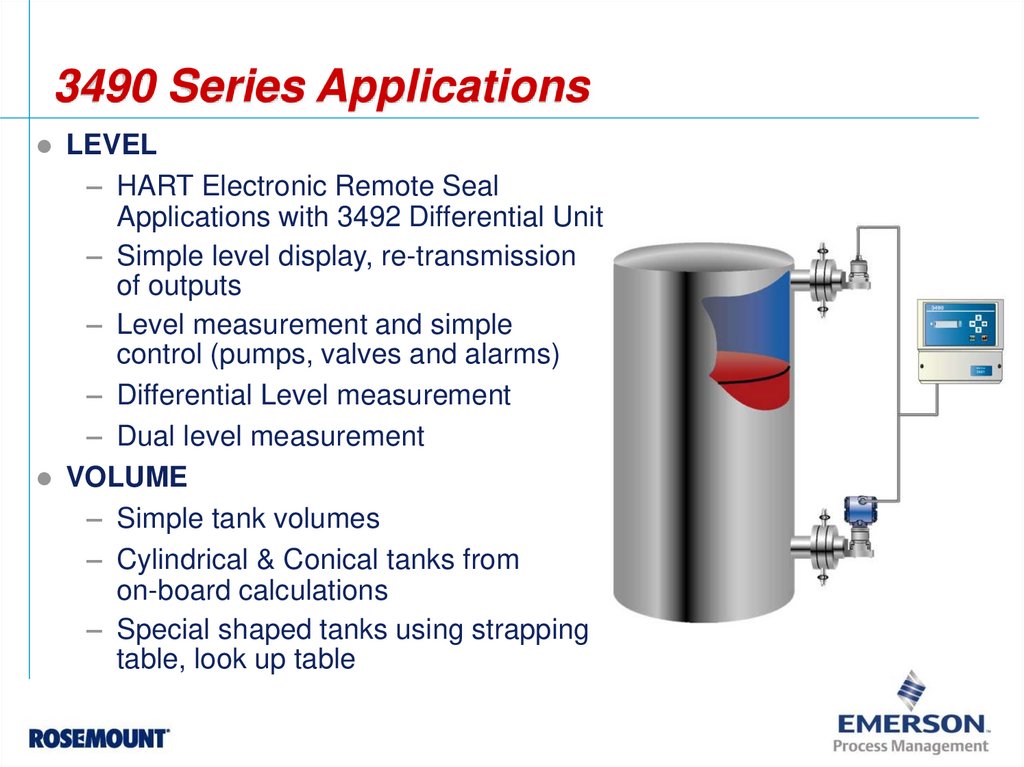

10. 3490 Series Applications

LEVEL
– HART Electronic Remote Seal
Applications with 3492 Differential Unit
– Simple level display, re-transmission
of outputs
– Level measurement and simple
control (pumps, valves and alarms)
– Differential Level measurement
– Dual level measurement
VOLUME
– Simple tank volumes
– Cylindrical & Conical tanks from
on-board calculations
– Special shaped tanks using strapping
table, look up table

11. 3490 Series Applications (continued)

PUMP CONTROL
– Typical pump control routines
– Pumped volume calculation
OPEN CHANNEL FLOW
– Standard PMD’s, use of Look
up table for special stage
discharge
– Velocity area methods
SPECIAL APPLICATIONS
– Data logging, monitoring pH,
DO, Pressure

12. 3493 Applications (Flow Logger)

Open channel flow with on-board data logging (7000 flow event,
typically 15 min logging interval = 75 days.)
Flow totalising and logging daily totals on-board. Daily totals
stored for last 365 days and rolls over oldest data.
Data retrieved by Log-View Software and can be used for report
generation
