NLX LCD FA

1.

NLX LCD FA

2.

NLX LCD FA

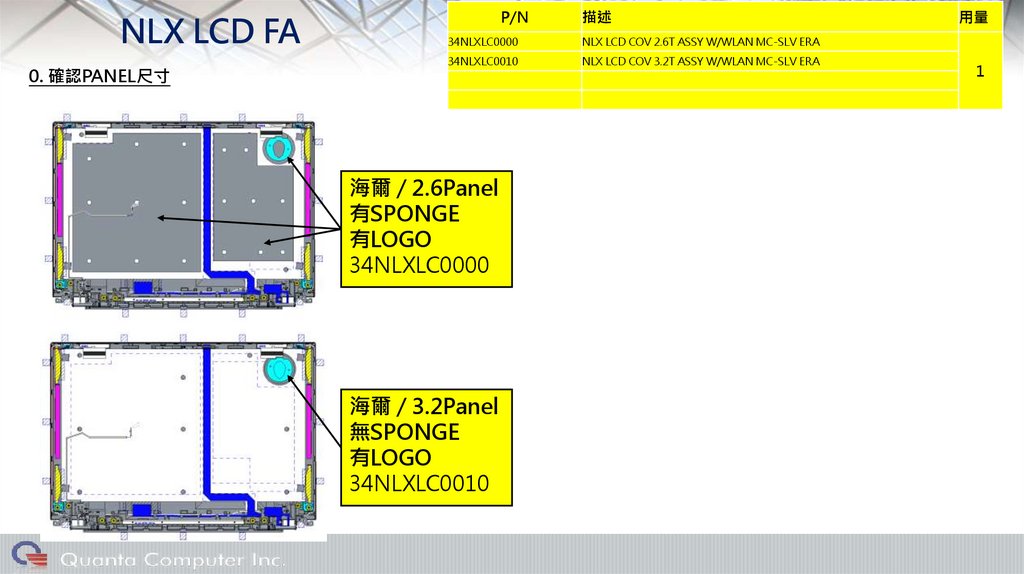

0. 確認PANEL尺寸
P/N
描述
34NLXLC0000
NLX LCD COV 2.6T ASSY W/WLAN MC-SLV ERA
34NLXLC0010
NLX LCD COV 3.2T ASSY W/WLAN MC-SLV ERA
海爾 / 2.6Panel
有SPONGE
有LOGO
34NLXLC0000
海爾 / 3.2Panel
無SPONGE
有LOGO
34NLXLC0010
用量
1

3.

NLX LCD FA

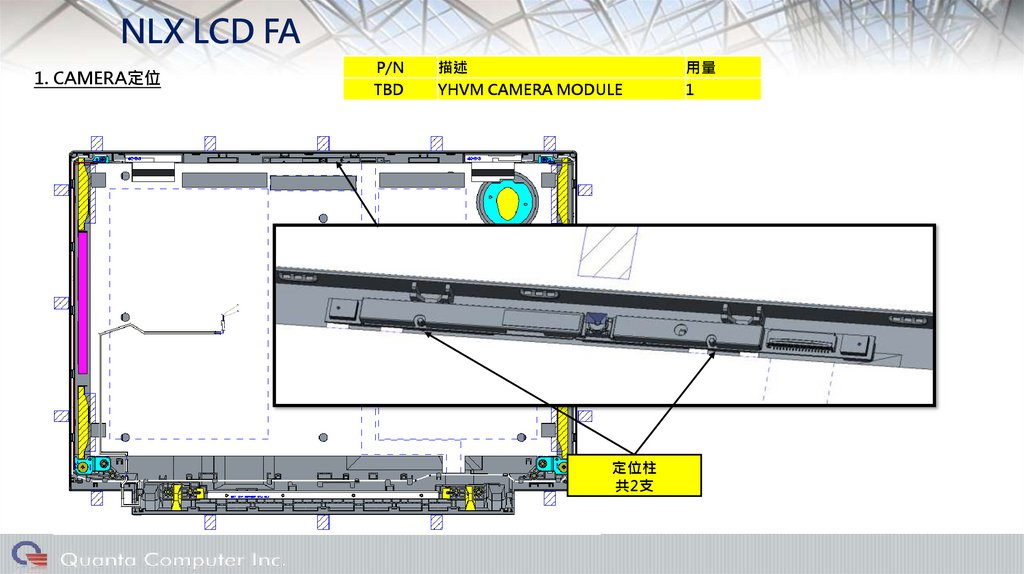

1. CAMERA定位
P/N
TBD
描述
YHVM CAMERA MODULE
定位柱
共2支
用量
1

4.

NLX LCD FA

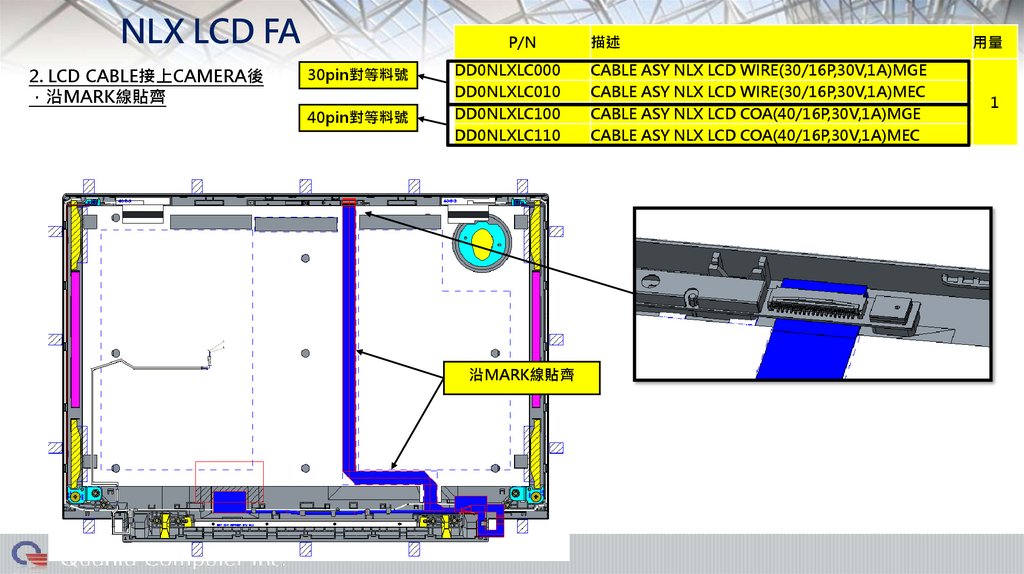

2. LCD CABLE接上CAMERA後
沿MARK線貼齊
P/N
30pin對等料號
40pin對等料號
DD0NLXLC000
DD0NLXLC010
DD0NLXLC100
DD0NLXLC110
沿MARK線貼齊
描述
CABLE ASY NLX LCD WIRE(30/16P,30V,1A)MGE
CABLE ASY NLX LCD WIRE(30/16P,30V,1A)MEC
CABLE ASY NLX LCD COA(40/16P,30V,1A)MGE
CABLE ASY NLX LCD COA(40/16P,30V,1A)MEC
用量
1

5.

NLX LCD FA

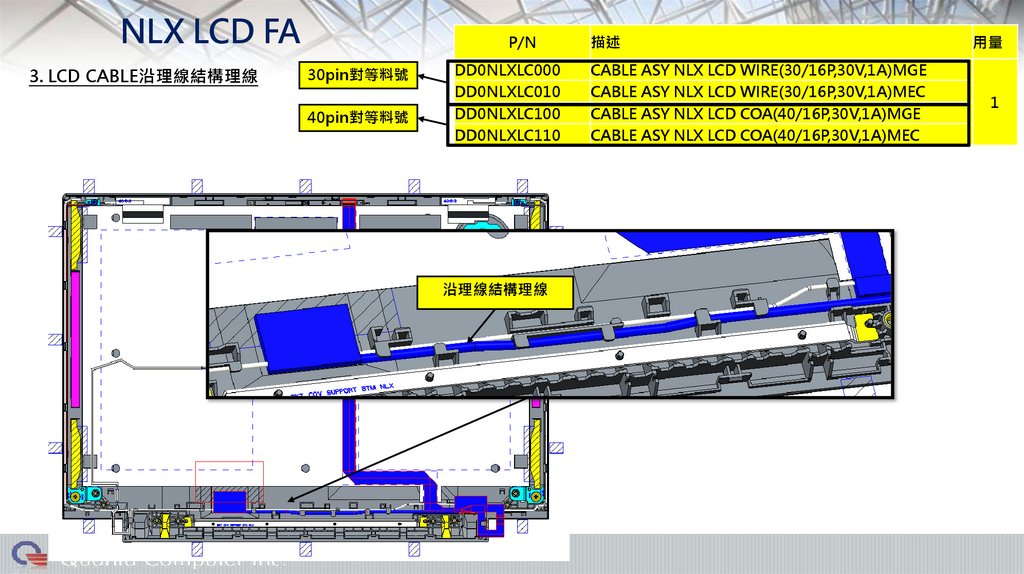

3. LCD CABLE沿理線結構理線
P/N
30pin對等料號
40pin對等料號
DD0NLXLC000
DD0NLXLC010
DD0NLXLC100
DD0NLXLC110
沿理線結構理線
描述
CABLE ASY NLX LCD WIRE(30/16P,30V,1A)MGE
CABLE ASY NLX LCD WIRE(30/16P,30V,1A)MEC
CABLE ASY NLX LCD COA(40/16P,30V,1A)MGE
CABLE ASY NLX LCD COA(40/16P,30V,1A)MEC
用量
1

6.

NLX LCD FA

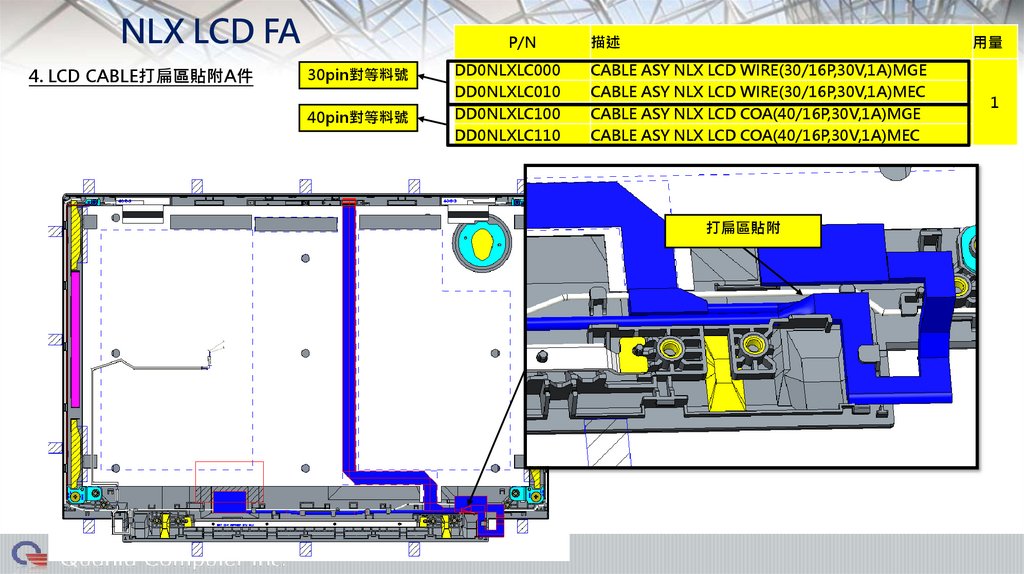

4. LCD CABLE打扁區貼附A件
P/N
30pin對等料號
40pin對等料號
DD0NLXLC000
DD0NLXLC010
DD0NLXLC100
DD0NLXLC110
描述
用量
CABLE ASY NLX LCD WIRE(30/16P,30V,1A)MGE
CABLE ASY NLX LCD WIRE(30/16P,30V,1A)MEC
CABLE ASY NLX LCD COA(40/16P,30V,1A)MGE
CABLE ASY NLX LCD COA(40/16P,30V,1A)MEC
打扁區貼附
1

7.

NLX LCD FA

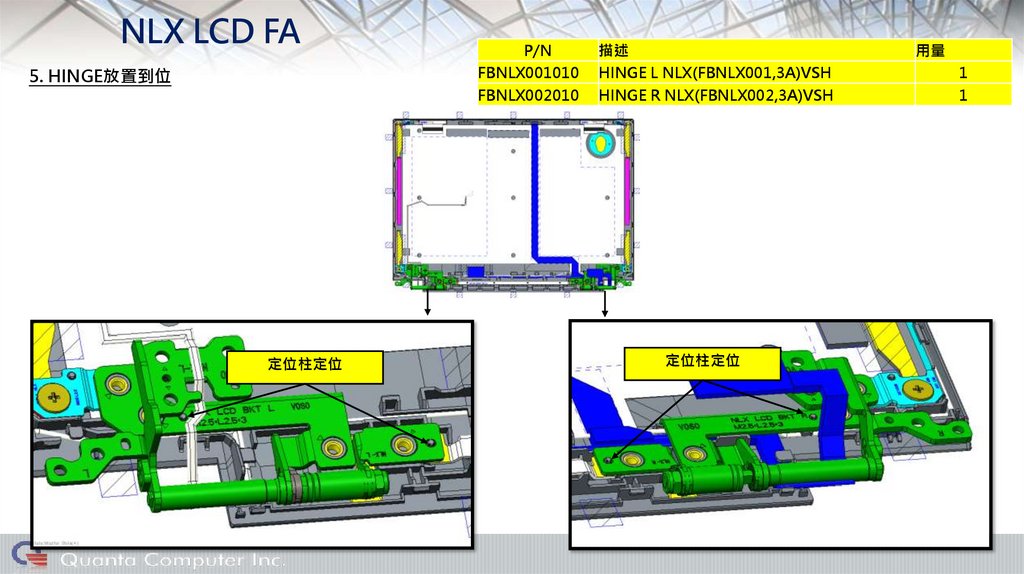

5. HINGE放置到位
定位柱定位
P/N
FBNLX001010
FBNLX002010
描述
HINGE L NLX(FBNLX001,3A)VSH
HINGE R NLX(FBNLX002,3A)VSH
定位柱定位
用量
1
1

8.

NLX LCD FA

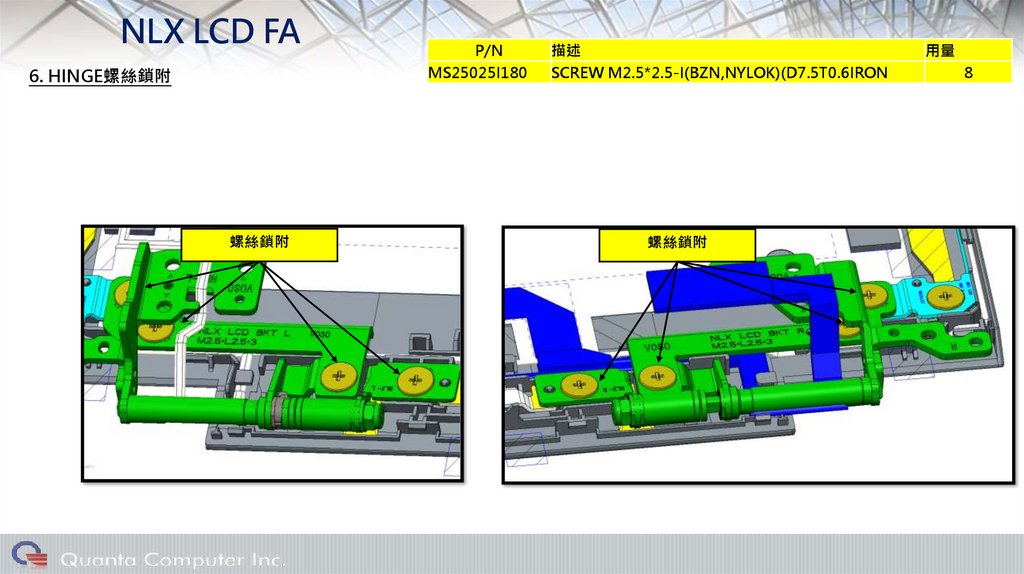

6. HINGE螺絲鎖附
螺絲鎖附
P/N
MS25025I180
描述
SCREW M2.5*2.5-I(BZN,NYLOK)(D7.5T0.6IRON
螺絲鎖附
用量
8

9.

NLX LCD FA

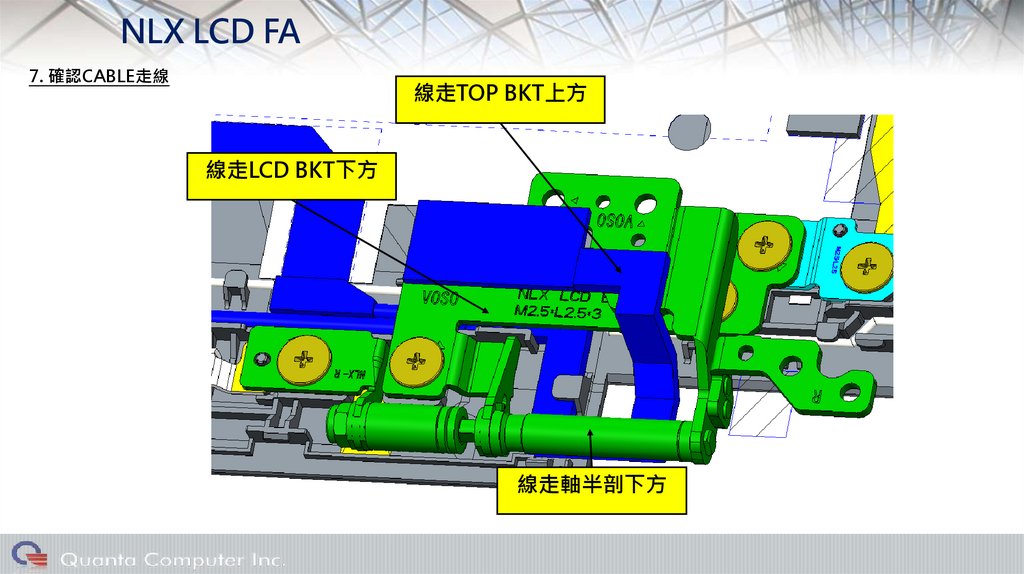

7. 確認CABLE走線
線走TOP BKT上方
線走LCD BKT下方
線走軸半剖下方

10.

NLX LCD FA

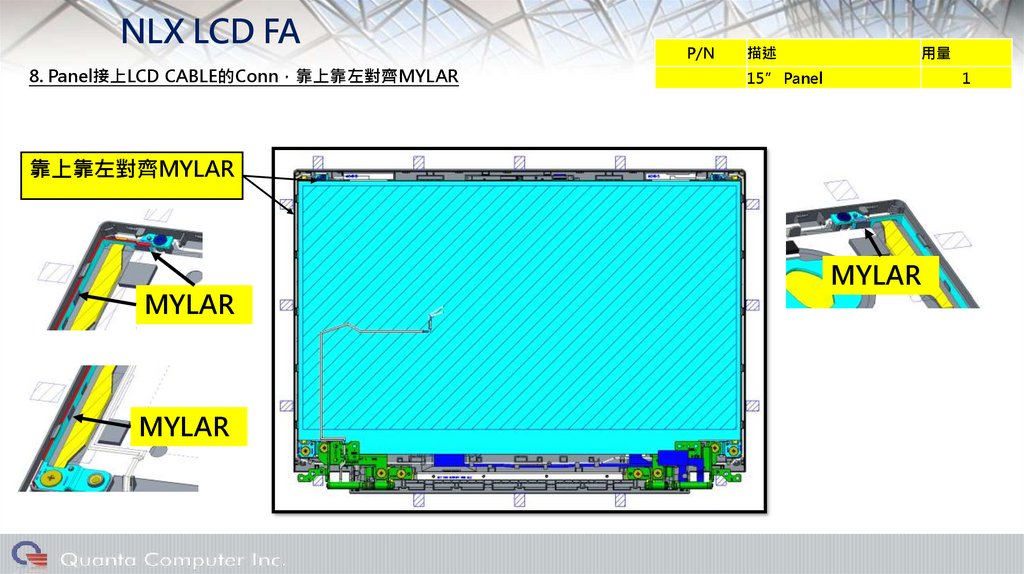

8. Panel接上LCD CABLE的Conn 靠上靠左對齊MYLAR
P/N
描述
用量
15” Panel
1
靠上靠左對齊MYLAR
MYLAR
MYLAR
MYLAR

11.

NLX LCD FA

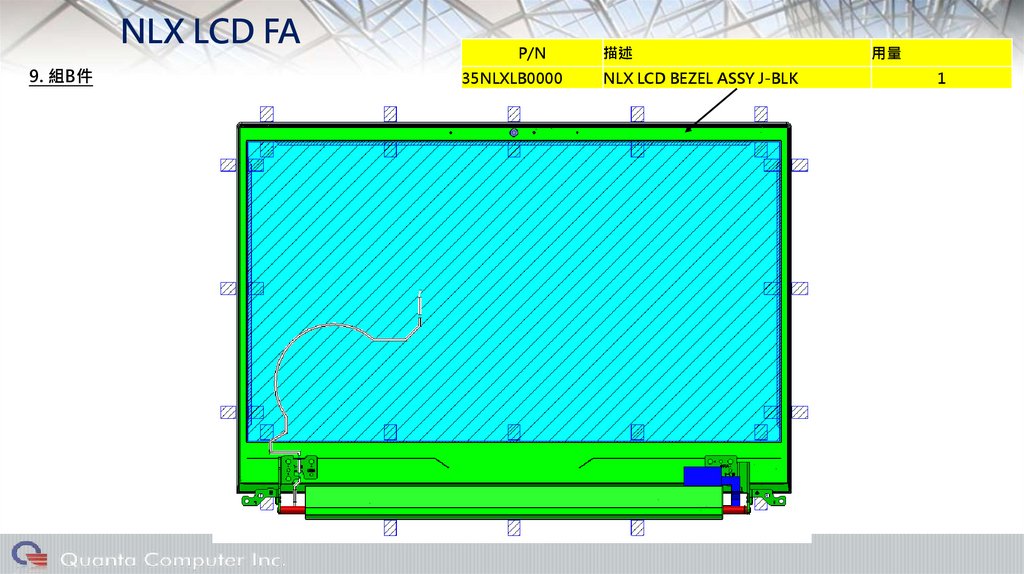

9. 組B件
P/N
35NLXLB0000
描述
NLX LCD BEZEL ASSY J-BLK
用量
1

12.

NLX TOP SA
12

13.

NLX TOP SA

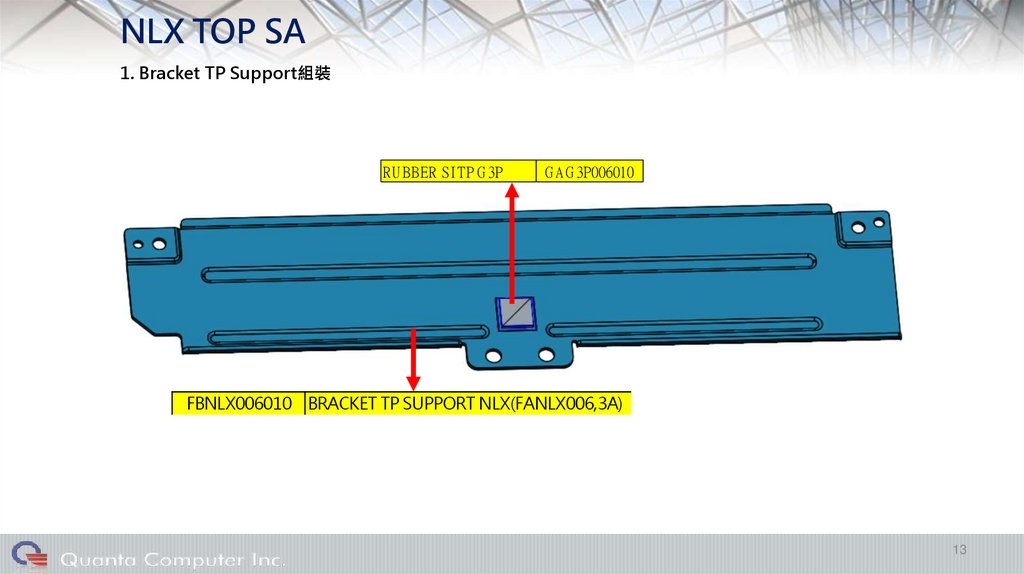

1. Bracket TP Support組裝
RU BBER SI TP G 3P
FBNLX006010
G A G 3P006010
BRACKET TP SUPPORT NLX(FANLX006,3A)
13

14.

NLX TOP SA

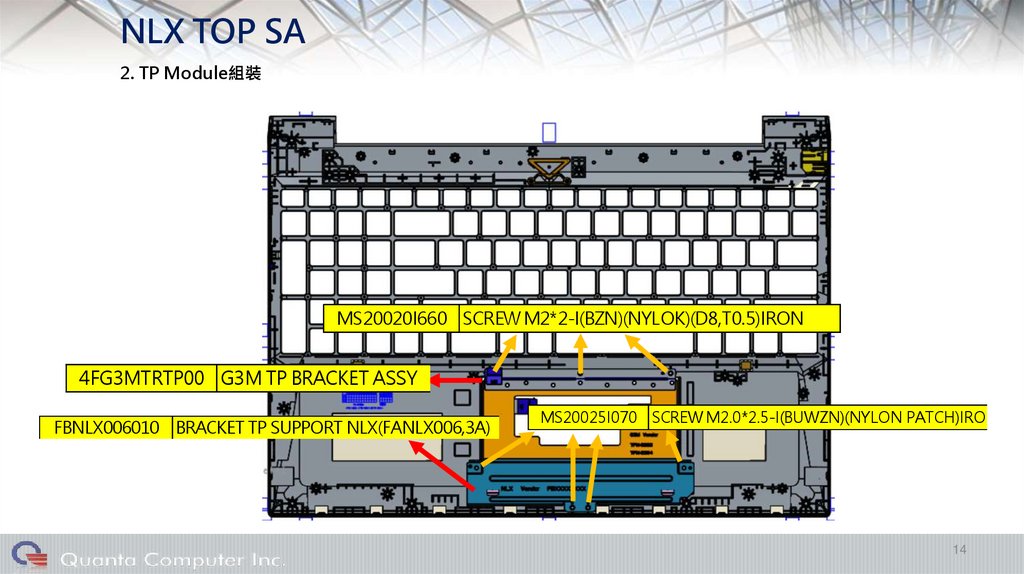

2. TP Module組裝
MS20020I660 SCREW M2*2-I(BZN)(NYLOK)(D8,T0.5)IRON
4FG3MTRTP00 G3M TP BRACKET ASSY
FBNLX006010
BRACKET TP SUPPORT NLX(FANLX006,3A)
MS20025I070 SCREW M2.0*2.5-I(BUWZN)(NYLON PATCH)IRON
14

15.

NLX TOP SA

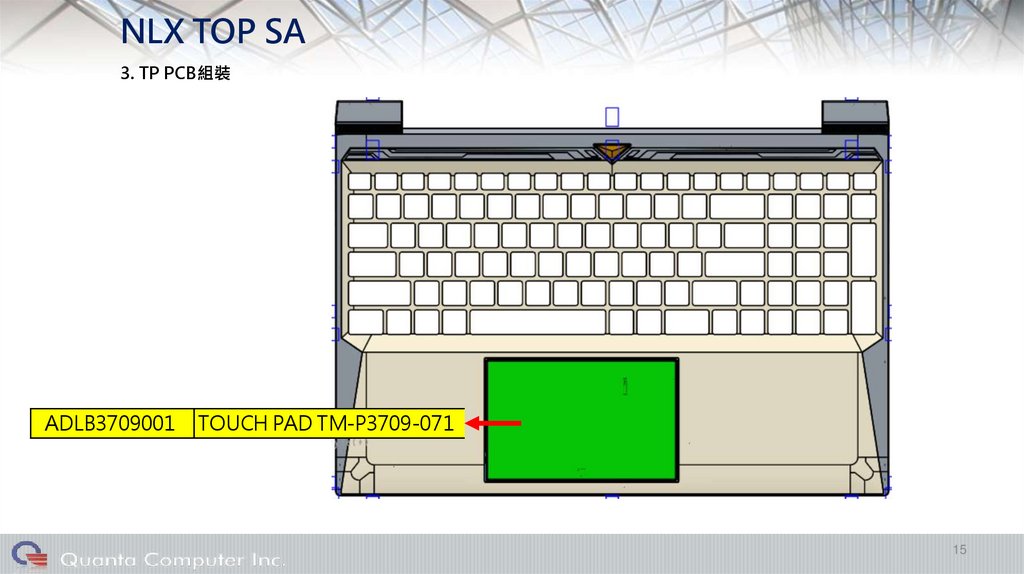

3. TP PCB組裝
ADLB3709001
TOUCH PAD TM-P3709-071
15

16.

NLX TOP SA

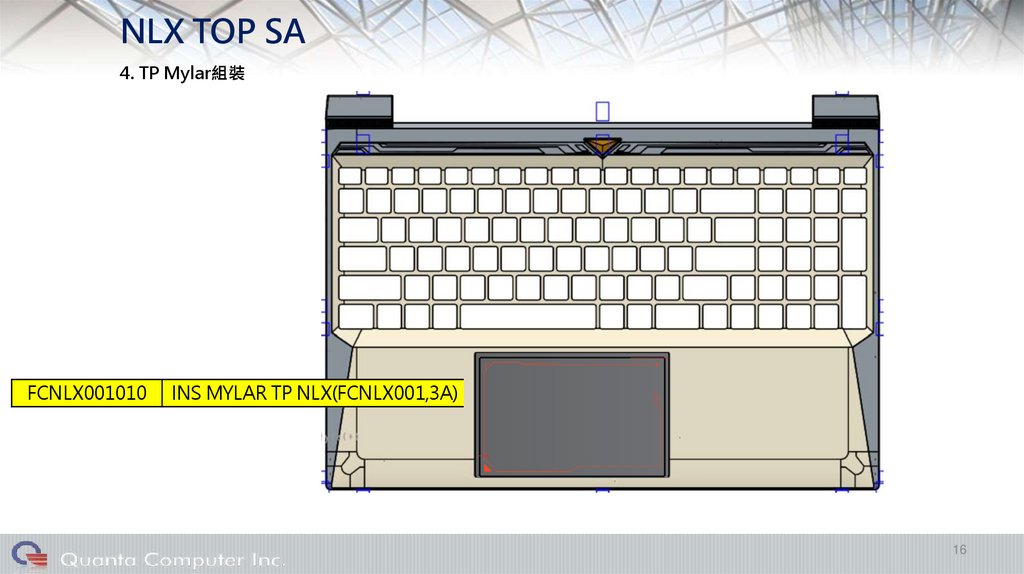

4. TP Mylar組裝
FCNLX001010
INS MYLAR TP NLX(FCNLX001,3A)
16

17.

NLX TOP SA

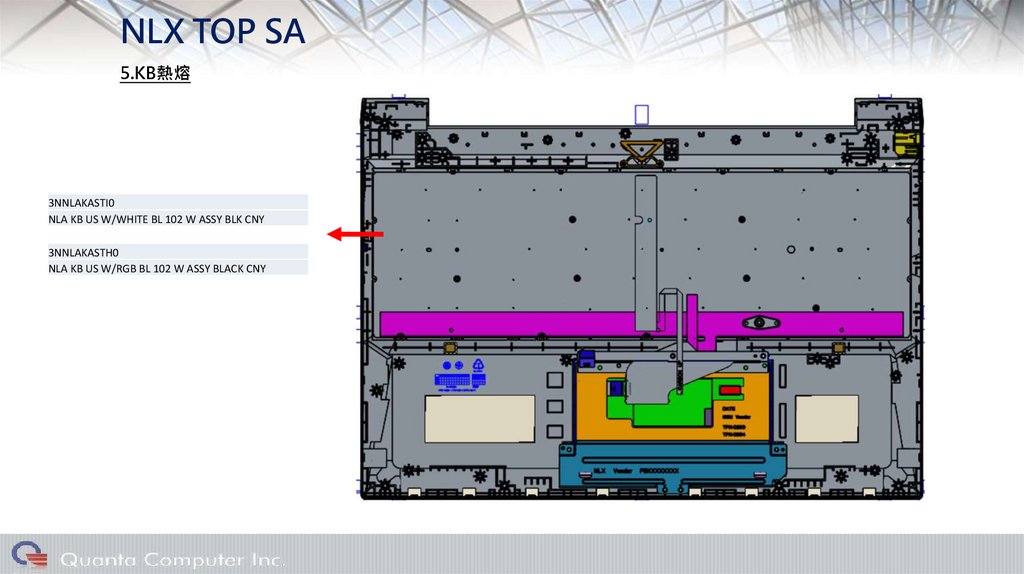

5.KB熱熔
3NNLAKASTI0
NLA KB US W/WHITE BL 102 W ASSY BLK CNY
3NNLAKASTH0
NLA KB US W/RGB BL 102 W ASSY BLACK CNY

18.

NLX TOP SA
C角朝左上

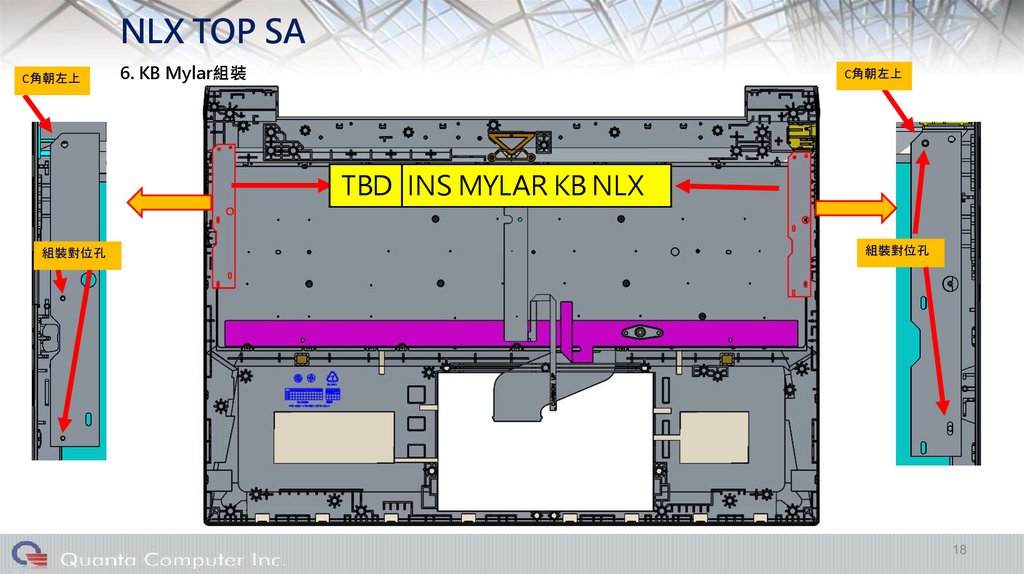

6. KB Mylar組裝
C角朝左上
TBD INS MYLAR KB NLX
組裝對位孔
組裝對位孔
18

19.

NLX TOP SA

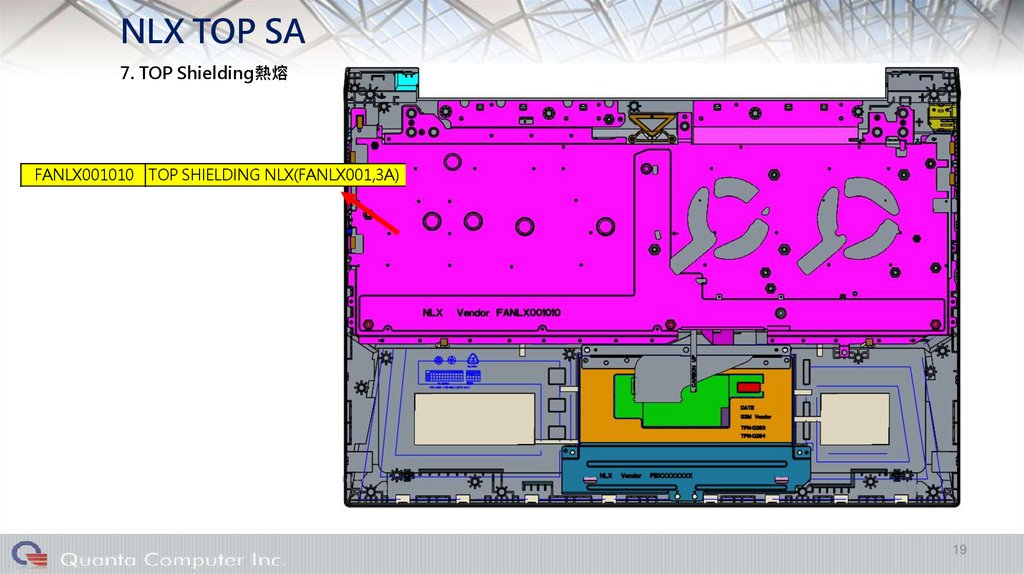

7. TOP Shielding熱熔
FANLX001010 TOP SHIELDING NLX(FANLX001,3A)
19

20.

NLX TOP SA

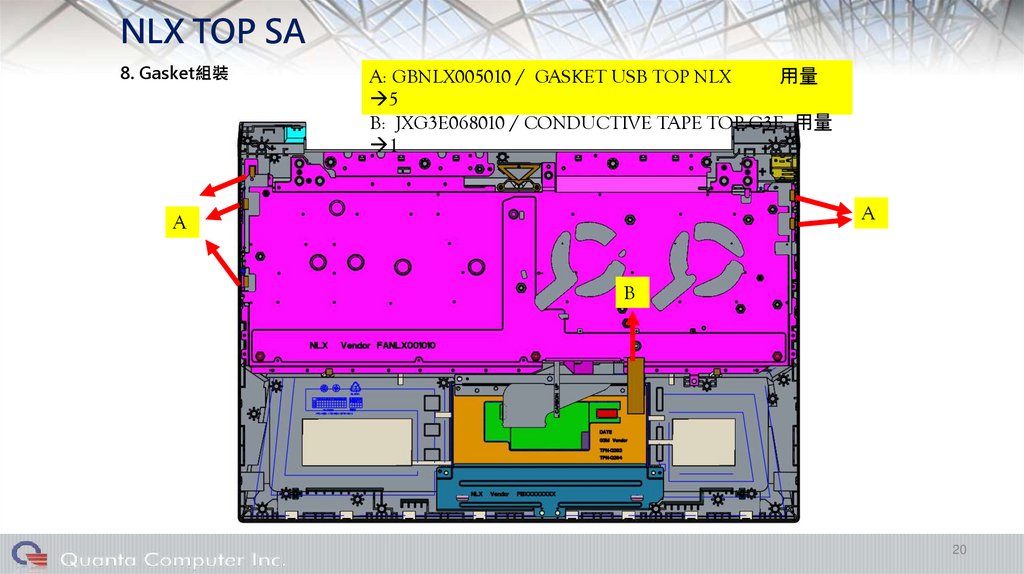

8. Gasket組裝
A: GBNLX005010 / GASKET USB TOP NLX
用量
5
B: JXG3E068010 / CONDUCTIVE TAPE TOP G3E 用量
1
A
A
B
20

21.

NLX TOP SA
9. TOP Shielding Mylar組裝
FCNLX002010
INS MYLAR TOP SHIELDING NLX(FCNLX002,3A)
FCNLX010010 INS MYLAR TP HOLDER NLX
21

22.

NLX CHASSIS FA
22

23.

FCNLX013010 MB SSD MYLAR NLX
NLX CHASSIS FA

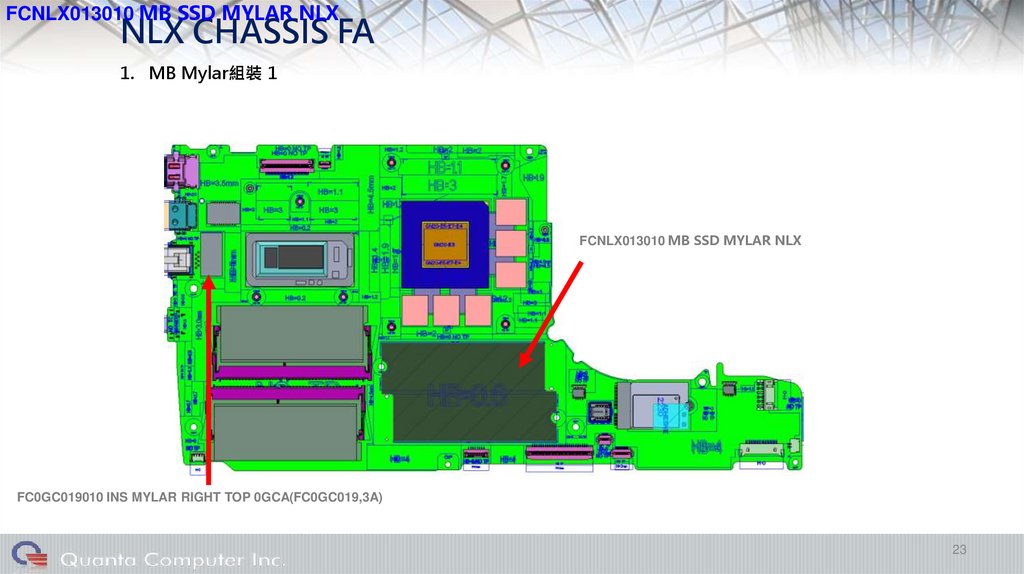

1. MB Mylar組裝 1
FCNLX013010 MB SSD MYLAR NLX
FC0GC019010 INS MYLAR RIGHT TOP 0GCA(FC0GC019,3A)
23

24.

NLX CHASSIS FA
2.MB MYLAR組裝 2
FCNLX004010 INS MYLAR MB HINGE NLX(FCNLX004,3A)
4EG3PGRTP00 G3P GPU BRACKET ASSY
FCG3N002010 INS MYLAR HINGE TOP G3N(FCG3N002,3A)
4KG3MCRTP00 G3M CPU BRACKET ASSY
FCG3N002010 INS MYLAR HINGE TOP G3N(FCG3N002,3ª 用量 2
24

25.

NLX CHASSIS FA

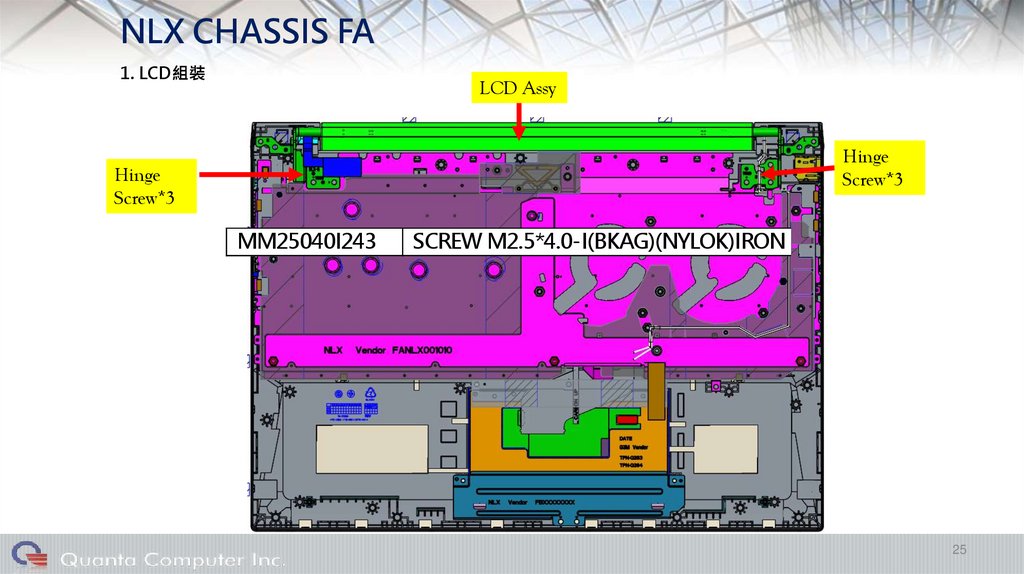

1. LCD組裝
LCD Assy
Hinge
Screw*3
Hinge
Screw*3
MM25040I243
SCREW M2.5*4.0-I(BKAG)(NYLOK)IRON
25

26.

NLX CHASSIS FA
2. Venting組裝
3YNLXFA0030
NLX FRAME TOP VENTING 80W ASSY M-RE ERA
MS20065I150 *1
MS20065I150
SCREW M2.0*6.5-I(BZN)(NYLOK)D4.6T0.8IRON
MS20020I660
MS20020I660 *4
SCREW M2*2-I(BZN)(NYLOK)(D8,T0.5)IRON
26

27.

NLX CHASSIS FA

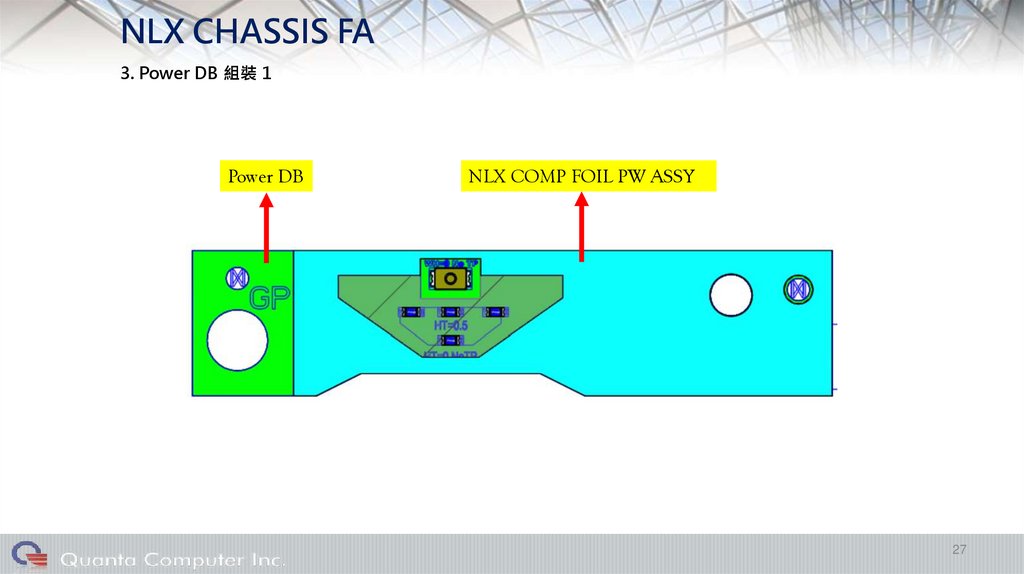

3. Power DB 組裝 1
Power DB
NLX COMP FOIL PW ASSY
27

28.

NLX CHASSIS FA
Power DB

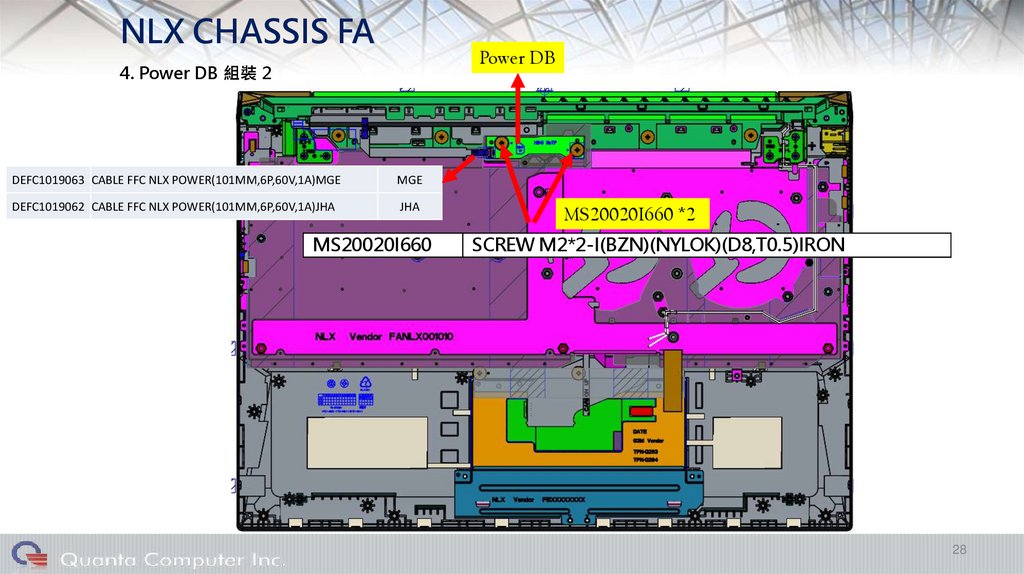

4. Power DB 組裝 2
DEFC1019063 CABLE FFC NLX POWER(101MM,6P,60V,1A)MGE
MGE
DEFC1019062 CABLE FFC NLX POWER(101MM,6P,60V,1A)JHA
JHA
MS20020I660
MS20020I660 *2
SCREW M2*2-I(BZN)(NYLOK)(D8,T0.5)IRON
28

29.

NLX CHASSIS FA

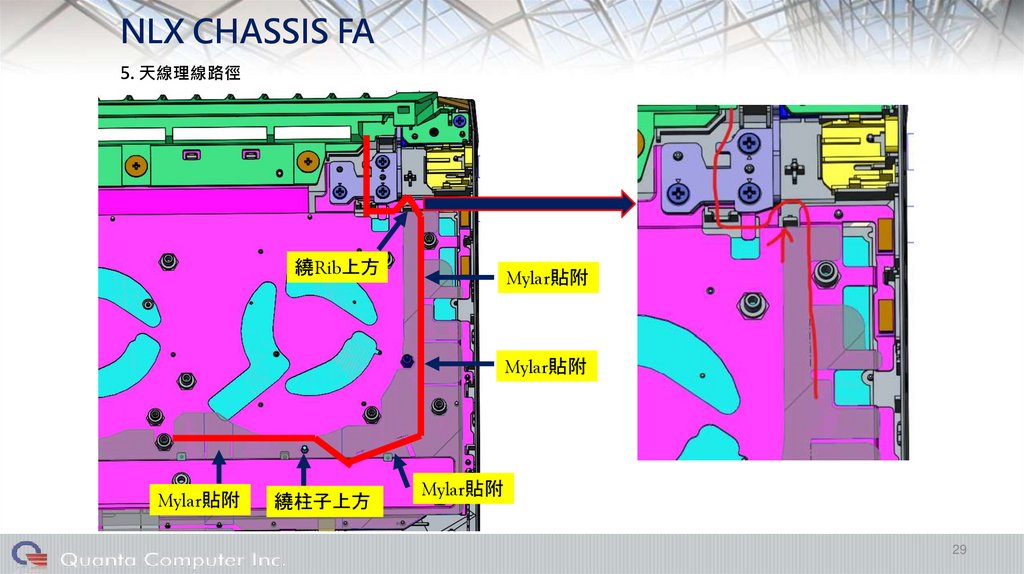

5. 天線理線路徑
繞Rib上方
Mylar貼附
Mylar貼附
Mylar貼附
繞柱子上方
Mylar貼附
29

30.

NLX CHASSIS FA

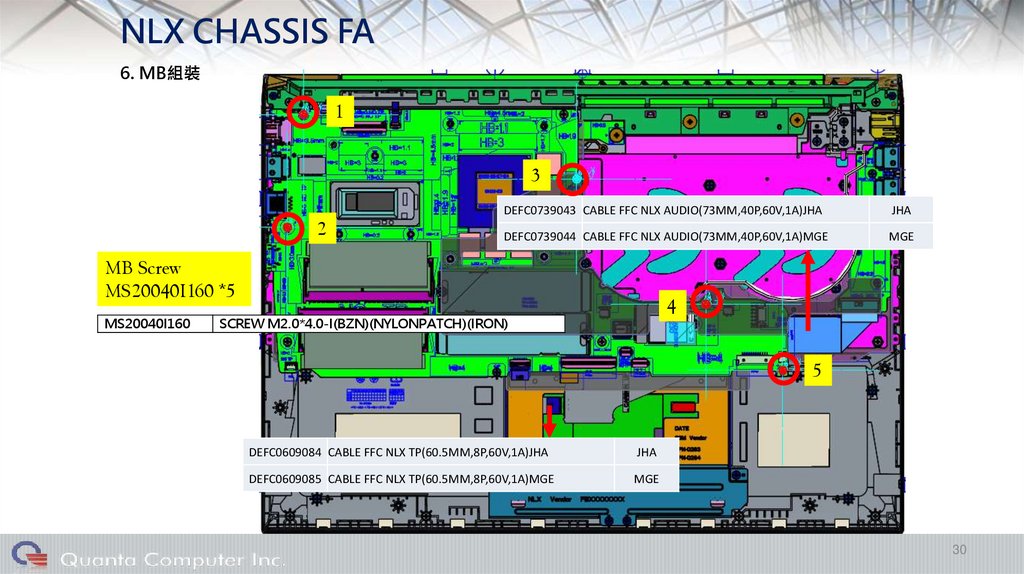

6. MB組裝
1
3
2
DEFC0739043 CABLE FFC NLX AUDIO(73MM,40P,60V,1A)JHA
JHA
DEFC0739044 CABLE FFC NLX AUDIO(73MM,40P,60V,1A)MGE
MGE
MB Screw
MS20040I160 *5
MS20040I160
4
SCREW M2.0*4.0-I(BZN)(NYLONPATCH)(IRON)
5
DEFC0609084 CABLE FFC NLX TP(60.5MM,8P,60V,1A)JHA
JHA
DEFC0609085 CABLE FFC NLX TP(60.5MM,8P,60V,1A)MGE
MGE
30

31.

NLX CHASSIS FA

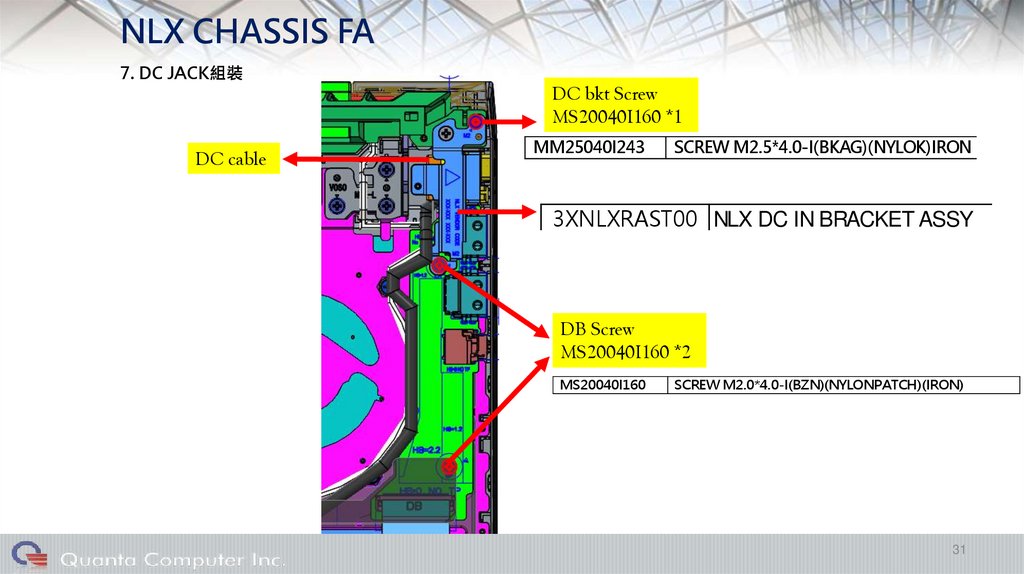

7. DC JACK組裝
DC bkt Screw
MS20040I160 *1
DC cable
MM25040I243
SCREW M2.5*4.0-I(BKAG)(NYLOK)IRON
3XNLXRAST00 NLX DC IN BRACKET ASSY
DB Screw
MS20040I160 *2
MS20040I160
SCREW M2.0*4.0-I(BZN)(NYLONPATCH)(IRON)
31

32.

NLX CHASSIS FA

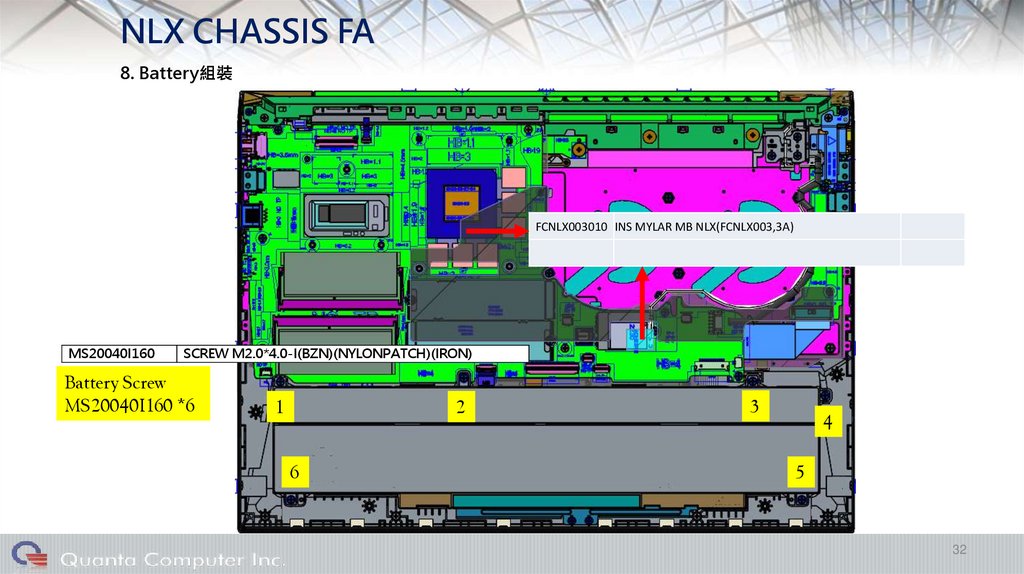

8. Battery組裝
FCNLX003010 INS MYLAR MB NLX(FCNLX003,3A)
MS20040I160
SCREW M2.0*4.0-I(BZN)(NYLONPATCH)(IRON)
Battery Screw
MS20040I160 *6
1
2
6
3
4
5
32

33.

NLX CHASSIS FA

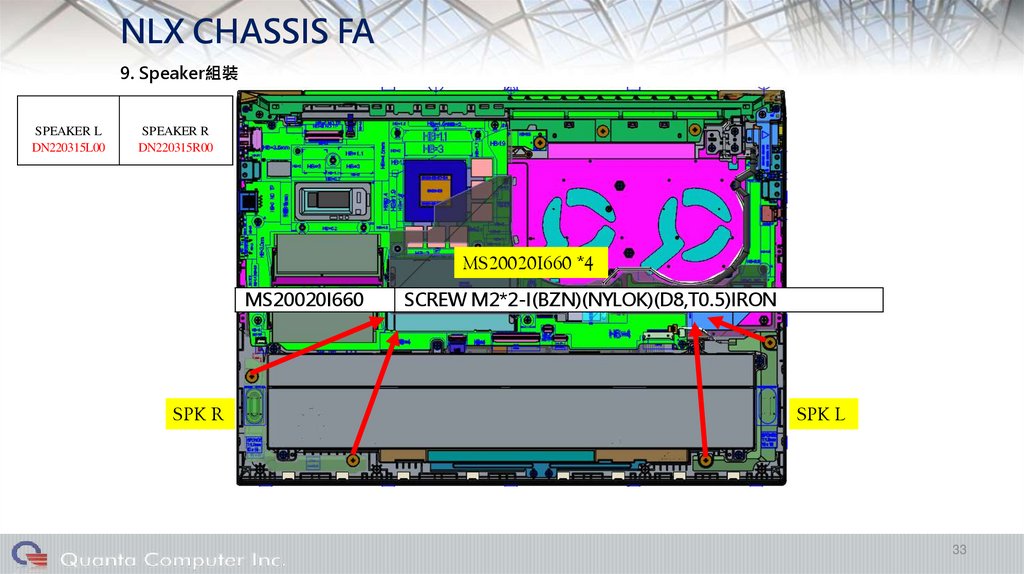

9. Speaker組裝
SPEAKER L
DN220315L00
SPEAKER R
DN220315R00
MS20020I660 *4
MS20020I660
SPK R
SCREW M2*2-I(BZN)(NYLOK)(D8,T0.5)IRON
SPK L
33

34.

NLX CHASSIS FA

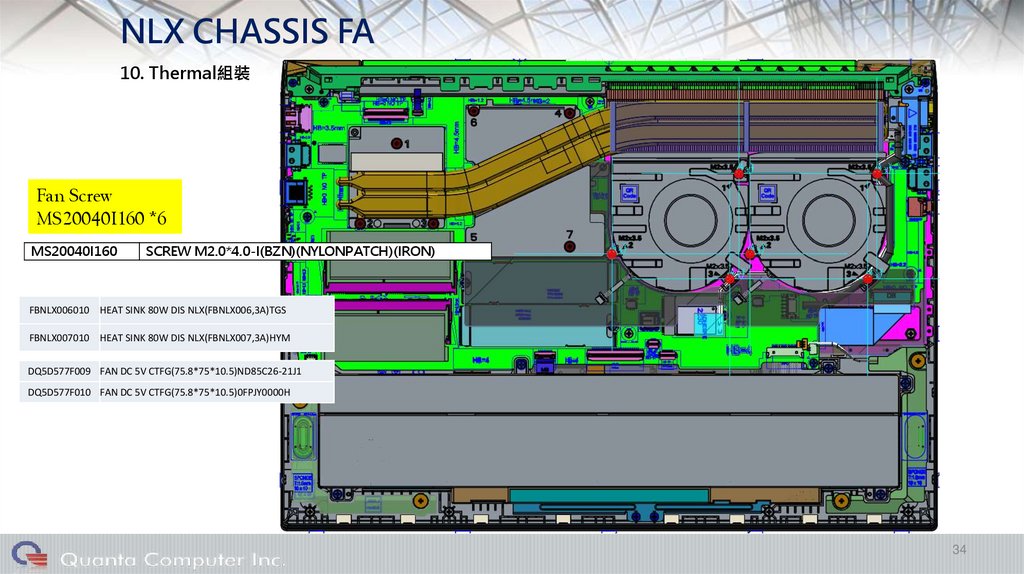

10. Thermal組裝
Fan Screw
MS20040I160 *6
MS20040I160
SCREW M2.0*4.0-I(BZN)(NYLONPATCH)(IRON)
FBNLX006010 HEAT SINK 80W DIS NLX(FBNLX006,3A)TGS
FBNLX007010 HEAT SINK 80W DIS NLX(FBNLX007,3A)HYM
DQ5D577F009 FAN DC 5V CTFG(75.8*75*10.5)ND85C26-21J1
DQ5D577F010 FAN DC 5V CTFG(75.8*75*10.5)0FPJY0000H
34

35.

NLX CHASSIS FA

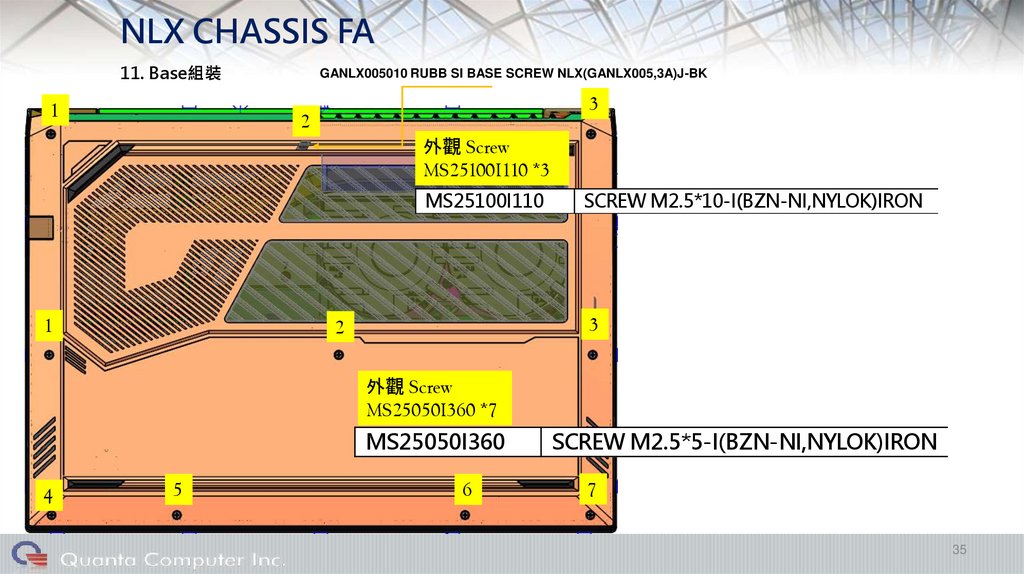

11. Base組裝
1
GANLX005010 RUBB SI BASE SCREW NLX(GANLX005,3A)J-BK
3
2
外觀 Screw
MS25100I110 *3
MS25100I110
1
SCREW M2.5*10-I(BZN-NI,NYLOK)IRON
3
2
外觀 Screw
MS25050I360 *7
MS25050I360
4
5
6
SCREW M2.5*5-I(BZN-NI,NYLOK)IRON
7
35
