1. Diapositiva 1

2. Training at profigas, kiev 2010-09-15,16

LANDIRENZO Alternative Fuel Systems
Training at profigas, kiev 2010-09-15,16

3. Diapositiva 3

System Overview

4. Landi Systems Overview

Landi designs and produces “ready to go” LPG / CNG systems covering
Landi focuses on optimising the installation process, engine endurance, vehicle
performance and exhaust emissions
CNG/LPG systems mainly consist of the following components:
– OEM and aftermarket installation
– Any type of alternative fuel from LPG to CNG and CNG hydrogen
mixture
–
–
–
–
–
–
Pressure reducers and vaporizer (only LPG)
Valves / electrical valves
Injectors
Electronic control units
Switches
Air / fuel mixers
Landi does not produce the tank
Landi gas fuel systems are installed “on top” of the existing petrol fuel system,
allowing the vehicle to be operated by both fuels

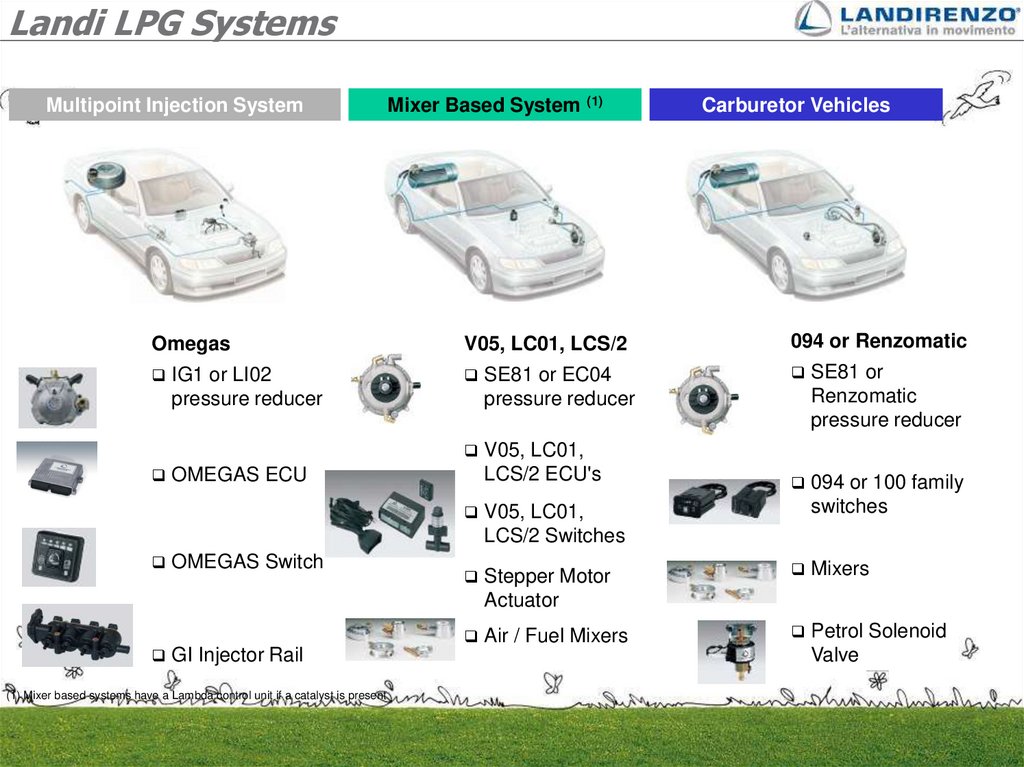

5. Landi LPG Systems

Multipoint Injection System
Mixer Based System (1)
Carburetor Vehicles
Omegas
V05, LC01, LCS/2
094 or Renzomatic
IG1 or LI02
SE81 or EC04
SE81 or
pressure reducer
pressure reducer
Renzomatic
pressure reducer
V05, LC01,
OMEGAS ECU
LCS/2 ECU's
V05, LC01,
094 or 100 family
switches
LCS/2 Switches
OMEGAS Switch
Stepper Motor
Mixers
Actuator
Air / Fuel Mixers
GI Injector Rail
(1) Mixer based systems have a Lambda control unit if a catalyst is present
Petrol Solenoid
Valve

6. Diapositiva 6

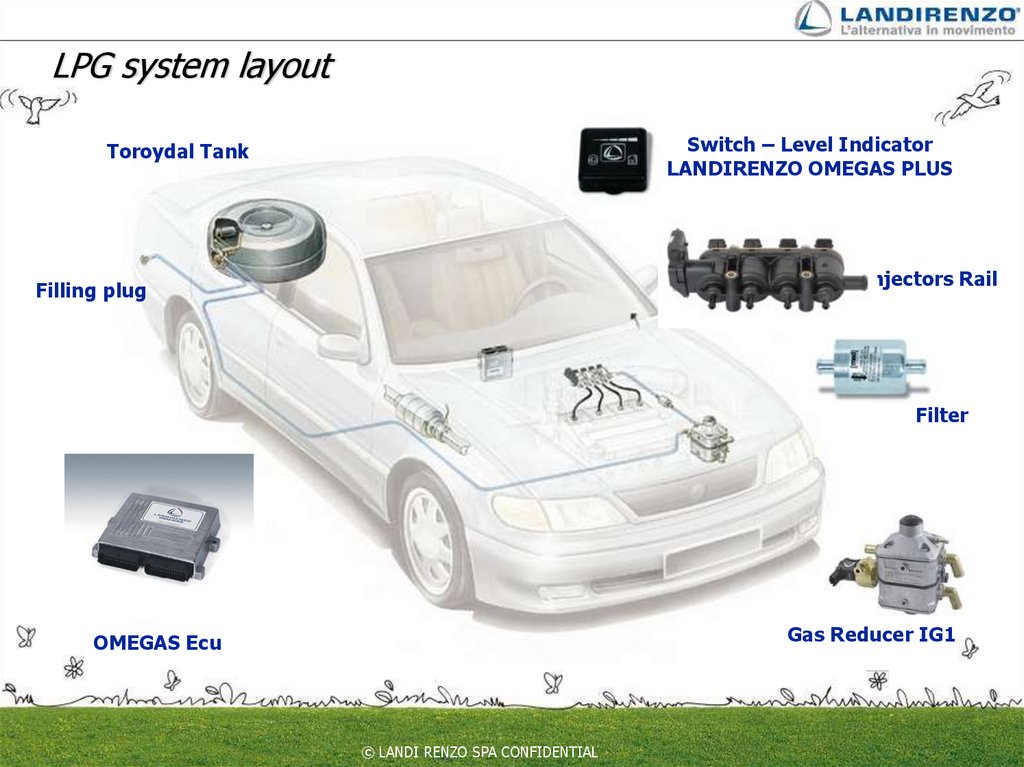

LPG system layout
Switch – Level Indicator
LANDIRENZO OMEGAS PLUS
Toroydal Tank
Injectors Rail
Filling plug
Filter
Gas Reducer IG1
OMEGAS Ecu
© LANDI RENZO SPA CONFIDENTIAL

7. Diapositiva 7

Omegas main components Overview

8. Diapositiva 8

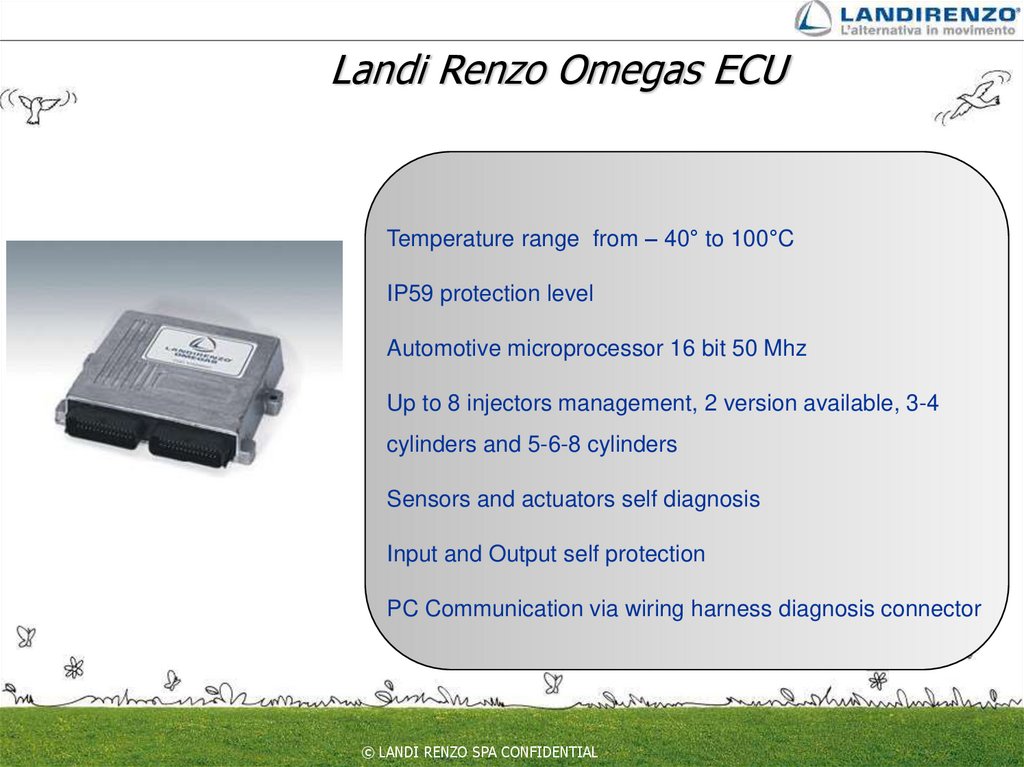

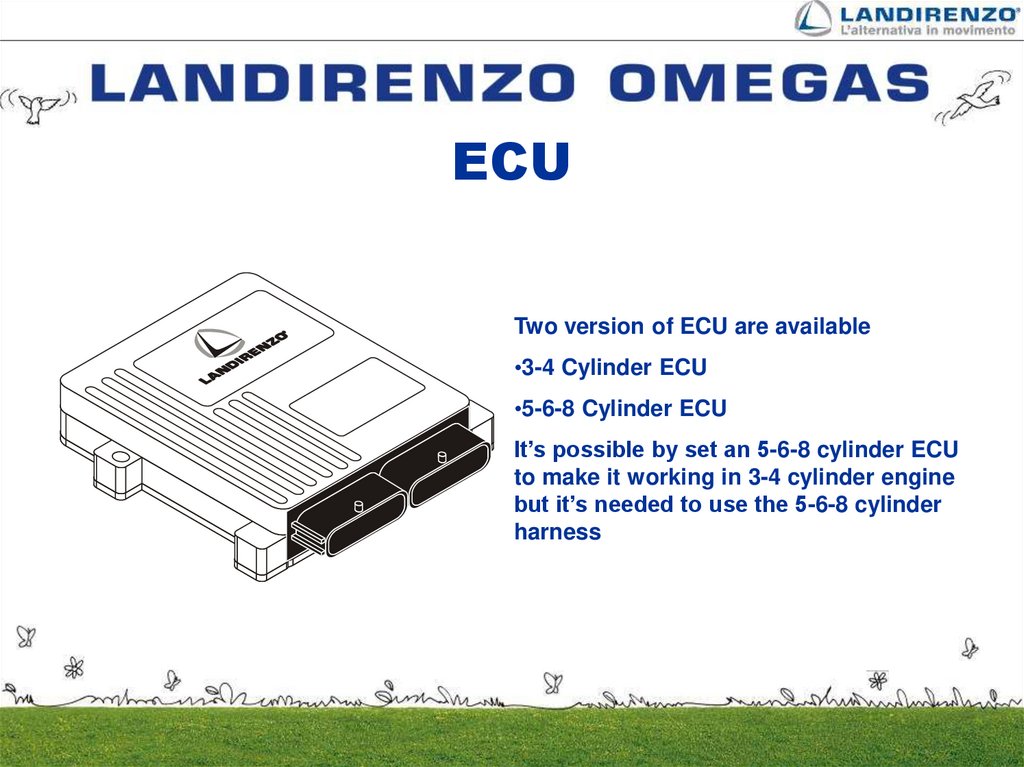

Landi Renzo Omegas ECU
Temperature range from – 40° to 100°C
IP59 protection level
Automotive microprocessor 16 bit 50 Mhz
Up to 8 injectors management, 2 version available, 3-4
cylinders and 5-6-8 cylinders
Sensors and actuators self diagnosis
Input and Output self protection
PC Communication via wiring harness diagnosis connector
© LANDI RENZO SPA CONFIDENTIAL

9. Diapositiva 9

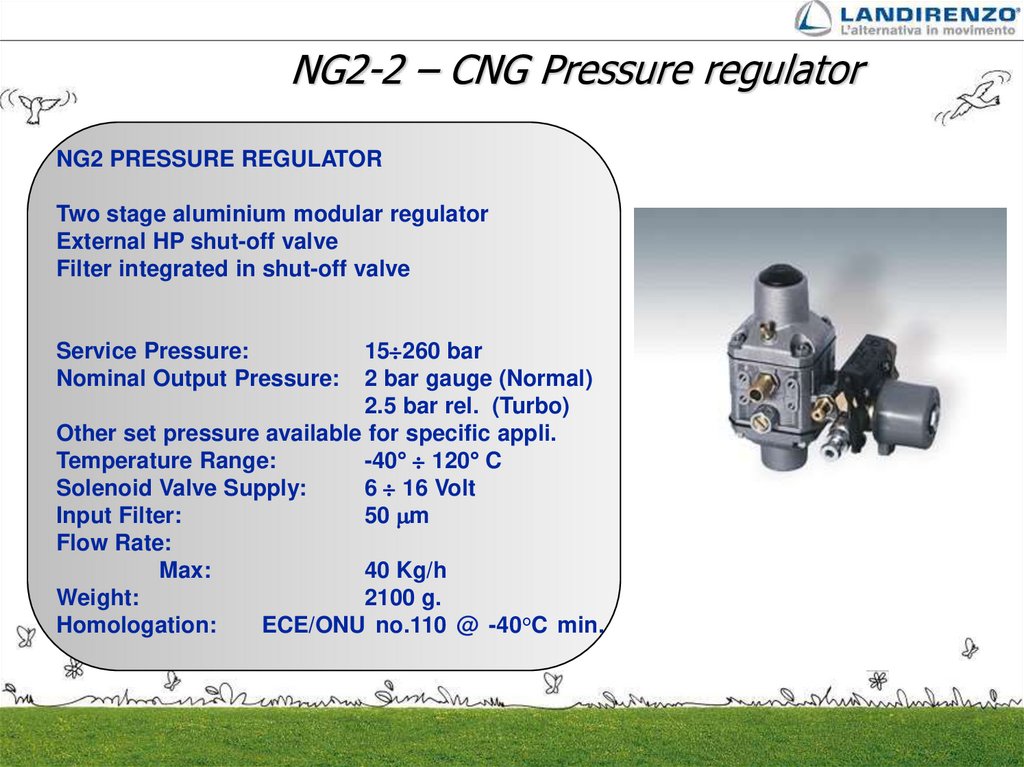

NG2-2 – CNG Pressure regulator
NG2 PRESSURE REGULATOR
Two stage aluminium modular regulator
External HP shut-off valve
Filter integrated in shut-off valve
Service Pressure:
Nominal Output Pressure:
15 260 bar
2 bar gauge (Normal)
2.5 bar rel. (Turbo)
Other set pressure available for specific appli.
Temperature Range:
-40° 120° C
Solenoid Valve Supply:
6 16 Volt
Input Filter:
50 m
Flow Rate:
Max:
40 Kg/h
Weight:
2100 g.
Homologation:
ECE/ONU no.110 @ -40°C min.

10. Diapositiva 10

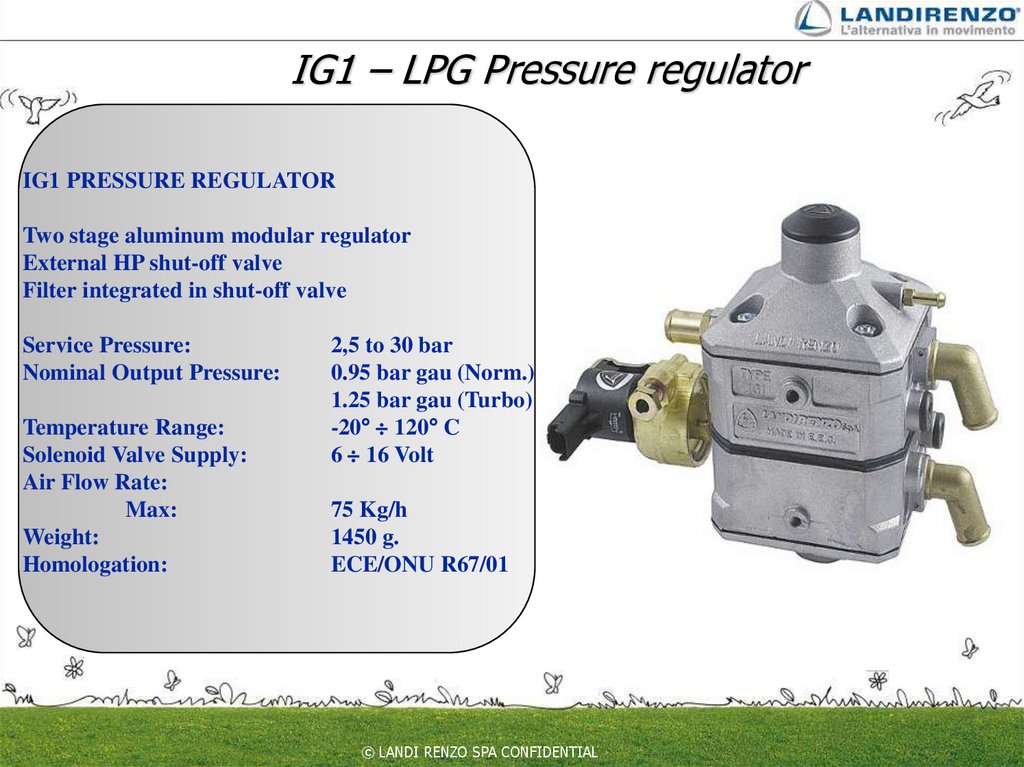

IG1 – IG1
LPG Pressure
regulator
Landi Renzo
Pressure
Regulator
IG1 PRESSURE REGULATOR
Two stage aluminum modular regulator
External HP shut-off valve
Filter integrated in shut-off valve
Service Pressure:
Nominal Output Pressure:
Temperature Range:
Solenoid Valve Supply:
Air Flow Rate:
Max:
Weight:
Homologation:
2,5 to 30 bar
0.95 bar gau (Norm.)
1.25 bar gau (Turbo)
-20° 120° C
6 16 Volt
75 Kg/h
1450 g.
ECE/ONU R67/01
© LANDI RENZO SPA CONFIDENTIAL

11. Diapositiva 11

LI02 –LI02
LPG Pressure
regulator
Landi Renzo
Pressure
Regulator
LI02 PRESSURE REGULATOR
Single aluminum regulator
External HP shut-off valve
Filter integrated in shut-off valve
Service Pressure:
Nominal Output Pressure:
Temperature Range:
Solenoid Valve Supply:
Flow Rate:
Max:
Weight:
Homologation:
R67/01
2,5 to 27 bar
0,95 bar
-20° 120° C
6 16 Volt
28 Kg/h of LPG
1250 g.
ECE/ONU
© LANDI RENZO SPA CONFIDENTIAL

12. Diapositiva 12

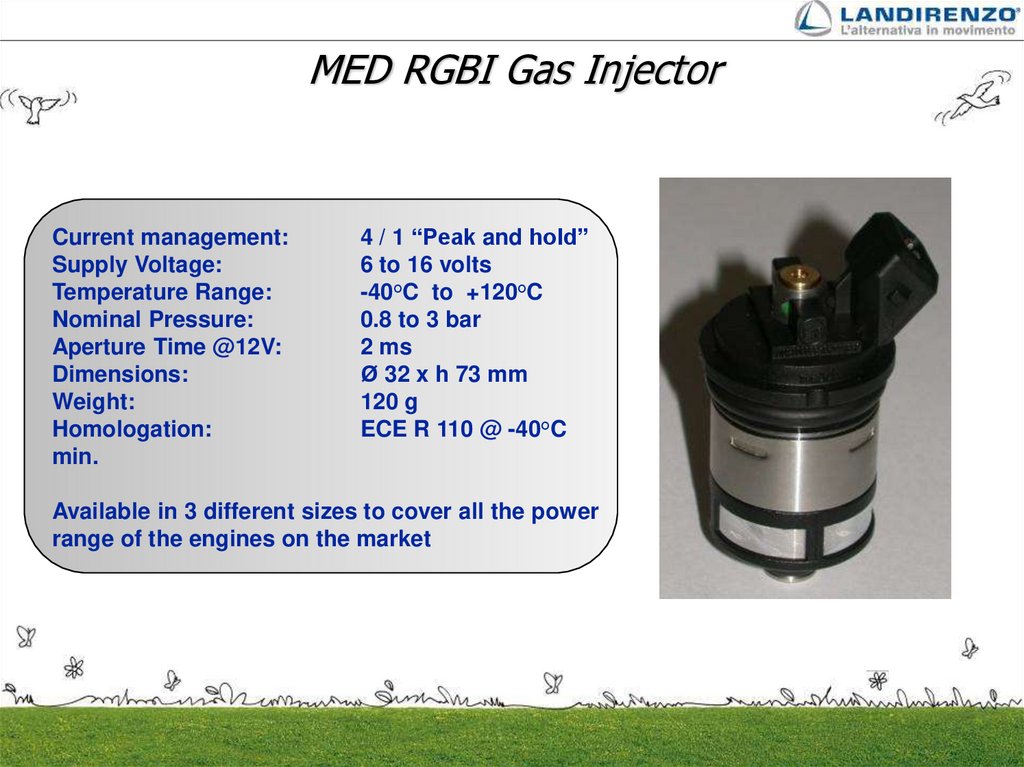

MED RGBI Gas Injector
Current management:
Supply Voltage:
Temperature Range:
Nominal Pressure:
Aperture Time @12V:
Dimensions:
Weight:
Homologation:
min.
4 / 1 “Peak and hold”
6 to 16 volts
-40°C to +120°C
0.8 to 3 bar
2 ms
Ø 32 x h 73 mm
120 g
ECE R 110 @ -40°C
Available in 3 different sizes to cover all the power
range of the engines on the market

13. Diapositiva 13

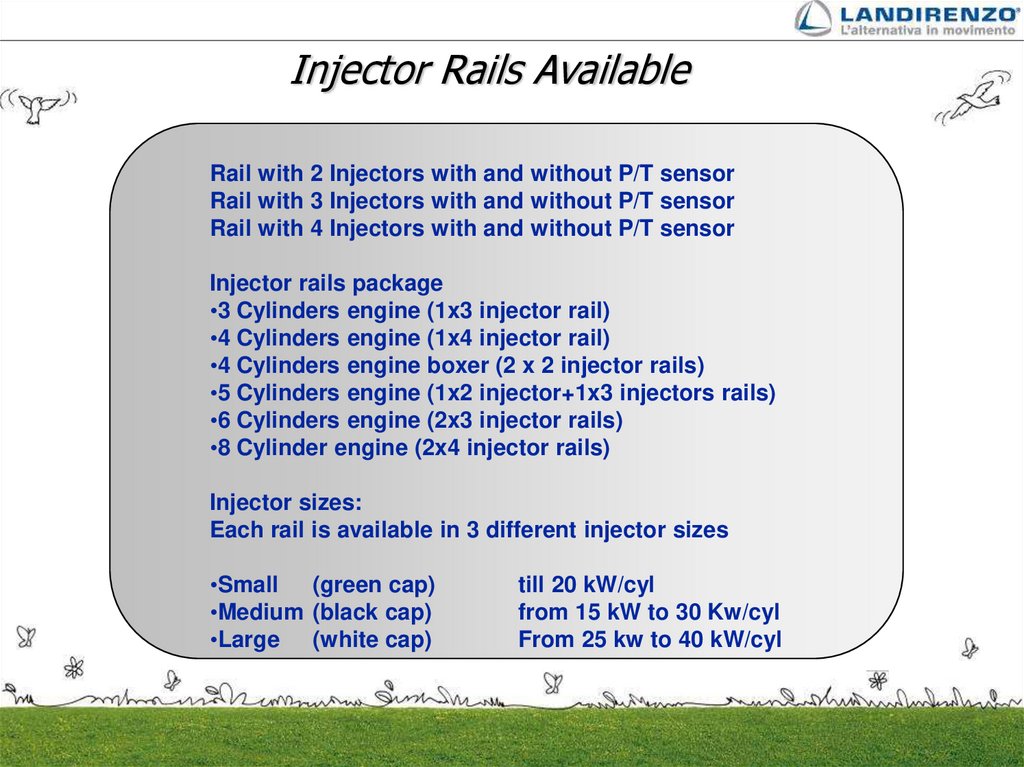

Injector Rails Available
Rail with 2 Injectors with and without P/T sensor
Rail with 3 Injectors with and without P/T sensor
Rail with 4 Injectors with and without P/T sensor
Injector rails package
•3 Cylinders engine (1x3 injector rail)
•4 Cylinders engine (1x4 injector rail)
•4 Cylinders engine boxer (2 x 2 injector rails)
•5 Cylinders engine (1x2 injector+1x3 injectors rails)
•6 Cylinders engine (2x3 injector rails)
•8 Cylinder engine (2x4 injector rails)
Injector sizes:
Each rail is available in 3 different injector sizes
•Small (green cap)
•Medium (black cap)
•Large (white cap)
till 20 kW/cyl
from 15 kW to 30 Kw/cyl
From 25 kw to 40 kW/cyl

14. Diapositiva 14

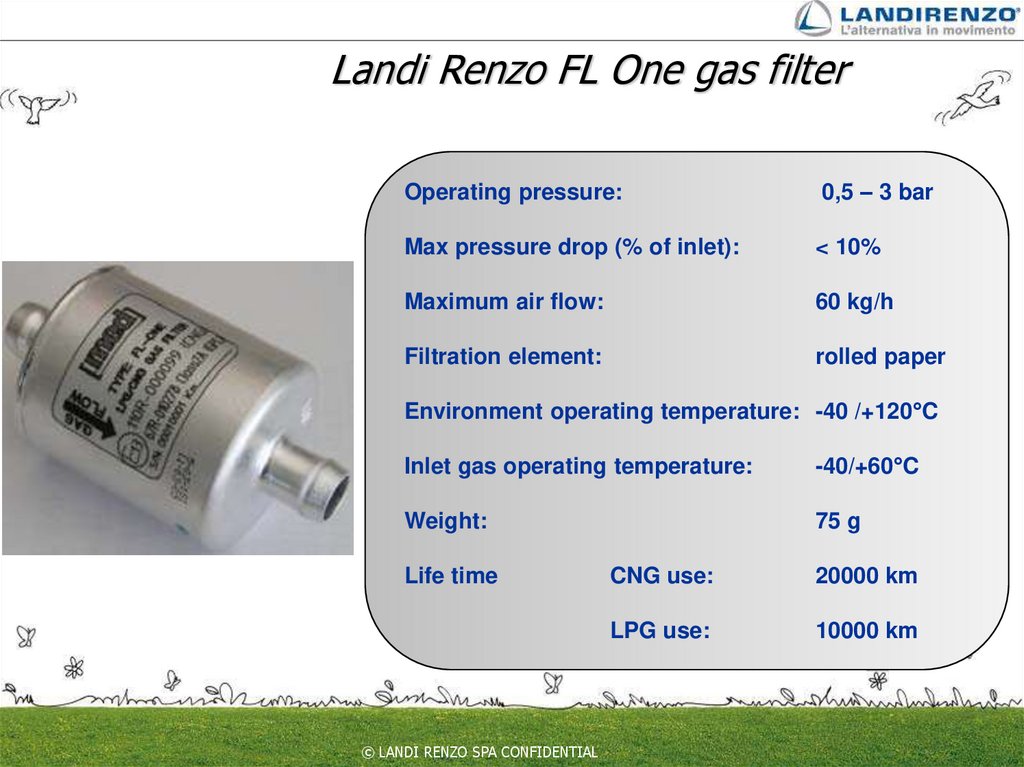

Landi Renzo FL One gas filter
Operating pressure:
0,5 – 3 bar
Max pressure drop (% of inlet):
< 10%
Maximum air flow:
60 kg/h
Filtration element:
rolled paper
Environment operating temperature: -40 /+120°C
Inlet gas operating temperature:
-40/+60°C
Weight:
75 g
Life time
© LANDI RENZO SPA CONFIDENTIAL
CNG use:
20000 km
LPG use:
10000 km

15. Diapositiva 15

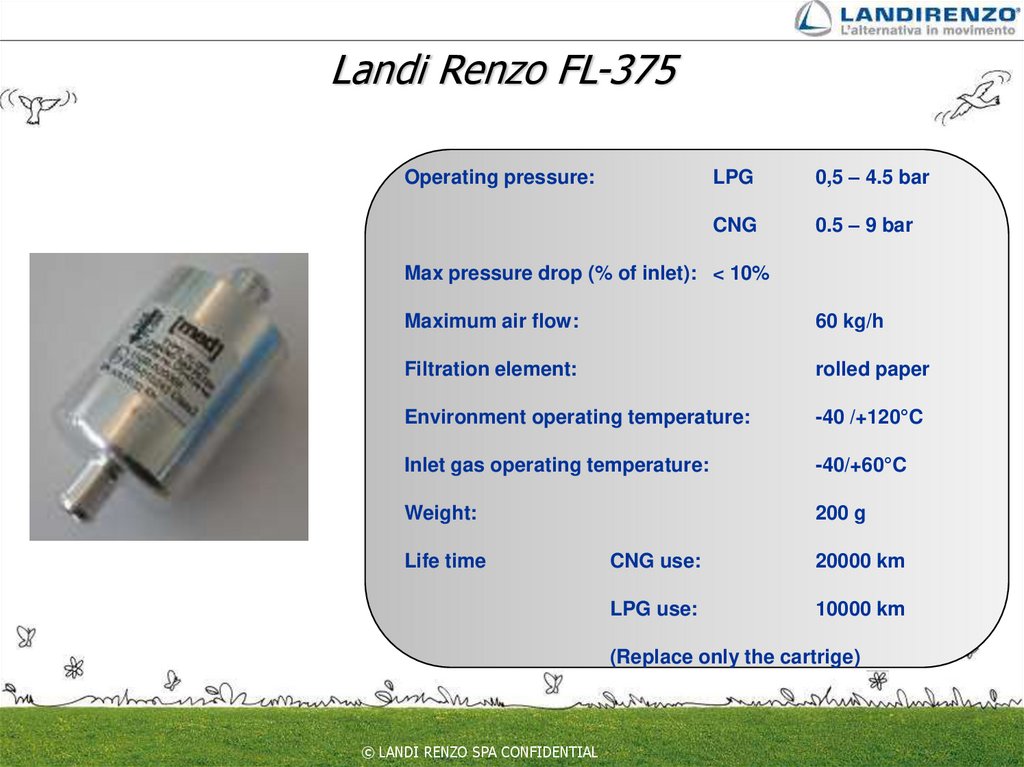

Landi Renzo FL-375
Operating pressure:
LPG
0,5 – 4.5 bar
CNG
0.5 – 9 bar
Max pressure drop (% of inlet): < 10%
Maximum air flow:
60 kg/h
Filtration element:
rolled paper
Environment operating temperature:
-40 /+120°C
Inlet gas operating temperature:
-40/+60°C
Weight:
200 g
Life time
CNG use:
20000 km
LPG use:
10000 km
(Replace only the cartrige)
© LANDI RENZO SPA CONFIDENTIAL

16. Diapositiva 16

Omegas system features

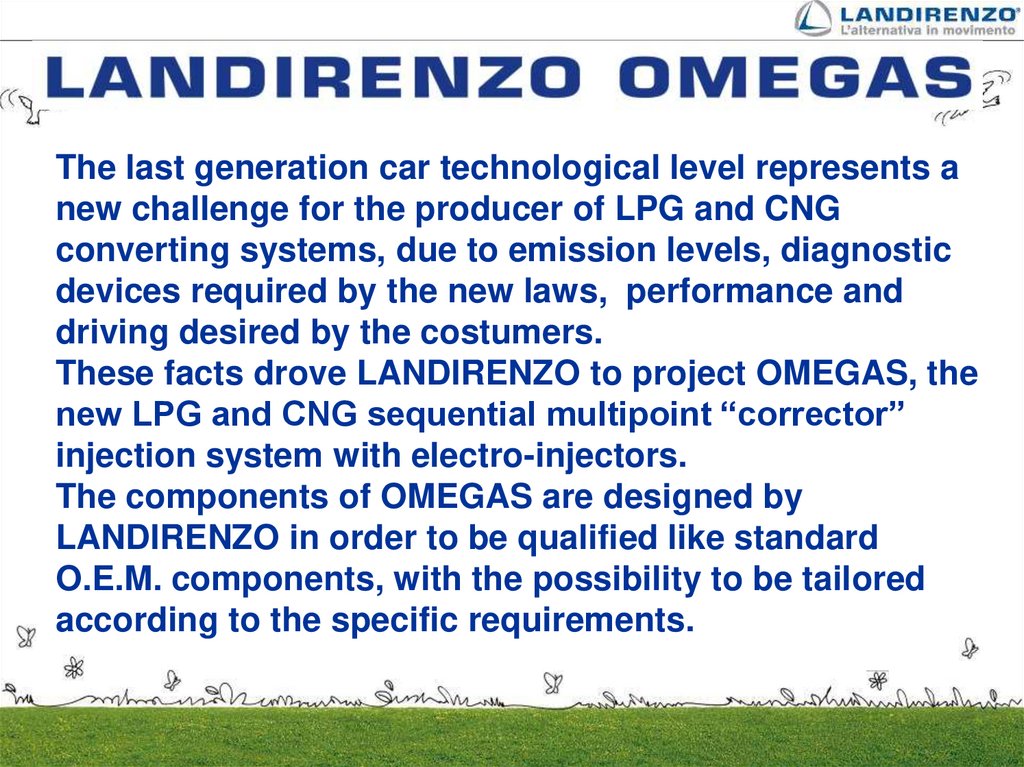

17. Omegas system features

The last generation car technological level represents a
new challenge for the producer of LPG and CNG
converting systems, due to emission levels, diagnostic
devices required by the new laws, performance and
driving desired by the costumers.
These facts drove LANDIRENZO to project OMEGAS, the
new LPG and CNG sequential multipoint “corrector”
injection system with electro-injectors.
The components of OMEGAS are designed by
LANDIRENZO in order to be qualified like standard
O.E.M. components, with the possibility to be tailored
according to the specific requirements.

18. Diapositiva 18

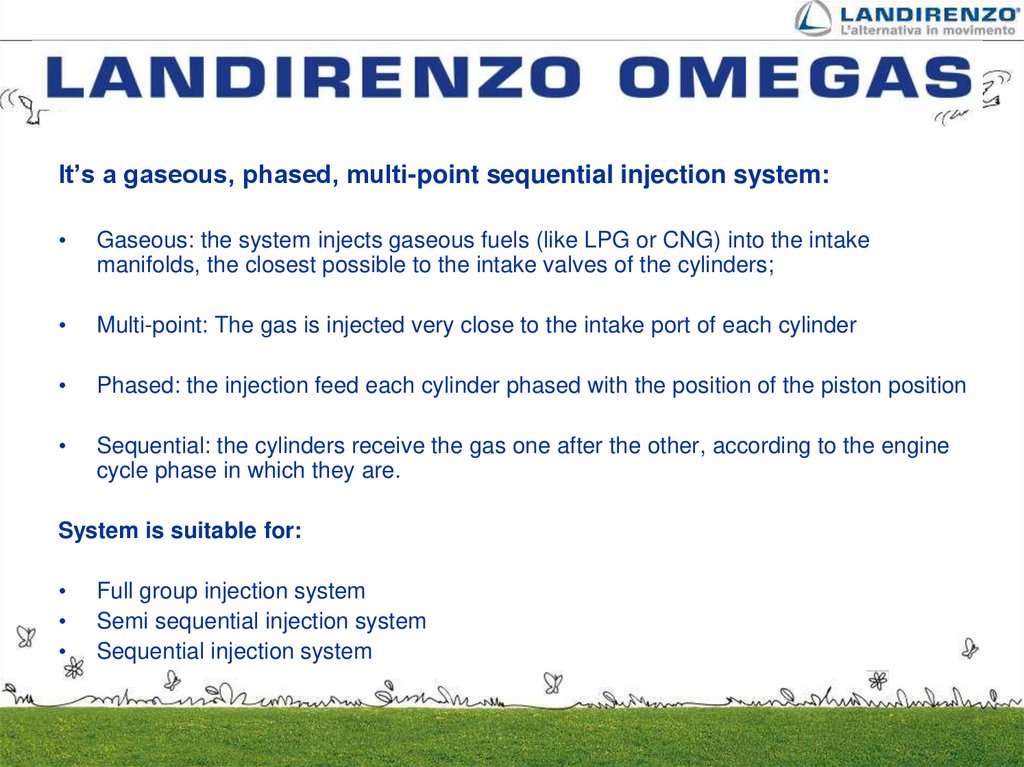

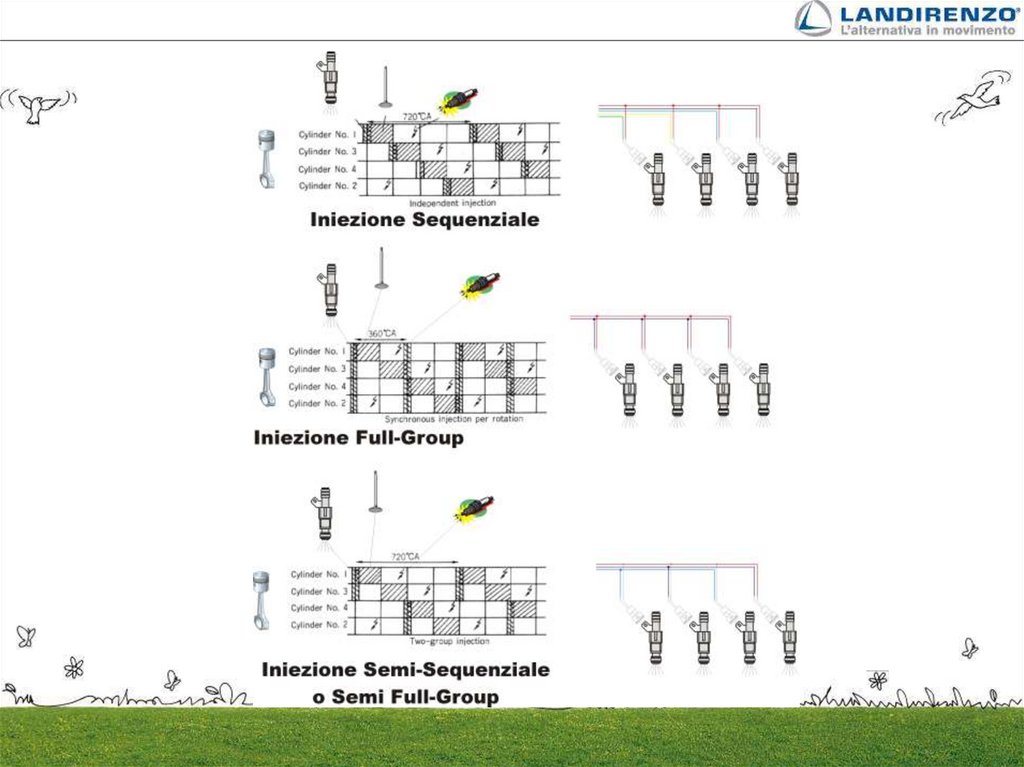

It’s a gaseous, phased, multi-point sequential injection system:
Gaseous: the system injects gaseous fuels (like LPG or CNG) into the intake
manifolds, the closest possible to the intake valves of the cylinders;
Multi-point: The gas is injected very close to the intake port of each cylinder
Phased: the injection feed each cylinder phased with the position of the piston position
Sequential: the cylinders receive the gas one after the other, according to the engine
cycle phase in which they are.
System is suitable for:
Full group injection system
Semi sequential injection system
Sequential injection system

19. Diapositiva 19

20. Diapositiva 20

OMEGAS CONTROL SYSTEM
The control system is slave type ECU. This means that the petrol ECU remains fully
operational and calculates the petrol injectors injection timing according to the signals
given by the car sensors (lambda sensor signal being the most important one);
Using some more sensor signals and the relative appropriate algorithms, Omegas
processes these petrol ECU outputs as inputs, to obtain the correct gas injectors injection
timing from petrol ones;
Omegas, then, takes care to physically avoid petrol injection uncoupling the petrol
injectors.

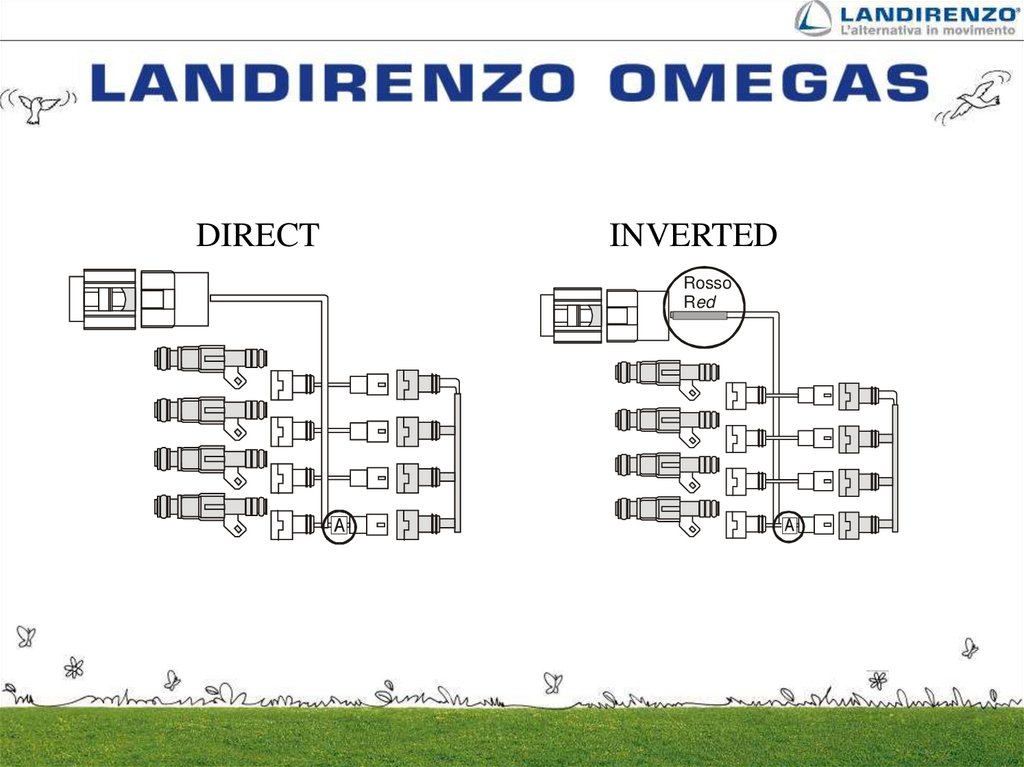

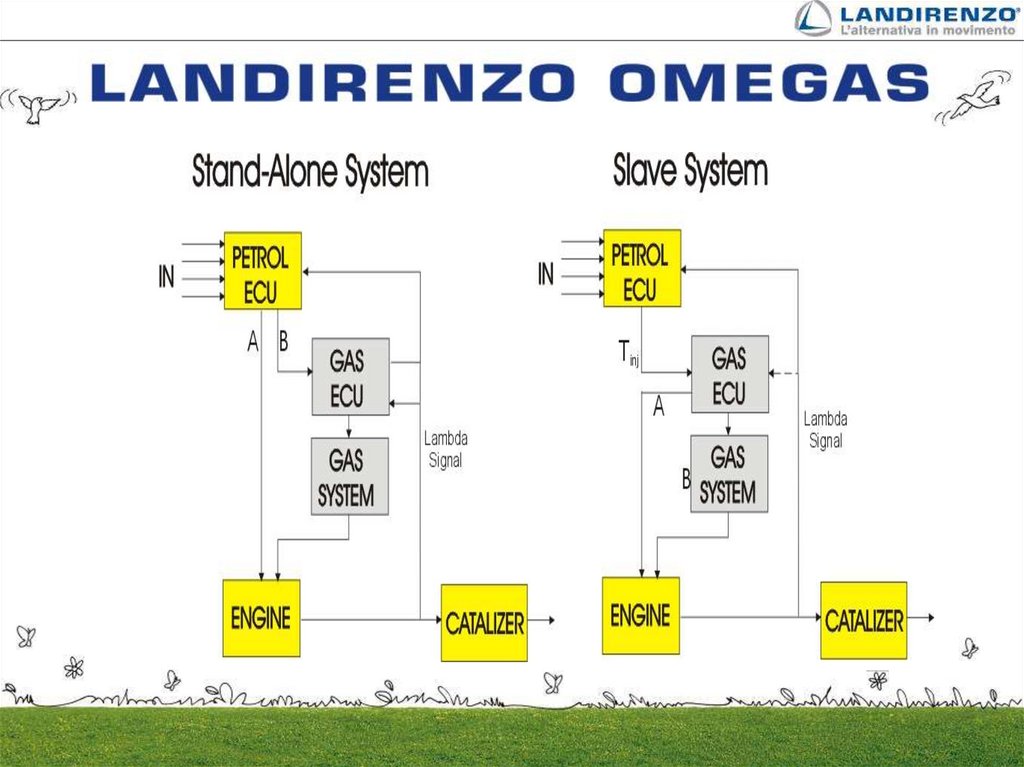

21. OMEGAS CONTROL SYSTEM

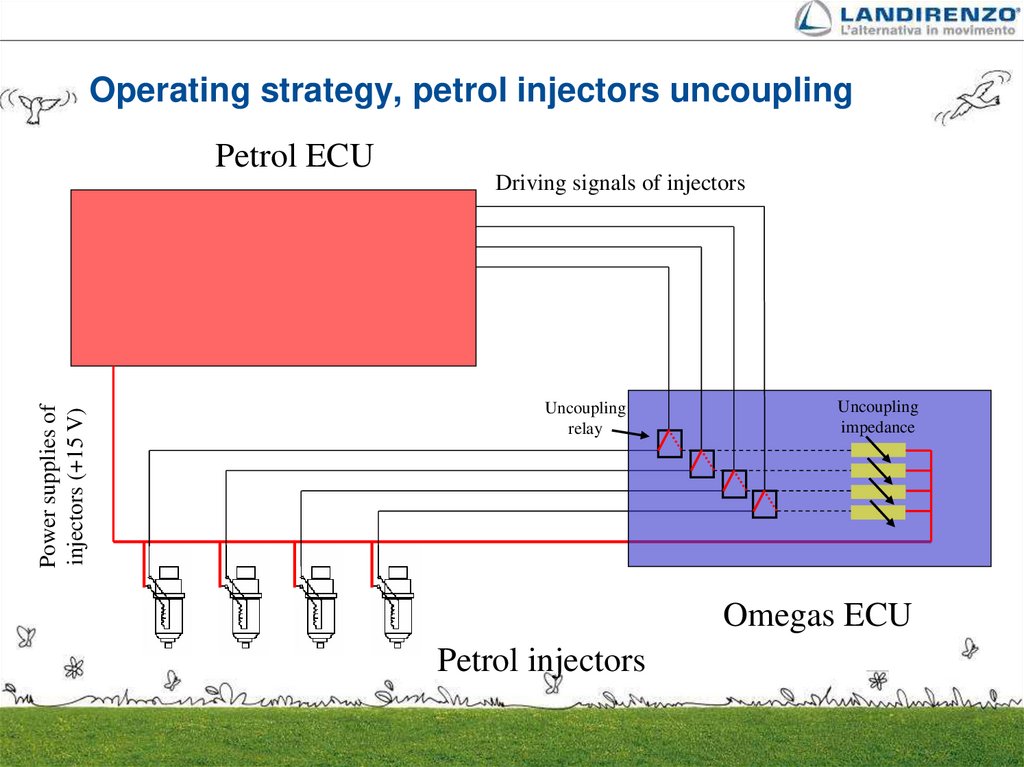

Operating strategy, petrol injectors uncoupling
Petrol ECU
Power supplies of
injectors (+15 V)
Driving signals of injectors
Uncoupling
relay
Uncoupling
impedance
Omegas ECU
Petrol injectors

22. Operating strategy, petrol injectors uncoupling

23. Diapositiva 23

Operating strategy: master/slave system
Master ECU (petrol one) doesn’t know about new ECU; it works also in gas mode
and all diagnosis are performed (the same running in petrol mode)
EOBD diag (misfire, catalyst, oxygen sensor,…) will be done by master ECU in
both mode (petrol and gas). With EOBD tester is possible to check diag. stored
with standard PCODE and freeze frame as when a fault occurs in petrol mode.
In addition LANDIRENZO ECU is capable to perform electrical and functional
diagnosis on proper sensor/actuator set.
Fault detected by LANDIRENZO ECU are stored into an internal memory; by
calibration they can be evidenced to the driver with a buzzer/LED blinking code on
the switch and major faults produce a switch back to petrol mode.
© LANDI RENZO SPA CONFIDENTIAL

24. Diapositiva 24

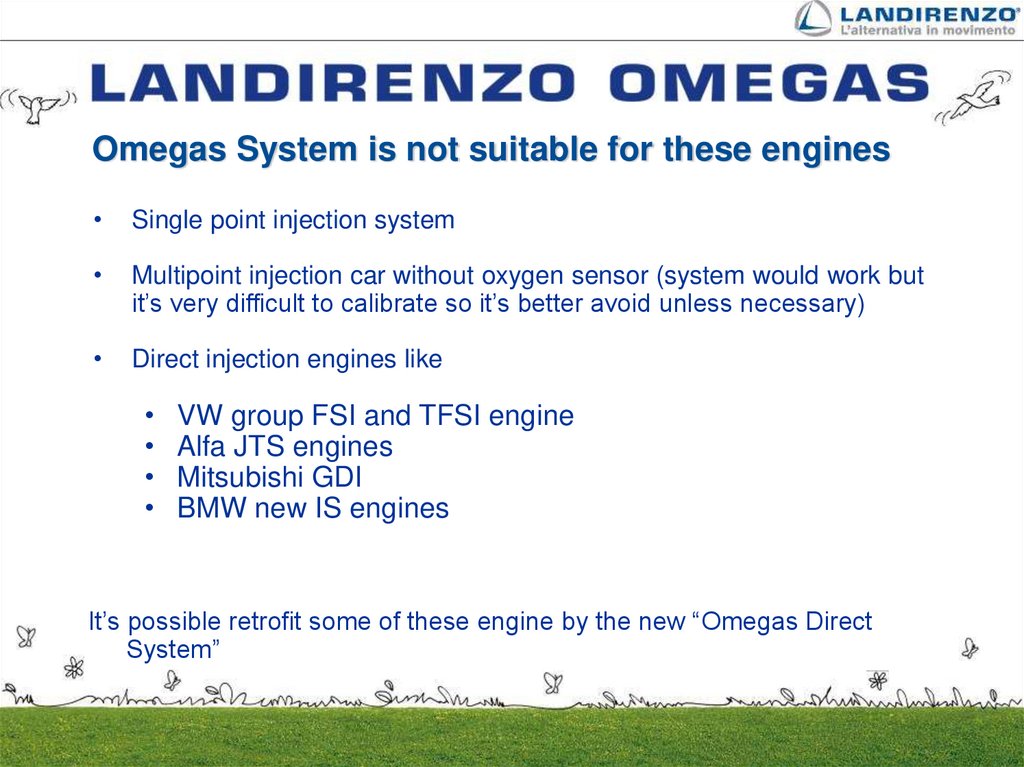

Omegas System is not suitable for these engines
Single point injection system
Multipoint injection car without oxygen sensor (system would work but
it’s very difficult to calibrate so it’s better avoid unless necessary)
Direct injection engines like
VW group FSI and TFSI engine
Alfa JTS engines
Mitsubishi GDI
BMW new IS engines
It’s possible retrofit some of these engine by the new “Omegas Direct
System”

25. Diapositiva 25

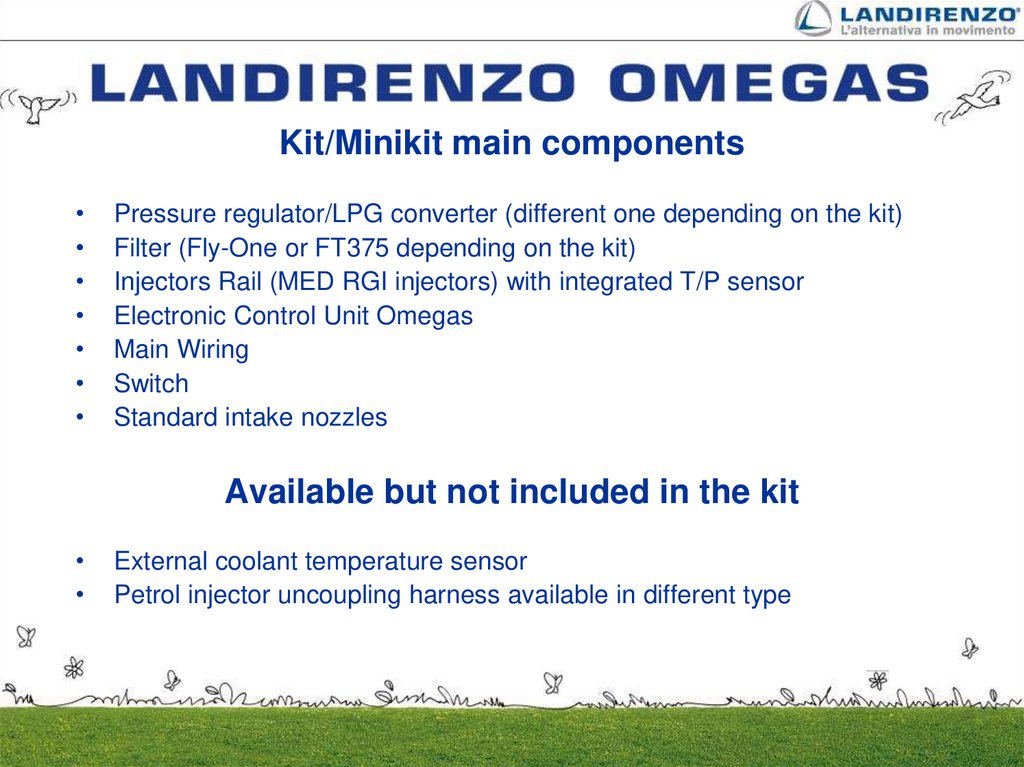

Kit/Minikit main components
Pressure regulator/LPG converter (different one depending on the kit)
Filter (Fly-One or FT375 depending on the kit)
Injectors Rail (MED RGI injectors) with integrated T/P sensor
Electronic Control Unit Omegas
Main Wiring
Switch
Standard intake nozzles
Available but not included in the kit
External coolant temperature sensor
Petrol injector uncoupling harness available in different type

26. Diapositiva 26

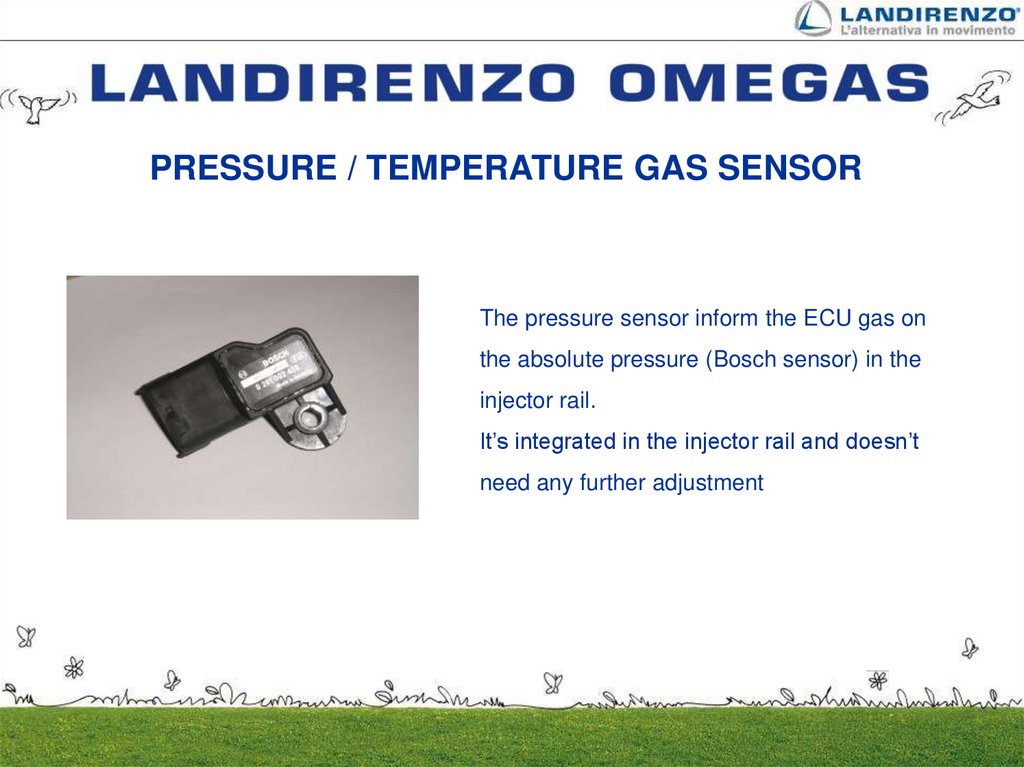

PRESSURE / TEMPERATURE GAS SENSOR
The pressure sensor inform the ECU gas on
the absolute pressure (Bosch sensor) in the
injector rail.
It’s integrated in the injector rail and doesn’t
need any further adjustment

27. Diapositiva 27

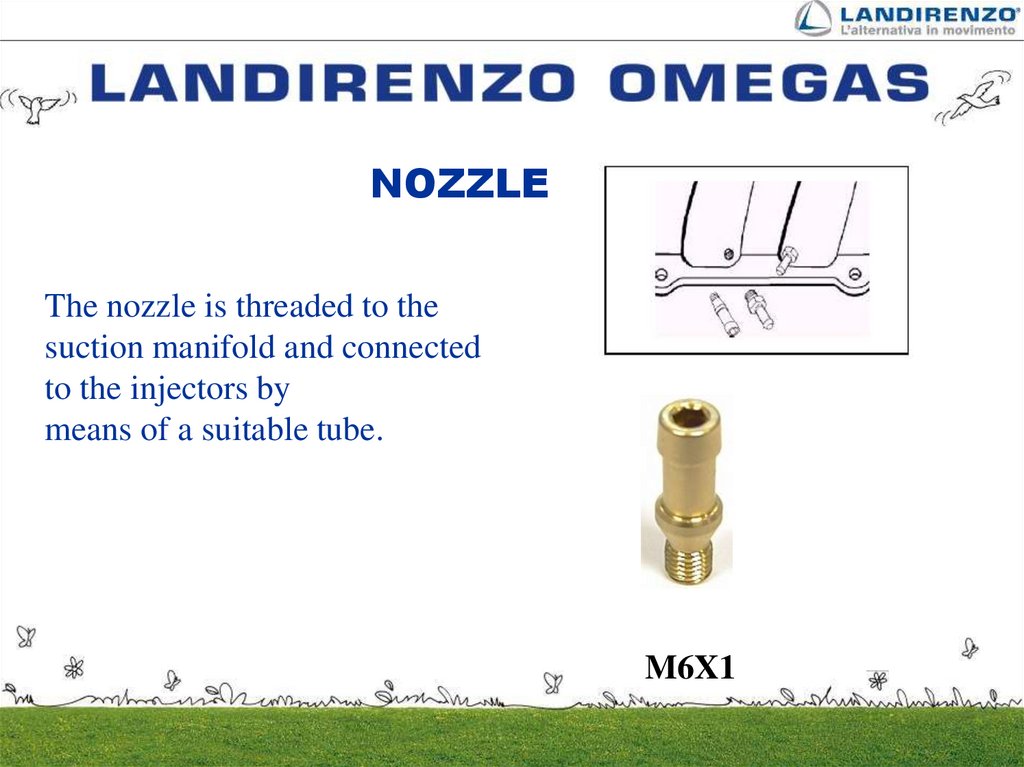

NOZZLE
The nozzle is threaded to the
suction manifold and connected
to the injectors by
means of a suitable tube.
M6X1

28. Diapositiva 28

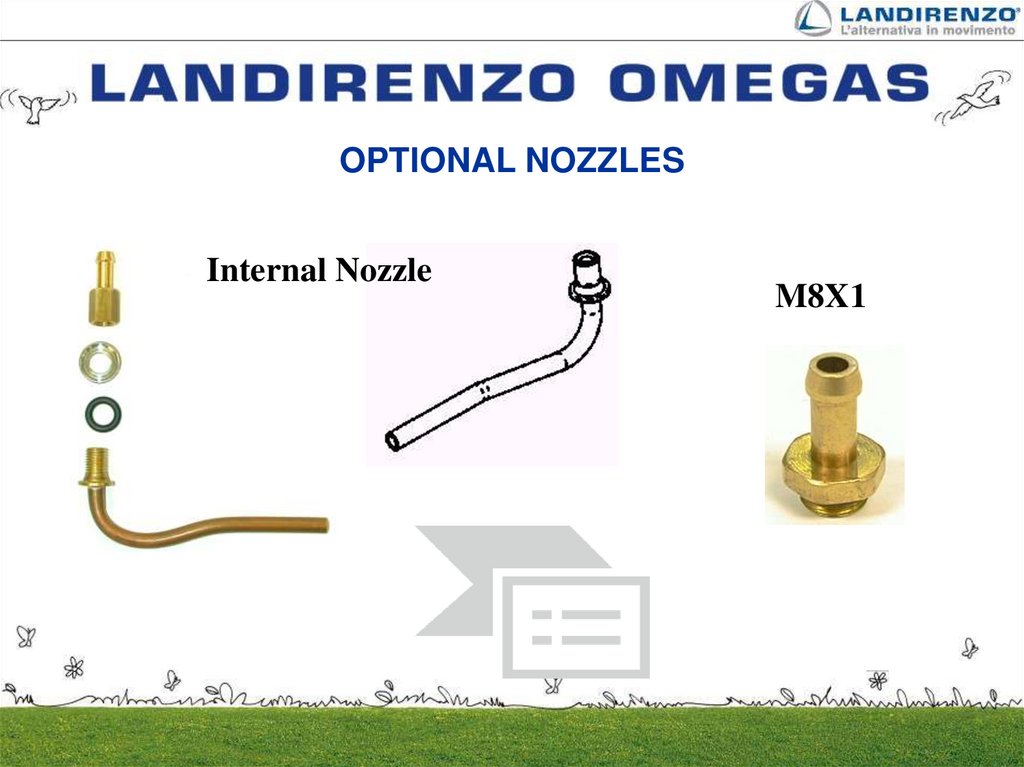

OPTIONAL NOZZLES
Internal Nozzle
M8X1

29. Diapositiva 29

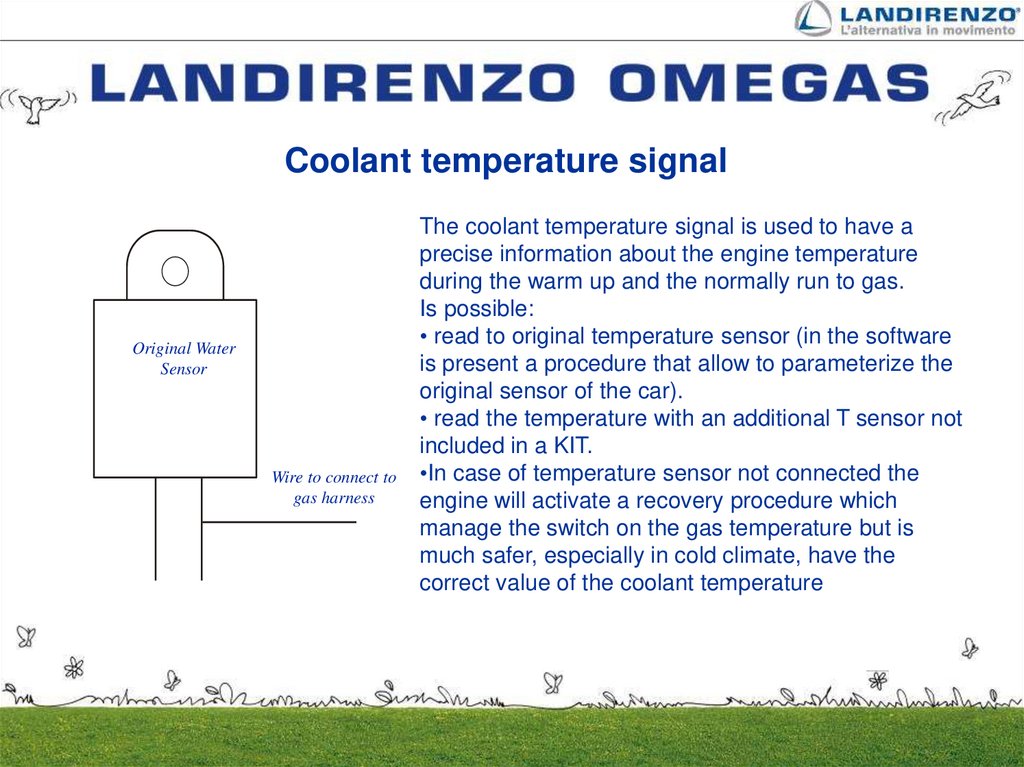

Coolant temperature signal
Original Water
Sensor
Wire to connect to
gas harness
The coolant temperature signal is used to have a
precise information about the engine temperature
during the warm up and the normally run to gas.
Is possible:
• read to original temperature sensor (in the software
is present a procedure that allow to parameterize the
original sensor of the car).
• read the temperature with an additional T sensor not
included in a KIT.
•In case of temperature sensor not connected the
engine will activate a recovery procedure which
manage the switch on the gas temperature but is
much safer, especially in cold climate, have the
correct value of the coolant temperature

30. Diapositiva 30

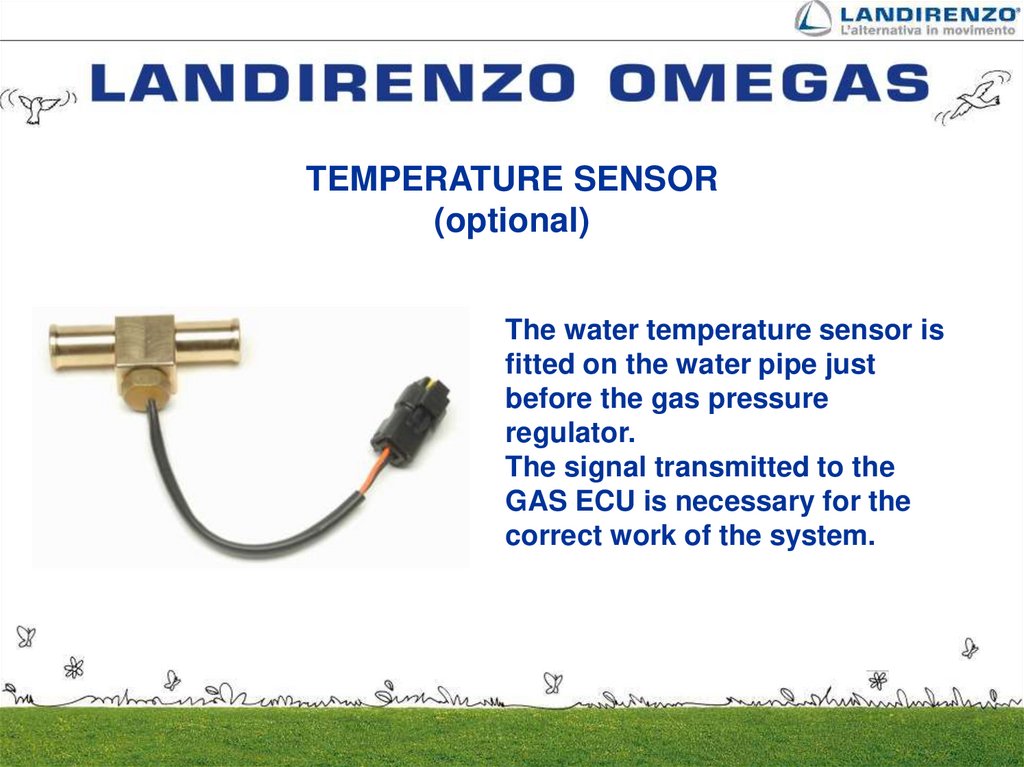

TEMPERATURE SENSOR
(optional)
The water temperature sensor is
fitted on the water pipe just
before the gas pressure
regulator.
The signal transmitted to the
GAS ECU is necessary for the
correct work of the system.

31. Diapositiva 31

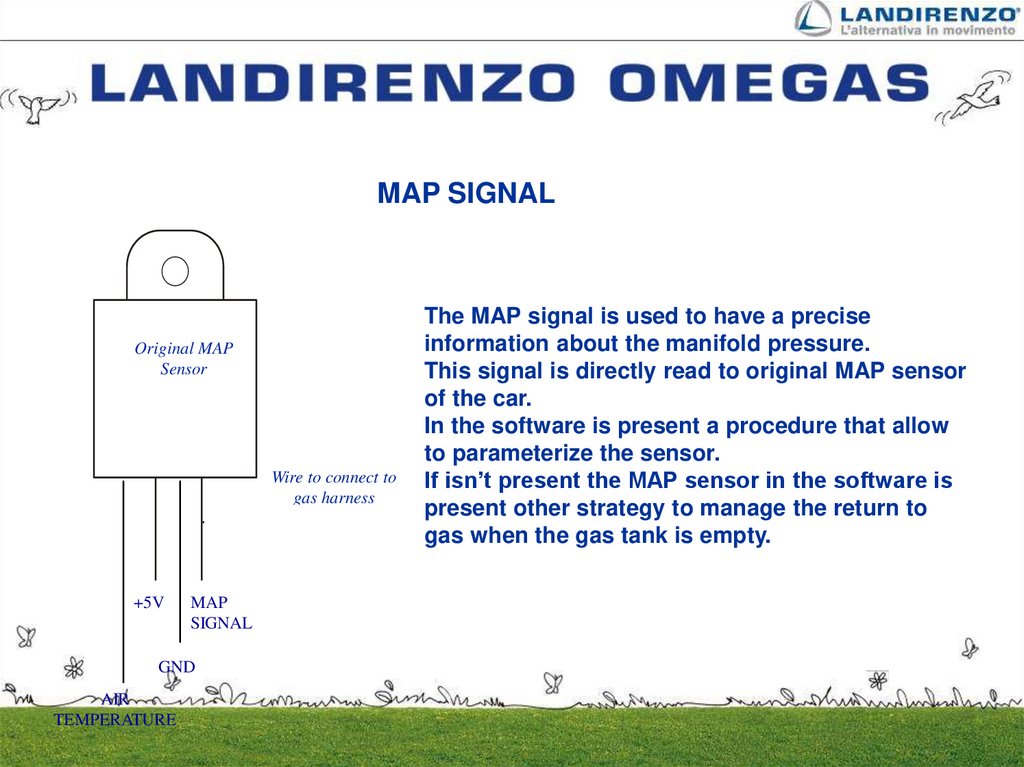

MAP SIGNAL
Original MAP
Sensor
Wire to connect to
gas harness
+5V
MAP
SIGNAL
GND
AIR
TEMPERATURE
The MAP signal is used to have a precise
information about the manifold pressure.
This signal is directly read to original MAP sensor
of the car.
In the software is present a procedure that allow
to parameterize the sensor.
If isn’t present the MAP sensor in the software is
present other strategy to manage the return to
gas when the gas tank is empty.

32. Diapositiva 32

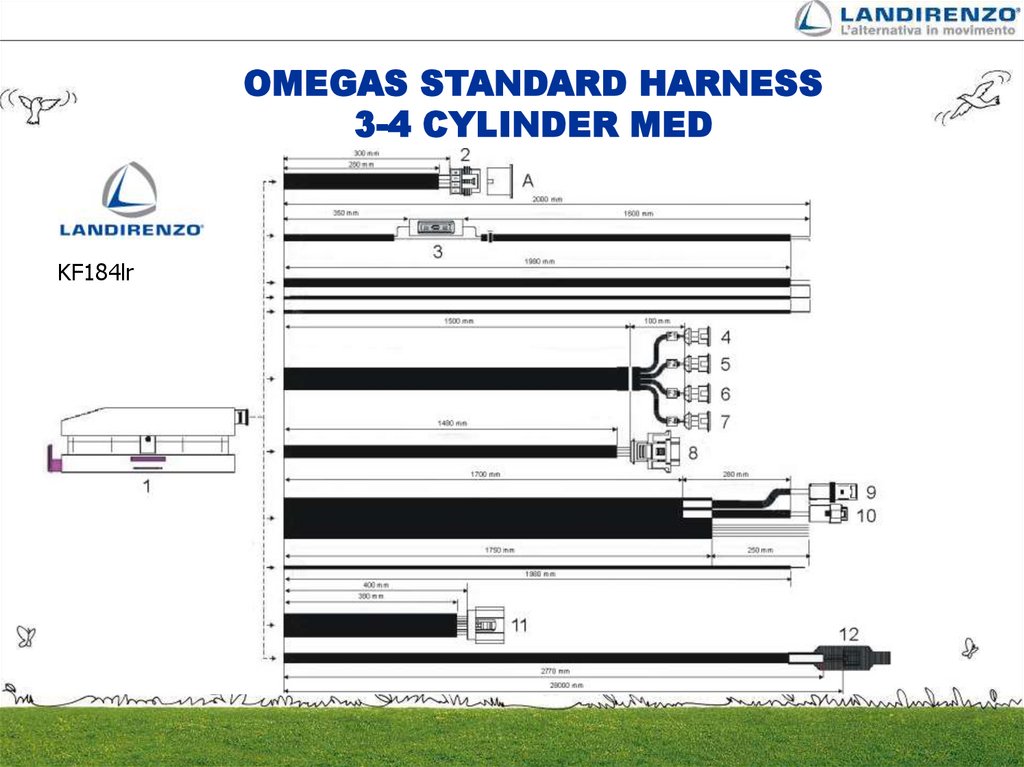

OMEGAS STANDARD HARNESS
3-4 CYLINDER MED
KF184lr

33. Diapositiva 33

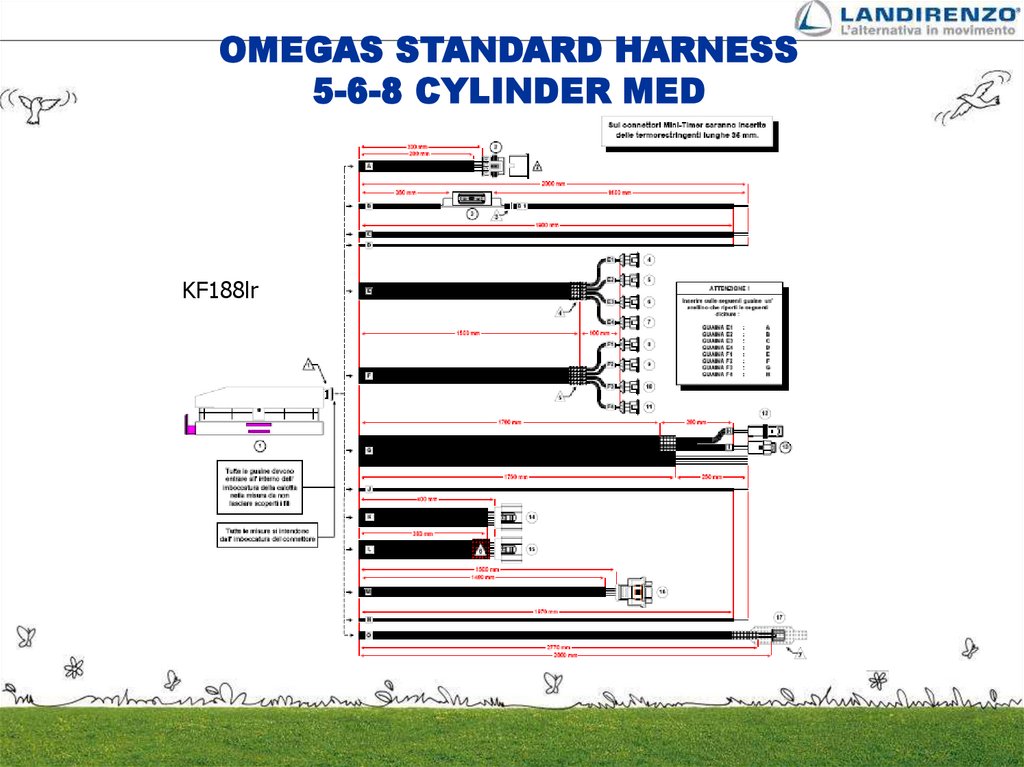

OMEGAS STANDARD HARNESS
5-6-8 CYLINDER MED
KF188lr

34. Diapositiva 34

Petrol Injectors uncoupling harness

35. Diapositiva 35

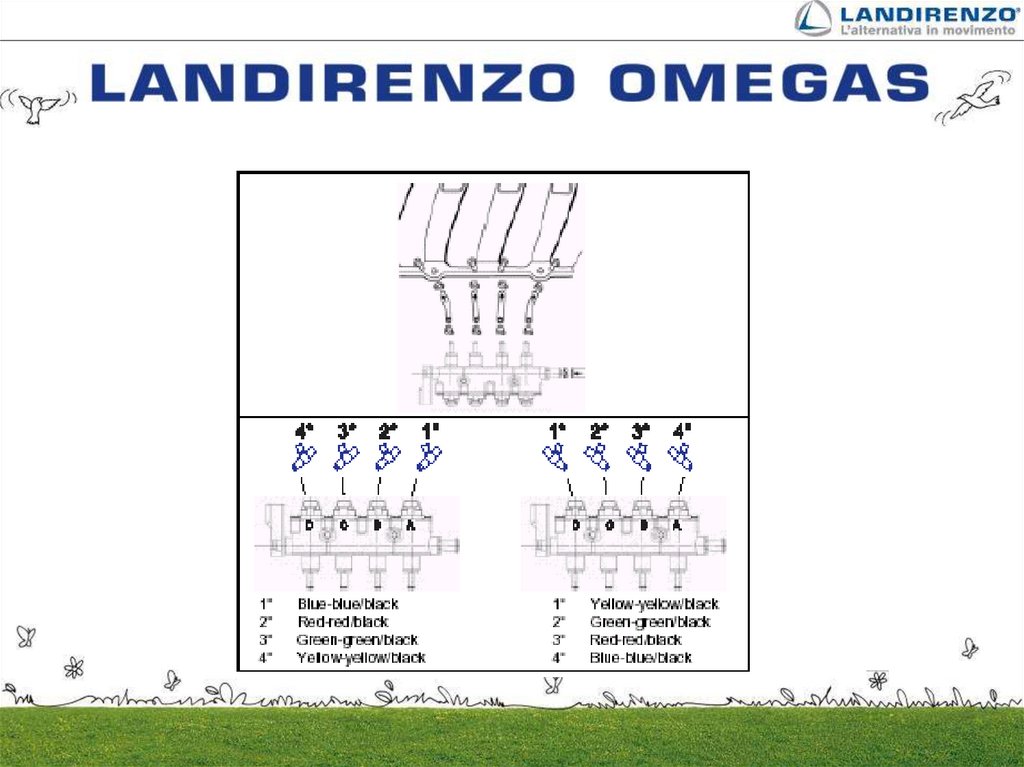

DIRECT
INVERTED
Rosso
Red

36. Diapositiva 36

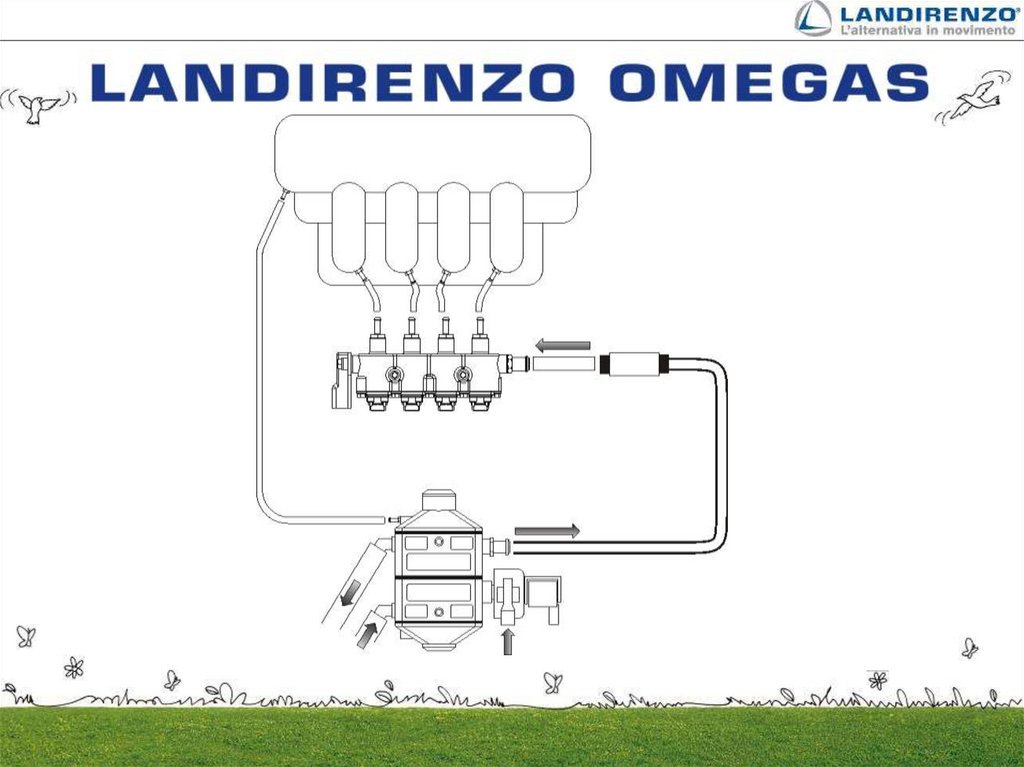

37. Diapositiva 37

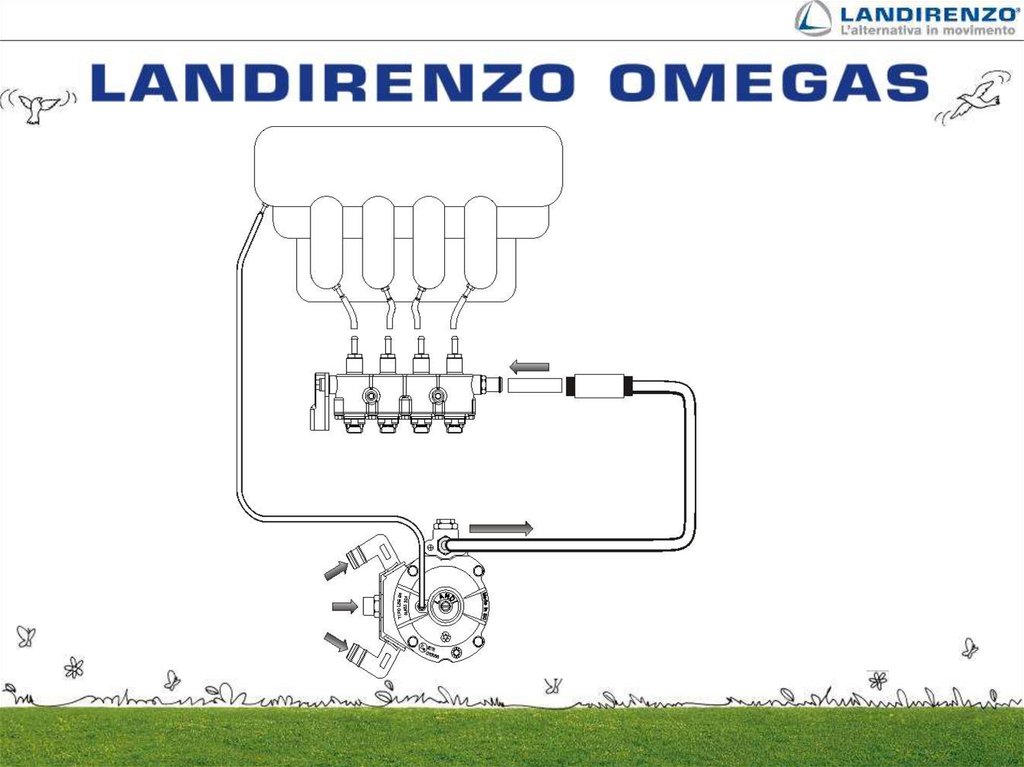

38. Diapositiva 38

39. Diapositiva 39

40. Diapositiva 40

ECU
Two version of ECU are available
•3-4 Cylinder ECU
•5-6-8 Cylinder ECU
It’s possible by set an 5-6-8 cylinder ECU
to make it working in 3-4 cylinder engine
but it’s needed to use the 5-6-8 cylinder
harness

41. Diapositiva 41

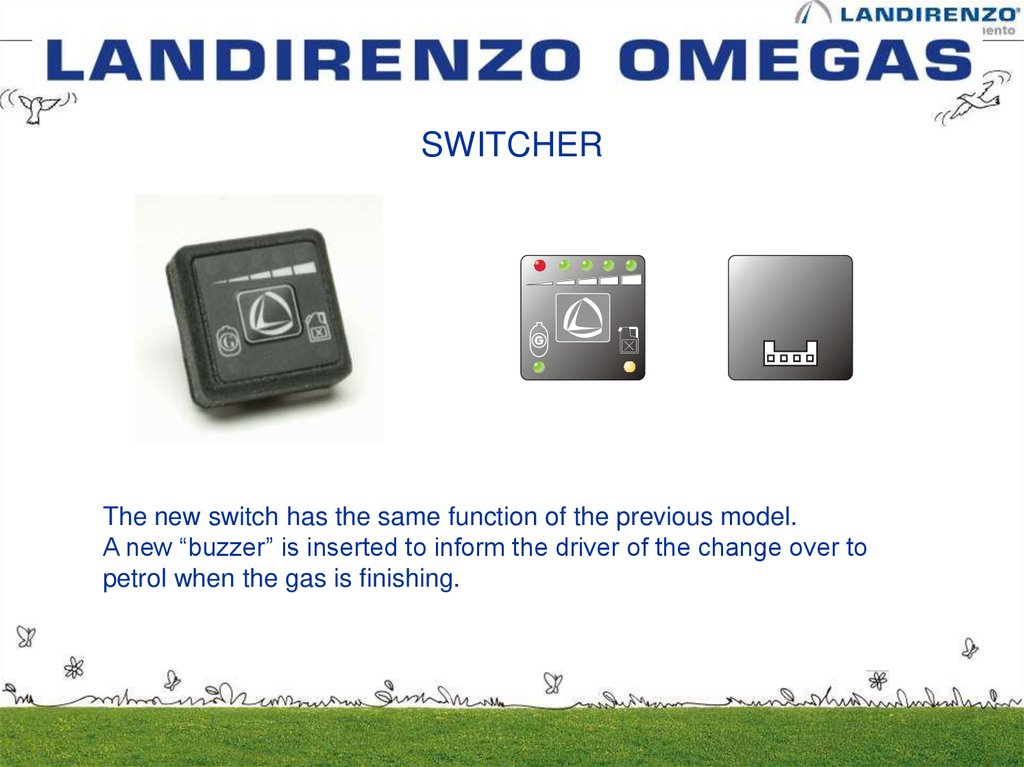

SWITCHER
The new switch has the same function of the previous model.
A new “buzzer” is inserted to inform the driver of the change over to
petrol when the gas is finishing.

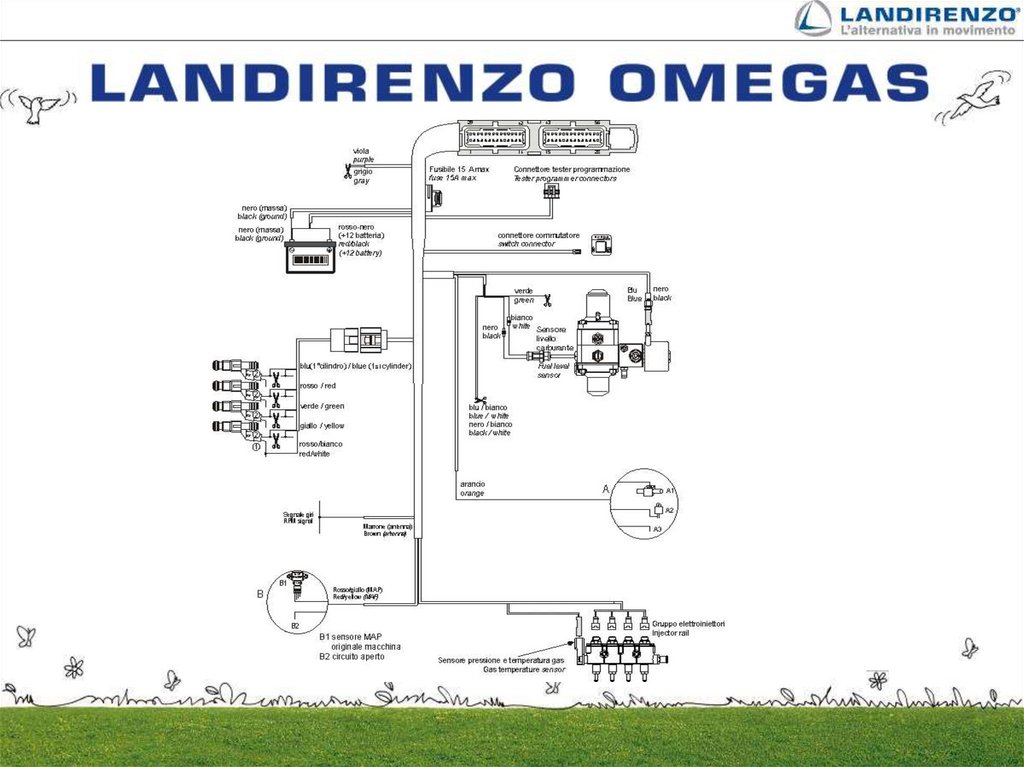

42. Diapositiva 42

43. Diapositiva 43

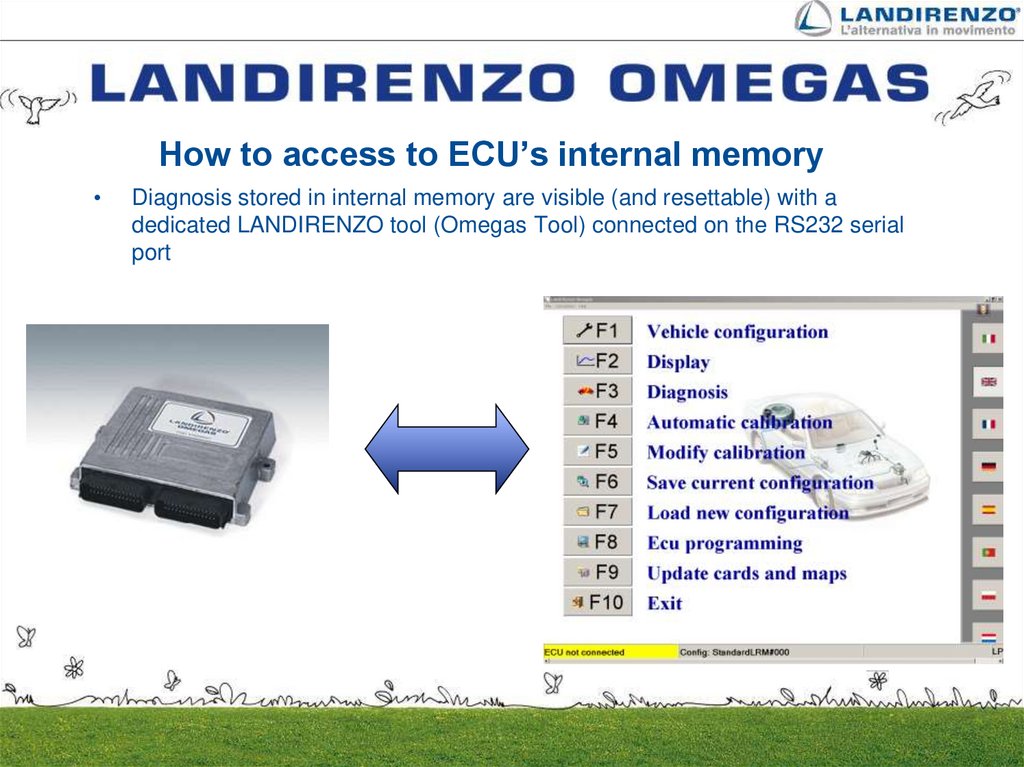

How to access to ECU’s internal memory
Diagnosis stored in internal memory are visible (and resettable) with a
dedicated LANDIRENZO tool (Omegas Tool) connected on the RS232 serial
port

44. How to access to ECU’s internal memory

Thanks
