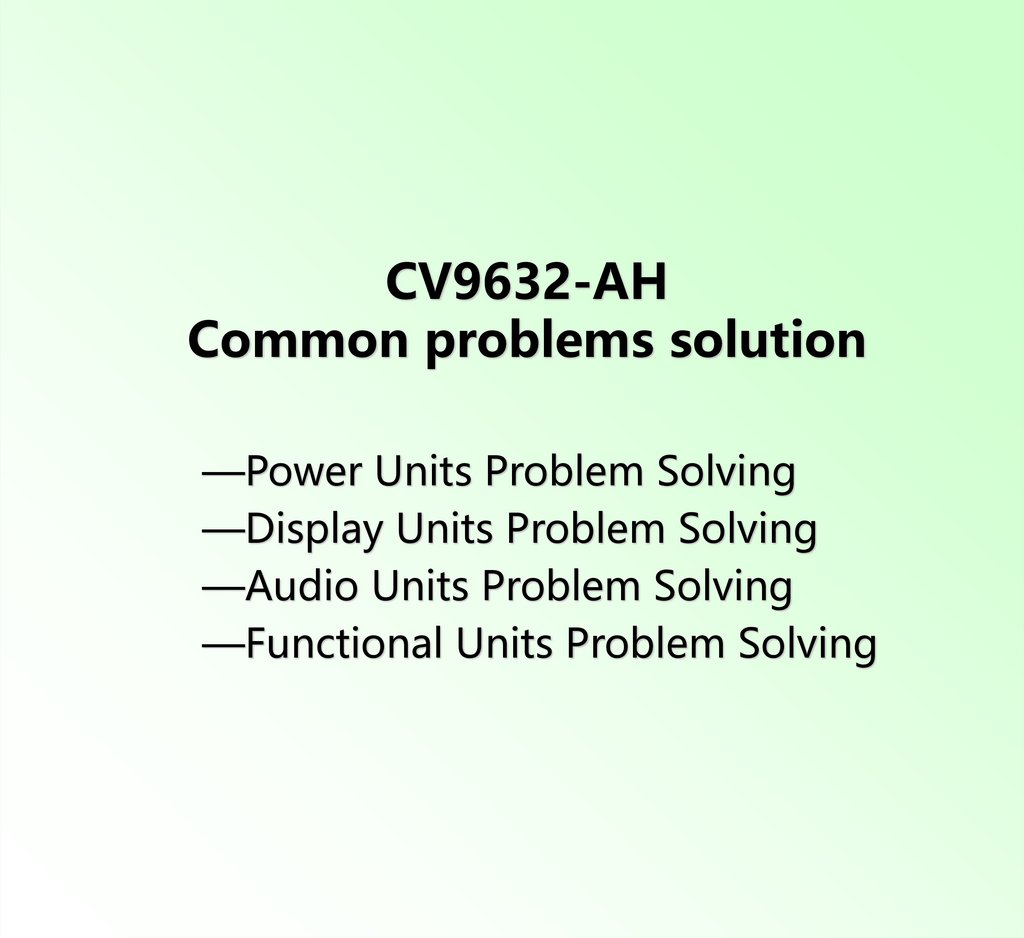

CV9632-AH. Common problems solution

1.

CV9632-AH
Common problems solution
—Power Units Problem Solving
—Display Units Problem Solving
—Audio Units Problem Solving
—Functional Units Problem Solving

2.

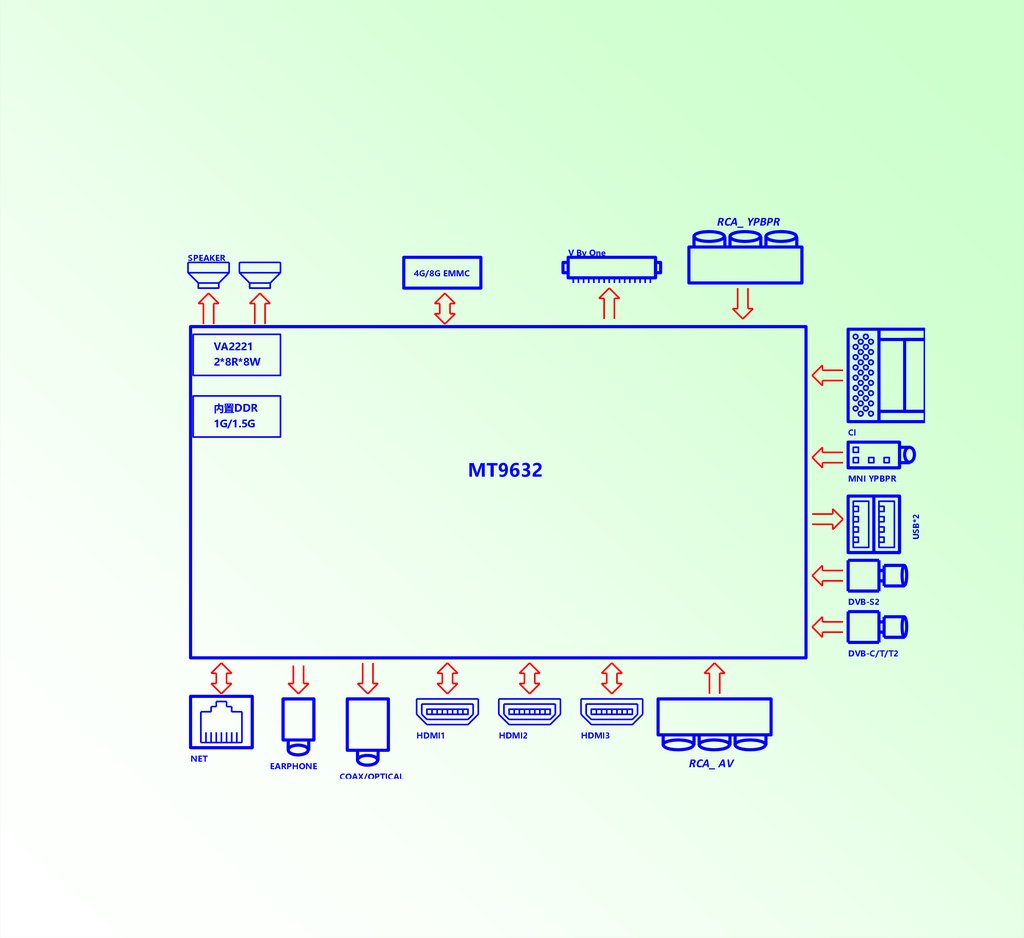

RCA_ YPBPR
V By One
SPEAKER
4G/8G EMMC
VA2221
2*8R*8W
内置DDR
1G/1.5G
CI
MT9632
USB*2
MNI YPBPR
DVB-S2
DVB-C/T/T2
HDMI1
NET
EARPHONE
HDMI2
HDMI3
RCA_ AV
COAX/OPTICAL

3.

PICTURE 1
Power Units
Problem Solving
In stand-by condition,
Check J13 1/3/10 pin,
Whether there is 12V/5V/5V
N
Y
Test TP2 have
3.3V
N
Check external
Power Or change
the power supply
Y
+1.0V check UD4 the power net
+3.3V check UD2 the power net
+0.95V check UD6 the power net
Remote or
keyboard turn on
Y
Test the TP3 have
1.5V?
N
TP4 voltage need test power net of UD3
Y
OK

4.

PICTURE 2
Display Unit
(black screen)
Flickering or
Black screen
Back light on
Check the connection
of Driver Board
Cable connect well
N
Change the LCD,
check if it is ok
Y
N
Check the network output,
Check JL1
45-51 pin have output
N
Y
Change the circuit
N
Check the software
match able
Y
Change
LCD
Check U1
Power supply and clock
circuit chip LVDS output
pin is short circuit,
or open-circuit
N
RE-Upgrade
software
Check LCD power
VCC-Panel is OK
Change driver
board cable

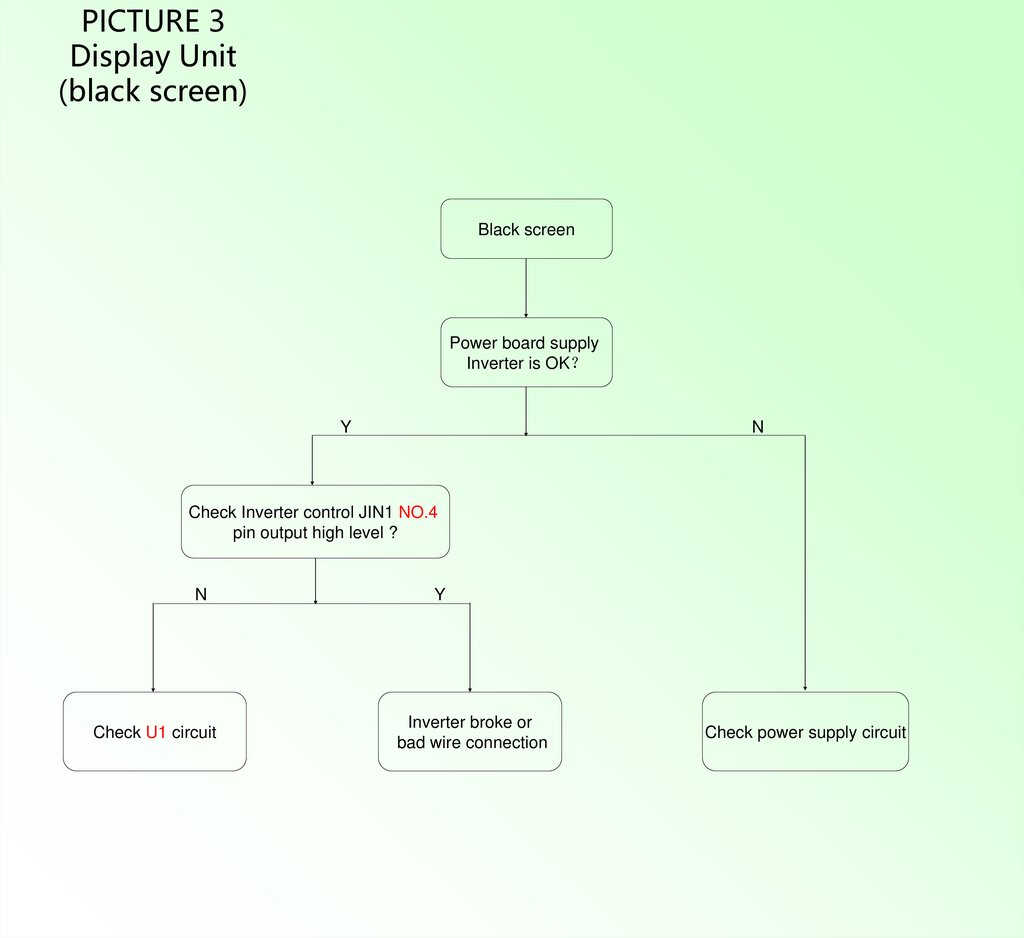

5.

PICTURE 3
Display Unit
(black screen)
Black screen
Power board supply
Inverter is OK
Y
N
Check Inverter control JIN1 NO.4
pin output high level ?
N
Check U1 circuit
Y
Inverter broke or
bad wire connection
Check power supply circuit

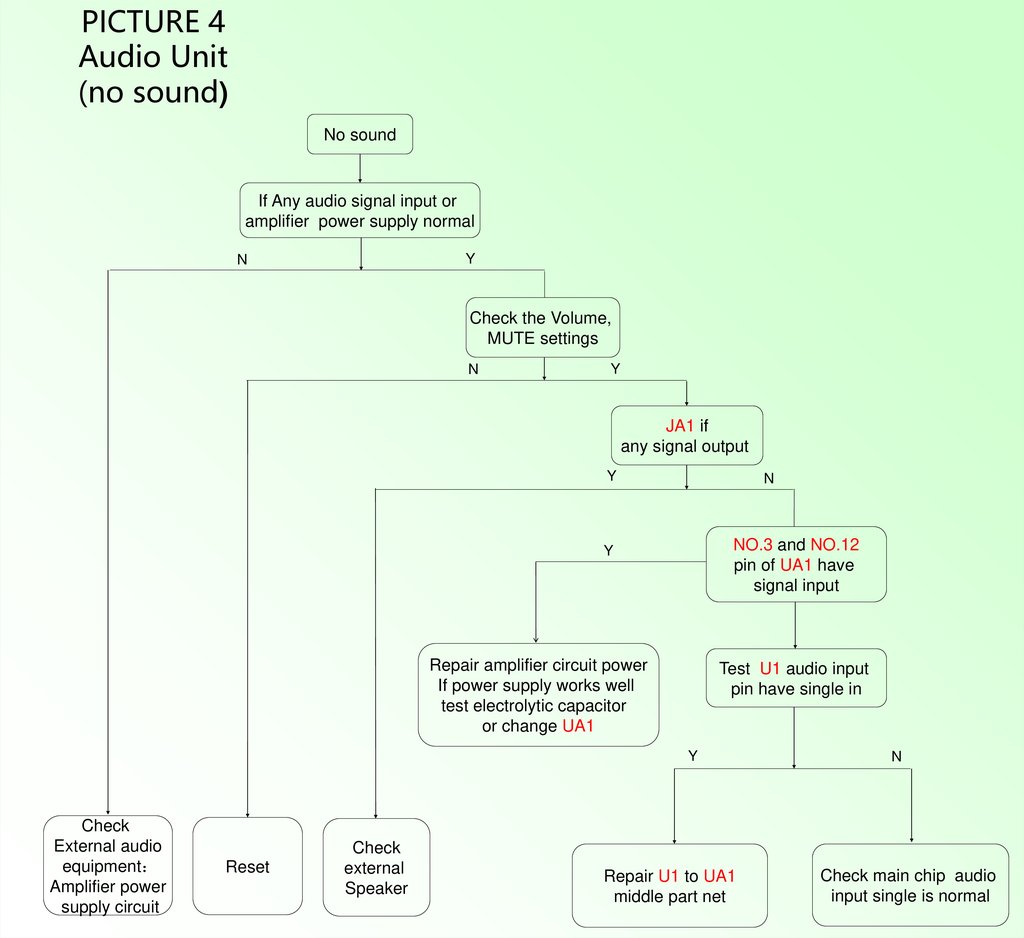

6.

PICTURE 4
Audio Unit
(no sound)
No sound
If Any audio signal input or
amplifier power supply normal
Y
N
Check the Volume,
MUTE settings
N
Y
JA1 if
any signal output
Y
N
NO.3 and NO.12
pin of UA1 have
signal input
Y
Repair amplifier circuit power
If power supply works well
test electrolytic capacitor
or change UA1
Test U1 audio input
pin have single in
Y
Check
External audio
equipment
Amplifier power
supply circuit
Reset
Check
external
Speaker
Repair U1 to UA1
middle part net
N
Check main chip audio
input single is normal

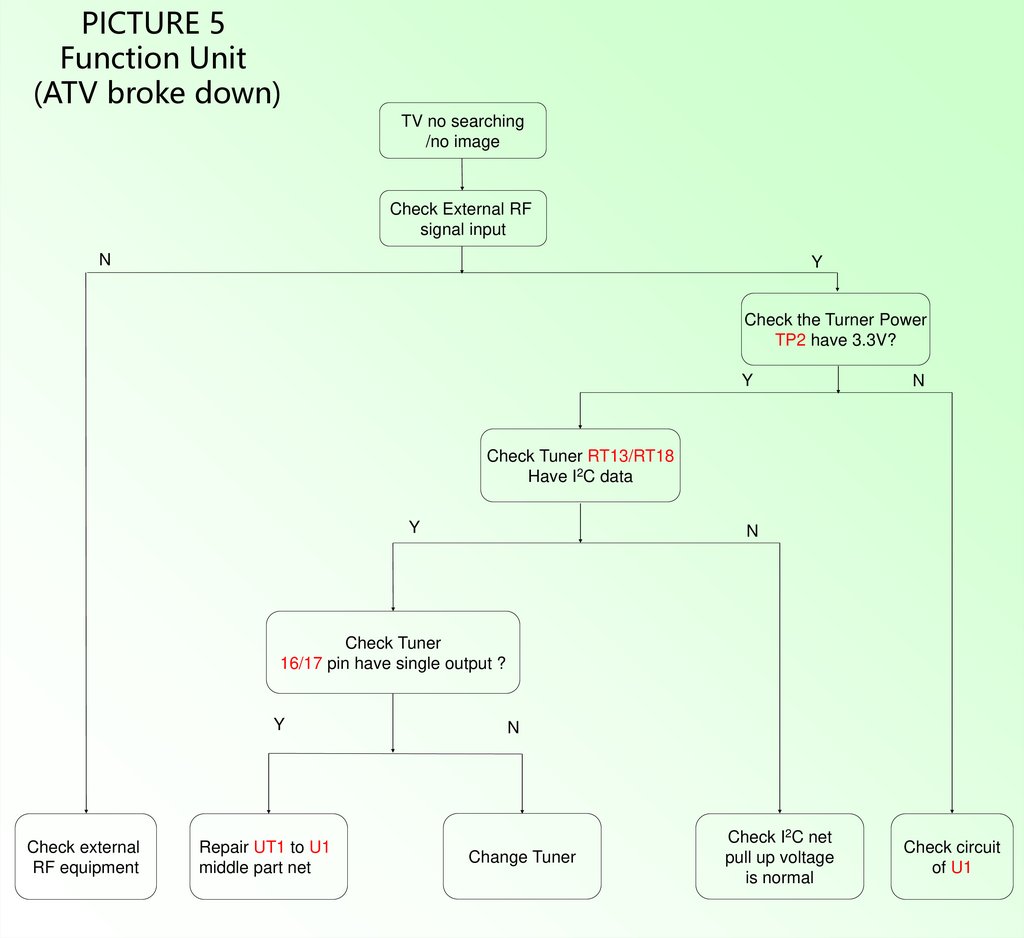

7.

PICTURE 5
Function Unit
(ATV broke down)
TV no searching
/no image
Check External RF
signal input
N
Y
Check the Turner Power
TP2 have 3.3V?
Y
N
Check Tuner RT13/RT18
Have I2C data
Y
N
Check Tuner
16/17 pin have single output ?
Y
Check external
RF equipment
Repair UT1 to U1
middle part net
N
Change Tuner
Check I2C net
pull up voltage
is normal
Check circuit
of U1

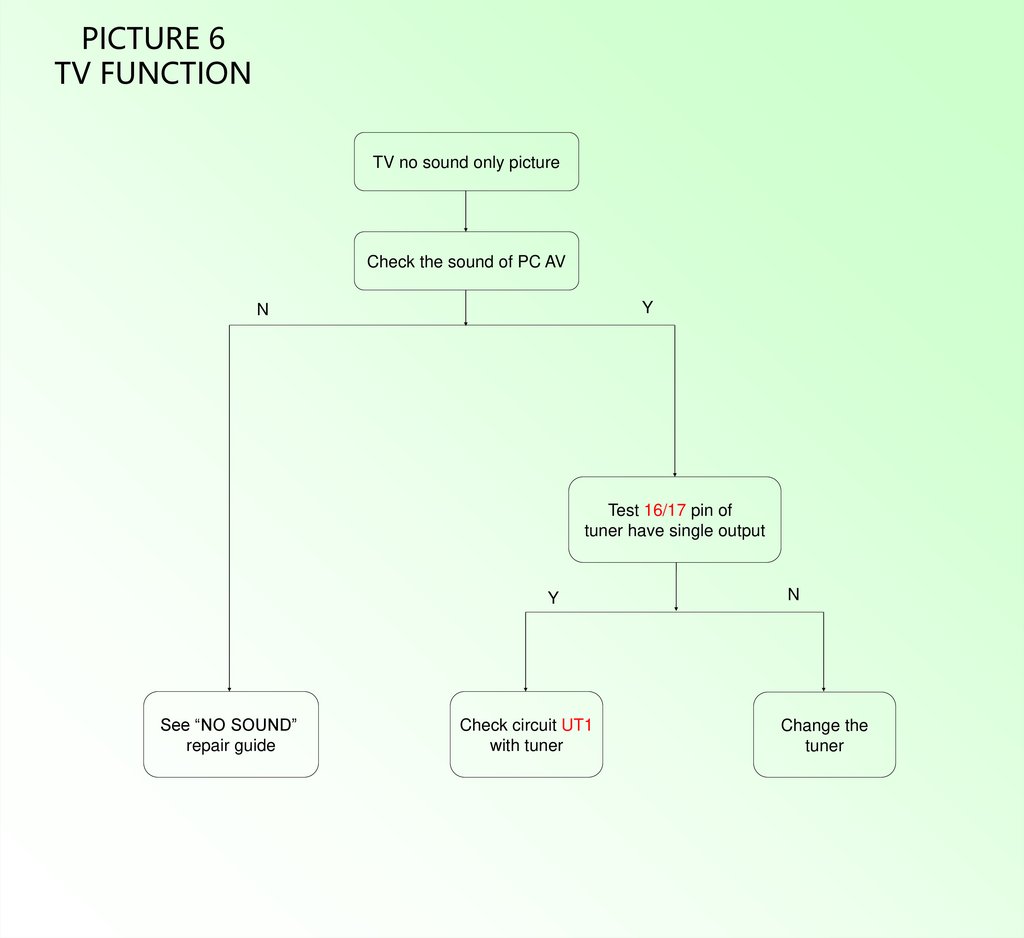

8.

PICTURE 6
TV FUNCTION
TV no sound only picture
Check the sound of PC AV
Y
N
Test 16/17 pin of
tuner have single output
Y
See “NO SOUND”
repair guide
Check circuit UT1
with tuner
N
Change the
tuner

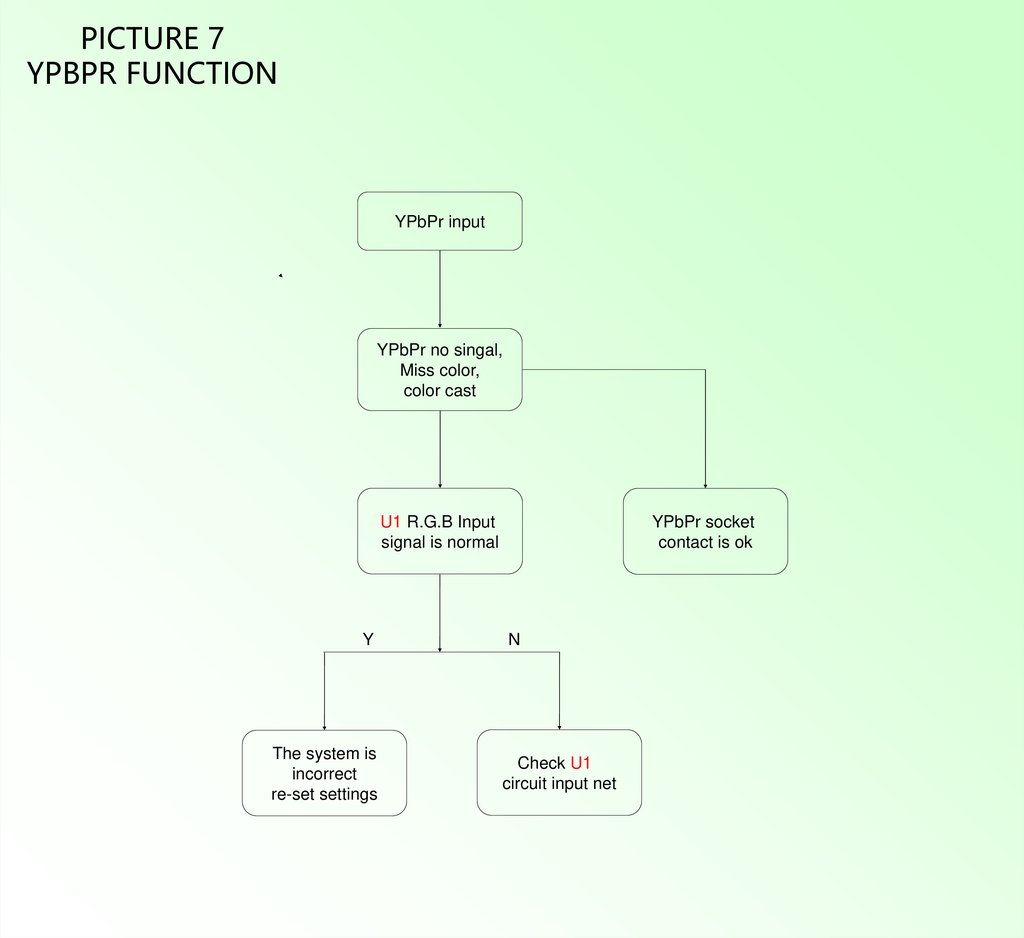

9.

PICTURE 7
YPBPR FUNCTION
YPbPr input
YPbPr no singal,
Miss color,
color cast
U1 R.G.B Input
signal is normal
Y
The system is
incorrect
re-set settings
YPbPr socket
contact is ok
N
Check U1
circuit input net

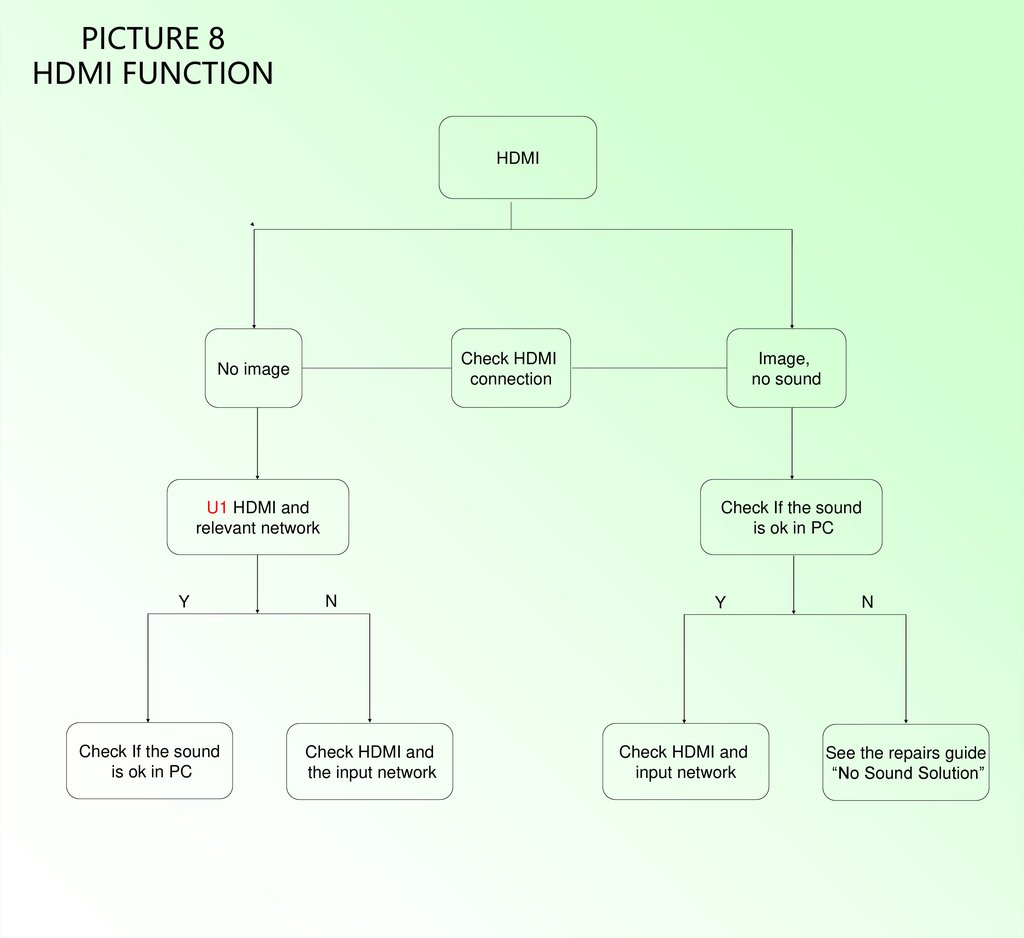

10.

PICTURE 8
HDMI FUNCTION
HDMI
Check HDMI
connection
No image
U1 HDMI and
relevant network
Y
Check If the sound
is ok in PC
Image,
no sound
Check If the sound
is ok in PC
N
Check HDMI and
the input network
Y
Check HDMI and
input network
N
See the repairs guide
“No Sound Solution”

11.

PICTURE 9

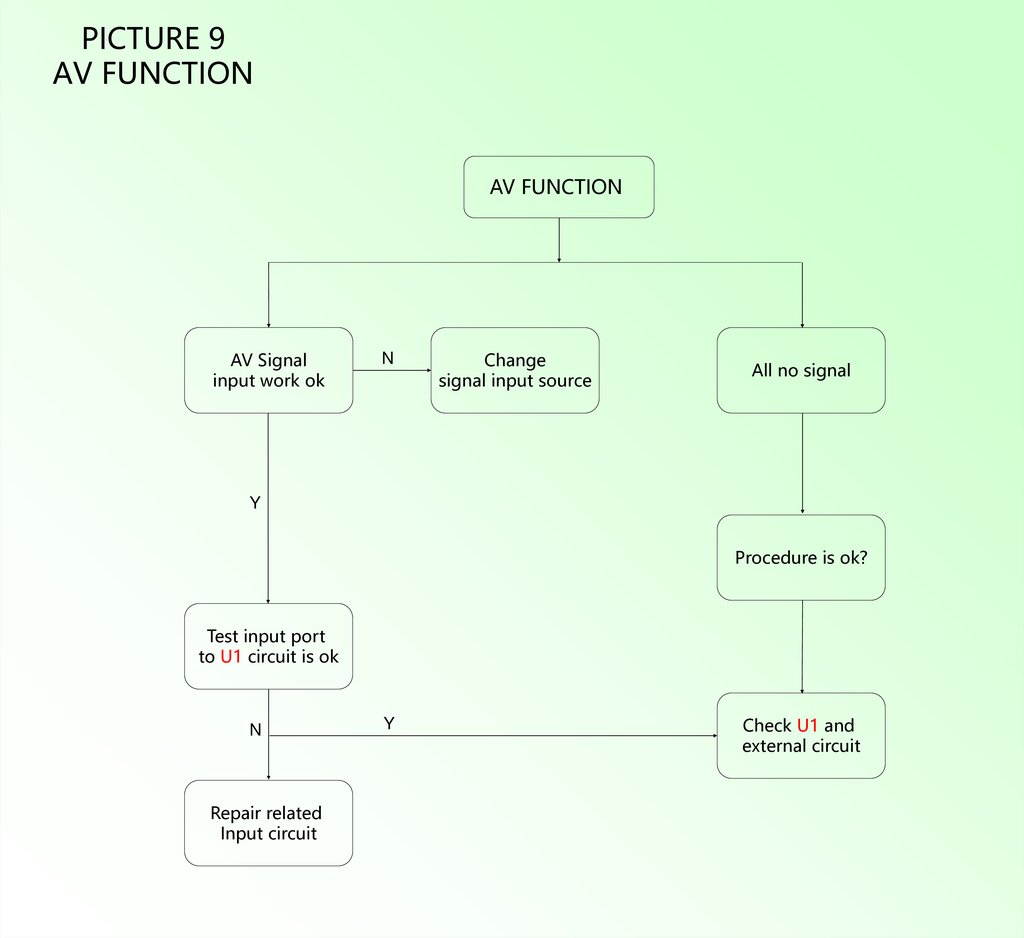

AV FUNCTION
AV FUNCTION
AV Signal
input work ok
N
Change
signal input source
All no signal
Y
Procedure is ok?
Test input port
to U1 circuit is ok
N
Repair related
Input circuit
Y
Check U1 and
external circuit
