POW concept

1. POW concept

Power system
Technical Training

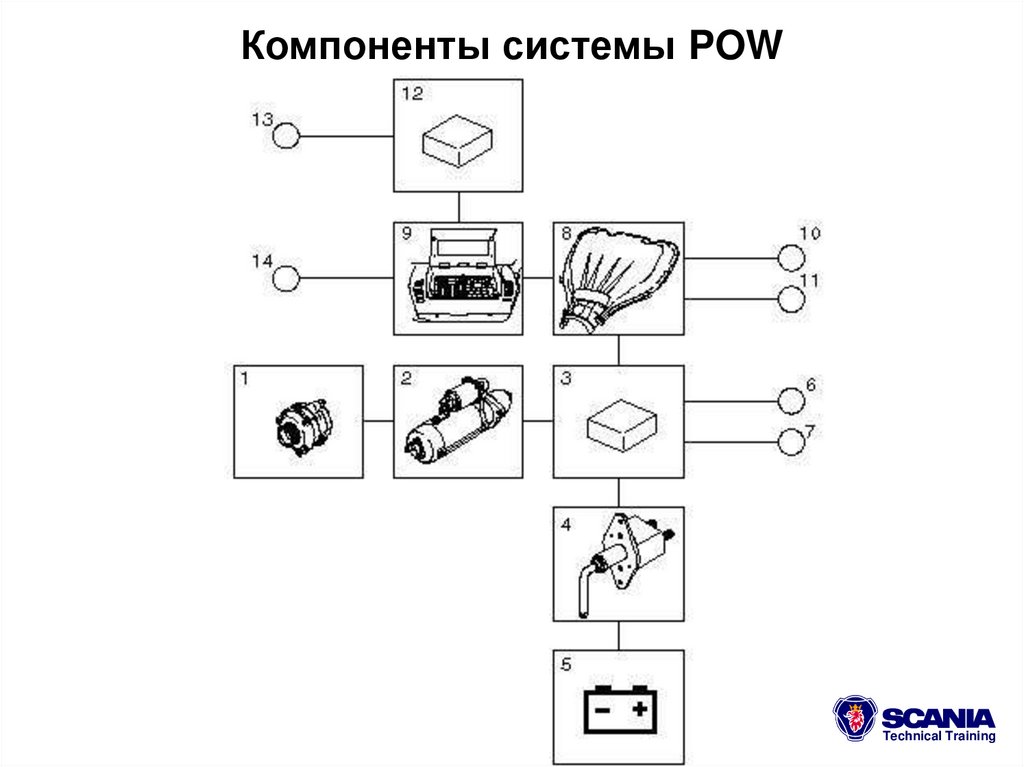

2. Компоненты системы POW

Technical Training

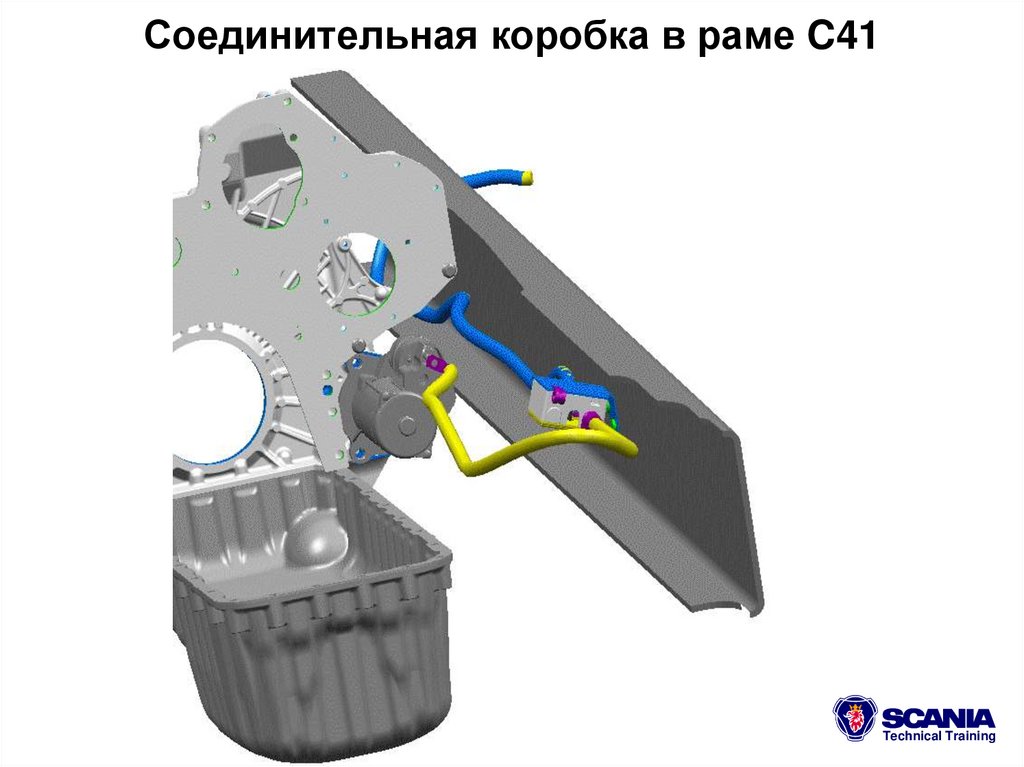

3. Соединительная коробка в раме C41

Technical Training

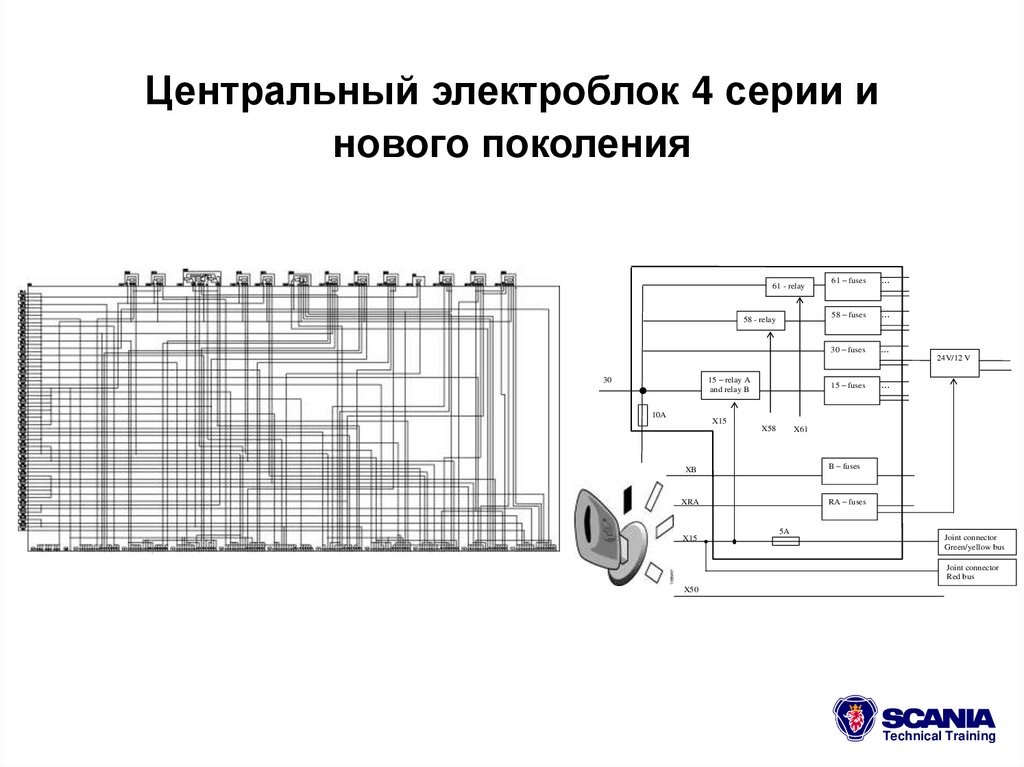

4. Центральный электроблок 4 серии и нового поколения

61 - relay
58 - relay
61 – fuses
…
58 – fuses
…
30 – fuses
…
24V/12 V
15 – relay A
and relay B
30
10A
15 – fuses
…
X15
X58
X61
XB
B – fuses
XRA
RA – fuses
X15
5A
Joint connector
Green/yellow bus
Joint connector
Red bus
X50
Technical Training

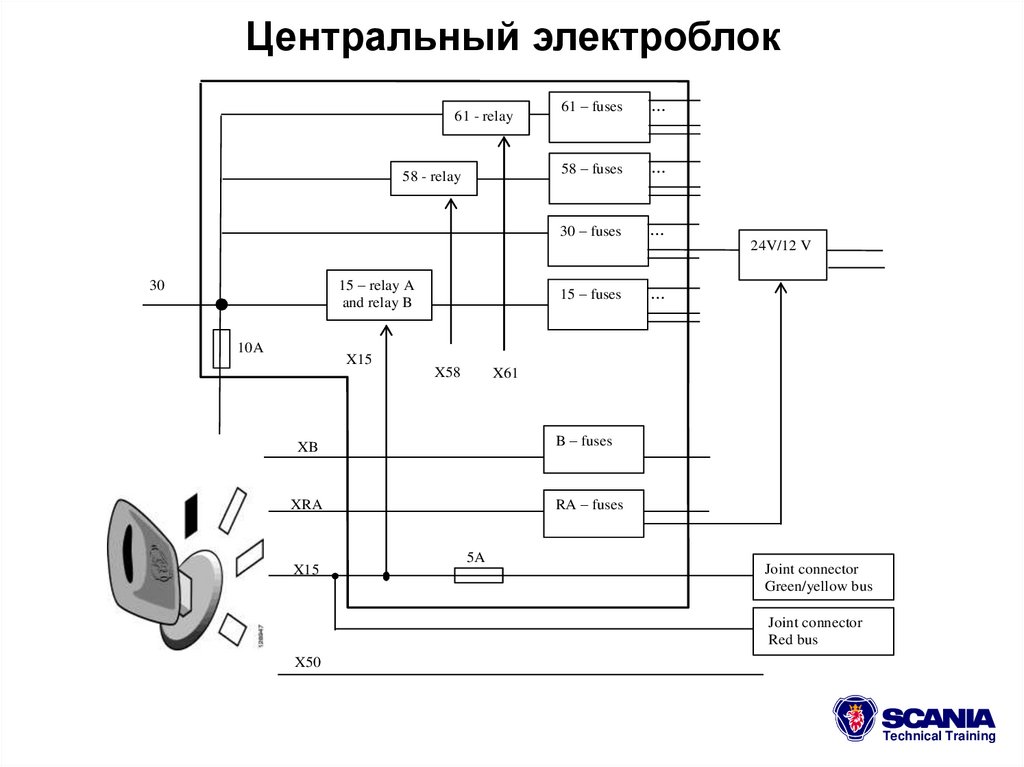

5. Центральный электроблок

61 - relay
58 - relay
61 – fuses
…
58 – fuses
…
30 – fuses
…
24V/12 V
15 – relay A
and relay B
30
10A
15 – fuses
…
X15
X58
X61
XB
B – fuses
XRA
RA – fuses
X15
5A
Joint connector
Green/yellow bus
Joint connector
Red bus
X50
Technical Training

6.

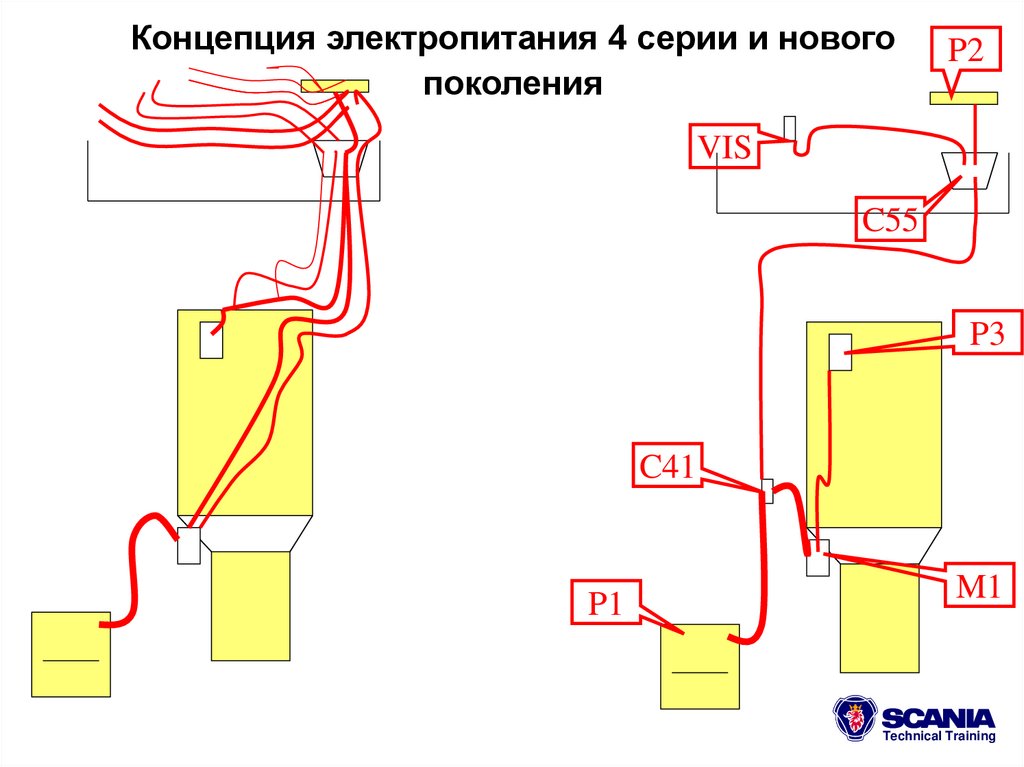

Концепция электропитания 4 серии и нового
поколения
P2
VIS
C55
P3
C41
P1
M1
Technical Training

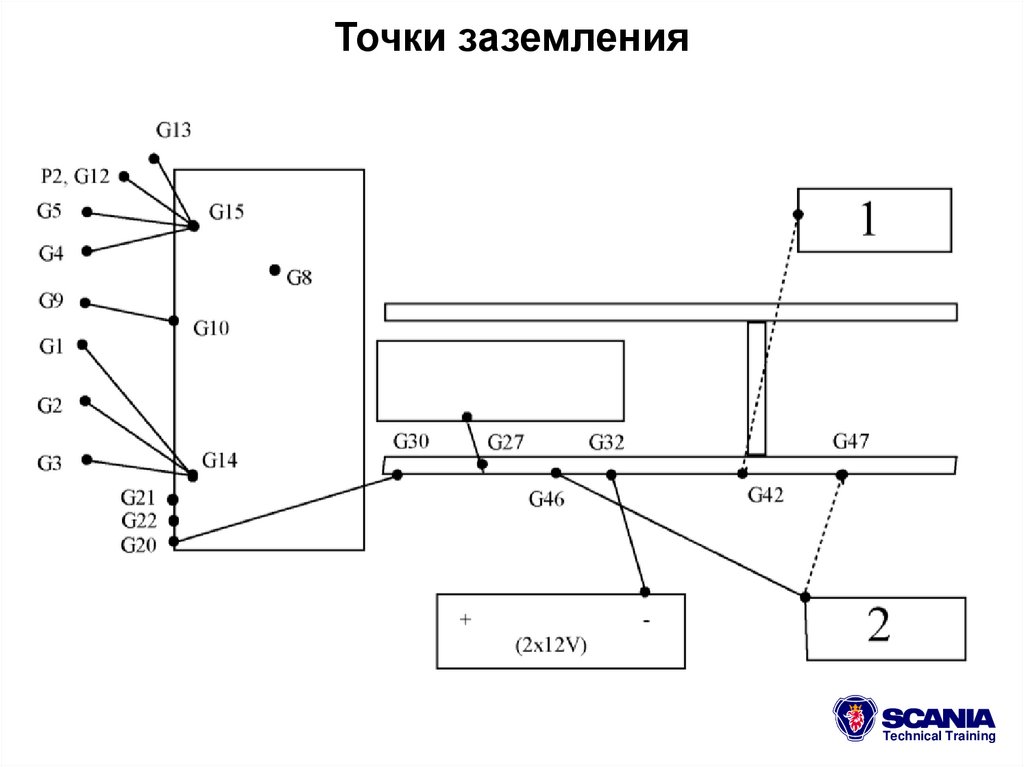

7. Точки заземления

Technical Training

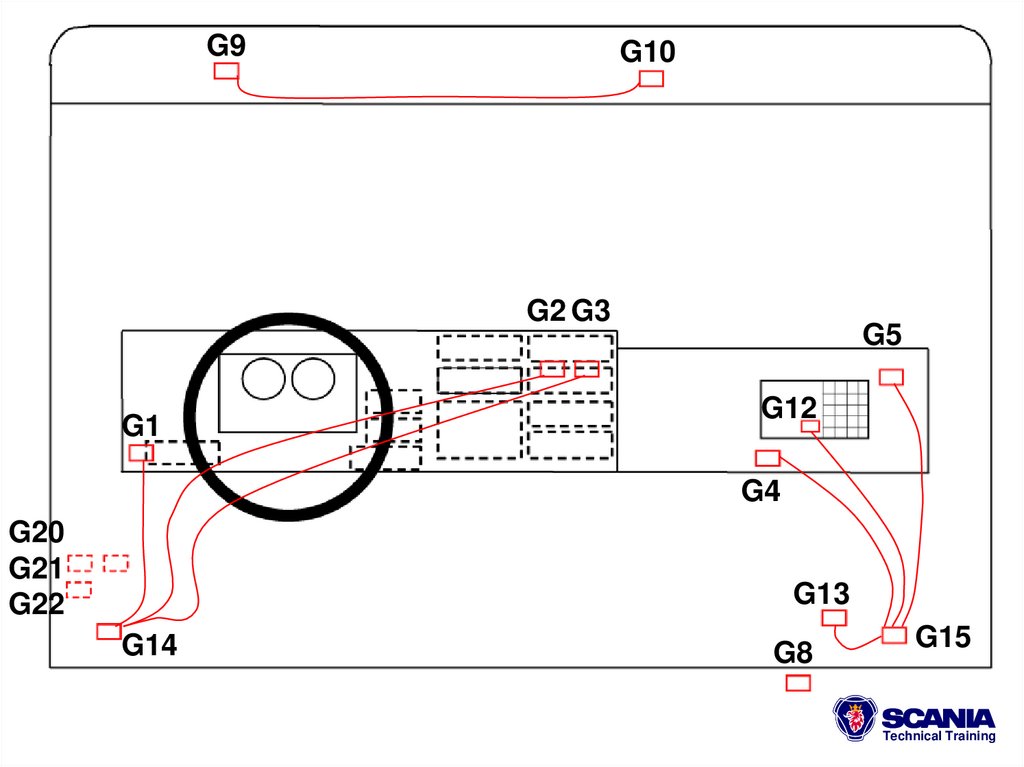

8.

G9
G10
G2 G3
G1
G5
G12
G4
G20
G21
G22
G13
G14
G8
G15
Technical Training

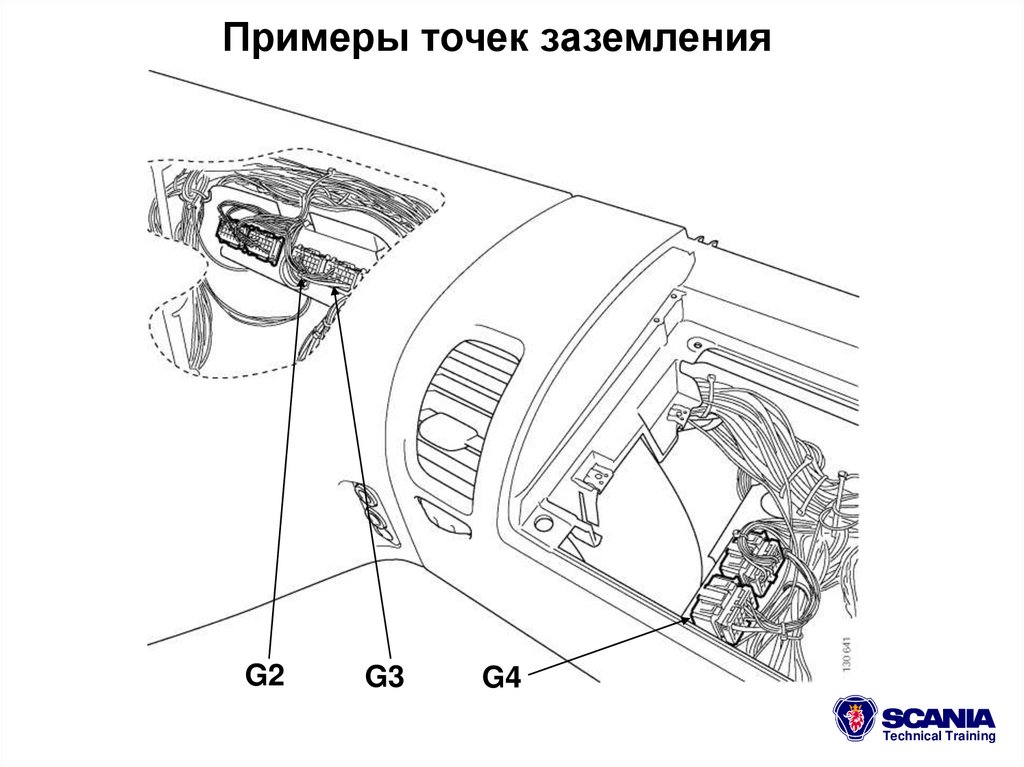

9. Примеры точек заземления

G2
G3
G4
Technical Training

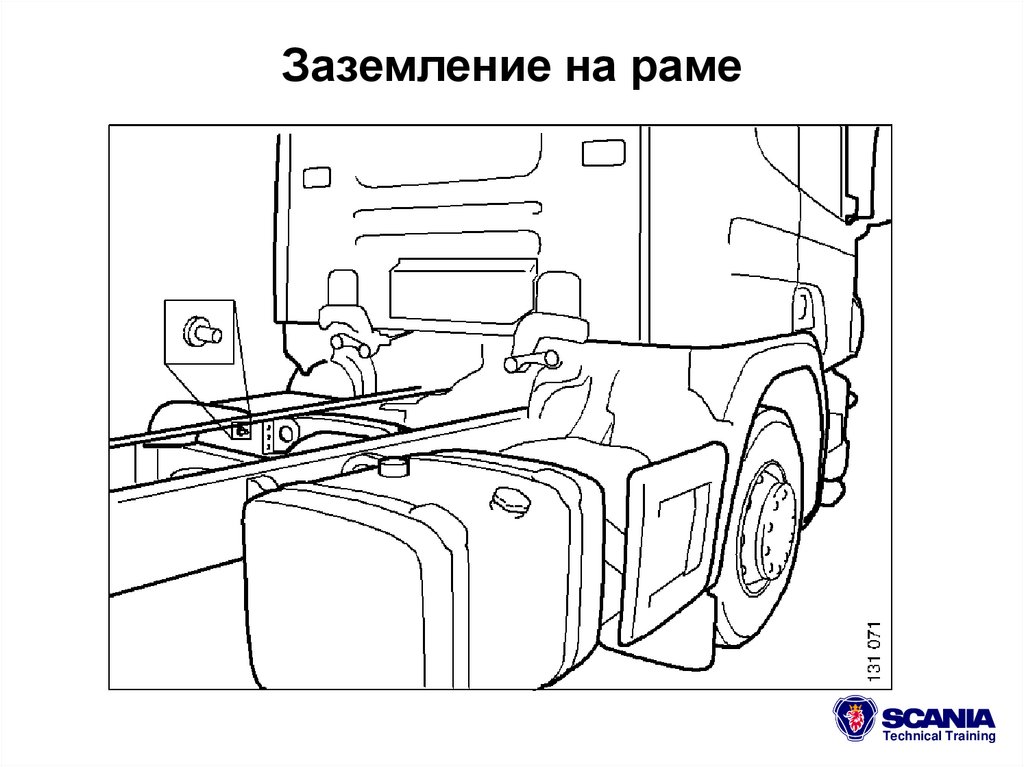

10. Заземление на раме

Technical Training

11.

Technical Training

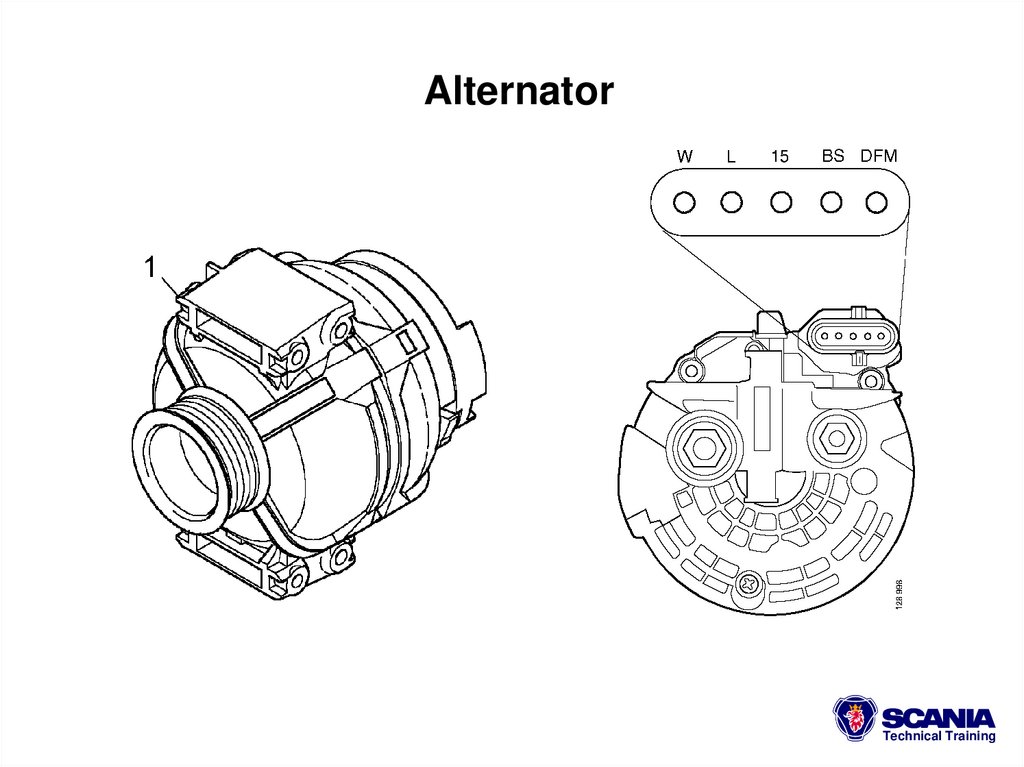

12. Alternator

Technical Training

13.

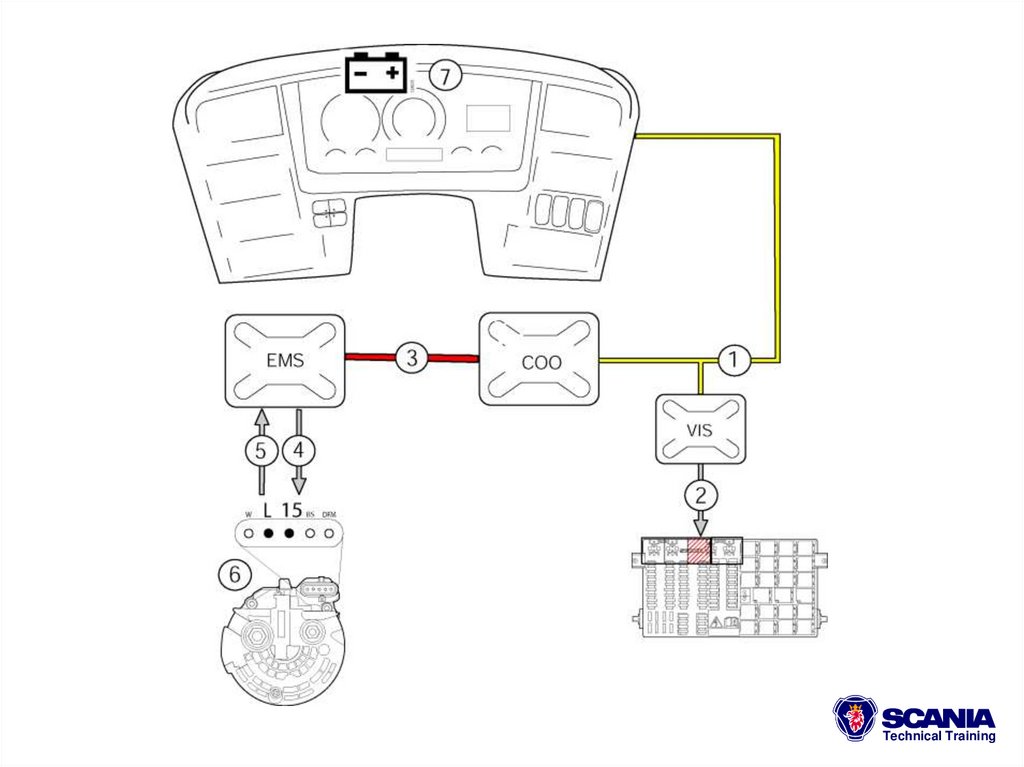

Technical Training

14.

MSC 363
Environment
The alternator
is not charging
P3_
Alternator
P2_
CentralElectricUnit
E44_
EMS
E30_

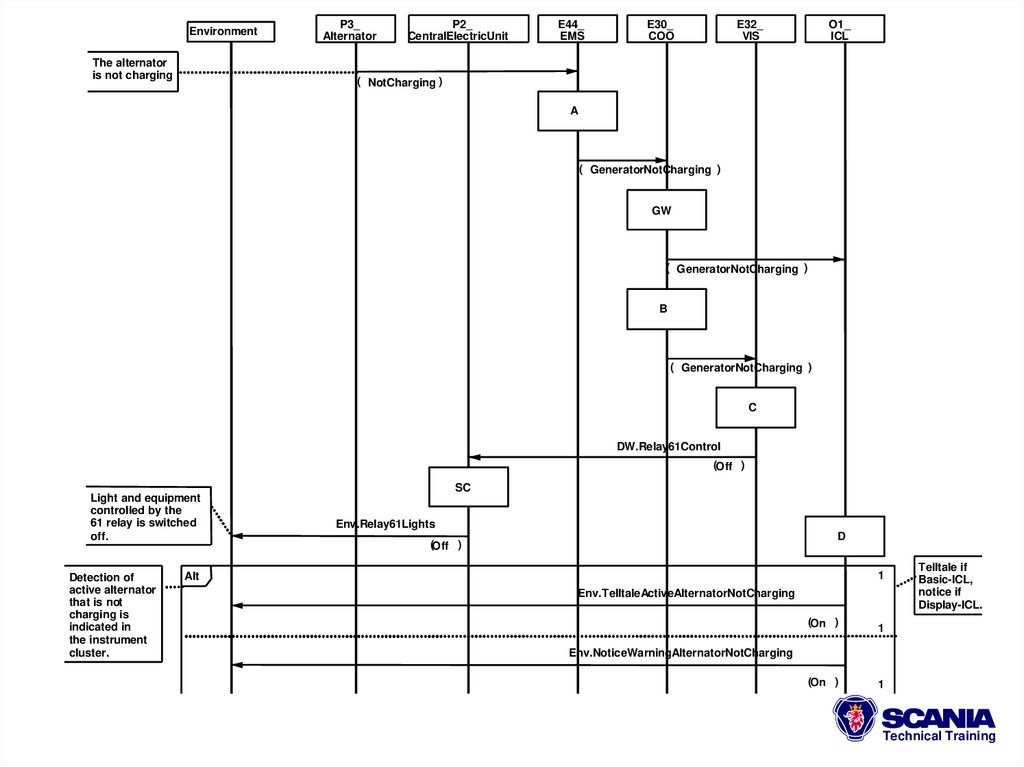

COO
E32_
VIS
O1_
ICL
( NotCharging )
A
( GeneratorNotCharging )
GW
( GeneratorNotCharging )
B
( GeneratorNotCharging )
C
DW.Relay61Control
(Off )
Light and equipment
controlled by the
61 relay is switched
off.
Detection of
active alternator
that is not
charging is
indicated in
the instrument
cluster.
SC
Env.Relay61Lights
D
(Off )
1
Alt
Env.TelltaleActiveAlternatorNotCharging
(On )
1
(On )
1
Telltale if
Basic-ICL,
notice if
Display-ICL.
Env.NoticeWarningAlternatorNotCharging
The Alternator
is now charging
Technical Training
( Charging )
A

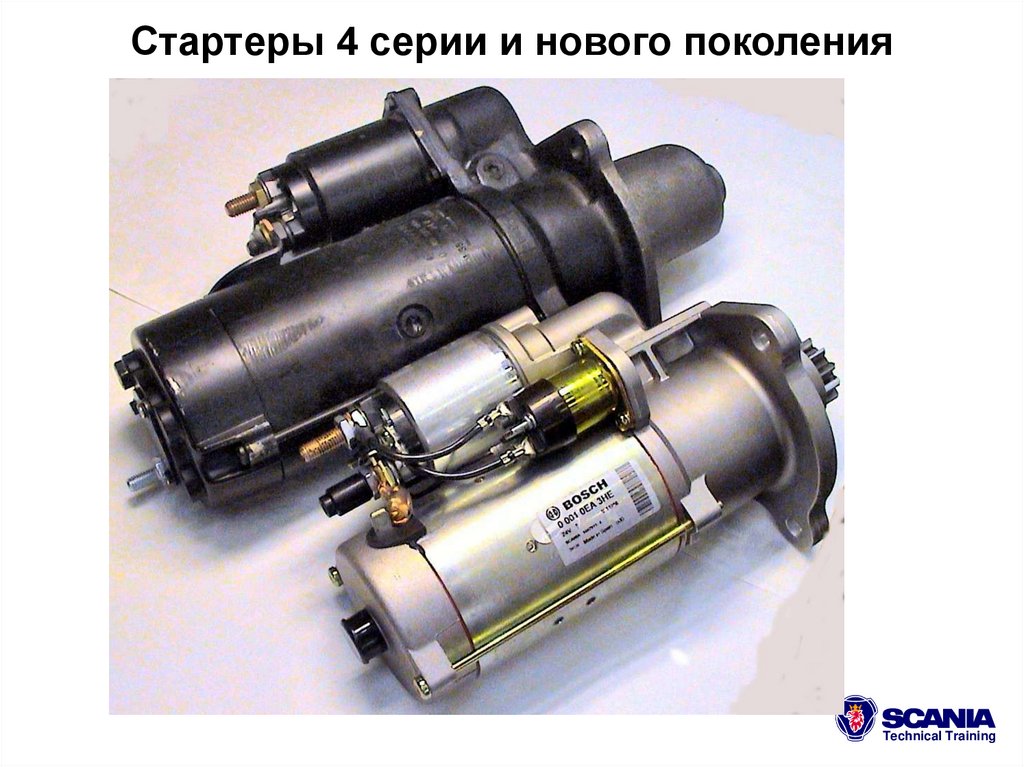

15. Стартеры 4 серии и нового поколения

Technical Training

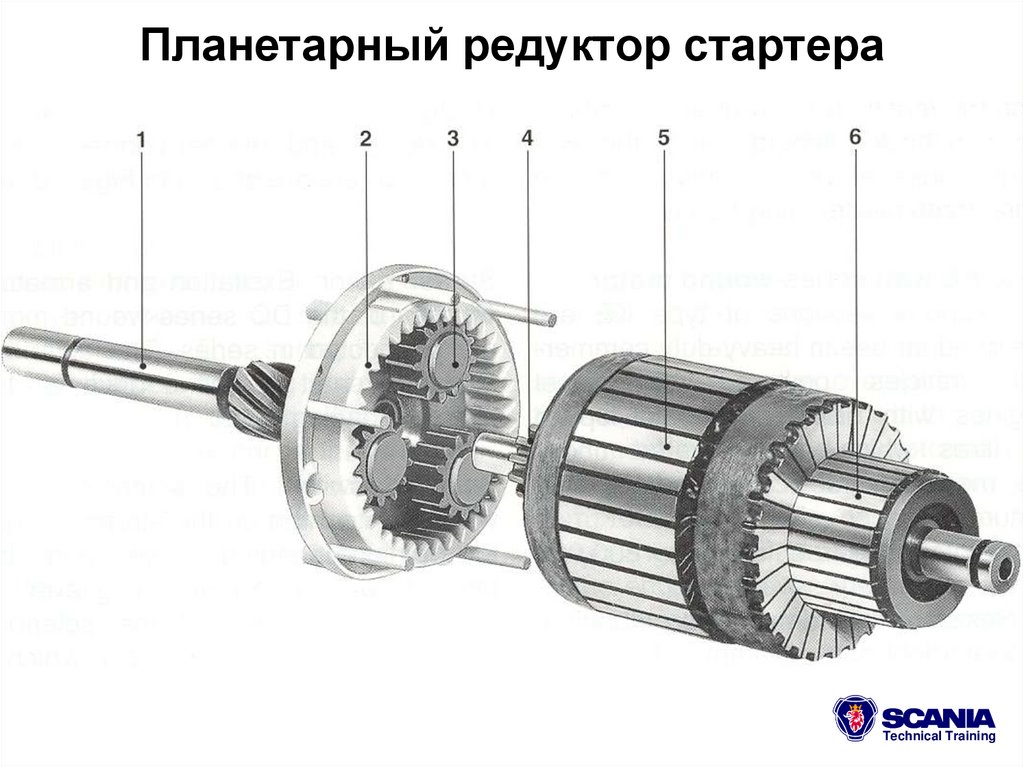

16. Планетарный редуктор стартера

Technical Training

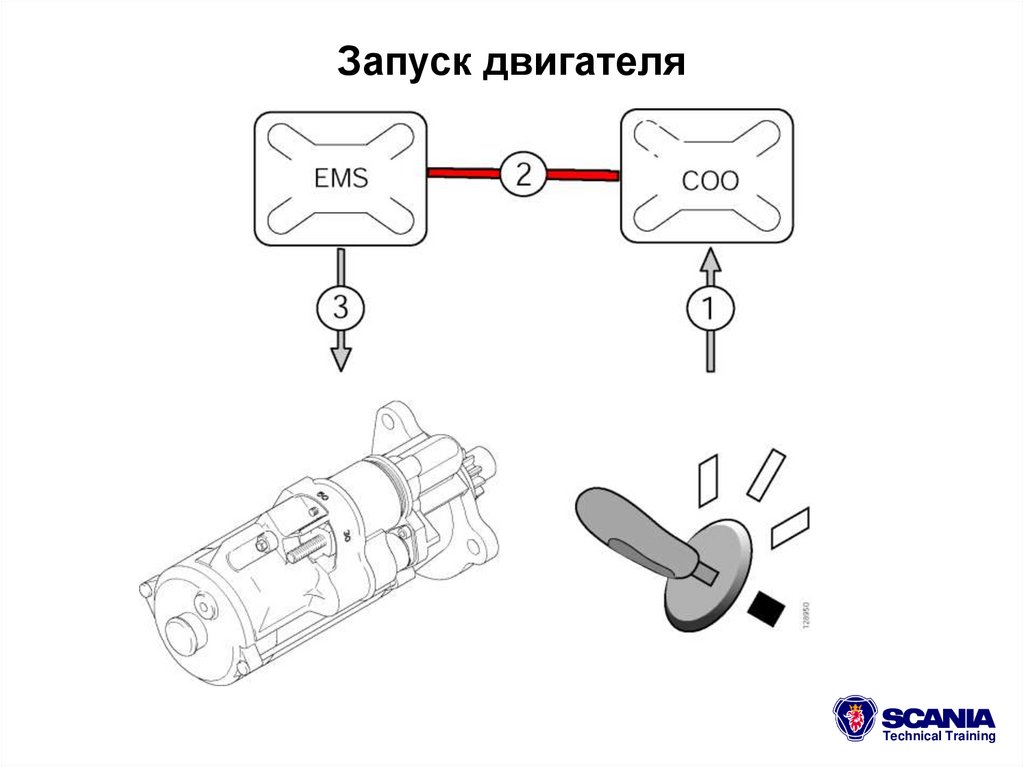

17. Запуск двигателя

Technical Training
