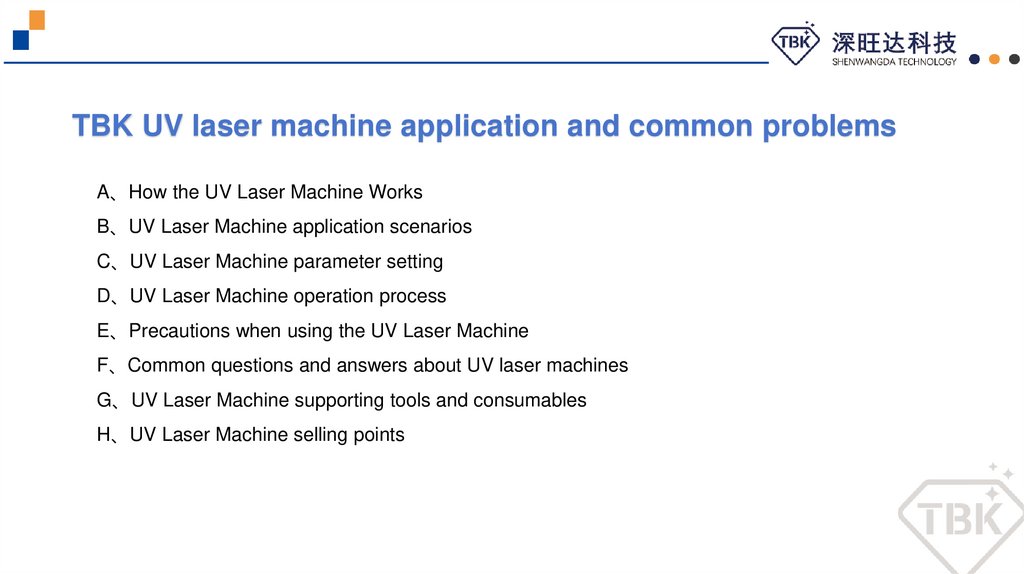

TBK UV laser machine application and common problems
A、How the UV Laser Machine Works
B、UV Laser Machine application scenarios
C、UV Laser Machine parameter setting
D、UV Laser Machine operation process
E、Precautions when using the UV Laser Machine
F、Common questions and answers about UV laser machines
G、UV Laser Machine supporting tools and consumables
H、UV Laser Machine selling points

2.

3.

A、How the UV Laser Machine Works
1.UV laser machine wavelength355-405nm(TBK958Z、TBK958ZE、TBK958ZU、TBK958ZP)
2.UV laser machine is a cold light source laser. Since it does not generate heat and light
radiation when working, it will not damage the inner screen when used to remove the mobile
phone screen cover.
3.UV laser has high output power, high beam quality, and small focused spot, which can
achieve more precise and clear marking effects.It is suitable for marking, engraving and cutting
on metal, plastic, silicone, glass, acrylic, wood, stone, leaves, some paper and other materials.

4.

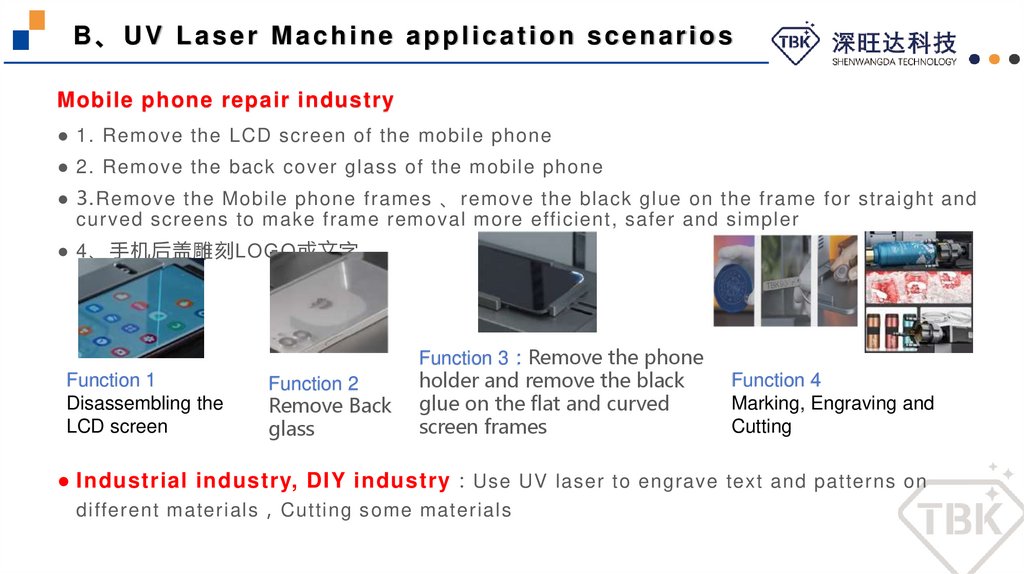

B、UV Laser Machine application scenarios
Mobile phone repair industry
● 1. Remove the LCD screen of the mobile phone
● 2. Remove the back cover glass of the mobile phone
● 3.Remove the Mobile phone frames 、remove the black glue on the frame for straight and
curved screens to make frame removal more efficient, safer and simpler
● 4、手机后盖雕刻LOGO或文字 。
Function 1
Disassembling the
LCD screen
Function 2
Remove Back
glass
Function 3 Remove the phone
holder and remove the black
glue on the flat and curved
screen frames
Function 4
Marking, Engraving and
Cutting
● Industrial industry, DIY industry Use UV laser to engrave text and patterns on
different materials Cutting some materials

5.

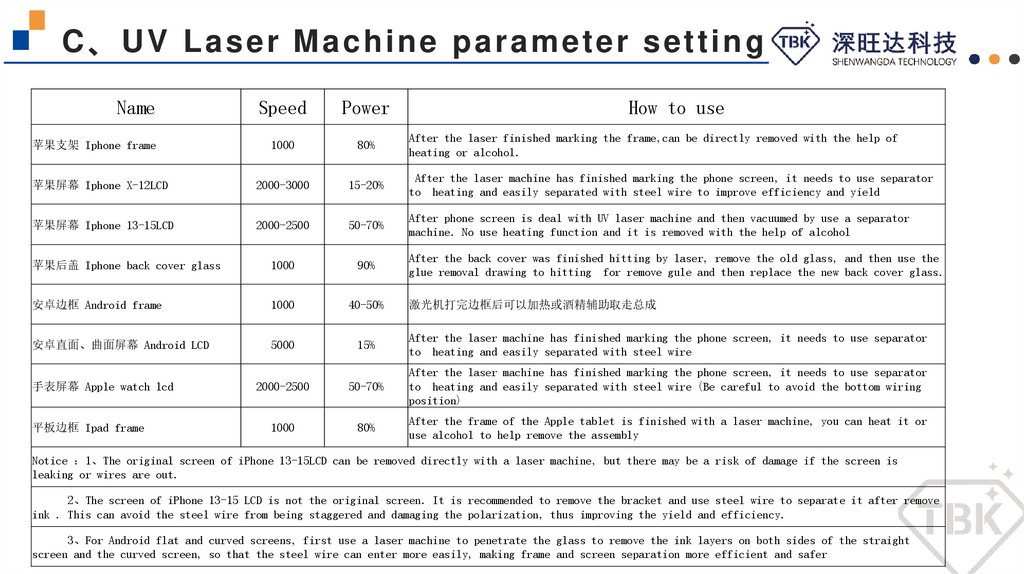

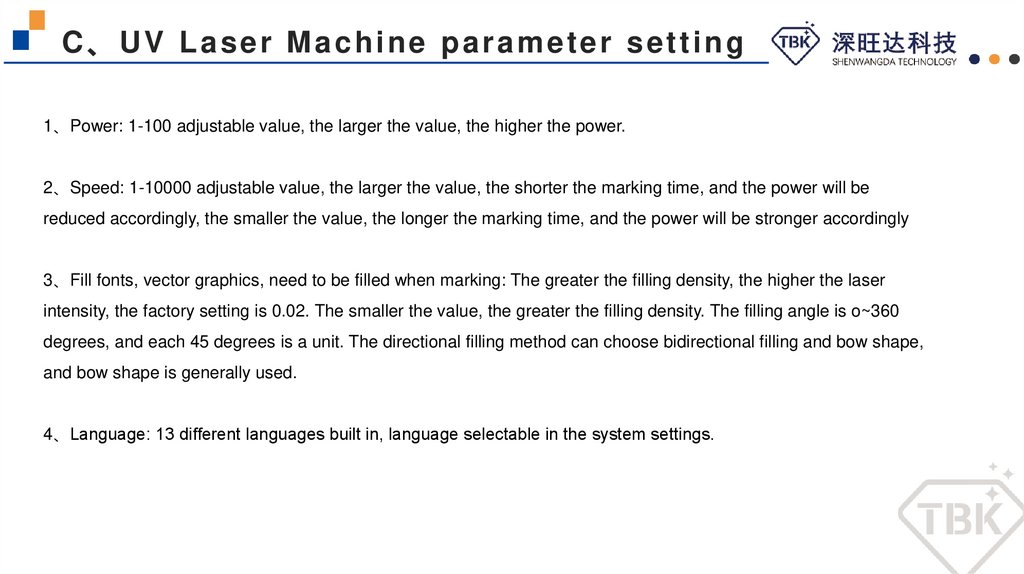

C、UV Laser Machine parameter setting
1、Power: 1-100 adjustable value, the larger the value, the higher the power.
2、Speed: 1-10000 adjustable value, the larger the value, the shorter the marking time, and the power will be
reduced accordingly, the smaller the value, the longer the marking time, and the power will be stronger accordingly
3、Fill fonts, vector graphics, need to be filled when marking: The greater the filling density, the higher the laser
intensity, the factory setting is 0.02. The smaller the value, the greater the filling density. The filling angle is o~360
degrees, and each 45 degrees is a unit. The directional filling method can choose bidirectional filling and bow shape,
and bow shape is generally used.
4、Language: 13 different languages ​built in, language selectable in the system settings.

6.

C、UV Laser Machine parameter setting
Name
Speed
Power
苹果支架 Iphone frame
1000
80%
苹果屏幕 Iphone X-12LCD
2000-3000
15-20%
After the laser machine has finished marking the phone screen, it needs to use separator
to heating and easily separated with steel wire to improve efficiency and yield
苹果屏幕 Iphone 13-15LCD
2000-2500
50-70%
After phone screen is deal with UV laser machine and then vacuumed by use a separator
machine. No use heating function and it is removed with the help of alcohol
苹果后盖 Iphone back cover glass
1000
90%
安卓边框 Android frame
1000
40-50%
安卓直面、曲面屏幕 Android LCD
5000
15%
After the laser machine has finished marking the phone screen, it needs to use separator
to heating and easily separated with steel wire
2000-2500
50-70%
After the laser machine has finished marking the phone screen, it needs to use separator
to heating and easily separated with steel wire (Be careful to avoid the bottom wiring
position)
1000
80%
After the frame of the Apple tablet is finished with a laser machine, you can heat it or
use alcohol to help remove the assembly
手表屏幕 Apple watch lcd
平板边框 Ipad frame
How to use
After the laser finished marking the frame,can be directly removed with the help of
heating or alcohol.
After the back cover was finished hitting by laser, remove the old glass, and then use the
glue removal drawing to hitting for remove gule and then replace the new back cover glass.
激光机打完边框后可以加热或酒精辅助取走总成
Notice 1、The original screen of iPhone 13-15LCD can be removed directly with a laser machine, but there may be a risk of damage if the screen is
leaking or wires are out.
2、The screen of iPhone 13-15 LCD is not the original screen. It is recommended to remove the bracket and use steel wire to separate it after remove
ink . This can avoid the steel wire from being staggered and damaging the polarization, thus improving the yield and efficiency.
3、For Android flat and curved screens, first use a laser machine to penetrate the glass to remove the ink layers on both sides of the straight
screen and the curved screen, so that the steel wire can enter more easily, making frame and screen separation more efficient and safer

7.

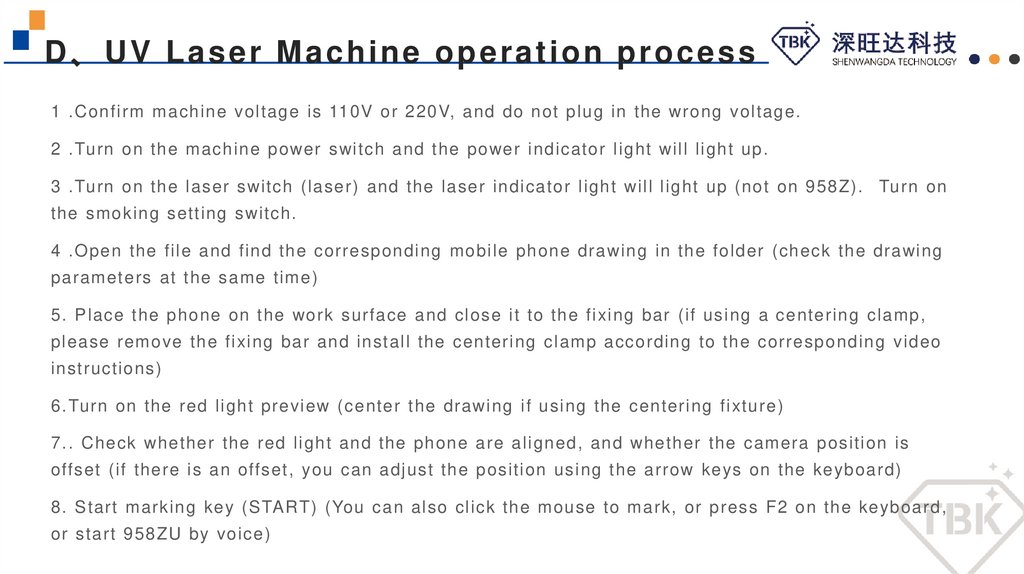

D、UV Laser Machine operation process
1 .Confirm machine voltage is 110V or 220V, and do not plug in the wrong voltage.
2 .Turn on the machine power switch and the power indicator light will light up.
3 .Turn on the laser switch (laser) and the laser indicator light will light up (not on 958Z). Turn on
the smoking setting switch.
4 .Open the file and find the corresponding mobile phone drawing in the folder (check the drawing
parameters at the same time)
5. Place the phone on the work surface and close it to the fixing bar (if using a centering clamp,
please remove the fixing bar and install the centering clamp according to the corresponding video
instructions )
6.Turn on the red light preview (center the drawing if using the centering fixture)
7.. Check whether the red light and the phone are aligned, and whether the camera position is
offset (if there is an offset, you can adjust the position using the arrow keys on the keyboard)
8. Start marking key (START) (You can also click the mouse to mark, or press F2 on the keyboard,
or start 958ZU by voice)

8.

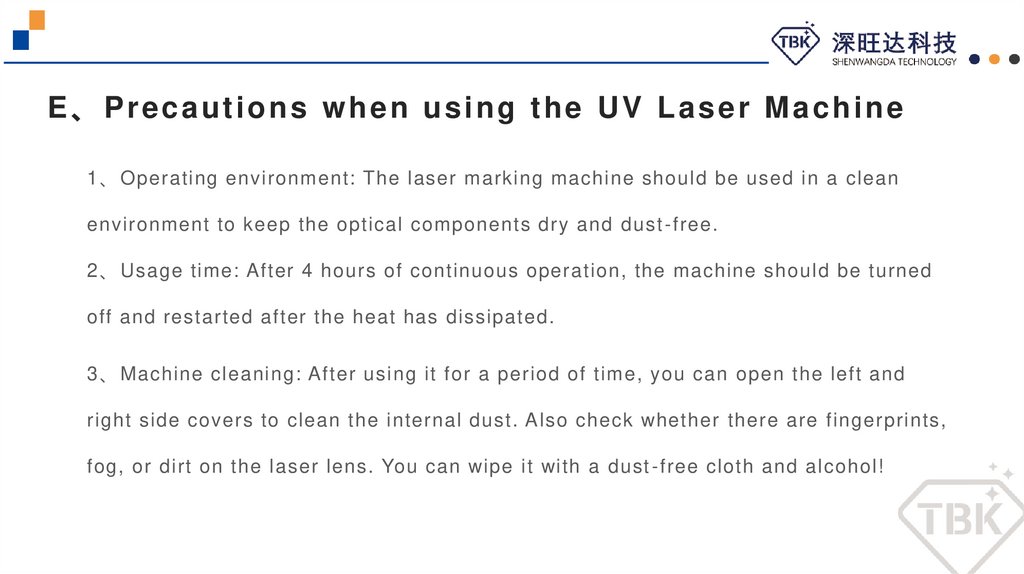

E、Precautions when using the UV Laser Machine
1、Operating environment: The laser marking machine should be used in a clean
environment to keep the optical components dry and dust -free.
2、Usage time: After 4 hours of continuous operation, the machine should be turned
off and restarted after the heat has dissipated.
3、Machine cleaning: After using it for a period of time, you can open the left and
right side covers to clean the internal dust. Also check whether there are fingerprints,
fog, or dirt on the laser lens. You can wipe it with a dust -free cloth and alcohol!

9.

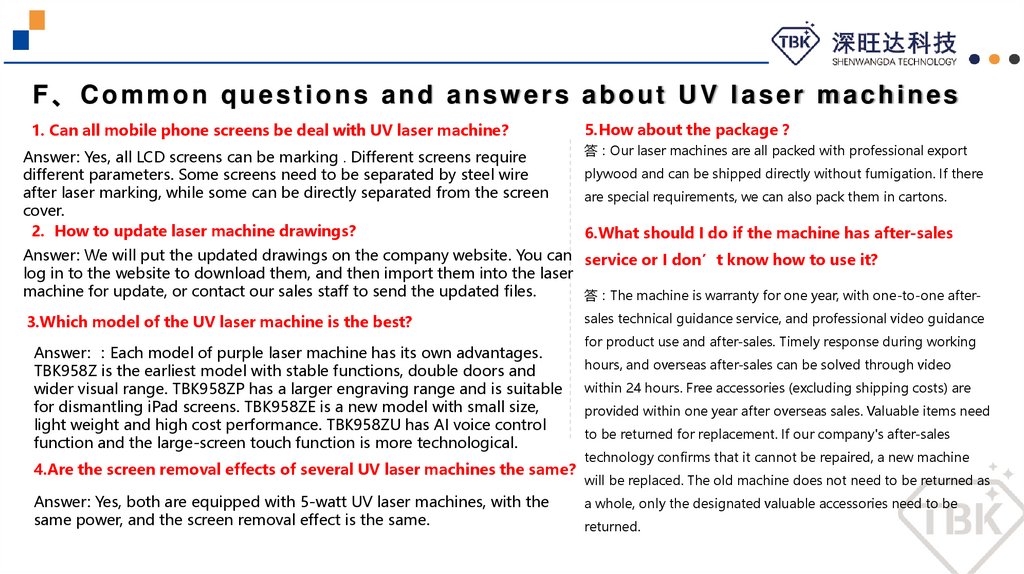

F、Common questions and answers about UV laser machines
1. Can all mobile phone screens be deal with UV laser machine?
5.How about the package
Answer: Yes, all LCD screens can be marking .Different screens require
different parameters. Some screens need to be separated by steel wire
after laser marking, while some can be directly separated from the screen
cover.
2. How to update laser machine drawings?
答 Our laser machines are all packed with professional export
plywood and can be shipped directly without fumigation. If there
are special requirements, we can also pack them in cartons.
6.What should I do if the machine has after-sales
Answer: We will put the updated drawings on the company website. You can service or I don’t know how to use it?
log in to the website to download them, and then import them into the laser
machine for update, or contact our sales staff to send the updated files.
答 The machine is warranty for one year, with one-to-one after3.Which model of the UV laser machine is the best?
Answer: Each model of purple laser machine has its own advantages.
TBK958Z is the earliest model with stable functions, double doors and
wider visual range. TBK958ZP has a larger engraving range and is suitable
for dismantling iPad screens. TBK958ZE is a new model with small size,
light weight and high cost performance. TBK958ZU has AI voice control
function and the large-screen touch function is more technological.
4.Are the screen removal effects of several UV laser machines the same?
Answer: Yes, both are equipped with 5-watt UV laser machines, with the
same power, and the screen removal effect is the same.
sales technical guidance service, and professional video guidance
for product use and after-sales. Timely response during working
hours, and overseas after-sales can be solved through video
within 24 hours. Free accessories (excluding shipping costs) are
provided within one year after overseas sales. Valuable items need
to be returned for replacement. If our company's after-sales
technology confirms that it cannot be repaired, a new machine
will be replaced. The old machine does not need to be returned as
a whole, only the designated valuable accessories need to be
returned.

10.

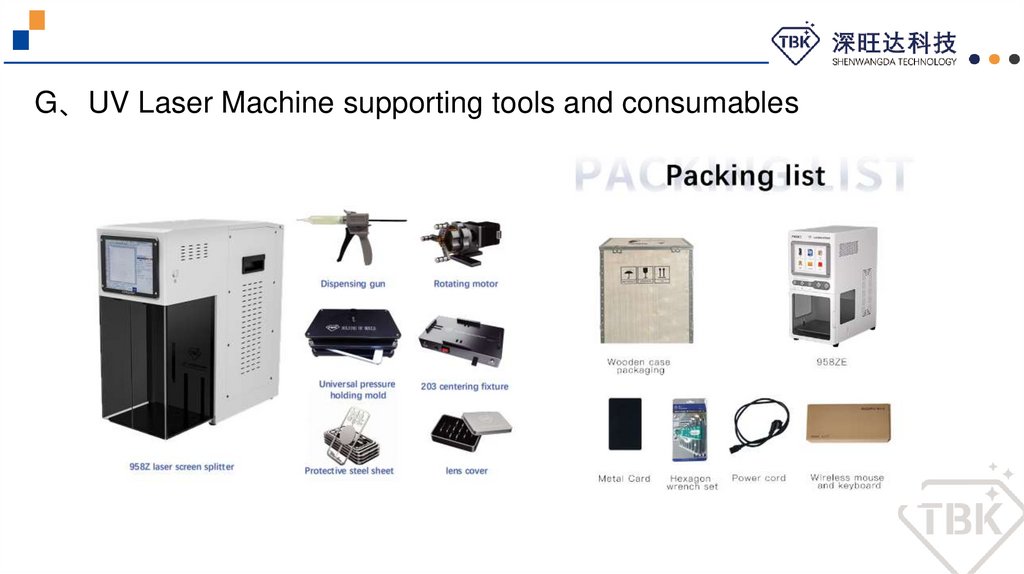

G、UV Laser Machine supporting tools and consumables

11.

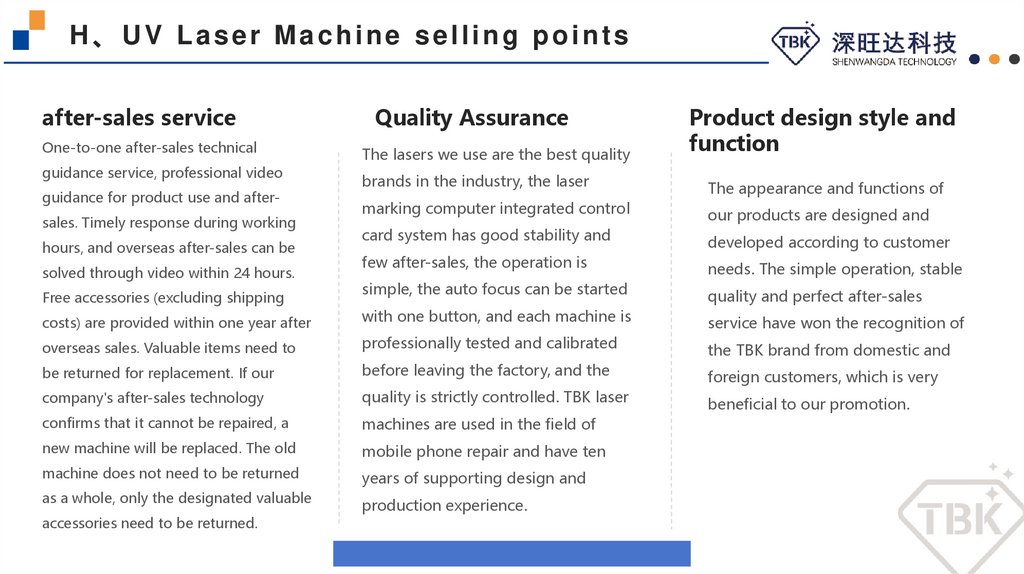

H、UV Laser Machine selling points
after-sales service
One-to-one after-sales technical
guidance service, professional video
Quality Assurance
The lasers we use are the best quality
Product design style and
function
brands in the industry, the laser
The appearance and functions of
marking computer integrated control
our products are designed and
card system has good stability and
developed according to customer
few after-sales, the operation is
needs. The simple operation, stable
simple, the auto focus can be started
quality and perfect after-sales
costs) are provided within one year after
with one button, and each machine is
service have won the recognition of
overseas sales. Valuable items need to
professionally tested and calibrated
the TBK brand from domestic and
be returned for replacement. If our
before leaving the factory, and the
foreign customers, which is very
company's after-sales technology
quality is strictly controlled. TBK laser
beneficial to our promotion.
confirms that it cannot be repaired, a
machines are used in the field of
new machine will be replaced. The old
mobile phone repair and have ten
machine does not need to be returned
years of supporting design and
as a whole, only the designated valuable
production experience.
guidance for product use and aftersales. Timely response during working
hours, and overseas after-sales can be
solved through video within 24 hours.
Free accessories (excluding shipping
accessories need to be returned.

12.

● TBK UV laser Machine model have TBK958Z TBK958ZE TBK958ZU TBK958ZP
