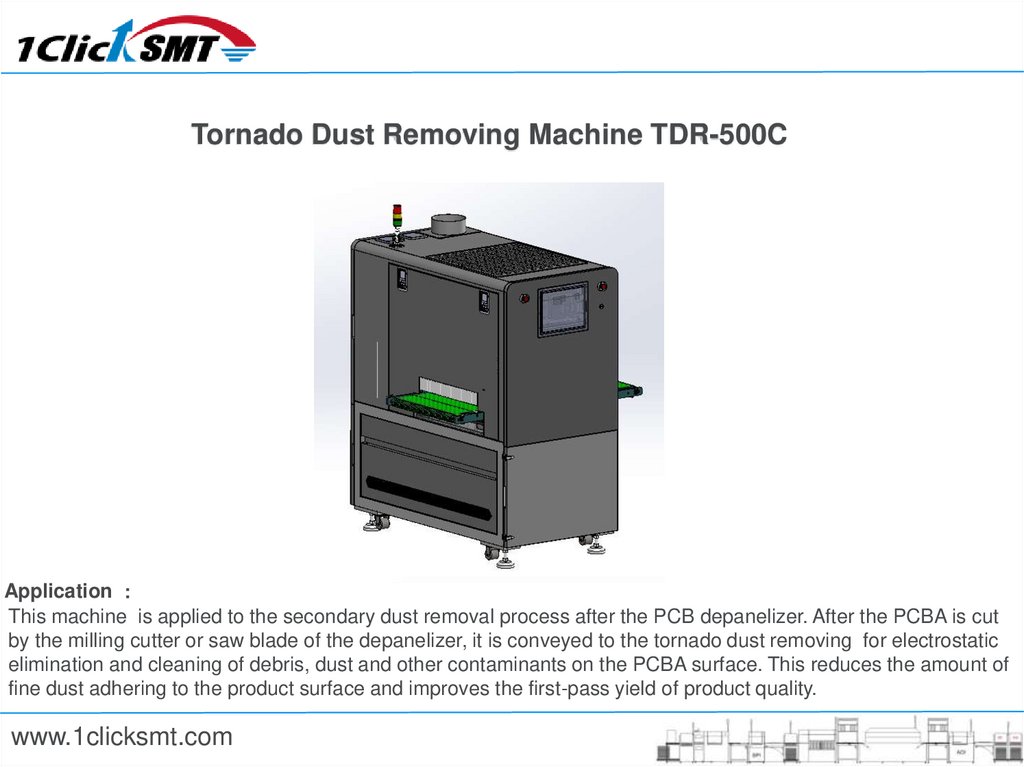

Tornado Dust Removing Machine TDR-500C

1.

Tornado Dust Removing Machine TDR-500C
Application
This machine is applied to the secondary dust removal process after the PCB depanelizer. After the PCBA is cut
by the milling cutter or saw blade of the depanelizer, it is conveyed to the tornado dust removing for electrostatic
elimination and cleaning of debris, dust and other contaminants on the PCBA surface. This reduces the amount of
fine dust adhering to the product surface and improves the first-pass yield of product quality.
www.1clicksmt.com

2.

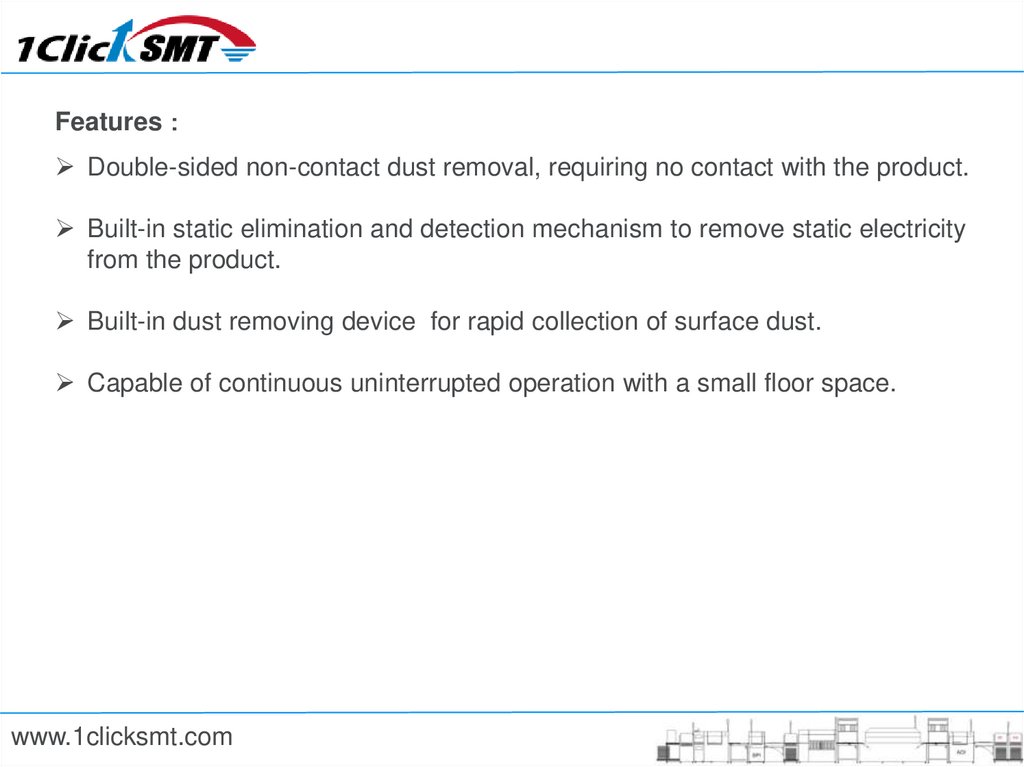

Features
Double-sided non-contact dust removal, requiring no contact with the product.
Built-in static elimination and detection mechanism to remove static electricity
from the product.
Built-in dust removing device for rapid collection of surface dust.
Capable of continuous uninterrupted operation with a small floor space.
www.1clicksmt.com

3.

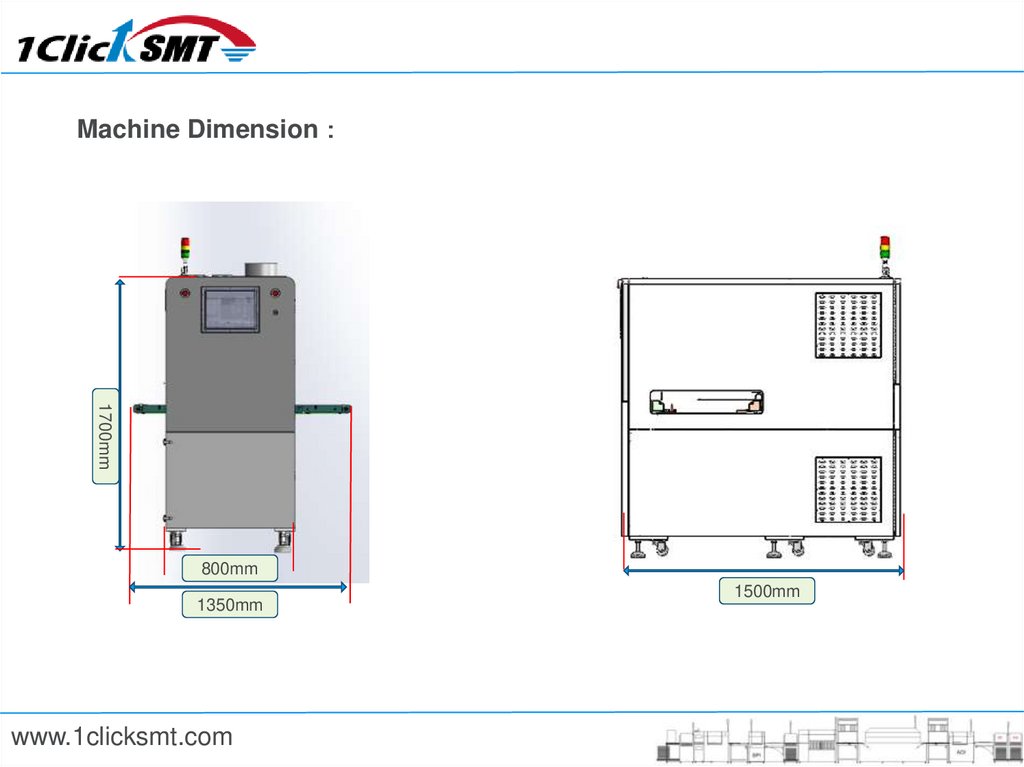

Machine Dimension
1700mm
800mm
1350mm
www.1clicksmt.com
1500mm

4.

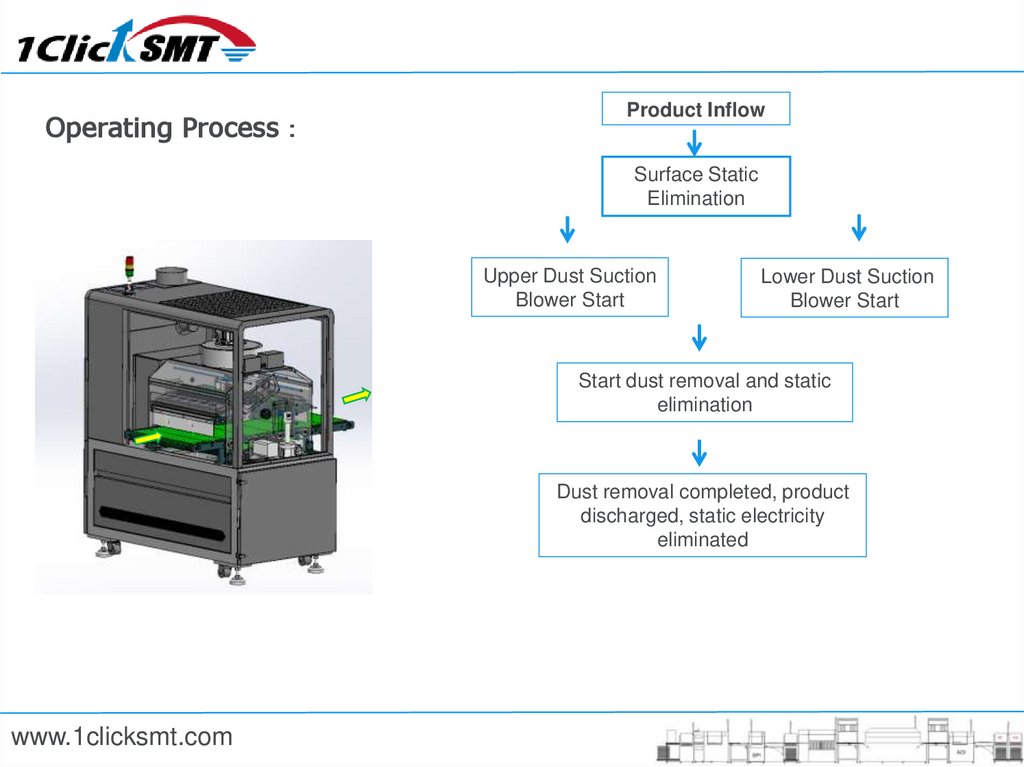

Operating Process
Product Inflow
Surface Static
Elimination
Upper Dust Suction
Blower Start
Lower Dust Suction
Blower Start
Start dust removal and static
elimination
Dust removal completed, product
discharged, static electricity
eliminated
www.1clicksmt.com

5.

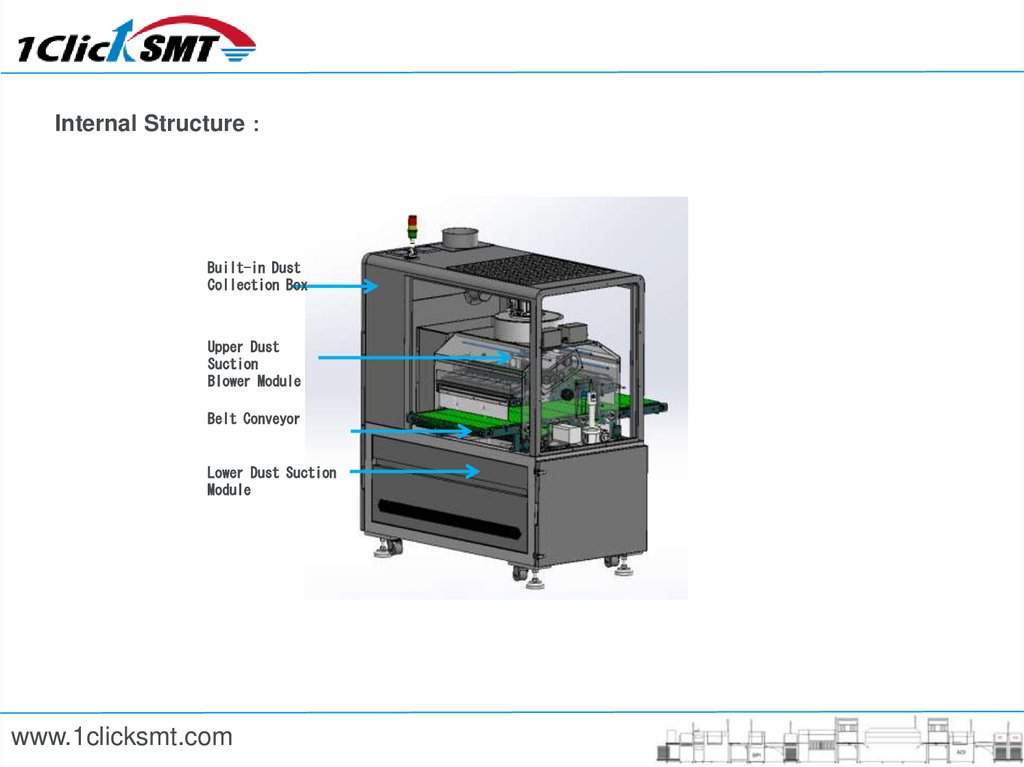

Internal Structure
Built-in Dust
Collection Box
Upper Dust
Suction
Blower Module
Belt Conveyor
Lower Dust Suction
Module
www.1clicksmt.com

6.

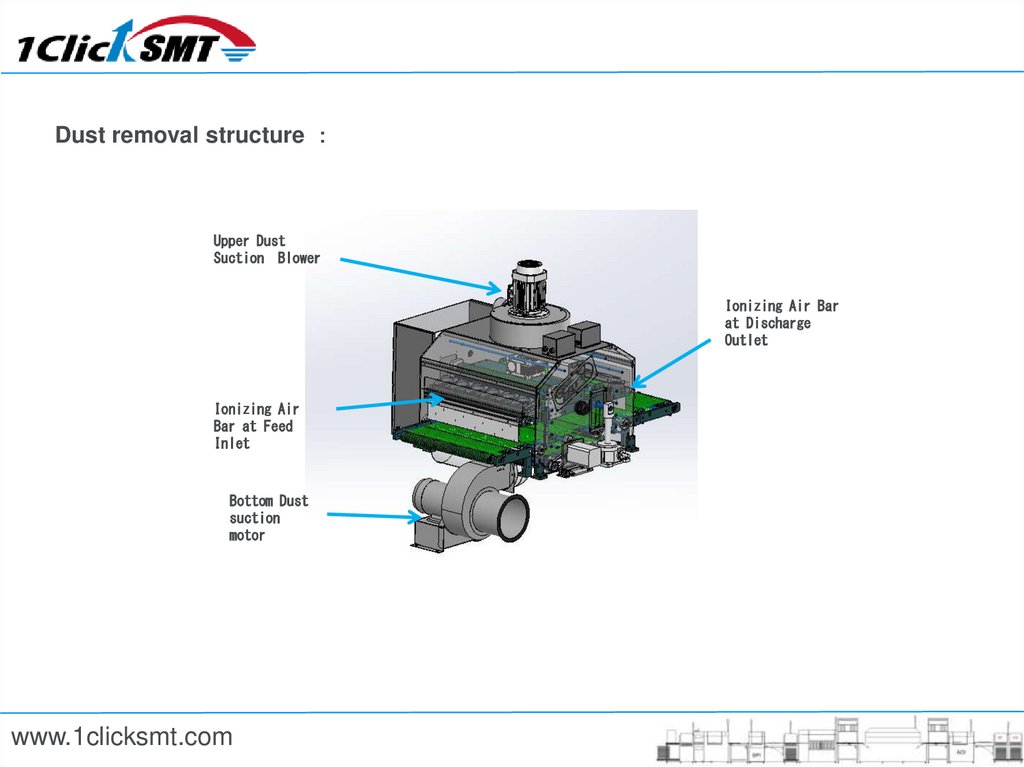

Dust removal structure
Upper Dust
Suction Blower
Ionizing Air Bar
at Discharge
Outlet
Ionizing Air
Bar at Feed
Inlet
Bottom Dust
suction
motor
www.1clicksmt.com

7.

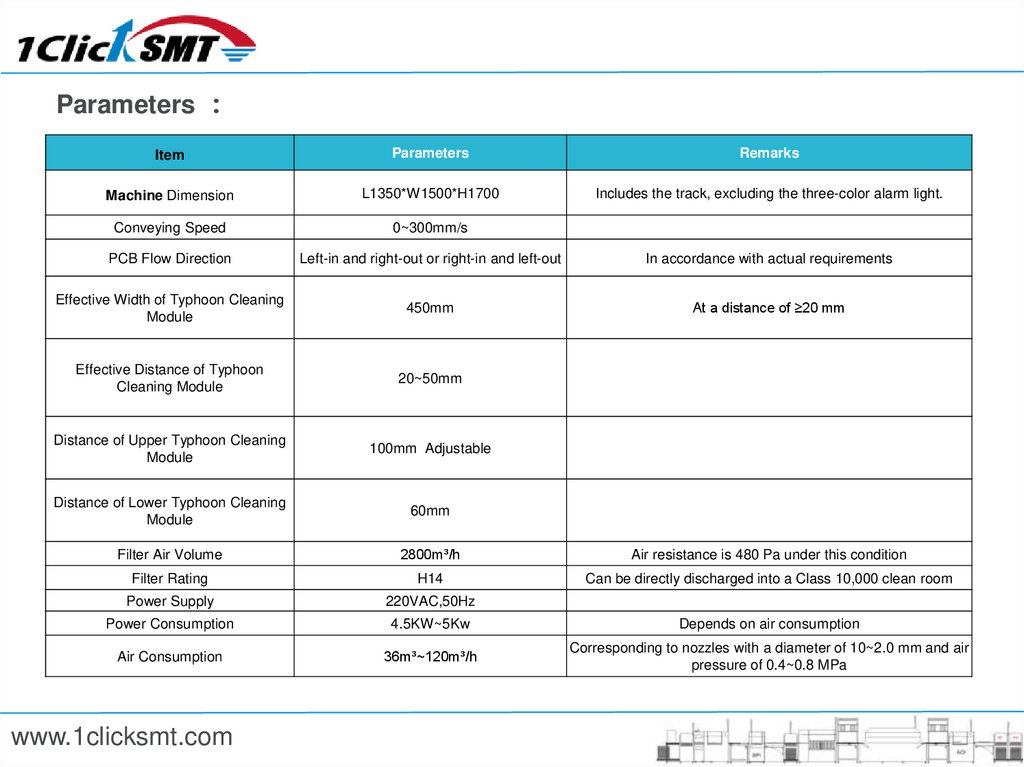

Parameters
Item
Parameters
Remarks
Machine Dimension
L1350*W1500*H1700
Includes the track, excluding the three-color alarm light.
Conveying Speed
0~300mm/s
PCB Flow Direction
Left-in and right-out or right-in and left-out
In accordance with actual requirements
Effective Width of Typhoon Cleaning
Module
450mm
At a distance of ≥20 mm
Effective Distance of Typhoon
Cleaning Module
20~50mm
Distance of Upper Typhoon Cleaning
Module
100mm Adjustable
Distance of Lower Typhoon Cleaning
Module
60mm
Filter Air Volume
2800m³/h
Air resistance is 480 Pa under this condition
Filter Rating
H14
Can be directly discharged into a Class 10,000 clean room
Power Supply
220VAC,50Hz
Power Consumption
4.5KW~5Kw
Depends on air consumption
Air Consumption
36m³~120m³/h
Corresponding to nozzles with a diameter of 10~2.0 mm and air
pressure of 0.4~0.8 MPa
