大族LDI智能應用 內層線路

1.

大族LDI智能應用 內層線路
HAN'S LDI SMART APPLICATION Innerlayer circuit)

2.

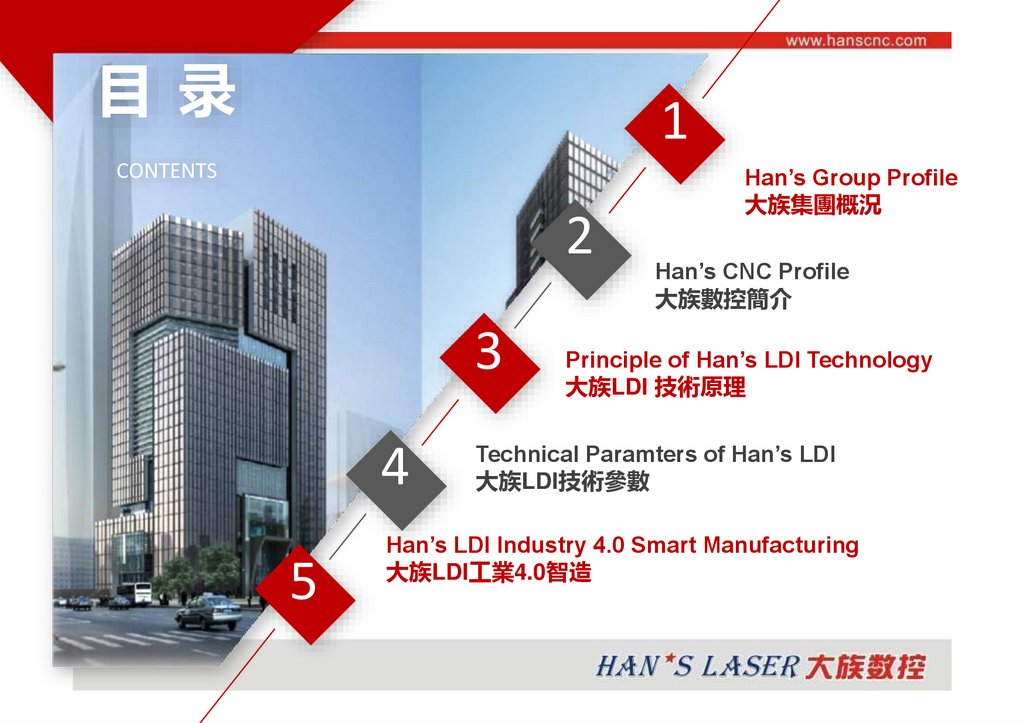

目 录
1
CONTENTS
2
3
4
5
Han’s Group Profile
大族集團概況
Han’s CNC Profile
大族數控簡介
Principle of Han’s LDI Technology
大族LDI 技術原理
Technical Paramters of Han’s LDI
大族LDI技術參數
Han’s LDI Industry 4.0 Smart Manufacturing
大族LDI工業4.0智造

3.

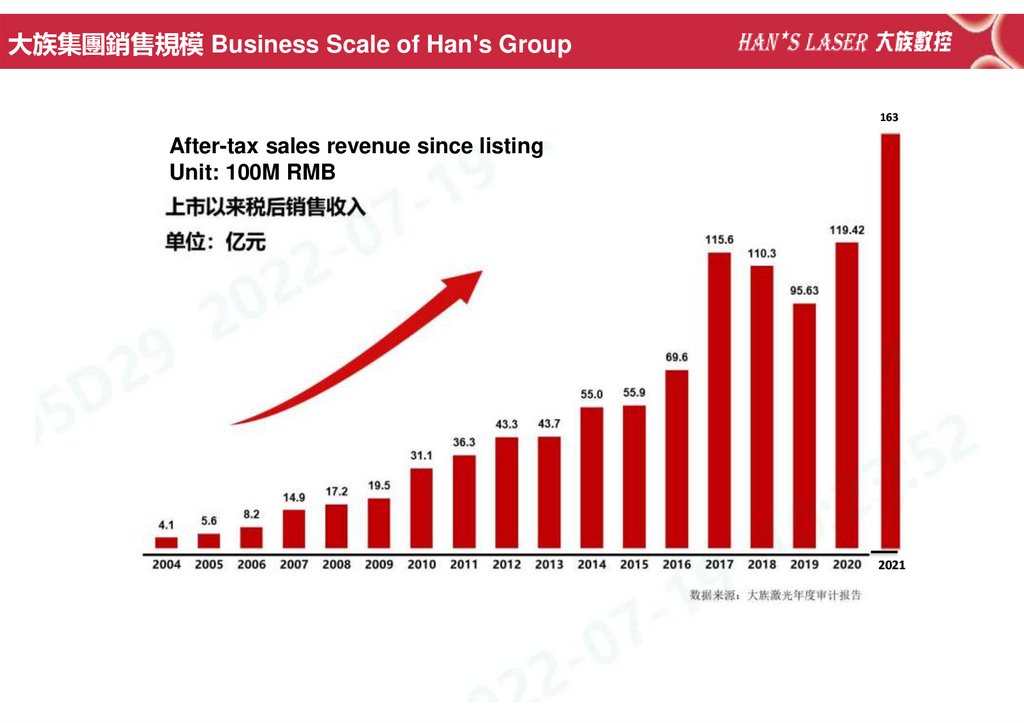

大族集團銷售規模 Business Scale of Han's Group
163
After-tax sales revenue since listing
After-tax
salesRMB
revenue since listing
Unit:
100M
2021

4.

大族集團客戶群 Han’s Group Customer Base
大族集團客戶群 Han’s Group Customer Base
大族集團全面服務於世界500強企業及國內數萬家規模以上企業
Han's Group fully serves the world's top 500 companies and tens of thousands of domestic
enterprises above designated size
Customers in IT Field
Customers in Automobile Field
大族集團客戶群 Han’s Group Customer Base
Customers in Industry Field
Customers in Packaging Field

5.

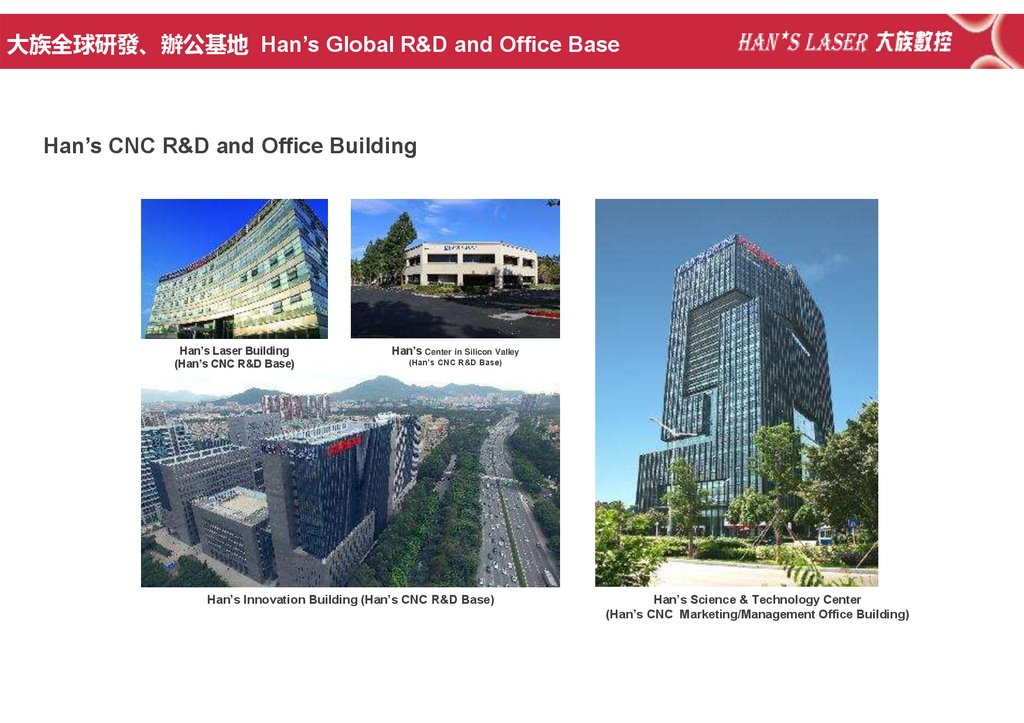

大族全球研發、辦公基地 Han’s Global R&D and Office Base
大族全球研發、辦公基地 Han’s Global R&D and Office Base
Han’s CNC R&D and Office Building
Han’s Laser Building
(Han’s CNC R&D Base)
Han’s Center in Silicon Valley
(Han’s CNC R&D Base)
Han’s Innovation Building (Han’s CNC R&D Base)
Han’s Science & Technology Center
(Han’s CNC Marketing/Management Office Building)

6.

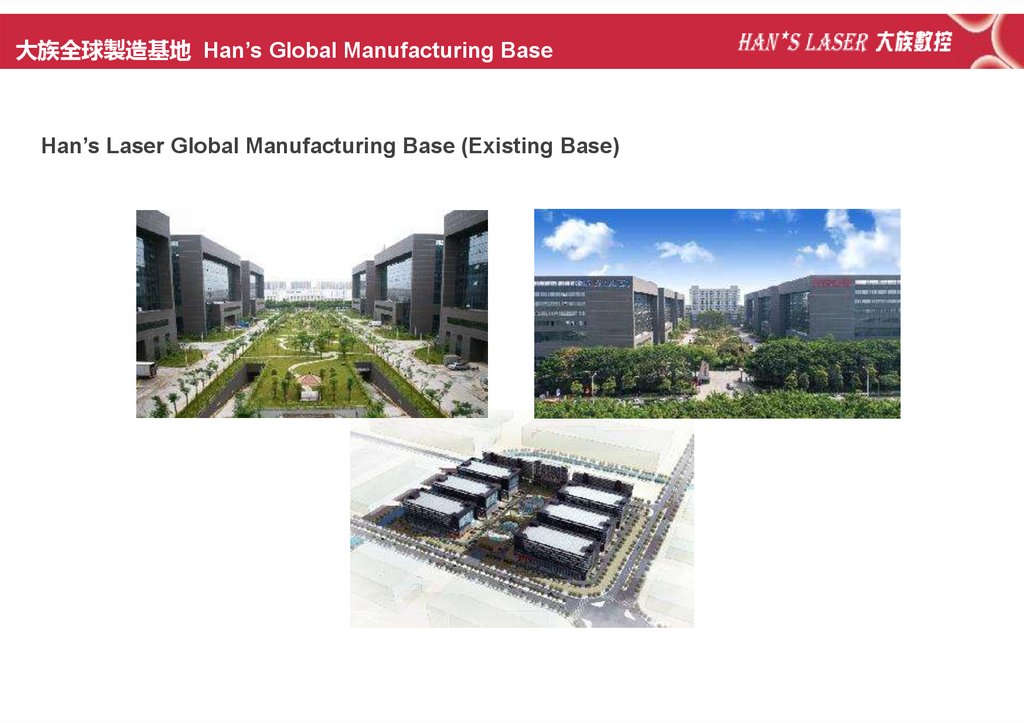

大族全球製造基地 Han’s Global Manufacturing Base
大族全球製造基地 Han’s Global Manufacturing Base
Han’s Laser Global Manufacturing Base (Existing Base)

7.

大 族數 控 概 況
PART
02
HAN'S CNC PROFILE
• 公司簡介
• 市場地位
Presentation • Market
Position
• LDI 概況
• 客戶群
• LDI Profile
• Customer Group

8.

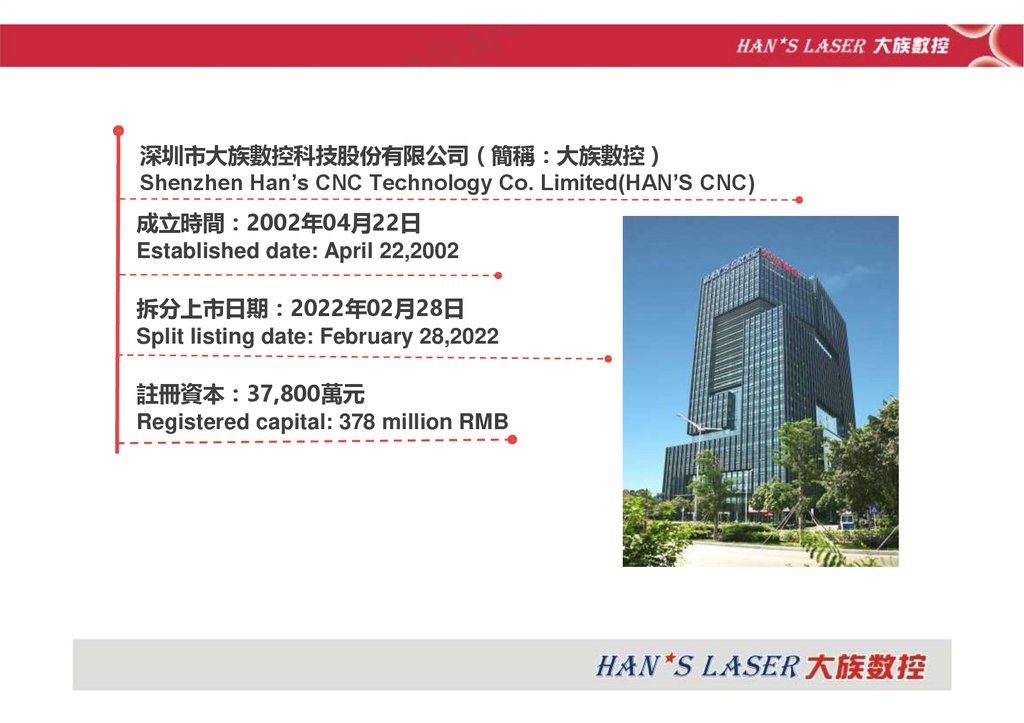

深圳市大族數控科技股份有限公司 簡稱 大族數控
Shenzhen Han’s CNC Technology Co. Limited(HAN’S CNC)
成立時間 2002年04月22日
Established date: April 22,2002
拆分上市日期 2022年02月28日
Split listing date: February 28,2022
註冊資本 37,800萬元
Registered capital: 378 million RMB

9.

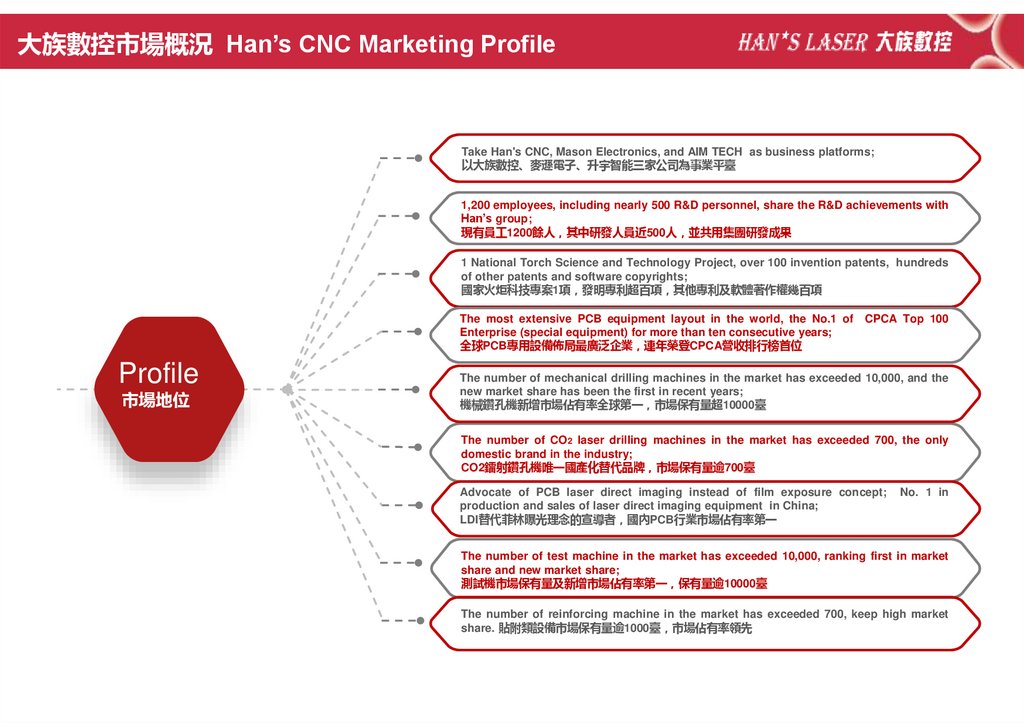

大族數控市場概況 Han’s CNC Marketing Profile
Take Han's CNC, Mason Electronics, and AIM TECH as business platforms;
以大族數控、麥遜電子、升宇智能三家公司為事業平臺
1,200 employees, including nearly 500 R&D personnel, share the R&D achievements with
Han’s group;
現有員工1200餘人 其中研發人員近500人 並共用集團研發成果
1 National Torch Science and Technology Project, over 100 invention patents, hundreds
of other patents and software copyrights;
國家火炬科技專案1項 發明專利超百項 其他專利及軟體著作權幾百項
The most extensive PCB equipment layout in the world, the No.1 of
Enterprise (special equipment) for more than ten consecutive years;
全球PCB專用設備佈局最廣泛企業 連年榮登CPCA營收排行榜首位
Profile
市場地位
CPCA Top 100
The number of mechanical drilling machines in the market has exceeded 10,000, and the
new market share has been the first in recent years;
機械鑽孔機新增市場佔有率全球第一 市場保有量超10000臺
The number of CO2 laser drilling machines in the market has exceeded 700, the only
domestic brand in the industry;
CO2鐳射鑽孔機唯一國產化替代品牌 市場保有量逾700臺
Advocate of PCB laser direct imaging instead of film exposure concept;
production and sales of laser direct imaging equipment in China;
LDI替代菲林曝光理念的宣導者 國內PCB行業市場佔有率第一
No. 1 in
The number of test machine in the market has exceeded 10,000, ranking first in market
share and new market share;
測試機市場保有量及新增市場佔有率第一 保有量逾10000臺
The number of reinforcing machine in the market has exceeded 700, keep high market
share. 貼附類設備市場保有量逾1000臺 市場佔有率領先

10.

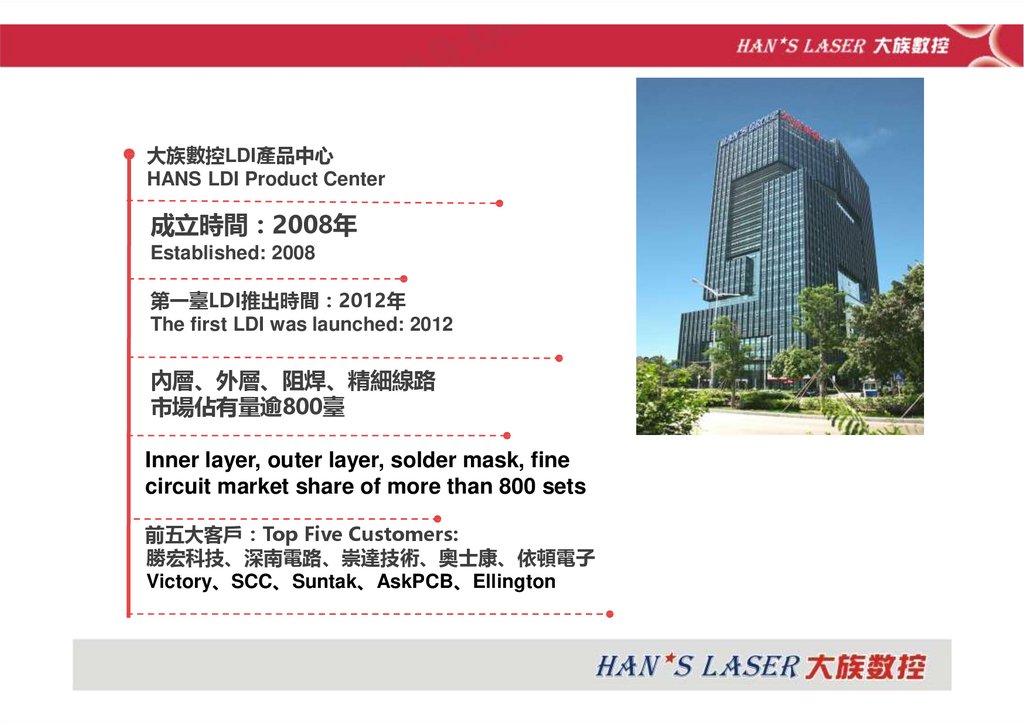

大族數控LDI產品中心
HANS LDI Product Center
成立時間 2008年
Established: 2008
第一臺LDI推出時間 2012年
The first LDI was launched: 2012
內層、外層、阻焊、精細線路
市場佔有量逾800臺
Inner layer, outer layer, solder mask, fine
circuit market share of more than 800 sets
前五大客戶 Top Five Customers:
勝宏科技、深南電路、崇達技術、奧士康、依頓電子
Victory、SCC、Suntak、AskPCB、Ellington

11.

大族LDI客戶群體 部分 Hans CNC LDI Customer Group Part)

12.

大族LDI技術原理
The principle of Han's LDI technology
• 直接成像原理
• DMD原理
• Direct imaging principle
• DMD Principle
• 對位原理
• 漲縮控制原理
• The principle of alignment
• Expasion and contraction
control principle
PART
03

13.

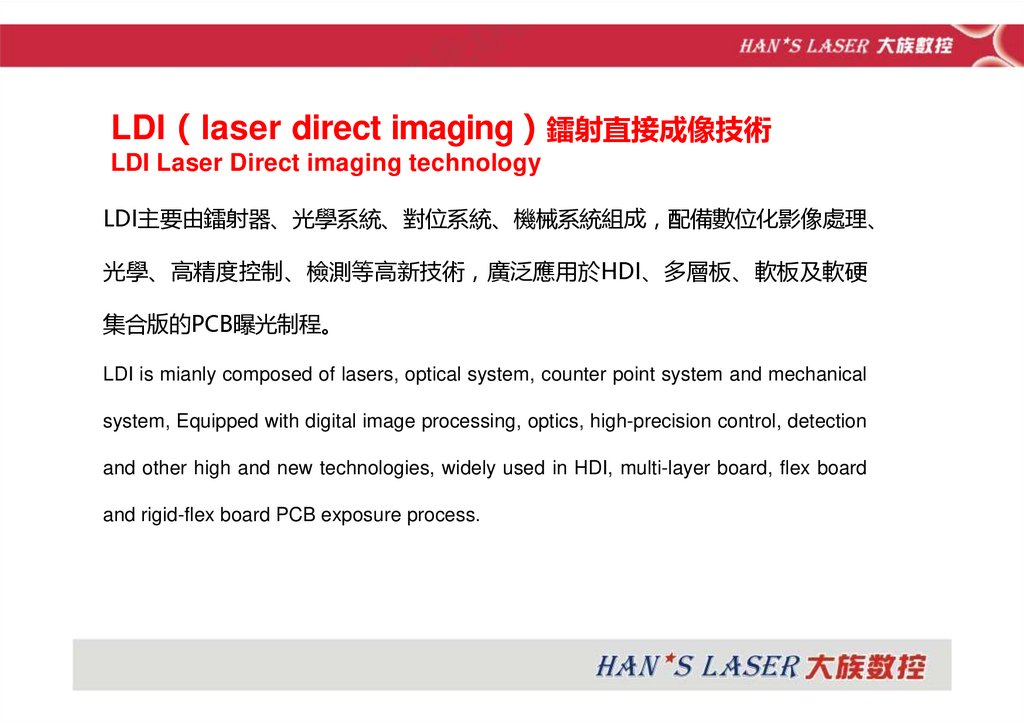

LDI laser direct imaging 鐳射直接成像技術
LDI Laser Direct imaging technology
LDI主要由鐳射器、光學系統、對位系統、機械系統組成 配備數位化影像處理、
光學、高精度控制、檢測等高新技術 廣泛應用於HDI、多層板、軟板及軟硬
集合版的PCB曝光制程。
LDI is mianly composed of lasers, optical system, counter point system and mechanical
system, Equipped with digital image processing, optics, high-precision control, detection
and other high and new technologies, widely used in HDI, multi-layer board, flex board
and rigid-flex board PCB exposure process.

14.

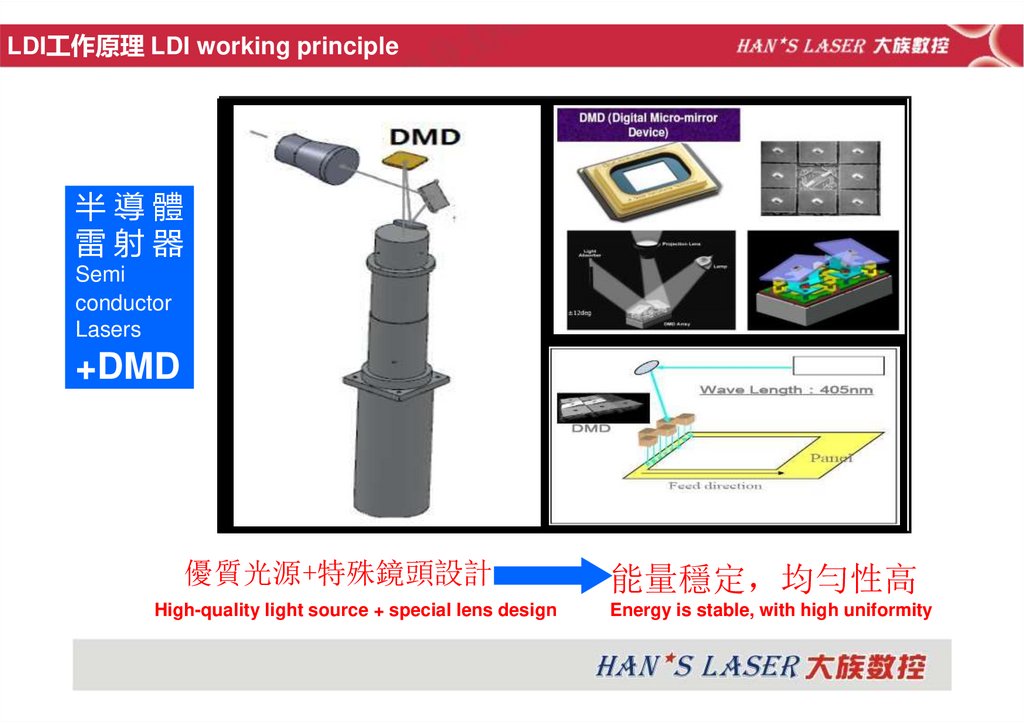

LDI工作原理 LDI working principle
半導體
雷射器
Semi
conductor
Lasers
+DMD
優質光源+特殊鏡頭設計
High-quality light source + special lens design
能量穩定 均勻性高
Energy is stable, with high uniformity

15.

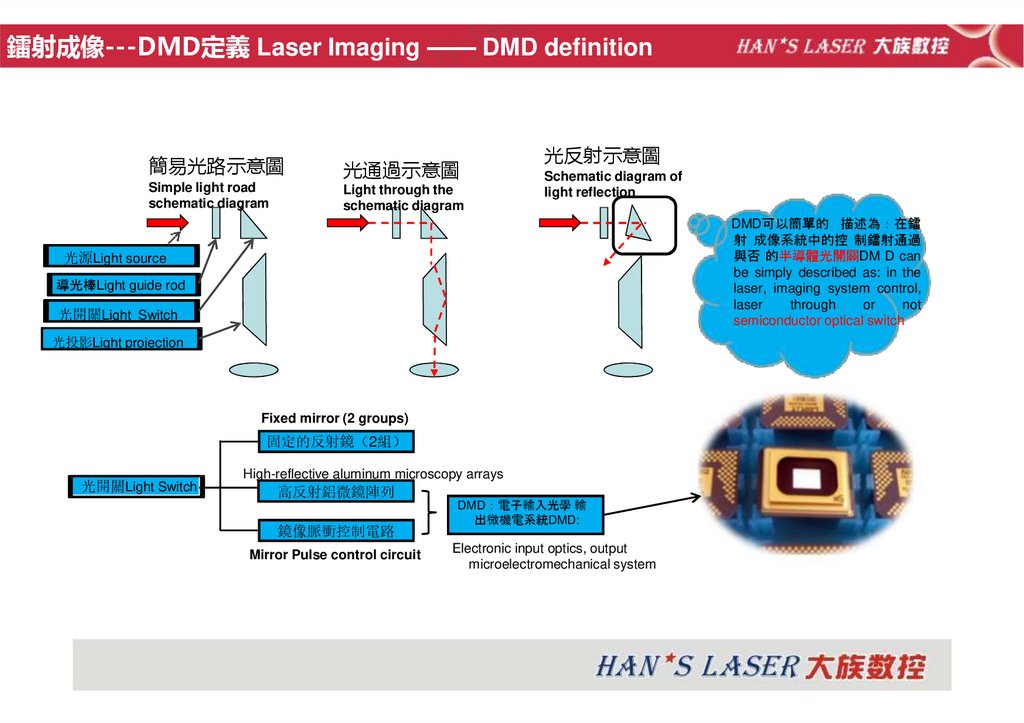

鐳射成像---DMD定義 Laser Imaging —— DMD definition
簡易光路示意圖
光通過示意圖
Simple light road
schematic diagram
Light through the
schematic diagram
光反射示意圖
Schematic diagram of
light reflection
DMD可以簡單的 描述為 在鐳
射 成像系統中的控 制鐳射通過
與否 的半導體光開關DM D can
be simply described as: in the
laser, imaging system control,
laser
through
or
not
semiconductor optical switch
光源Light source
導光棒Light guide rod
光開關Light Switch
光投影Light projection
Fixed mirror (2 groups)
固定的反射鏡 2組
光開關Light Switch
High-reflective aluminum microscopy arrays
高反射鋁微鏡陣列
鏡像脈衝控制電路
Mirror Pulse control circuit
DMD 電子輸入光學 輸
出微機電系統DMD:
Electronic input optics, output
microelectromechanical system

16.

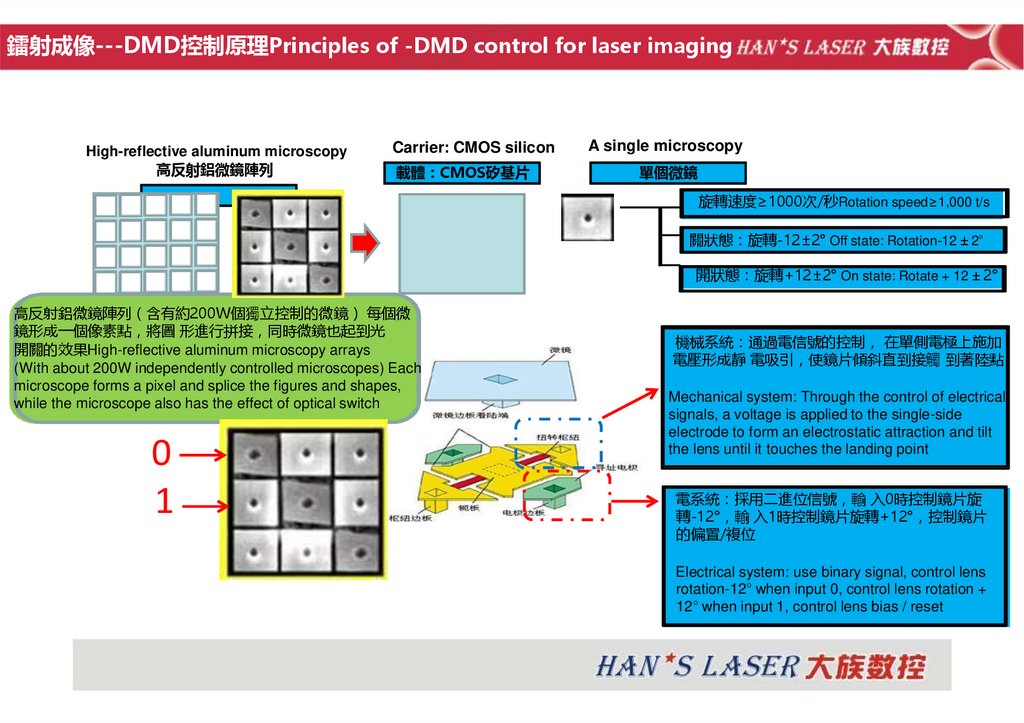

鐳射成像---DMD控制原理Principles of -DMD control for laser imaging
High-reflective aluminum microscopy
高反射鋁微鏡陣列
Carrier: CMOS silicon
載體 CMOS矽基片
A single microscopy
單個微鏡
旋轉速度≥1000次/秒Rotation speed≥1,000 t/s
關狀態 旋轉-12±2° Off state: Rotation-12 ± 2°
開狀態 旋轉+12±2° On state: Rotate + 12 ± 2°
高反射鋁微鏡陣列 含有約200W個獨立控制的微鏡 每個微
鏡形成一個像素點 將圖 形進行拼接 同時微鏡也起到光
開關的效果High-reflective aluminum microscopy arrays
(With about 200W independently controlled microscopes) Each
microscope forms a pixel and splice the figures and shapes,
while the microscope also has the effect of optical switch
0
1
機械系統 通過電信號的控制 在單側電極上施加
電壓形成靜 電吸引 使鏡片傾斜直到接觸 到著陸點
Mechanical system: Through the control of electrical
signals, a voltage is applied to the single-side
electrode to form an electrostatic attraction and tilt
the lens until it touches the landing point
電系統 採用二進位信號 輸 入0時控制鏡片旋
轉-12° 輸 入1時控制鏡片旋轉+12° 控制鏡片
的偏置/複位
Electrical system: use binary signal, control lens
rotation-12° when input 0, control lens rotation +
12° when input 1, control lens bias / reset

17.

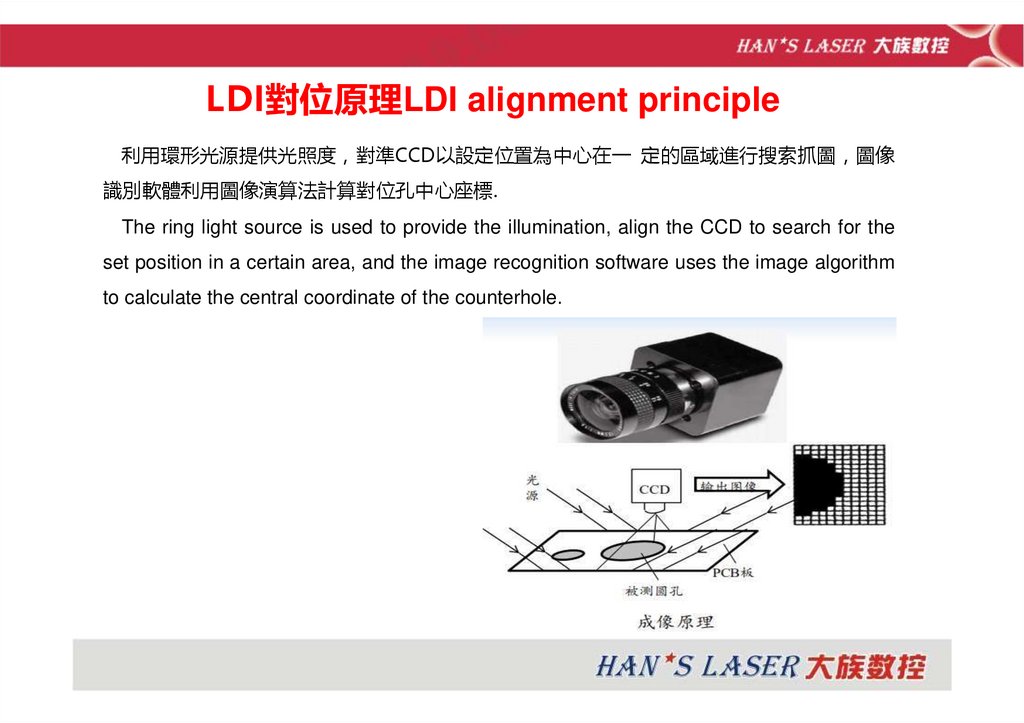

LDI對位原理LDI alignment principle
利用環形光源提供光照度 對準CCD以設定位置為中心在一 定的區域進行搜索抓圖 圖像
識別軟體利用圖像演算法計算對位孔中心座標.
The ring light source is used to provide the illumination, align the CCD to search for the
set position in a certain area, and the image recognition software uses the image algorithm
to calculate the central coordinate of the counterhole.

18.

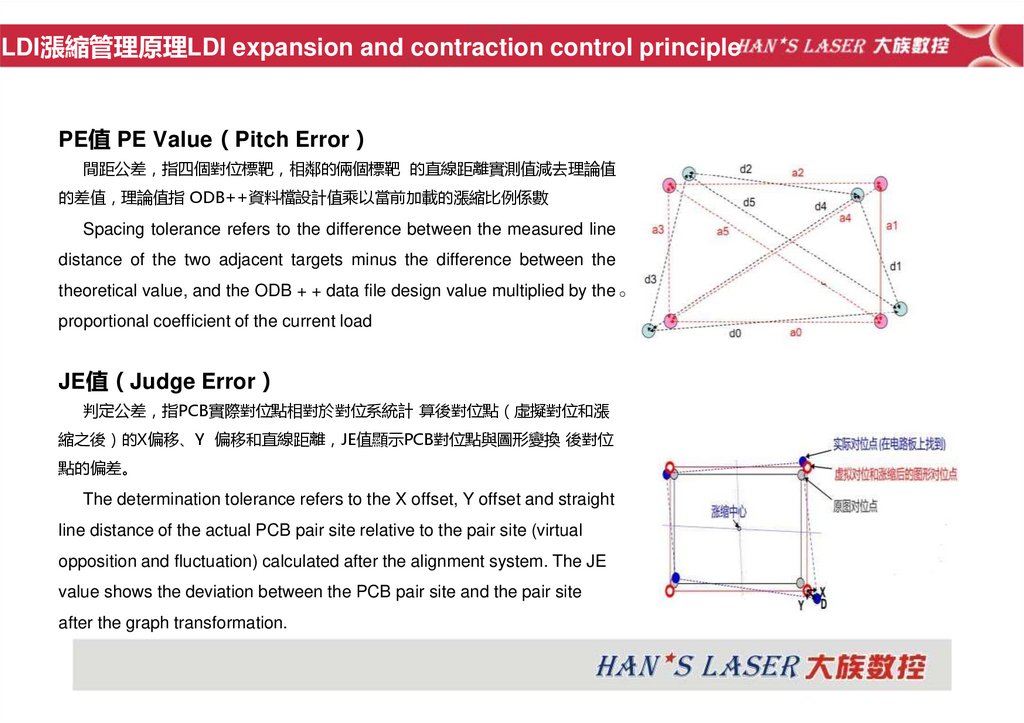

LDI漲縮管理原理LDI expansion and contraction control principle
PE值 PE Value Pitch Error
間距公差 指四個對位標靶 相鄰的倆個標靶 的直線距離實測值減去理論值
的差值 理論值指 ODB++資料檔設計值乘以當前加載的漲縮比例係數
Spacing tolerance refers to the difference between the measured line
distance of the two adjacent targets minus the difference between the
theoretical value, and the ODB + + data file design value multiplied by the 。
proportional coefficient of the current load
JE值 Judge Error
判定公差 指PCB實際對位點相對於對位系統計 算後對位點 虛擬對位和漲
縮之後 的X偏移、Y 偏移和直線距離 JE值顯示PCB對位點與圖形變換 後對位
點的偏差。
The determination tolerance refers to the X offset, Y offset and straight
line distance of the actual PCB pair site relative to the pair site (virtual
opposition and fluctuation) calculated after the alignment system. The JE
value shows the deviation between the PCB pair site and the pair site
after the graph transformation.

19.

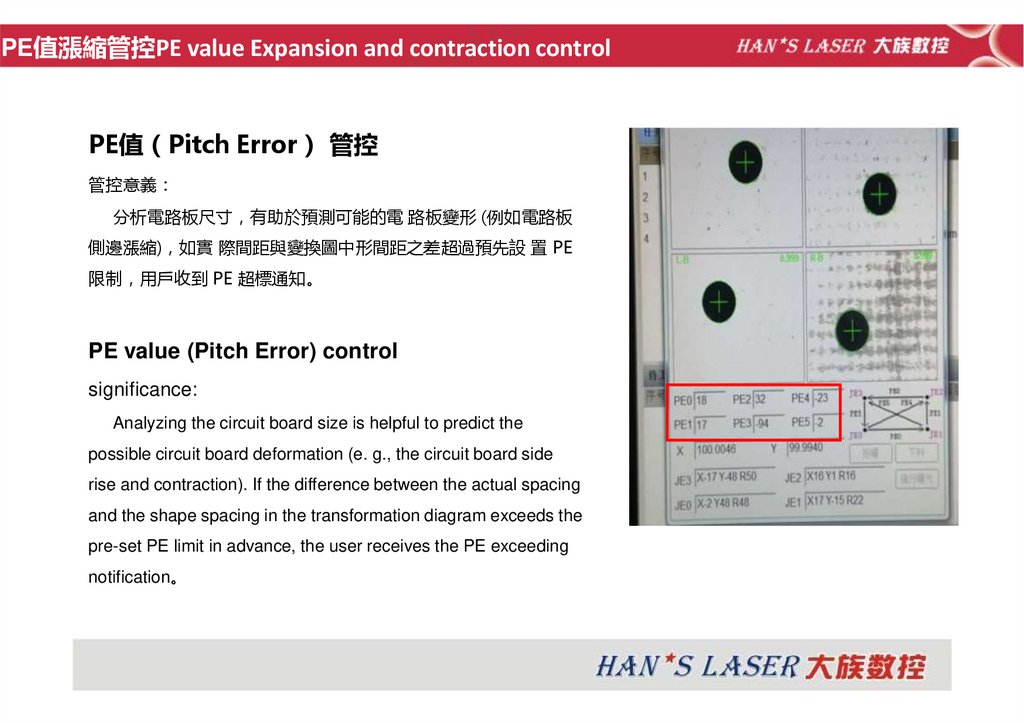

PE值漲縮管控PE value Expansion and contraction control
PE值 Pitch Error 管控
管控意義
分析電路板尺寸 有助於預測可能的電 路板變形 (例如電路板
側邊漲縮) 如實 際間距與變換圖中形間距之差超過預先設 置 PE
限制 用戶收到 PE 超標通知。
PE value (Pitch Error) control
significance:
Analyzing the circuit board size is helpful to predict the
possible circuit board deformation (e. g., the circuit board side
rise and contraction). If the difference between the actual spacing
and the shape spacing in the transformation diagram exceeds the
pre-set PE limit in advance, the user receives the PE exceeding
notification。

20.

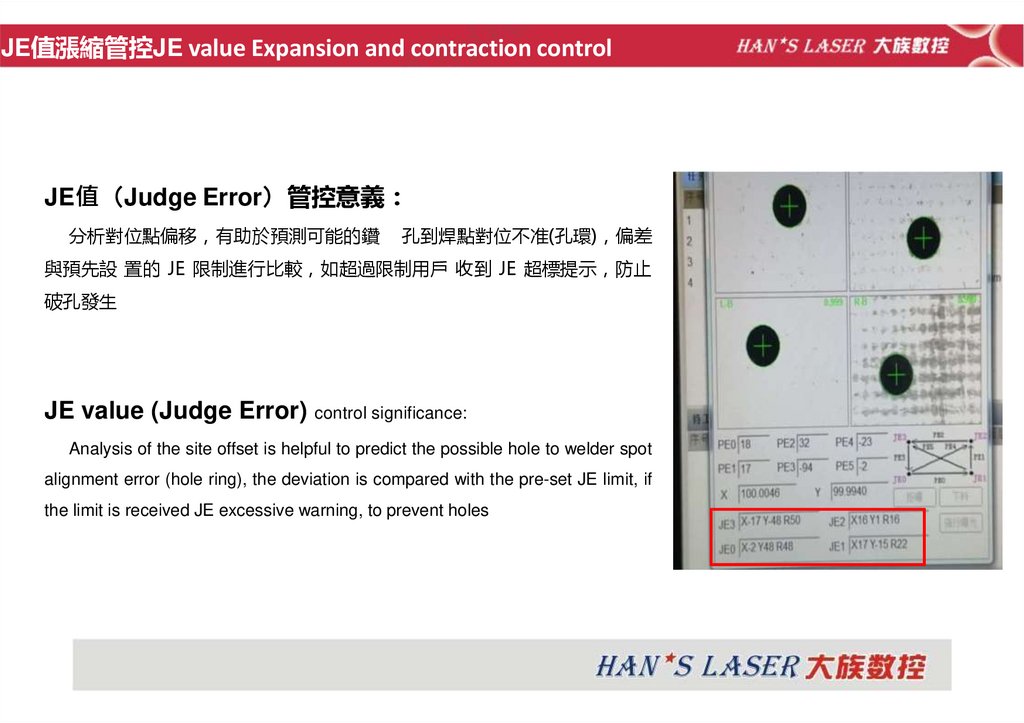

JE值漲縮管控JE value Expansion and contraction control
JE值 Judge Error 管控意義
分析對位點偏移 有助於預測可能的鑽
孔到焊點對位不准(孔環) 偏差
與預先設 置的 JE 限制進行比較 如超過限制用戶 收到 JE 超標提示 防止
破孔發生
JE value (Judge Error) control significance:
Analysis of the site offset is helpful to predict the possible hole to welder spot
alignment error (hole ring), the deviation is compared with the pre-set JE limit, if
the limit is received JE excessive warning, to prevent holes

21.

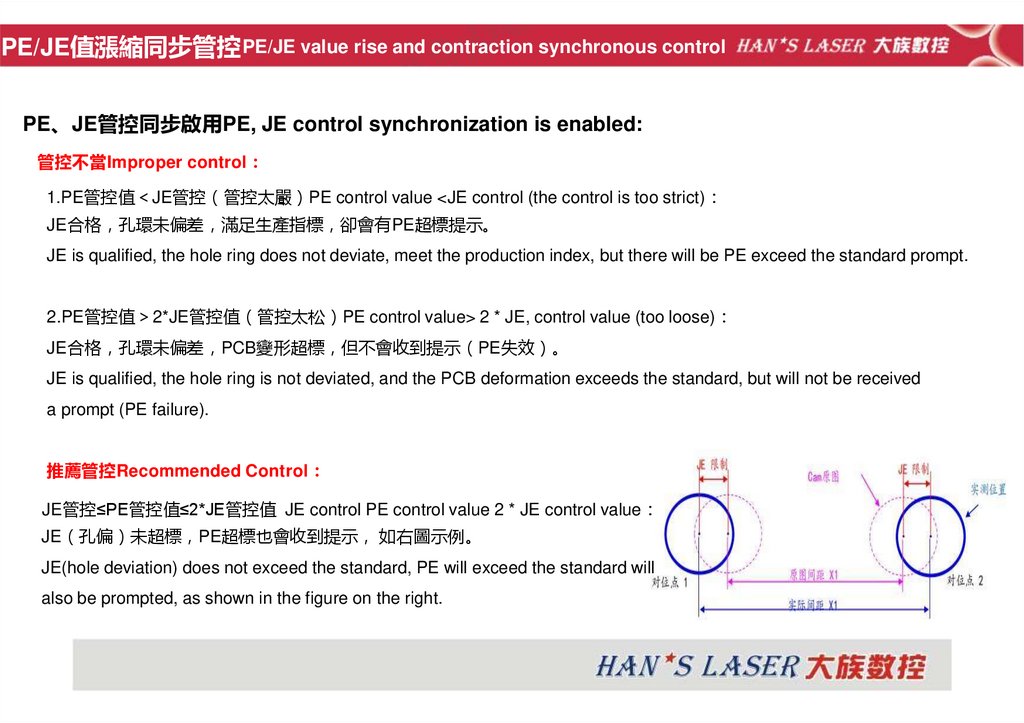

PE/JE值漲縮同步管控 PE/JE value rise and contraction synchronous control
PE、JE管控同步啟用PE, JE control synchronization is enabled:
管控不當Improper control
1.PE管控值 JE管控 管控太嚴 PE control value <JE control (the control is too strict)
JE合格 孔環未偏差 滿足生產指標 卻會有PE超標提示。
JE is qualified, the hole ring does not deviate, meet the production index, but there will be PE exceed the standard prompt.
2.PE管控值 2*JE管控值 管控太松 PE control value> 2 * JE, control value (too loose)
JE合格 孔環未偏差 PCB變形超標 但不會收到提示 PE失效 。
JE is qualified, the hole ring is not deviated, and the PCB deformation exceeds the standard, but will not be received
a prompt (PE failure).
推薦管控Recommended Control
JE管控≤PE管控值≤2*JE管控值 JE control PE control value 2 * JE control value
JE 孔偏 未超標 PE超標也會收到提示 如右圖示例。
JE(hole deviation) does not exceed the standard, PE will exceed the standard will
also be prompted, as shown in the figure on the right.

22.

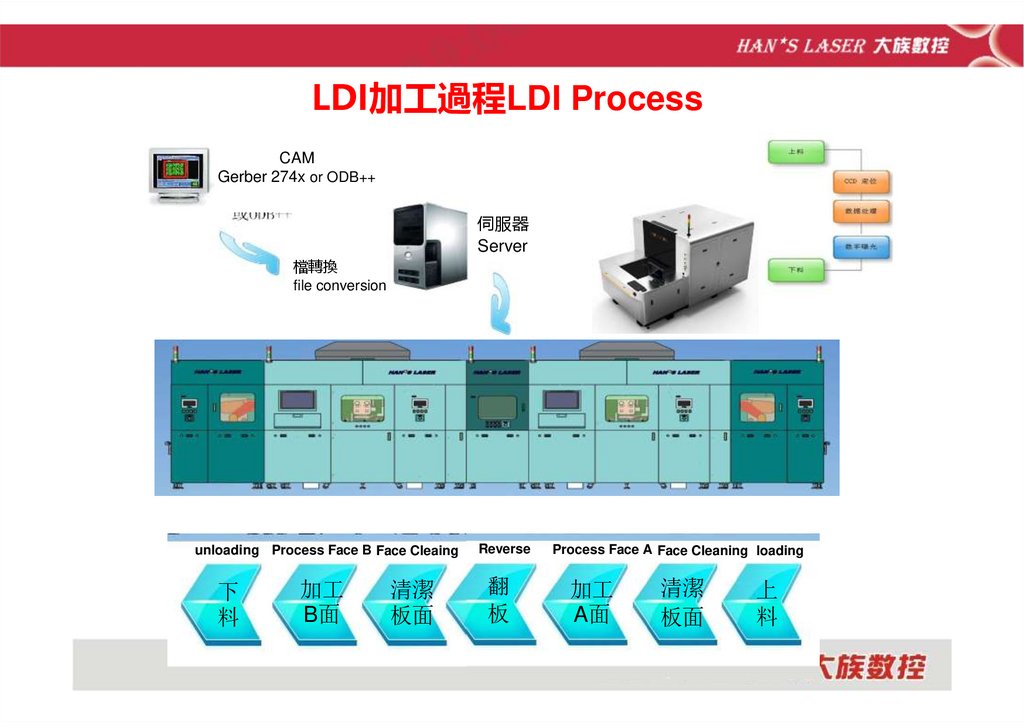

LDI加工過程LDI Process
CAM
Gerber 274x or ODB++
伺服器
Server
檔轉換
file conversion
unloading Process Face B Face Cleaing
Reverse
加工
B面
翻
板
下
料
清潔
板面
Process Face A Face Cleaning loading
加工
A面
清潔
板面
上
料

23.

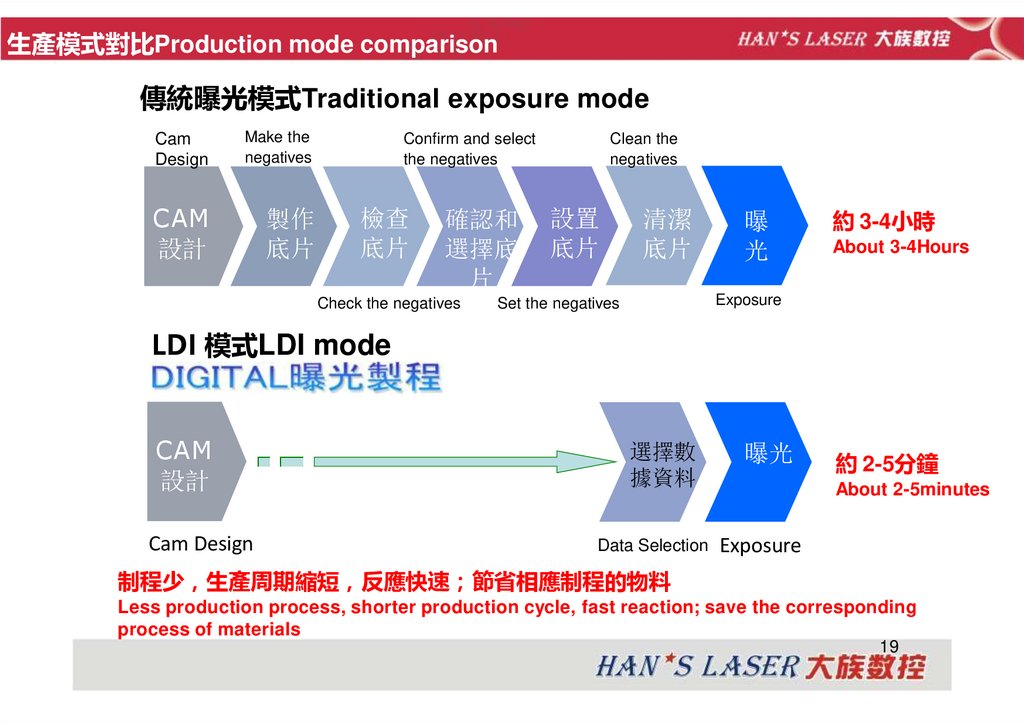

生產模式對比Production mode comparison
傳統曝光模式Traditional exposure mode
Cam
Design
Make the
negatives
CAM
設計
製作
底片
Confirm and select
the negatives
檢查
底片
確認和
選擇底
片
Check the negatives
Clean the
negatives
設置
底片
清潔
底片
曝
光
約 3-4小時
About 3-4Hours
Exposure
Set the negatives
LDI 模式LDI mode
CAM
設計
Cam Design
選擇數
據資料
曝光
約 2-5分鐘
About 2-5minutes
Data Selection Exposure
制程少 生產周期縮短 反應快速 節省相應制程的物料
Less production process, shorter production cycle, fast reaction; save the corresponding
process of materials
19

24.

大族LDI技術參數
PART
04
Hans LDI Technical Parameters
• 型號參數

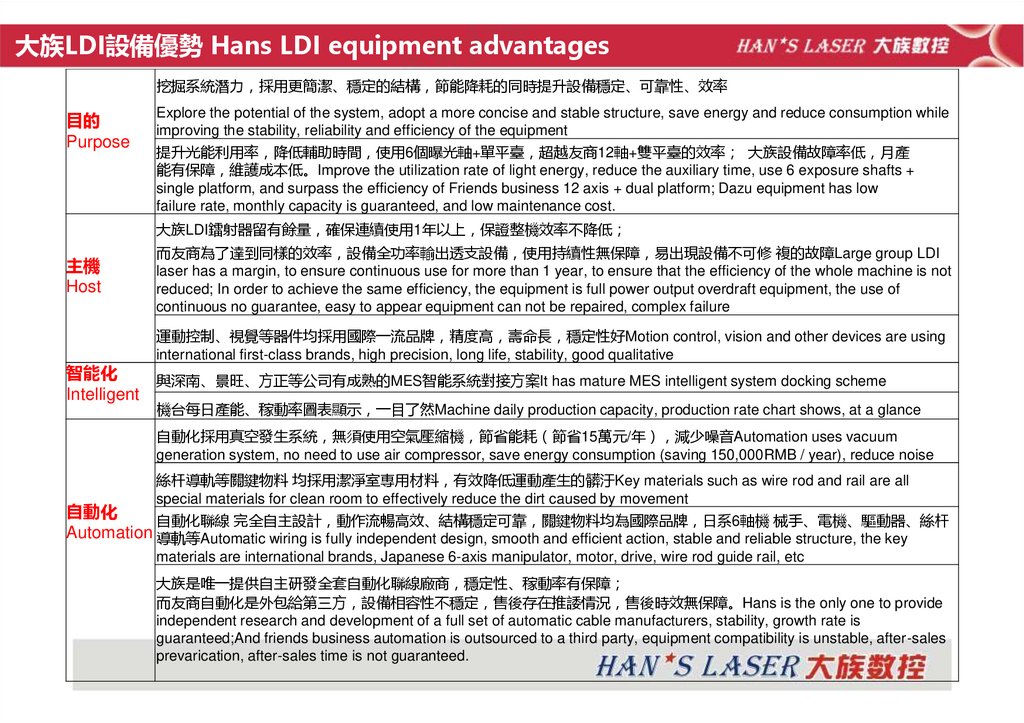

• 設備優勢
• Mode Parameters
• Advantages of equipment

25.

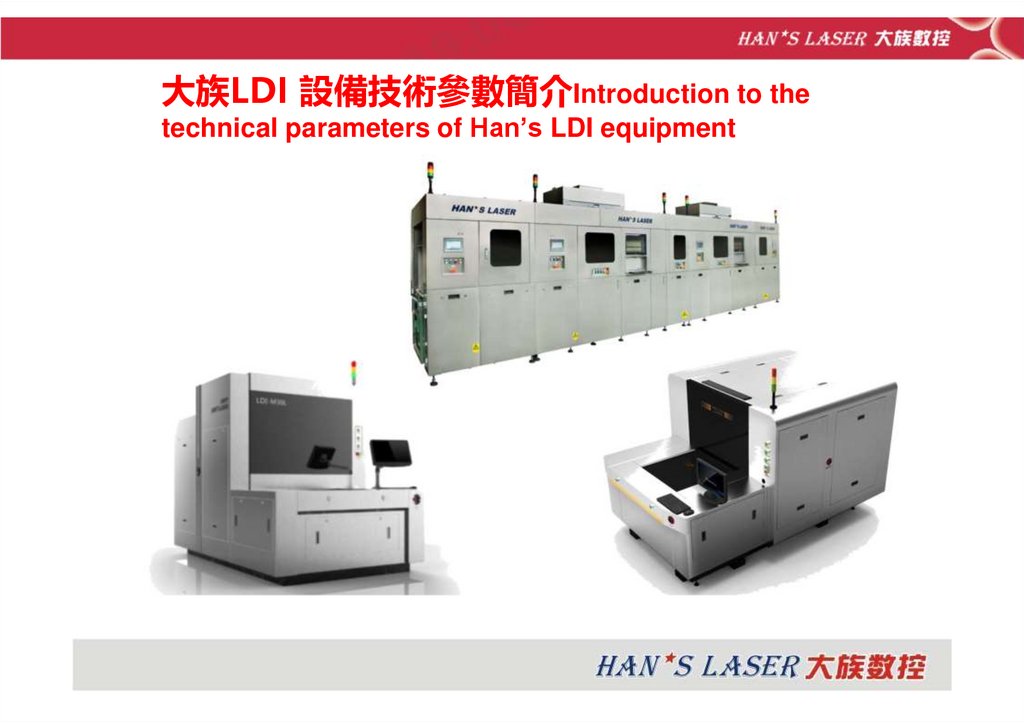

大族LDI 設備技術參數簡介Introduction to the
technical parameters of Han’s LDI equipment

26.

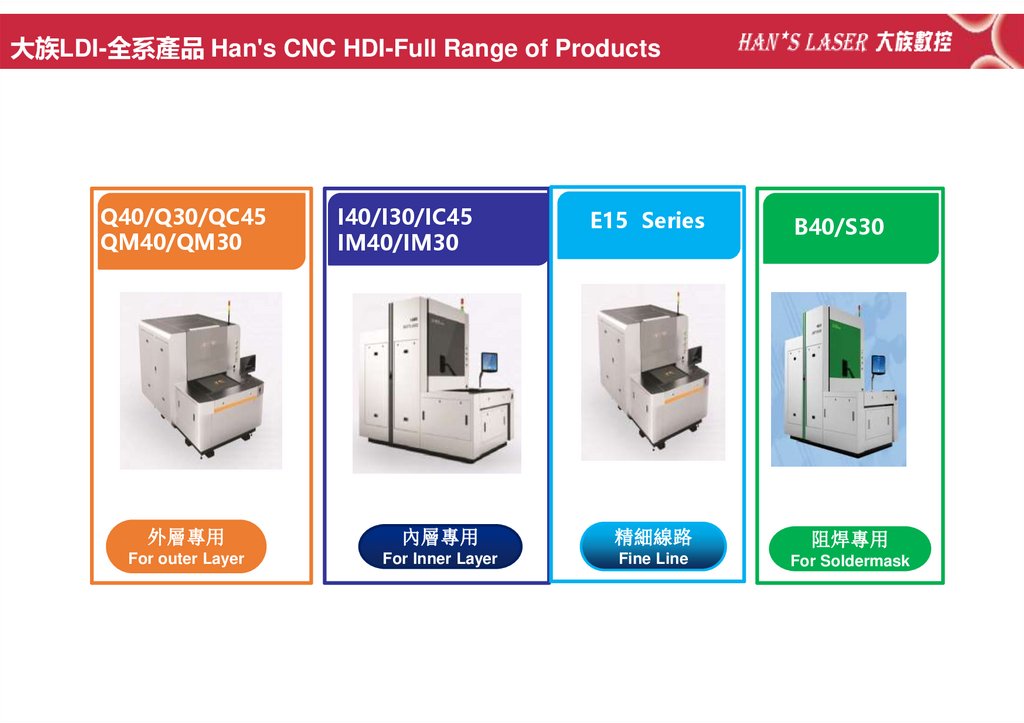

大族LDI-全系產品 Han's CNC HDI-Full Range of Products
大族LDI-全系產品 Han's CNC HDI-Full Range of Products
Q40/Q30/QC45
QM40/QM30
I40/I30/IC45
IM40/IM30

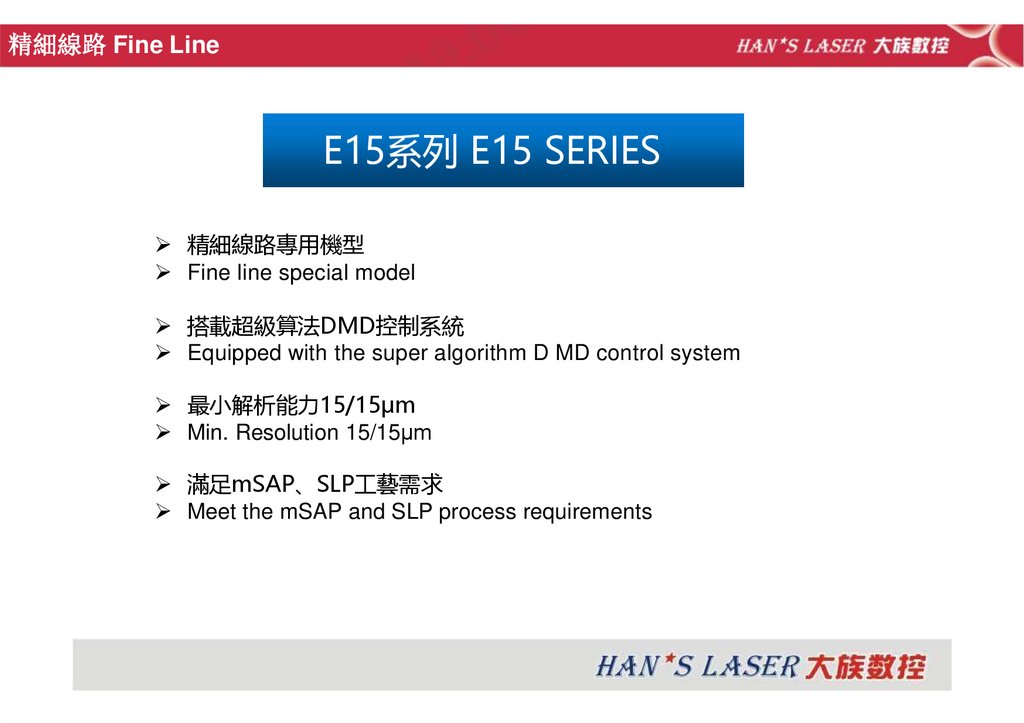

E15 Series
B40/S30
外層專用
內層專用
精細線路
阻焊專用
For outer Layer
For Inner Layer
Fine Line
For Soldermask

27.

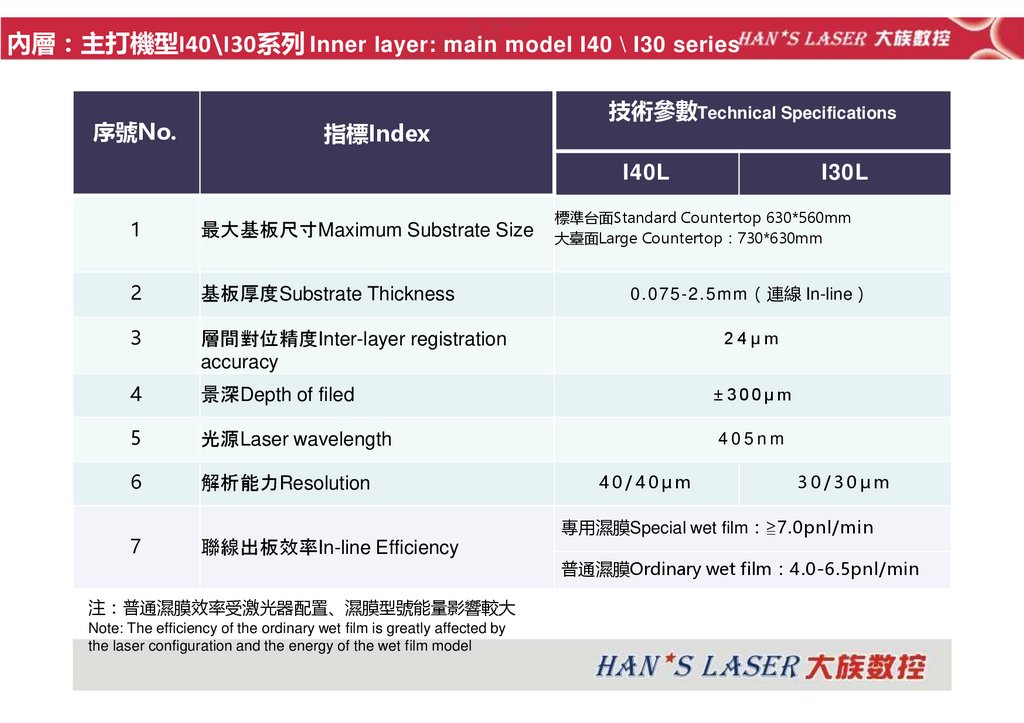

內層 主打機型I40\I30系列 Inner layer: main model I40 \ I30 series
序號No.
指標Index
技術參數Technical Specifications
I40L
I30L
標準台面Standard Countertop 630*560mm
大臺面Large Countertop 730*630mm
1
最大基板尺寸Maximum Substrate Size
2
基板厚度Substrate Thickness
3
層間對位精度Inter-layer registration
accuracy
4
景深Depth of filed
±300μm
5
光源Laser wavelength
405nm
6
解析能力Resolution
7
聯線出板效率In-line Efficiency
注 普通濕膜效率受激光器配置、濕膜型號能量影響較大
Note: The efficiency of the ordinary wet film is greatly affected by
the laser configuration and the energy of the wet film model
0.075-2.5mm 連線 In-line
24μm
40/40μm
30/30μm
專用濕膜Special wet film ≧7.0pnl/min
普通濕膜Ordinary wet film 4.0-6.5pnl/min

28.

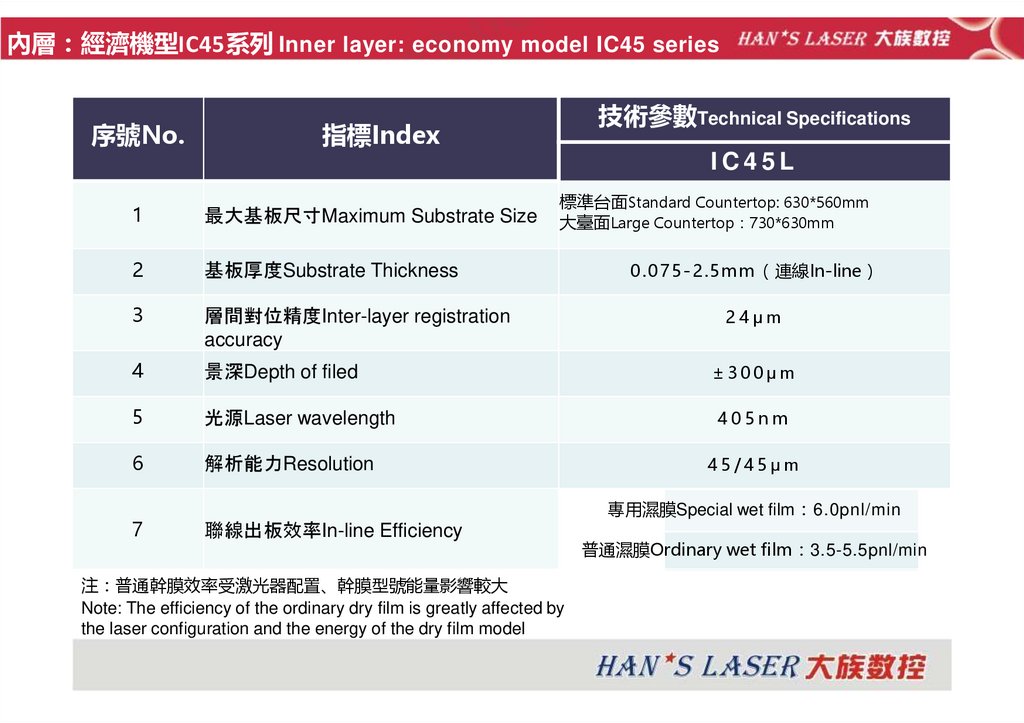

內層 經濟機型IC45系列 Inner layer: economy model IC45 series
序號No.
技術參數Technical Specifications
指標Index
IC45L
標準台面Standard Countertop: 630*560mm
大臺面Large Countertop 730*630mm
1
最大基板尺寸Maximum Substrate Size
2
基板厚度Substrate Thickness
3
層間對位精度Inter-layer registration
accuracy
4
景深Depth of filed
±300μm
5
光源Laser wavelength
405nm
6
解析能力Resolution
45/45μm
7
0.075 -2.5mm 連線In-line
24μm
專用濕膜Special wet film 6.0pnl/min
聯線出板效率In-line Efficiency
注 普通幹膜效率受激光器配置、幹膜型號能量影響較大
Note: The efficiency of the ordinary dry film is greatly affected by
the laser configuration and the energy of the dry film model
普通濕膜Ordinary wet film 3.5-5.5pnl/min

29.

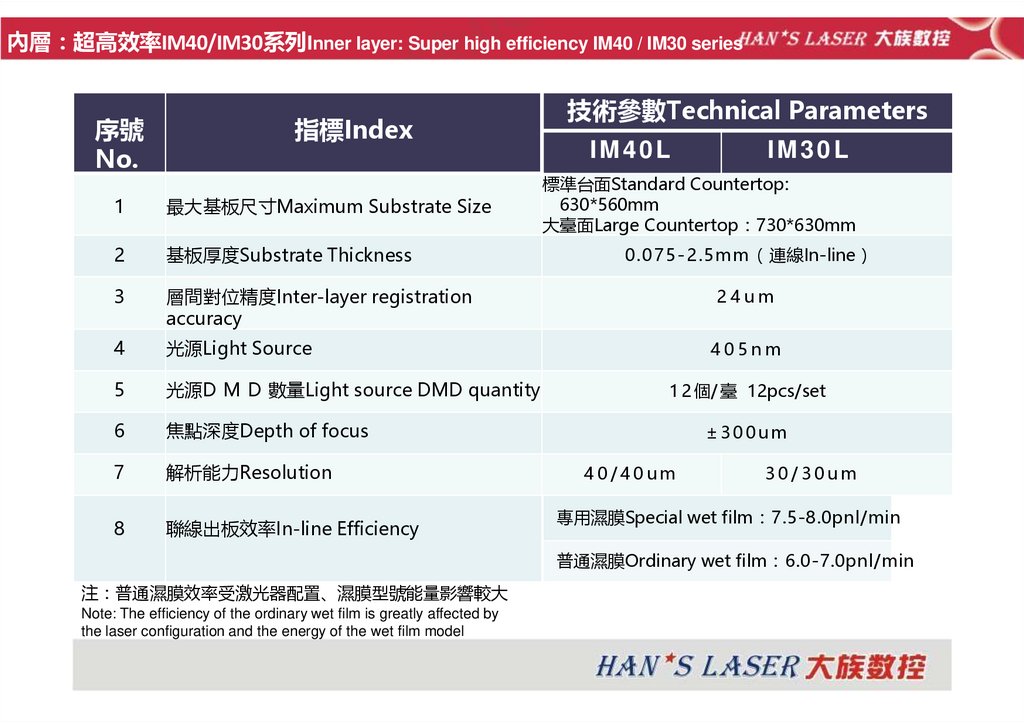

內層 超高效率IM40/IM30系列Inner layer: Super high efficiency IM40 / IM30 series
序號
No.
指標Index
技術參數Technical Parameters
IM40L
IM30L
標準台面Standard Countertop:
630*560mm
大臺面Large Countertop 730*630mm
1
最大基板尺寸Maximum Substrate Size
2
基板厚度Substrate Thickness
3
層間對位精度Inter-layer registration
accuracy
24um
4
光源Light Source
405nm
5
光源D M D 數量Light source DMD quantity
6
焦點深度Depth of focus
7
解析能力Resolution
8
聯線出板效率In-line Efficiency
0.075 -2.5mm 連線In-line
1 2 個/ 臺 12pcs/set
±300um
40/40um
30/30um
專用濕膜Special wet film 7.5-8.0pnl/min
普通濕膜Ordinary wet film 6.0-7.0pnl/min
注 普通濕膜效率受激光器配置、濕膜型號能量影響較大
Note: The efficiency of the ordinary wet film is greatly affected by
the laser configuration and the energy of the wet film model

30.

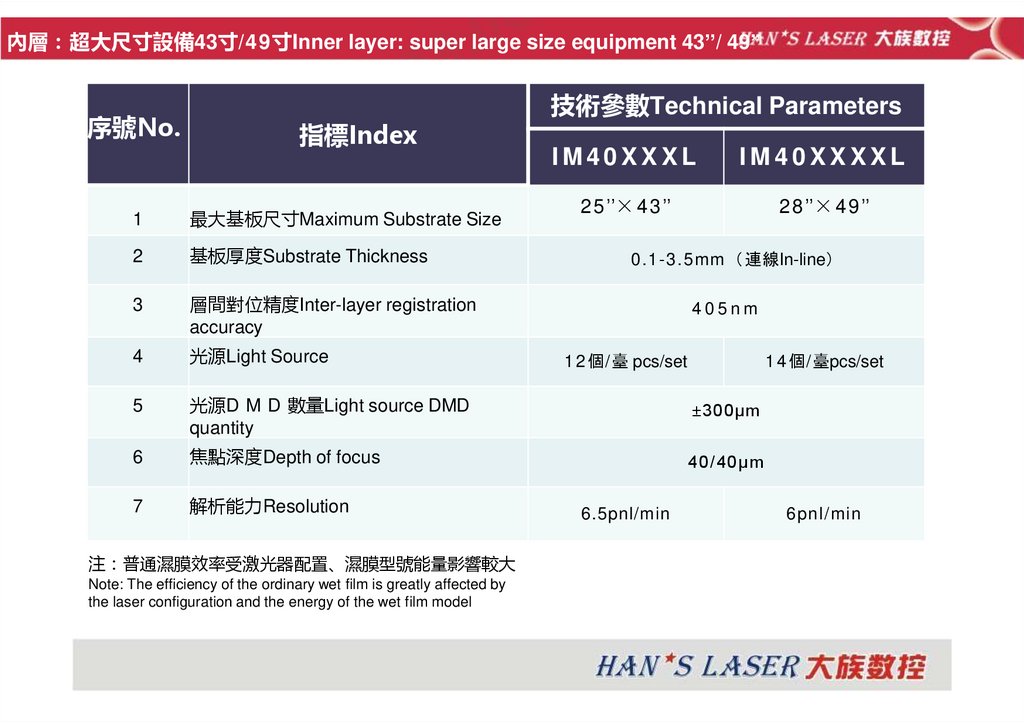

內層 超大尺寸設備43寸/49寸Inner layer: super large size equipment 43’’/ 49’’
序號No.
指標Index
技術參數Technical Parameters
IM40XXXL
IM40XXXXL
2 5 ’’× 4 3 ’’
2 8 ’’× 4 9 ’’
1
最大基板尺寸Maximum Substrate Size
2
基板厚度Substrate Thickness
3
層間對位精度Inter-layer registration
accuracy
4
光源Light Source
5
光源D M D 數量Light source DMD
quantity
±300μm
6
焦點深度Depth of focus
40/40μm
7
解析能力Resolution
注 普通濕膜效率受激光器配置、濕膜型號能量影響較大
Note: The efficiency of the ordinary wet film is greatly affected by
the laser configuration and the energy of the wet film model
0.1-3.5mm 連線In-line
405nm
1 2 個/臺 pcs/set
6.5pnl/min
1 4 個/臺pcs/set
6pnl/min

31.

精細線路 Fine Line
E15系列 E15 SERIES
精細線路專用機型
Fine line special model
搭載超級算法DMD控制系統
Equipped with the super algorithm D MD control system
最小解析能力15/15μm
Min. Resolution 15/15μm
滿足mSAP、SLP工藝需求
Meet the mSAP and SLP process requirements

32.

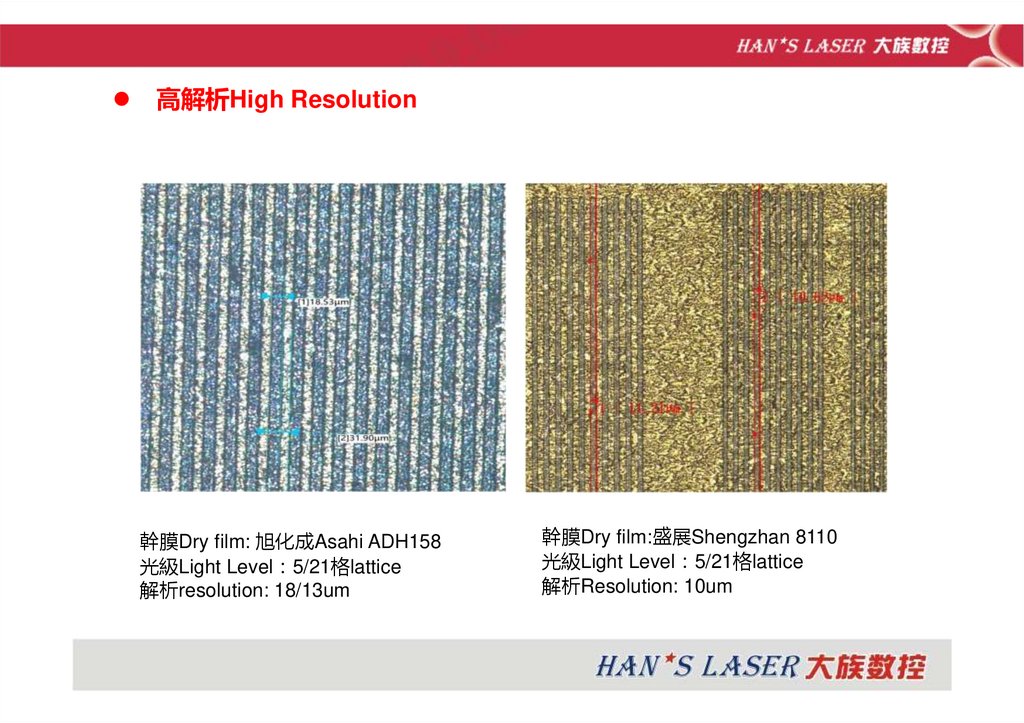

高解析High Resolution
幹膜Dry film: 旭化成Asahi ADH158
光級Light Level 5/21格lattice
解析resolution: 18/13um
幹膜Dry film:盛展Shengzhan 8110
光級Light Level 5/21格lattice
解析Resolution: 10um

33.

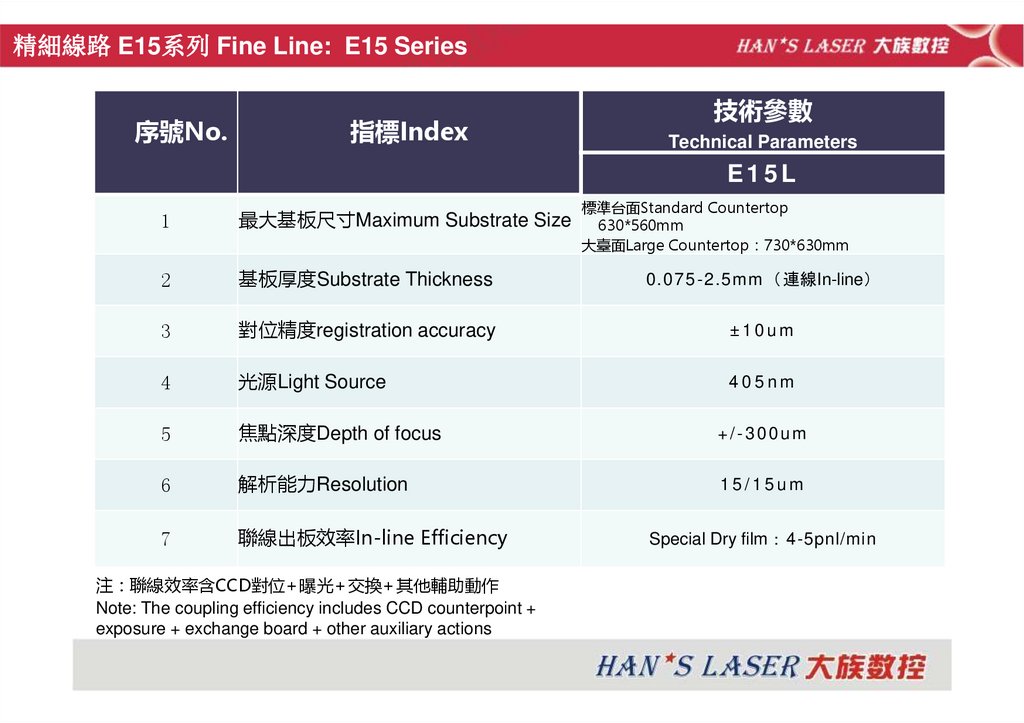

精細線路 E15系列 Fine Line: E15 Series
序號No.
指標Index
技術參數
Technical Parameters
E15L
標準台面Standard Countertop
630*560mm
大臺面Large Countertop 730*630mm
1
最大基板尺寸Maximum Substrate Size
2
基板厚度Substrate Thickness
0.075-2.5mm 連線In-line
3
對位精度registration accuracy
±10um
4
光源Light Source
405nm
5
焦點深度Depth of focus
+/-300um
6
解析能力Resolution
15/15um
7
聯線出板效率In-line Efficiency
注 聯線效率含CCD對位+曝光+交換+其他輔助動作
Note: The coupling efficiency includes CCD counterpoint +
exposure + exchange board + other auxiliary actions
Special Dry film 4-5pnl/min

34.

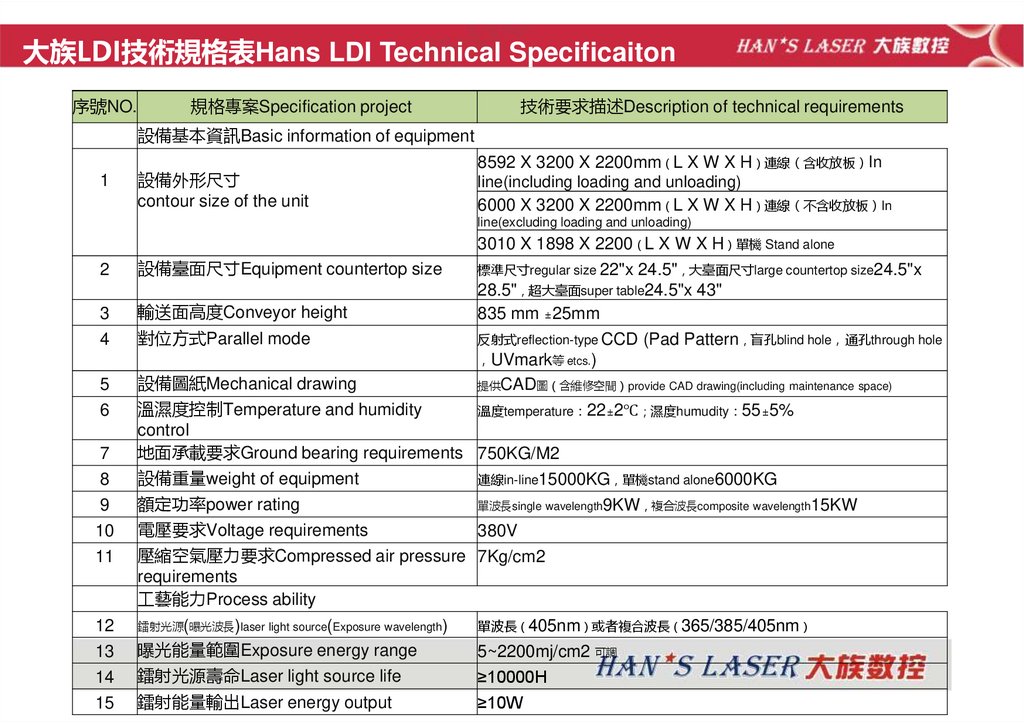

大族LDI技術規格表Hans LDI Technical Specificaiton
序號NO.
規格專案Specification project
技術要求描述Description of technical requirements
設備基本資訊Basic information of equipment
1
設備外形尺寸
contour size of the unit
8592 X 3200 X 2200mm L X W X H 連線 含收放板 In
line(including loading and unloading)
6000 X 3200 X 2200mm L X W X H 連線 不含收放板 In
line(excluding loading and unloading)
3010 X 1898 X 2200 L X W X H 單機 Stand alone
設備臺面尺寸Equipment countertop size
標準尺寸regular size 22"x 24.5" 大臺面尺寸large countertop size24.5"x
3
輸送面高度Conveyor height
28.5" 超大臺面super table24.5"x 43"
835 mm ±25mm
4
對位方式Parallel mode
反射式reflection-type CCD (Pad Pattern 盲孔blind hole 通孔through hole
2
UVmark等 etcs.)
5
設備圖紙Mechanical drawing
6
8
溫濕度控制Temperature and humidity
溫度temperature 22±2℃ 濕度humudity 55±5%
control
地面承載要求Ground bearing requirements 750KG/M2
設備重量weight of equipment
連線in-line15000KG 單機stand alone6000KG
9
額定功率power rating
單波長single wavelength9KW 複合波長composite wavelength15KW
10
電壓要求Voltage requirements
380V
11
壓縮空氣壓力要求Compressed air pressure 7Kg/cm2
requirements
工藝能力Process ability
7
提供CAD圖 含維修空間 provide CAD drawing(including maintenance space)
12
鐳射光源(曝光波長)laser light source(Exposure wavelength)
單波長 405nm 或者複合波長 365/385/405nm
13
曝光能量範圍Exposure energy range
5~2200mj/cm2 可調
14
鐳射光源壽命Laser light source life
≥10000H
15
鐳射能量輸出Laser energy output
≥10W

35.

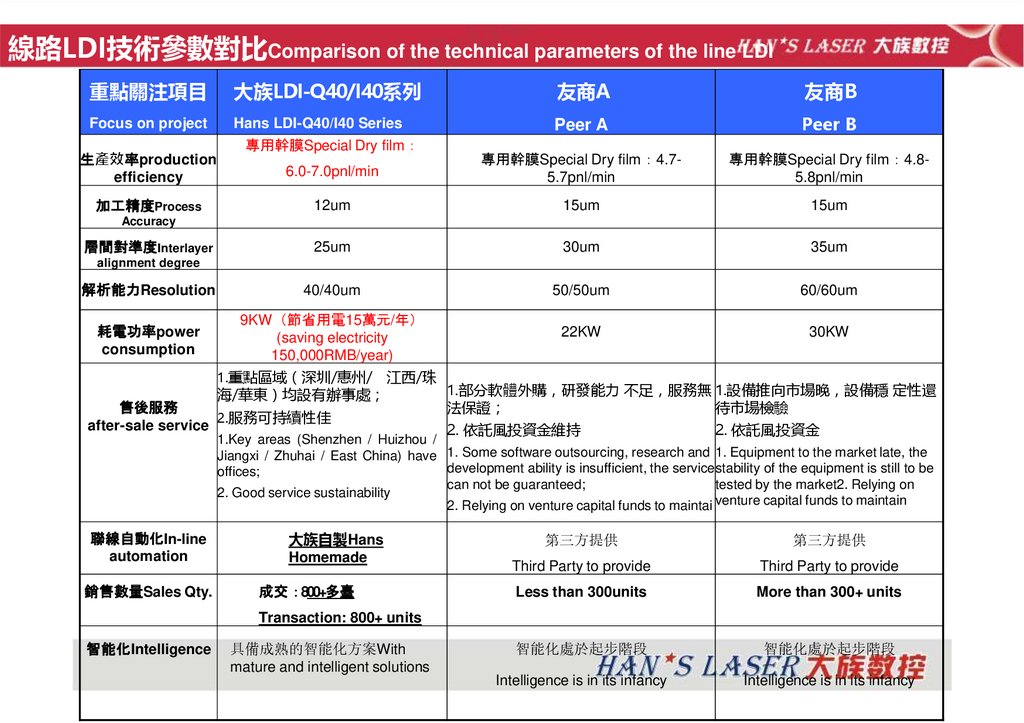

線路LDI技術參數對比Comparison of the technical parameters of the line LDI
重點關注項目
大族LDI-Q40/I40系列
友商A
友商B
Focus on project
Hans LDI-Q40/I40 Series
Peer A
Peer B
6.0-7.0pnl/min
專用幹膜Special Dry film 4.75.7pnl/min
專用幹膜Special Dry film 4.85.8pnl/min
12um
15um
15um
25um
30um
35um
解析能力Resolution
40/40um
50/50um
60/60um
耗電功率power
consumption
9KW 節省用電15萬元/年
(saving electricity
150,000RMB/year)
22KW
30KW
生產效率production
efficiency
加工精度Process
專用幹膜Special Dry film
Accuracy
層間對準度Interlayer
alignment degree
1.重點區域 深圳/惠州/
海/華東 均設有辦事處
售後服務
2.服務可持續性佳
after-sale service
江西/珠
1.部分軟體外購 研發能力 不足 服務無 1.設備推向市場晚 設備穩 定性還
法保證
待市場檢驗
2. 依託風投資金維持
2. 依託風投資金
1.Key areas (Shenzhen / Huizhou /
Jiangxi / Zhuhai / East China) have 1. Some software outsourcing, research and 1. Equipment to the market late, the
development ability is insufficient, the service stability of the equipment is still to be
offices;
can not be guaranteed;
tested by the market2. Relying on
2. Good service sustainability
2. Relying on venture capital funds to maintai venture capital funds to maintain
聯線自動化In-line
automation
銷售數量Sales Qty.
大族自製Hans
Homemade
成交 800+多臺
第三方提供
第三方提供
Third Party to provide
Third Party to provide
Less than 300units
More than 300+ units
智能化處於起步階段
智能化處於起步階段
Intelligence is in its infancy
Intelligence is in its infancy
Transaction: 800+ units
智能化Intelligence
具備成熟的智能化方案With
mature and intelligent solutions

36.

大族LDI設備優勢 Hans LDI equipment advantages
挖掘系統潛力 採用更簡潔、穩定的結構 節能降耗的同時提升設備穩定、可靠性、效率
目的
Purpose
Explore the potential of the system, adopt a more concise and stable structure, save energy and reduce consumption while
improving the stability, reliability and efficiency of the equipment
提升光能利用率 降低輔助時間 使用6個曝光軸+單平臺 超越友商12軸+雙平臺的效率 大族設備故障率低 月產
能有保障 維護成本低。Improve the utilization rate of light energy, reduce the auxiliary time, use 6 exposure shafts +
single platform, and surpass the efficiency of Friends business 12 axis + dual platform; Dazu equipment has low
failure rate, monthly capacity is guaranteed, and low maintenance cost.
大族LDI鐳射器留有餘量 確保連續使用1年以上 保證整機效率不降低
主機
Host
而友商為了達到同樣的效率 設備全功率輸出透支設備 使用持續性無保障 易出現設備不可修 複的故障Large group LDI
laser has a margin, to ensure continuous use for more than 1 year, to ensure that the efficiency of the whole machine is not
reduced; In order to achieve the same efficiency, the equipment is full power output overdraft equipment, the use of
continuous no guarantee, easy to appear equipment can not be repaired, complex failure
運動控制、視覺等器件均採用國際一流品牌 精度高 壽命長 穩定性好Motion control, vision and other devices are using
international first-class brands, high precision, long life, stability, good qualitative
智能化
與深南、景旺、方正等公司有成熟的MES智能系統對接方案It has mature MES intelligent system docking scheme
Intelligent
機台每日產能、稼動率圖表顯示 一目了然Machine daily production capacity, production rate chart shows, at a glance
自動化採用真空發生系統 無須使用空氣壓縮機 節省能耗 節省15萬元/年 減少噪音Automation uses vacuum
generation system, no need to use air compressor, save energy consumption (saving 150,000RMB / year), reduce noise
絲杆導軌等關鍵物料 均採用潔淨室專用材料 有效降低運動產生的髒汙Key materials such as wire rod and rail are all
special materials for clean room to effectively reduce the dirt caused by movement
自動化
自動化聯線 完全自主設計 動作流暢高效、結構穩定可靠 關鍵物料均為國際品牌 日系6軸機 械手、電機、驅動器、絲杆
Automation 導軌等Automatic wiring is fully independent design, smooth and efficient action, stable and reliable structure, the key
materials are international brands, Japanese 6-axis manipulator, motor, drive, wire rod guide rail, etc
大族是唯一提供自主研發全套自動化聯線廠商 穩定性、稼動率有保障
而友商自動化是外包給第三方 設備相容性不穩定 售後存在推諉情況 售後時效無保障。Hans is the only one to provide
independent research and development of a full set of automatic cable manufacturers, stability, growth rate is
guaranteed;And friends business automation is outsourced to a third party, equipment compatibility is unstable, after-sales
prevarication, after-sales time is not guaranteed.

37.

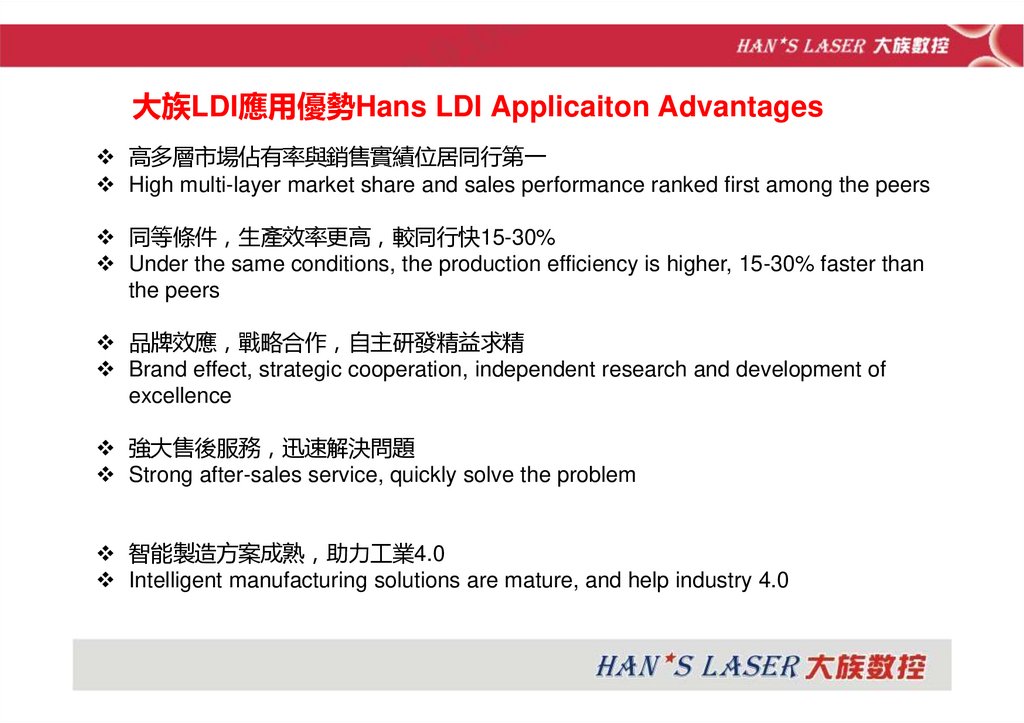

大族LDI應用優勢Hans LDI Applicaiton Advantages
高多層市場佔有率與銷售實績位居同行第一
High multi-layer market share and sales performance ranked first among the peers
同等條件 生產效率更高 較同行快15-30%
Under the same conditions, the production efficiency is higher, 15-30% faster than
the peers
品牌效應 戰略合作 自主研發精益求精
Brand effect, strategic cooperation, independent research and development of
excellence
強大售後服務 迅速解決問題
Strong after-sales service, quickly solve the problem
智能製造方案成熟 助力工業4.0
Intelligent manufacturing solutions are mature, and help industry 4.0

38.

大族LDI工業4.0智造
Hans LDI industry 4.0
Intelligent manufacturing
PART
05

39.

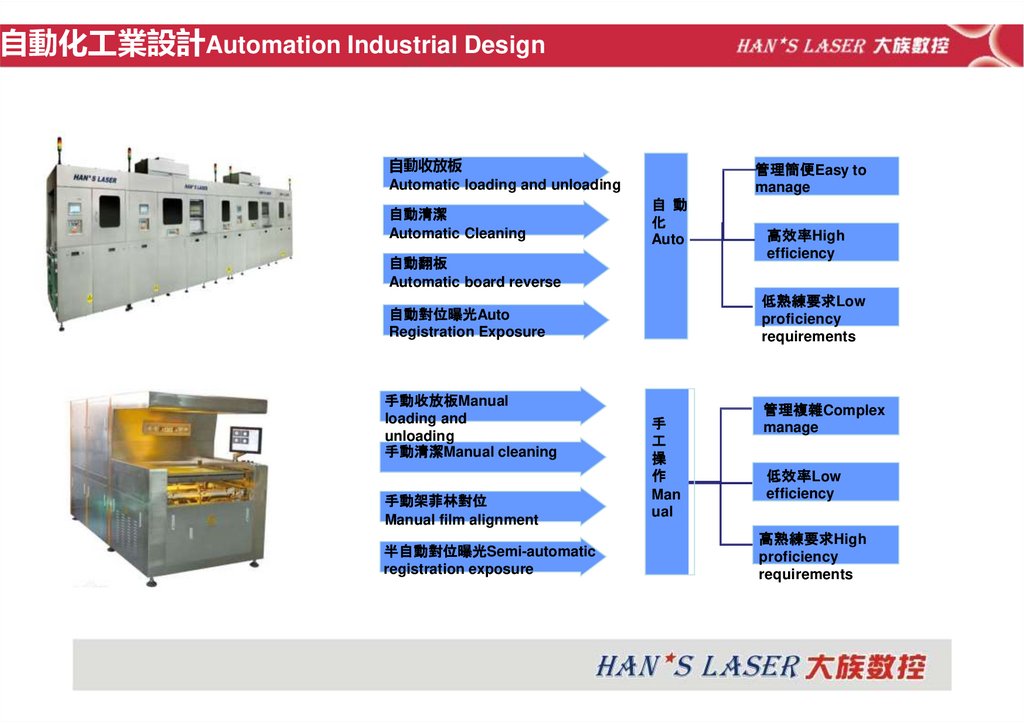

自動化工業設計Automation Industrial Design
自動收放板
Automatic loading and unloading
自動清潔
Automatic Cleaning
管理簡便Easy to
manage
自 動
化
Auto
自動翻板
Automatic board reverse
低熟練要求Low
proficiency
requirements
自動對位曝光Auto
Registration Exposure
手動收放板Manual
loading and
unloading
手動清潔Manual cleaning
手動架菲林對位
Manual film alignment
半自動對位曝光Semi-automatic
registration exposure
高效率High
efficiency
手
工
操
作
Man
ual
管理複雜Complex
manage
低效率Low
efficiency
高熟練要求High
proficiency
requirements

40.

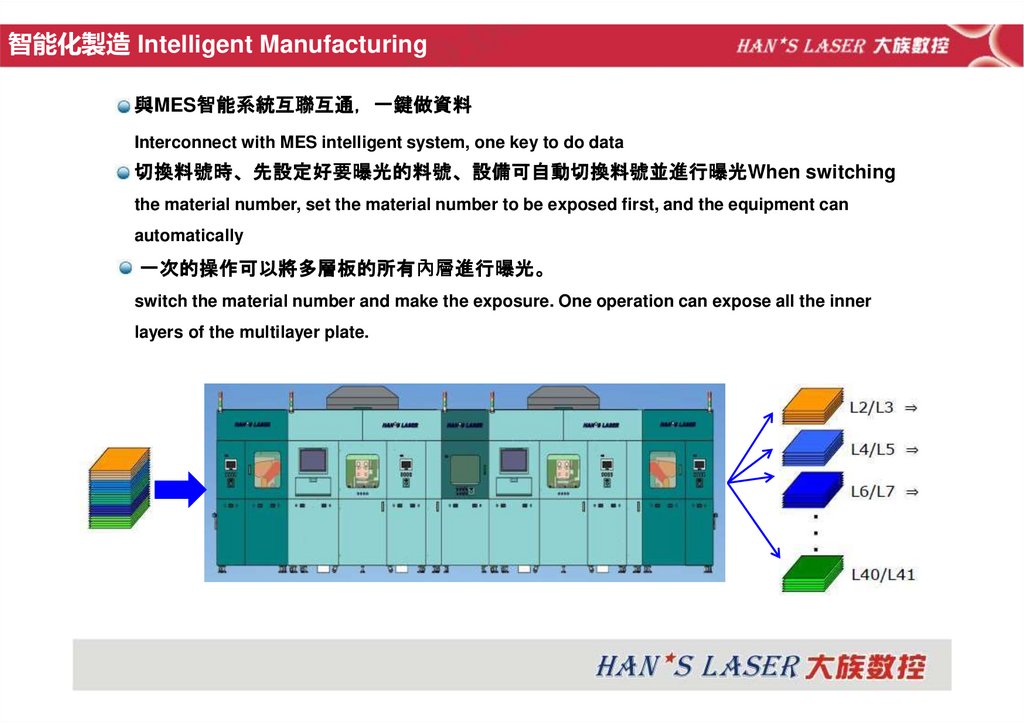

智能化製造 Intelligent Manufacturing
與MES智能系統互聯互通 一鍵做資料
Interconnect with MES intelligent system, one key to do data
切換料號時、先設定好要曝光的料號、設備可自動切換料號並進行曝光When switching
the material number, set the material number to be exposed first, and the equipment can
automatically
一次的操作可以將多層板的所有內層進行曝光。
switch the material number and make the exposure. One operation can expose all the inner
layers of the multilayer plate.

41.

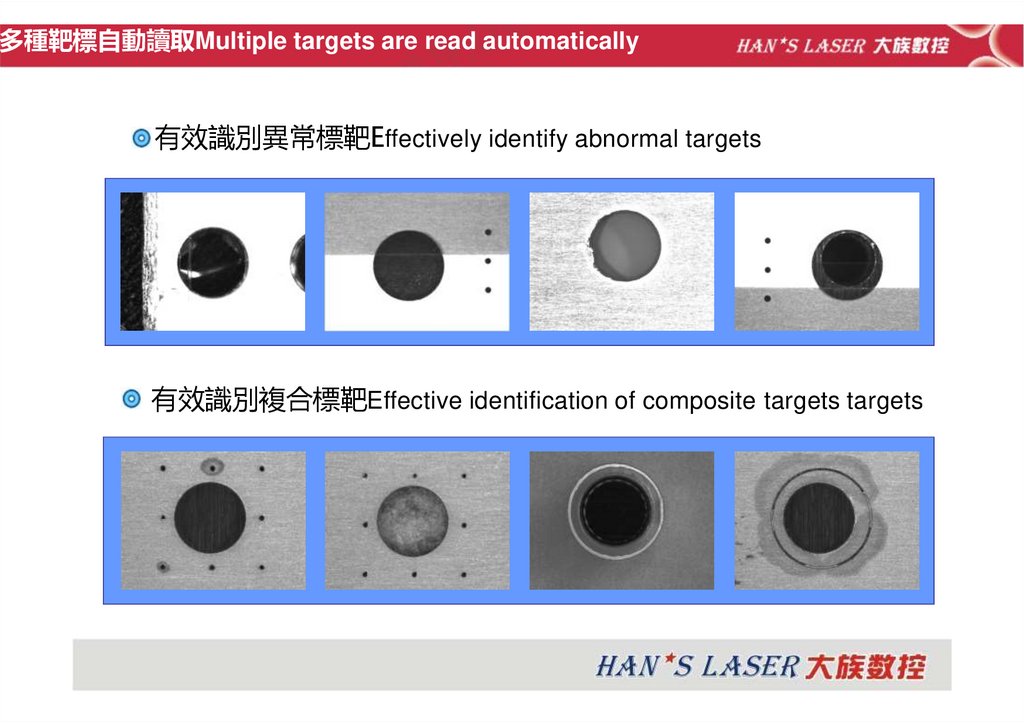

多種靶標自動讀取Multiple targets are read automatically
有效識別異常標靶Effectively identify abnormal targets
有效識別複合標靶Effective identification of composite targets targets

42.

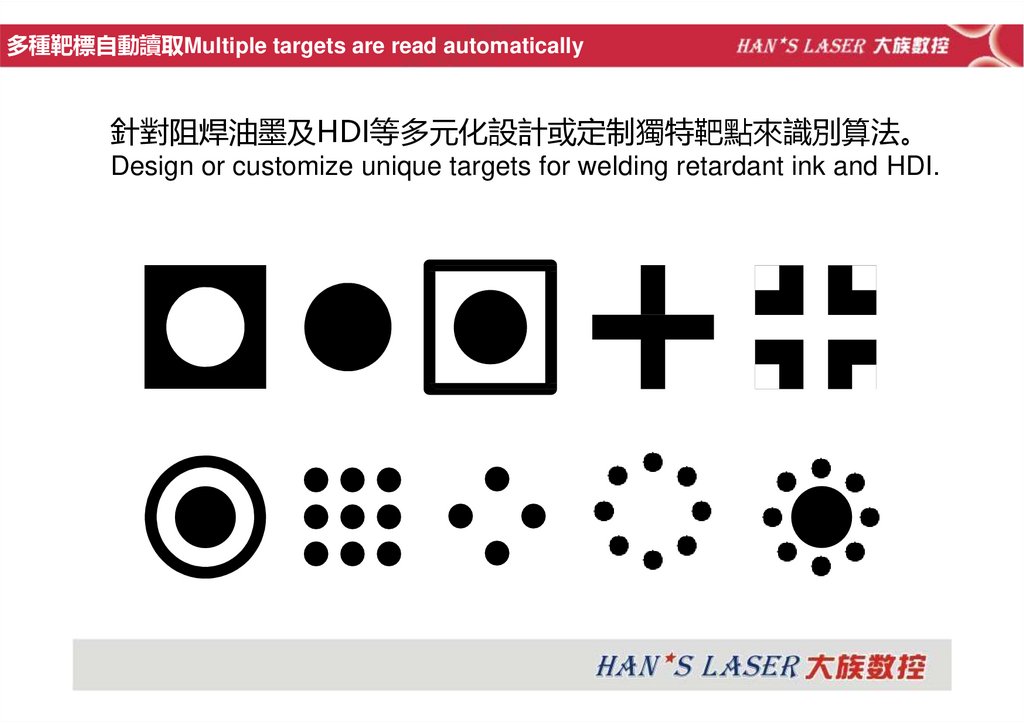

多種靶標自動讀取Multiple targets are read automatically
針對阻焊油墨及HDI等多元化設計或定制獨特靶點來識別算法。
Design or customize unique targets for welding retardant ink and HDI.

43.

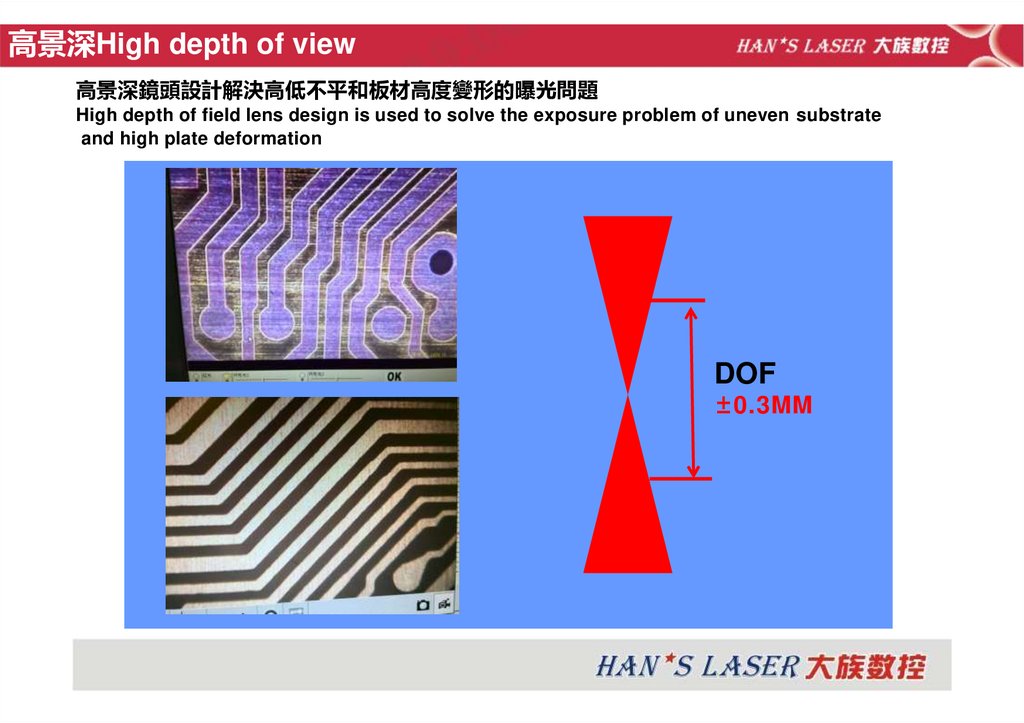

高景深High depth of view
高景深鏡頭設計解決高低不平和板材高度變形的曝光問題
High depth of field lens design is used to solve the exposure problem of uneven substrate
and high plate deformation
DOF
±0.3MM

44.

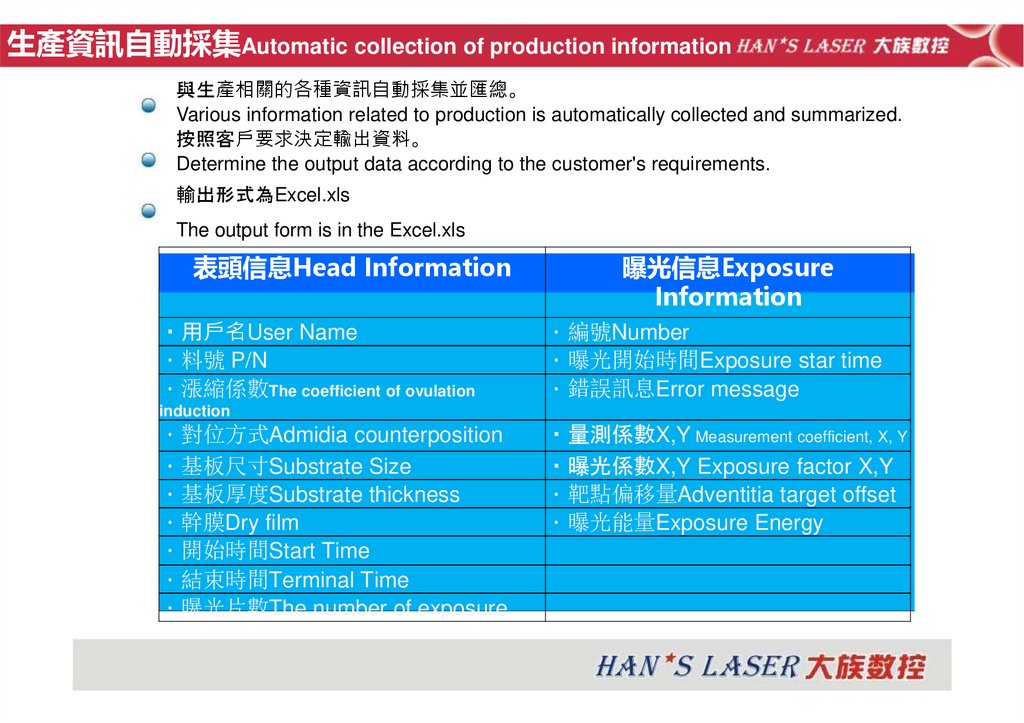

生產資訊自動採集Automatic collection of production information
與生產相關的各種資訊自動採集並匯總。
Various information related to production is automatically collected and summarized.
按照客戶要求決定輸出資料。
Determine the output data according to the customer's requirements.
輸出形式為Excel.xls
The output form is in the Excel.xls
表頭信息Head Information
・用戶名User Name
・料號 P/N
・漲縮係數The coefficient of ovulation
曝光信息Exposure
Information
・編號Number
・曝光開始時間Exposure star time
・錯誤訊息Error message
induction
・對位方式Admidia counterposition
・基板尺寸Substrate Size
・基板厚度Substrate thickness
・幹膜Dry film
・開始時間Start Time
・結束時間Terminal Time
・曝光片數The number of exposure
・量測係數X,Y Measurement coefficient, X, Y
・曝光係數X,Y Exposure factor X,Y
・靶點偏移量Adventitia target offset
・曝光能量Exposure Energy

45.

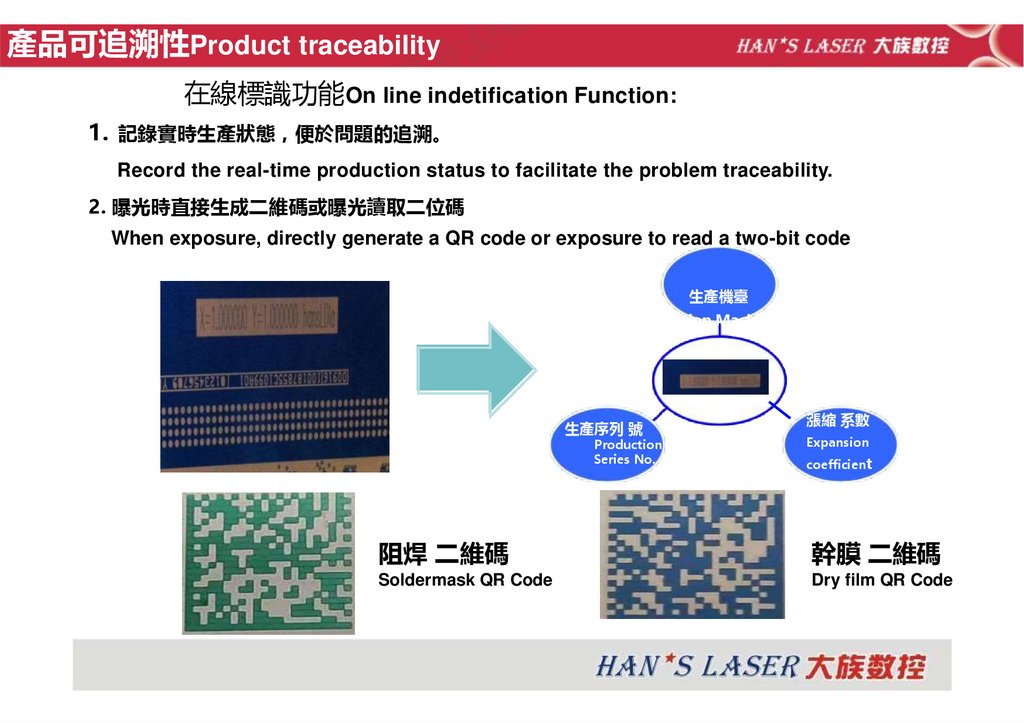

產品可追溯性Product traceability
在線標識功能On line indetification Function:
1. 記錄實時生產狀態 便於問題的追溯。
Record the real-time production status to facilitate the problem traceability.
2. 曝光時直接生成二維碼或曝光讀取二位碼
When exposure, directly generate a QR code or exposure to read a two-bit code
P
生產機臺
Production Machine
生產序列 號
Production
Series No.
漲縮 系數
Expansion
coefficient
阻焊 二維碼
幹膜 二維碼
Soldermask QR Code
Dry film QR Code

46.

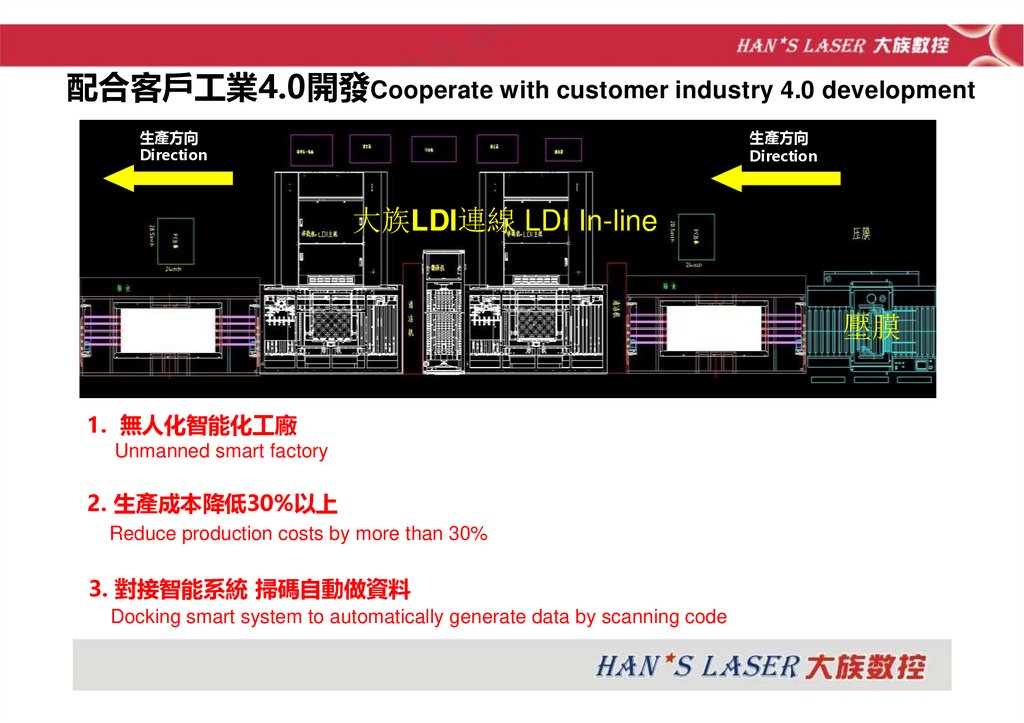

配合客戶工業4.0開發Cooperate with customer industry 4.0 development
生產方向
Direction
生產方向
Direction
大族LDI連線 LDI In-line
壓膜
1. 無人化智能化工廠
Unmanned smart factory
2. 生產成本降低30%以上
Reduce production costs by more than 30%
3. 對接智能系統 掃碼自動做資料
Docking smart system to automatically generate data by scanning code

47.

致力於成為世界範圍
內
民 族 的 大
族 世 界 的
大 族 China’s
Han’s
World’s Han’s
最受尊敬和信賴的行業專家
Dedicated tobuilding the most
respectable and reliable enterprise in the world
THANKS
zk
15
