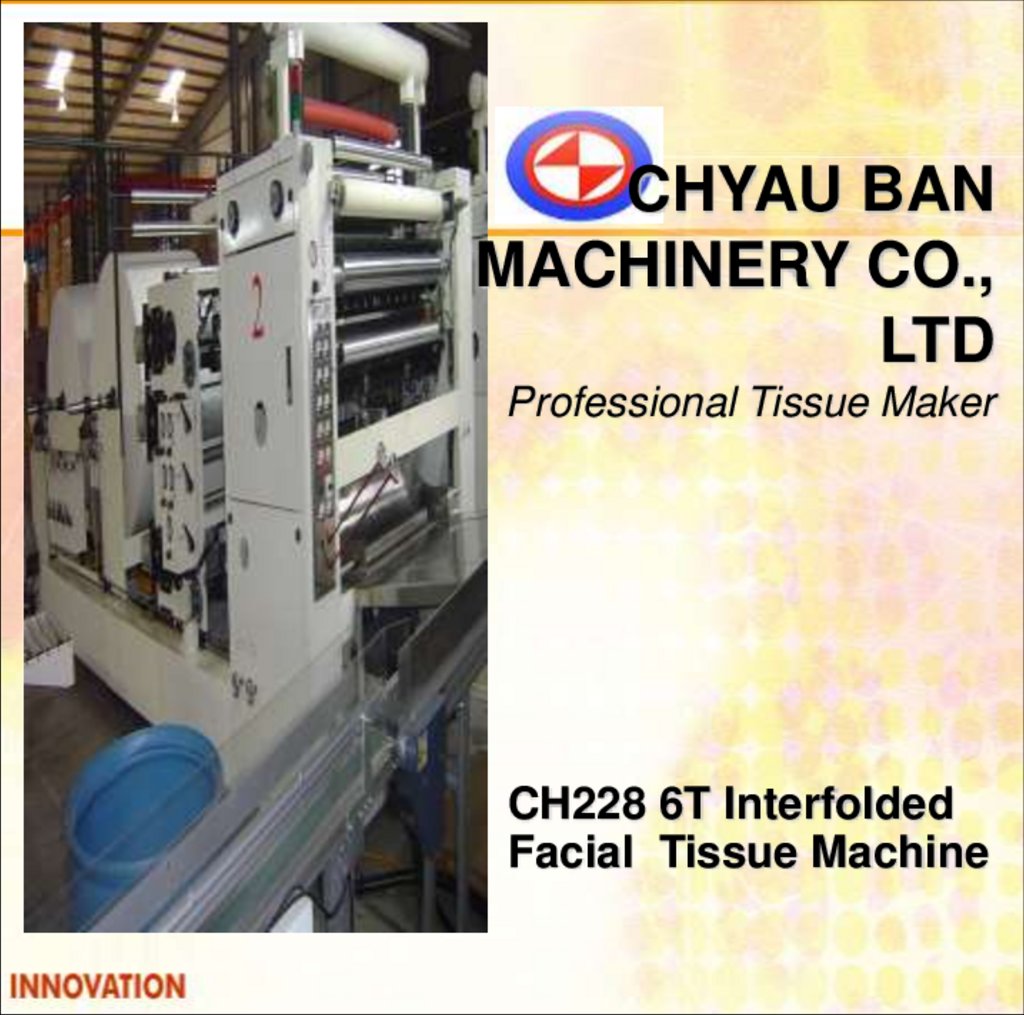

Professional Tissue Maker
CH228 6T Interfolded
Facial Tissue Machine

2.

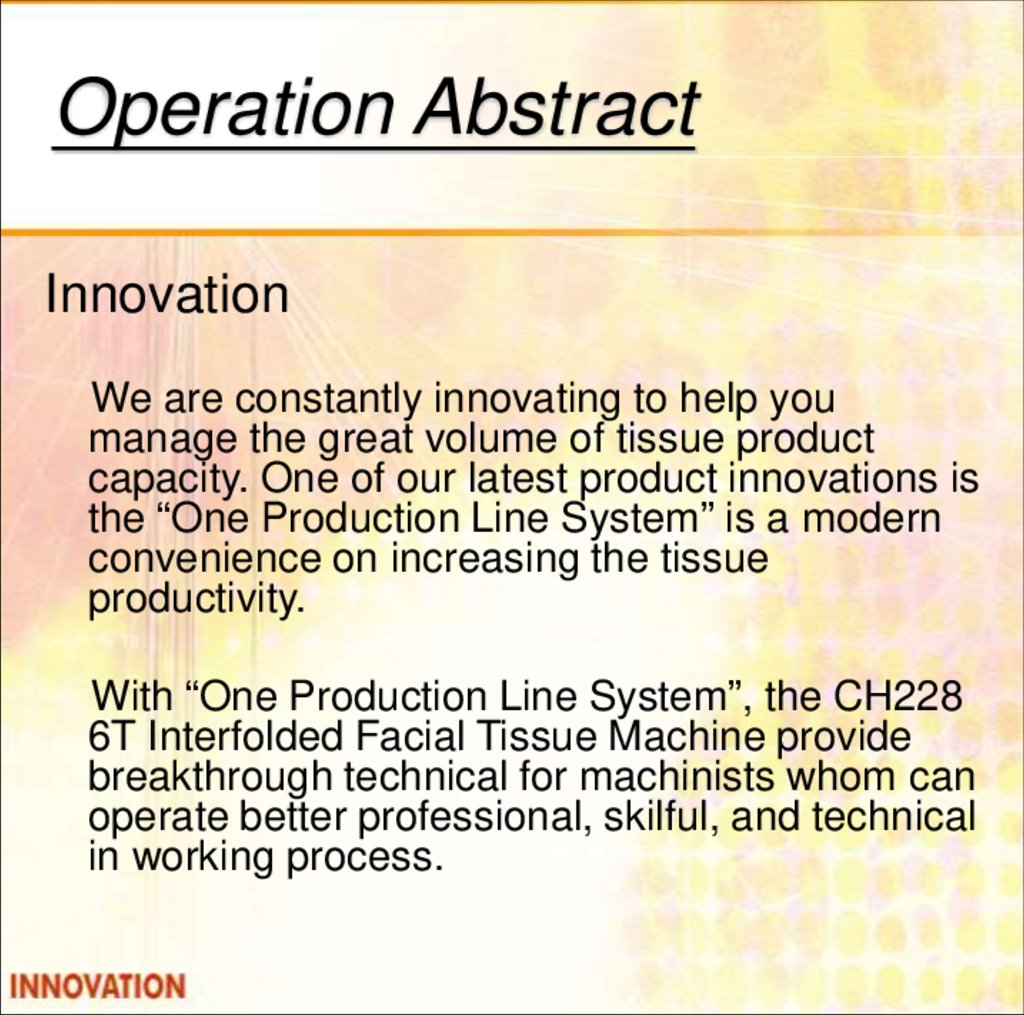

Operation Abstract
Innovation
We are constantly innovating to help you
manage the great volume of tissue product
capacity. One of our latest product innovations is
the “One Production Line System” is a modern
convenience on increasing the tissue
productivity.
With “One Production Line System”, the CH228
6T Interfolded Facial Tissue Machine provide
breakthrough technical for machinists whom can
operate better professional, skilful, and technical
in working process.

3.

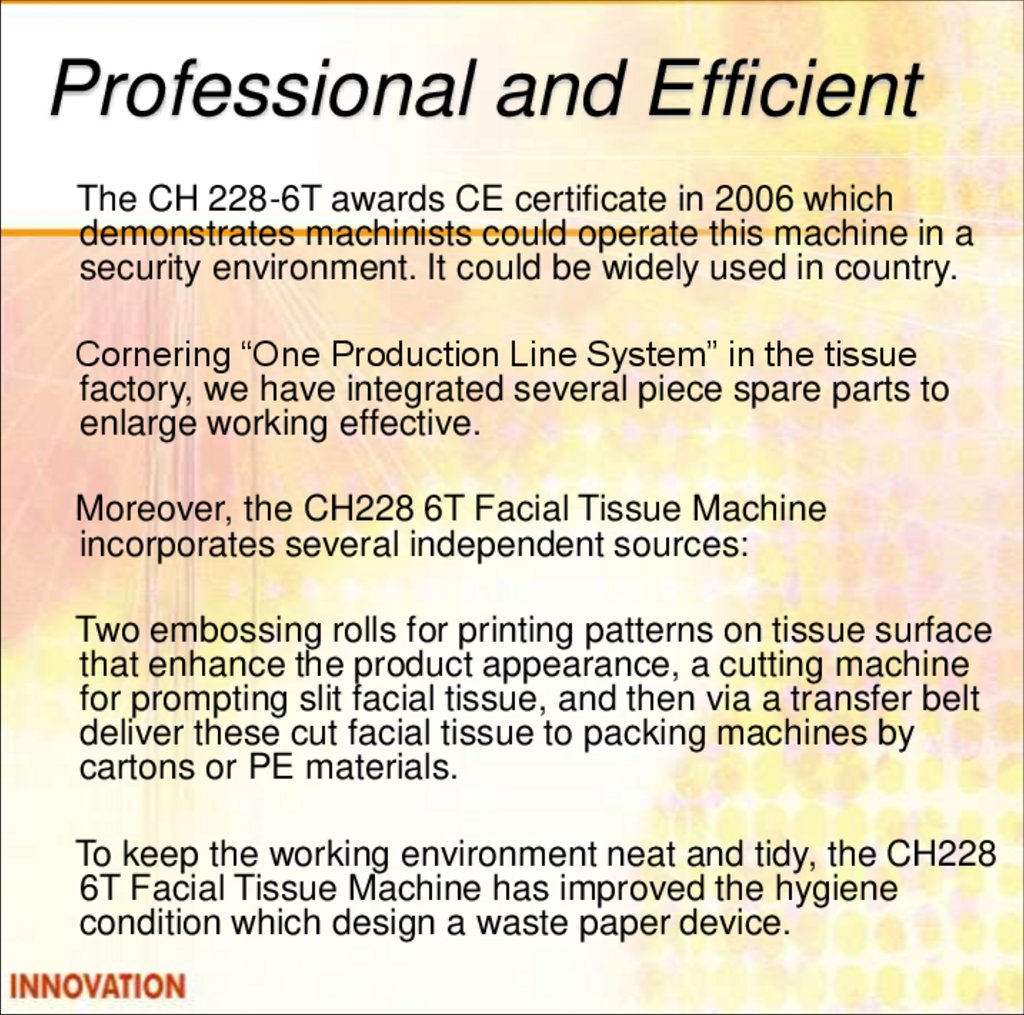

Professional and Efficient
The CH 228-6T awards CE certificate in 2006 which
demonstrates machinists could operate this machine in a
security environment. It could be widely used in country.
Cornering “One Production Line System” in the tissue
factory, we have integrated several piece spare parts to
enlarge working effective.
Moreover, the CH228 6T Facial Tissue Machine
incorporates several independent sources:
Two embossing rolls for printing patterns on tissue surface
that enhance the product appearance, a cutting machine
for prompting slit facial tissue, and then via a transfer belt
deliver these cut facial tissue to packing machines by
cartons or PE materials.
To keep the working environment neat and tidy, the CH228
6T Facial Tissue Machine has improved the hygiene
condition which design a waste paper device.

4.

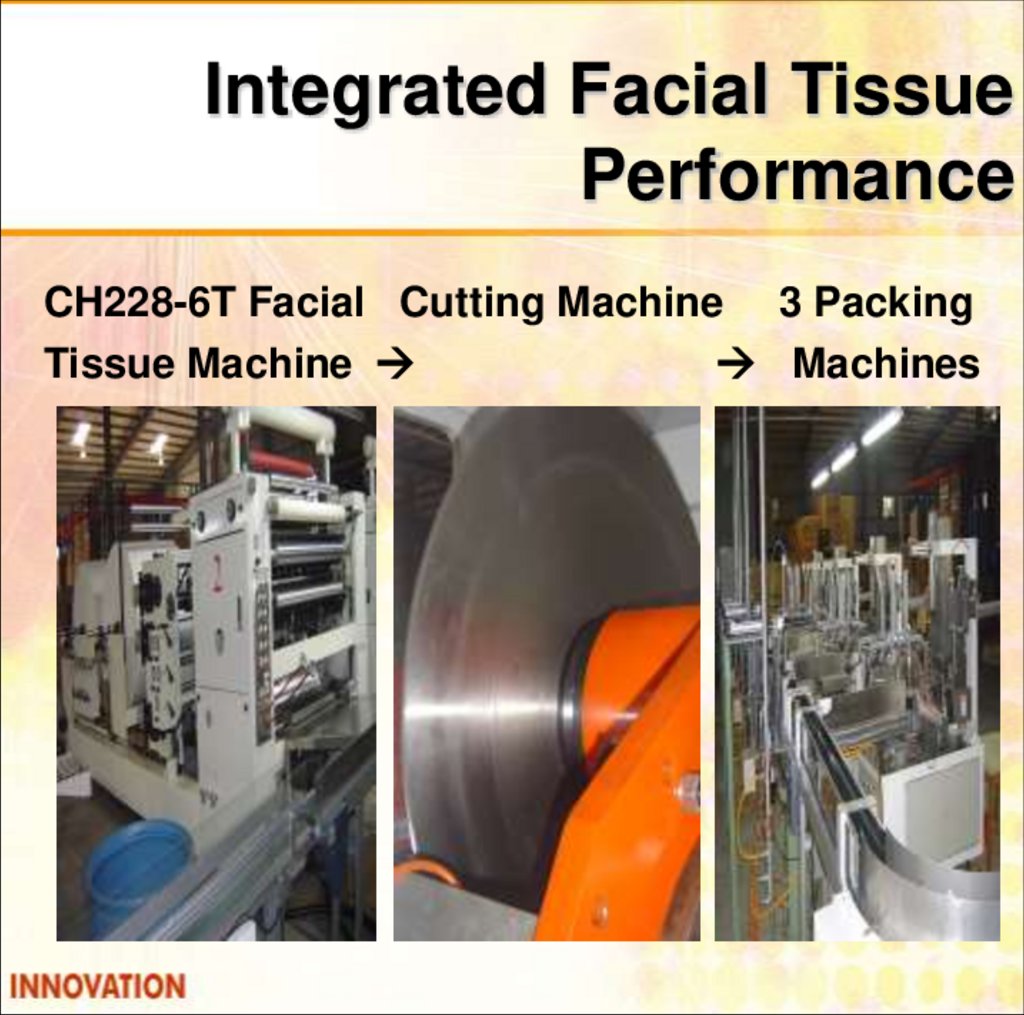

Integrated Facial Tissue
Performance
CH228-6T Facial Cutting Machine 3 Packing
Tissue Machine
Machines

5.

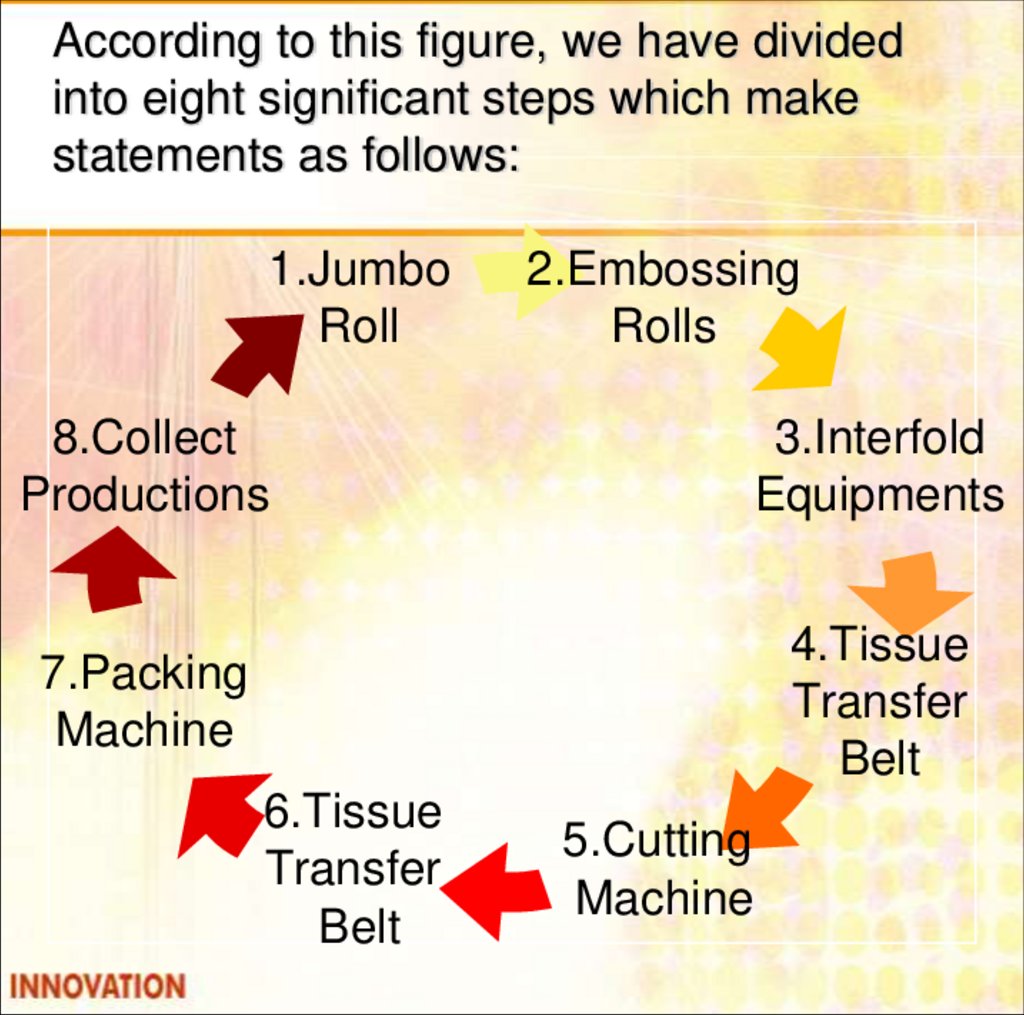

According to this figure, we have divided
into eight significant steps which make
statements as follows:
1.Jumbo
Roll
2.Embossing
Rolls
8.Collect
Productions
3.Interfold
Equipments
7.Packing
Machine
4.Tissue
Transfer
Belt
6.Tissue
Transfer
Belt
5.Cutting
Machine

6.

Removed Jumbo Roll Gear
Placing one or two jumbo rolls in the final
part of tissue machine is the first step to
do. The pair of jumbo roll gears are easy
control equipment up and down by
pressing the control panel options.
Machinists will remove jumbo to the right
position as well as the video machinist do.

7.

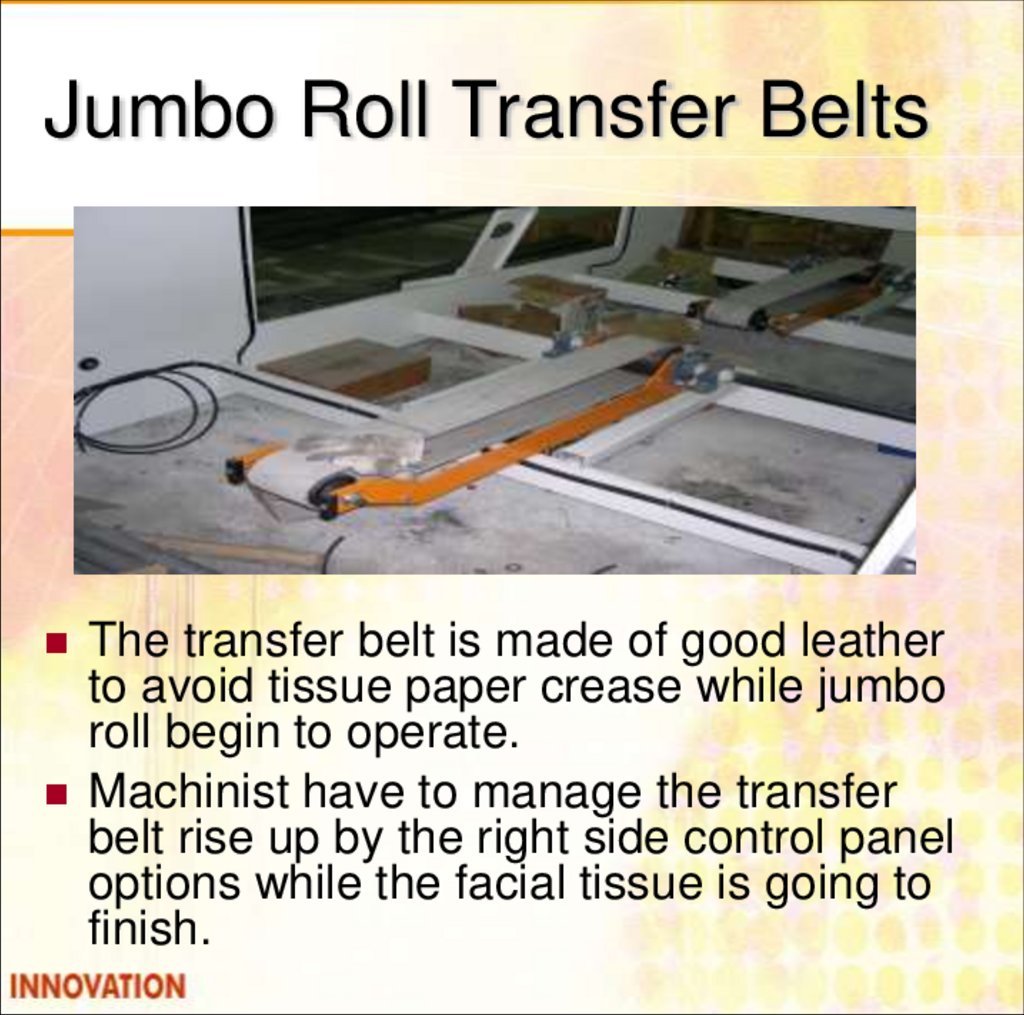

Jumbo Roll Transfer Belts
The transfer belt is made of good leather
to avoid tissue paper crease while jumbo
roll begin to operate.
Machinist have to manage the transfer
belt rise up by the right side control panel
options while the facial tissue is going to
finish.

8.

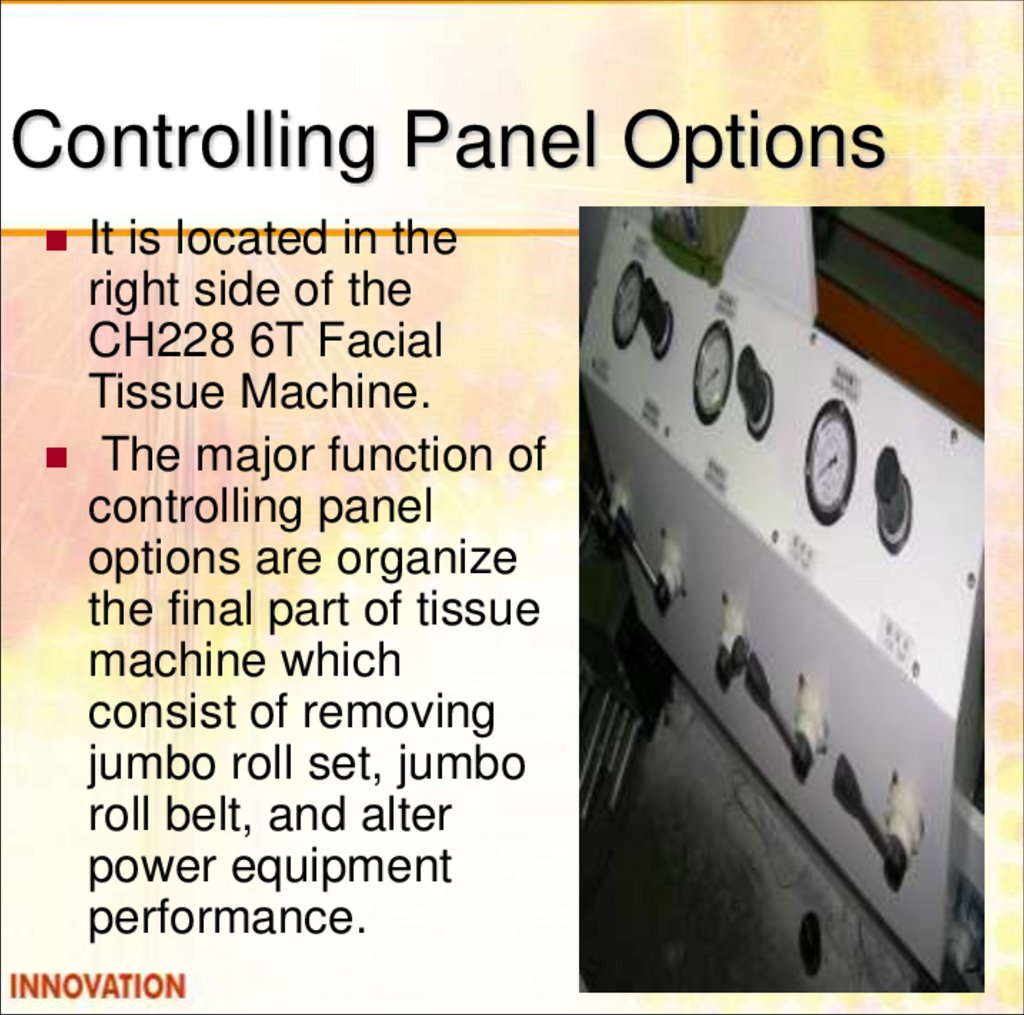

Controlling Panel Options
It is located in the
right side of the
CH228 6T Facial
Tissue Machine.
The major function of
controlling panel
options are organize
the final part of tissue
machine which
consist of removing
jumbo roll set, jumbo
roll belt, and alter
power equipment
performance.

9.

Embossing Rolls
Embossing rolls are
made of steel and
rubber material in
separate.
In general,
embossing rolls
contain some
specific patterns
which could be
figured out by
customers’
requirement.
Printing colour
equipment could be
combine in this
part.

10.

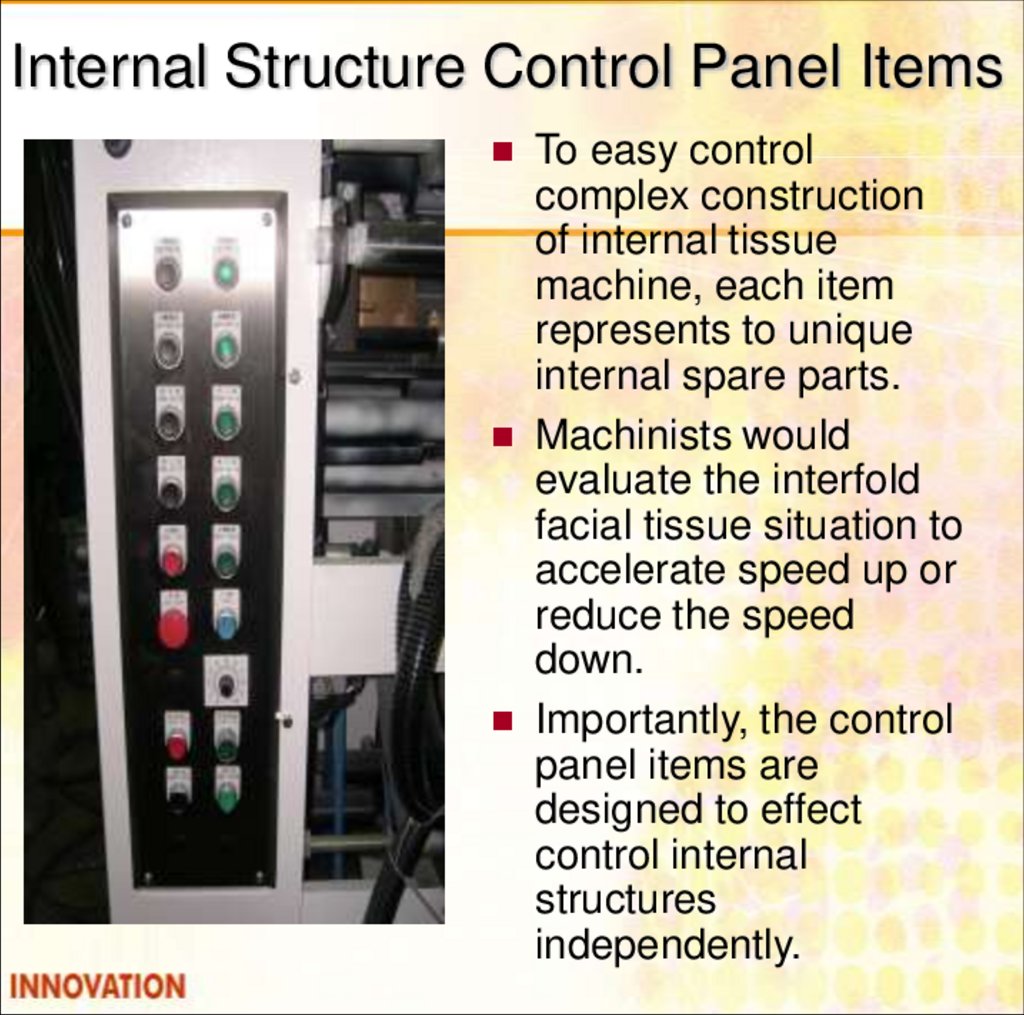

Internal Structure Control Panel Items
To easy control
complex construction
of internal tissue
machine, each item
represents to unique
internal spare parts.
Machinists would
evaluate the interfold
facial tissue situation to
accelerate speed up or
reduce the speed
down.
Importantly, the control
panel items are
designed to effect
control internal
structures
independently.

11.

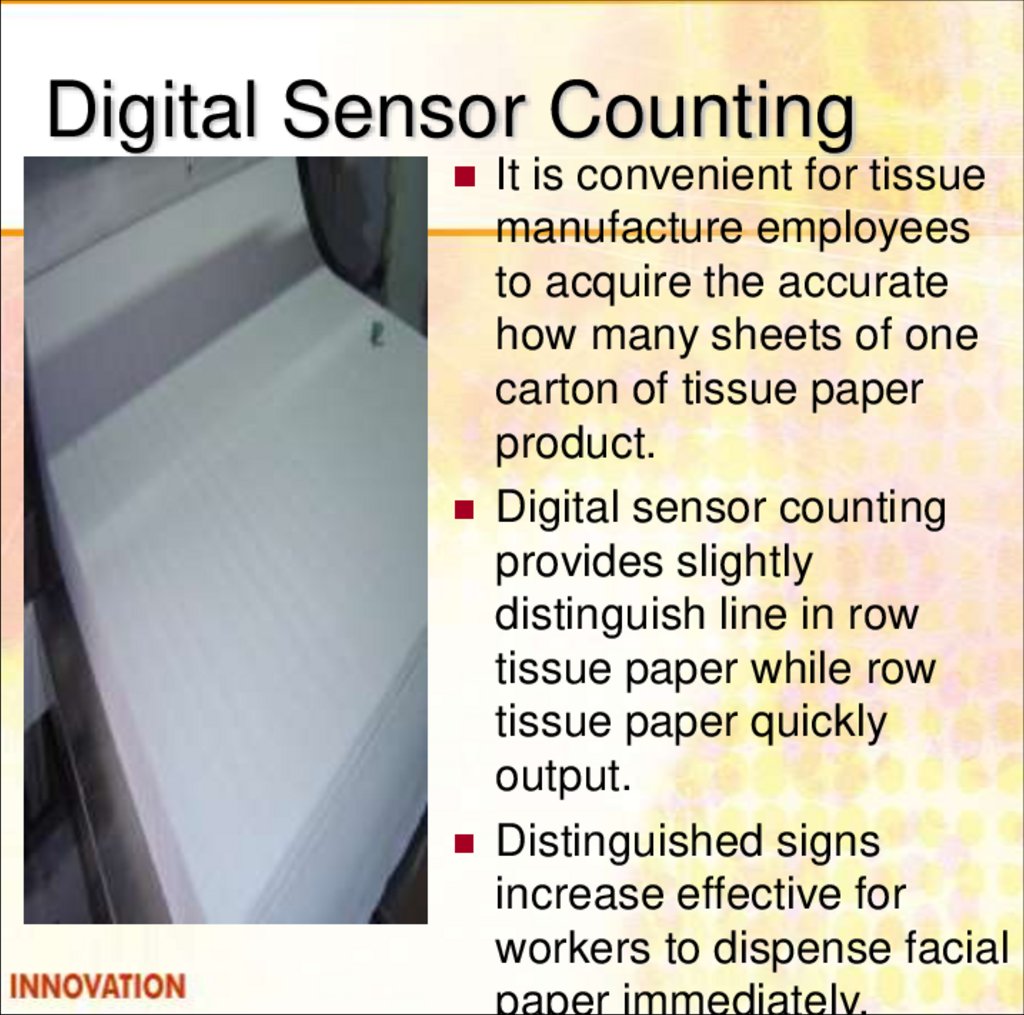

Digital Sensor Counting
It is convenient for tissue
manufacture employees
to acquire the accurate
how many sheets of one
carton of tissue paper
product.
Digital sensor counting
provides slightly
distinguish line in row
tissue paper while row
tissue paper quickly
output.
Distinguished signs
increase effective for
workers to dispense facial
paper immediately.

12.

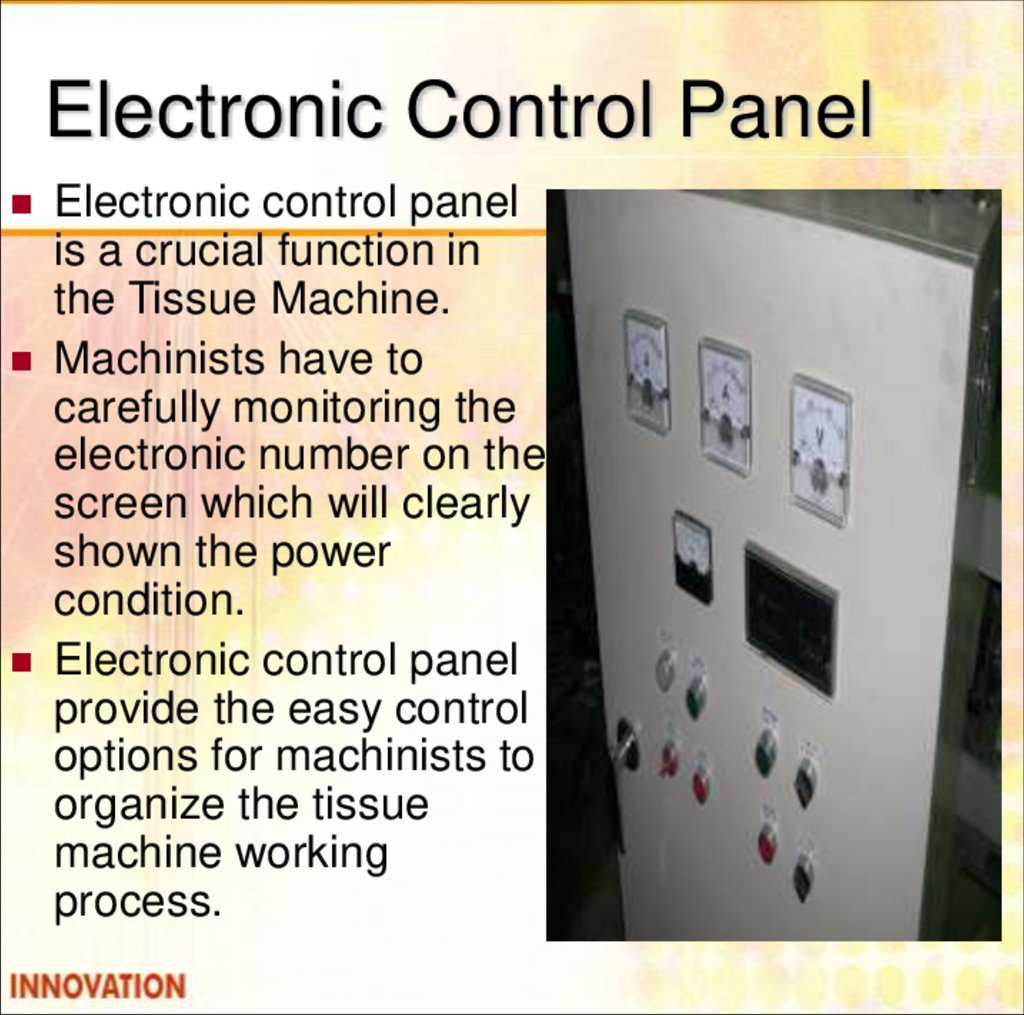

Electronic Control Panel
Electronic control panel
is a crucial function in
the Tissue Machine.
Machinists have to
carefully monitoring the
electronic number on the
screen which will clearly
shown the power
condition.
Electronic control panel
provide the easy control
options for machinists to
organize the tissue
machine working
process.

13.

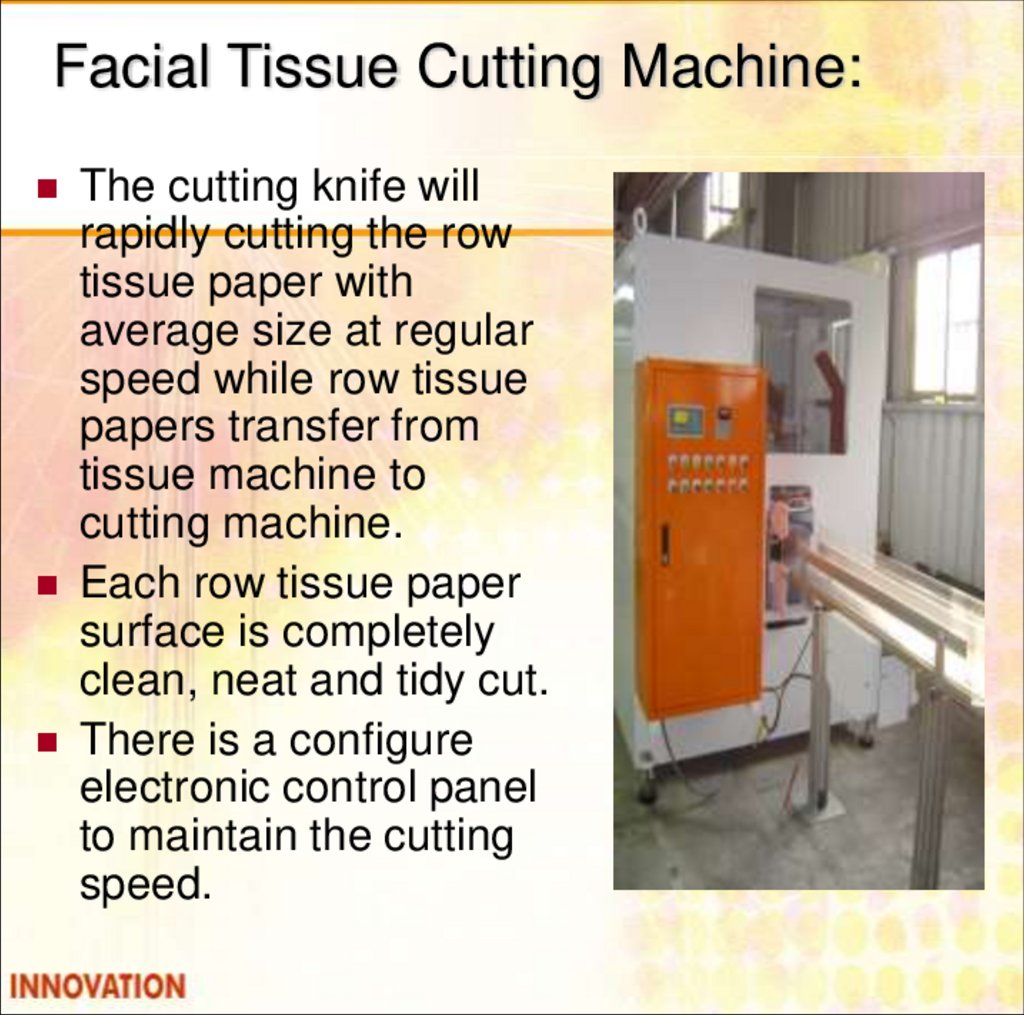

Facial Tissue Cutting Machine:
The cutting knife will
rapidly cutting the row
tissue paper with
average size at regular
speed while row tissue
papers transfer from
tissue machine to
cutting machine.
Each row tissue paper
surface is completely
clean, neat and tidy cut.
There is a configure
electronic control panel
to maintain the cutting
speed.

14.

Automatic Packing Machines:
The semi-production is
delivered by the effective
transfer belt system to the
automatic packing machine.
These semi-productions will
be distinguished to each
transfer channels.
The next step is to press
these semi-production into
unpackaged boxes.
Finally, glue tools manage
unpackaged
tissue box together before
they become
final tissue productions.

15.

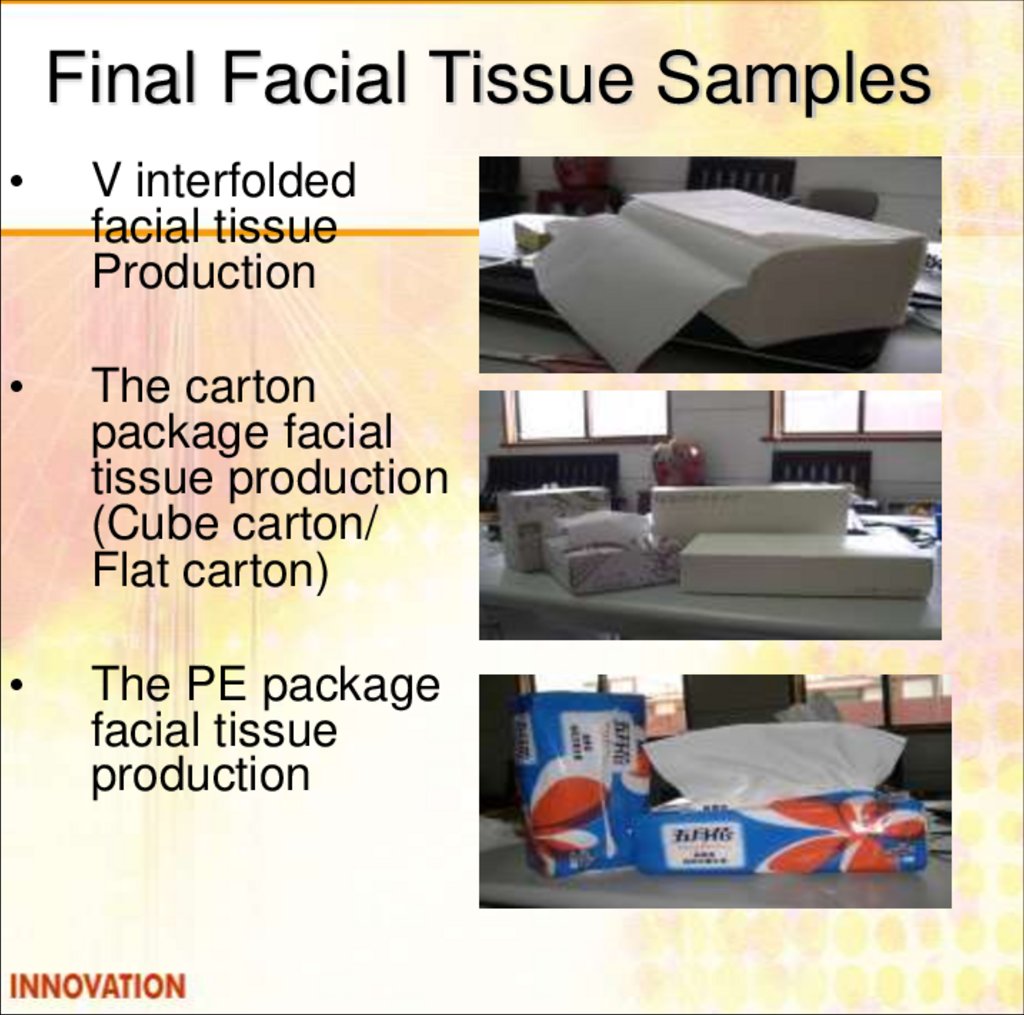

Final Facial Tissue Samples
V interfolded
facial tissue
Production
The carton
package facial
tissue production
(Cube carton/
Flat carton)
The PE package
facial tissue
production

16.

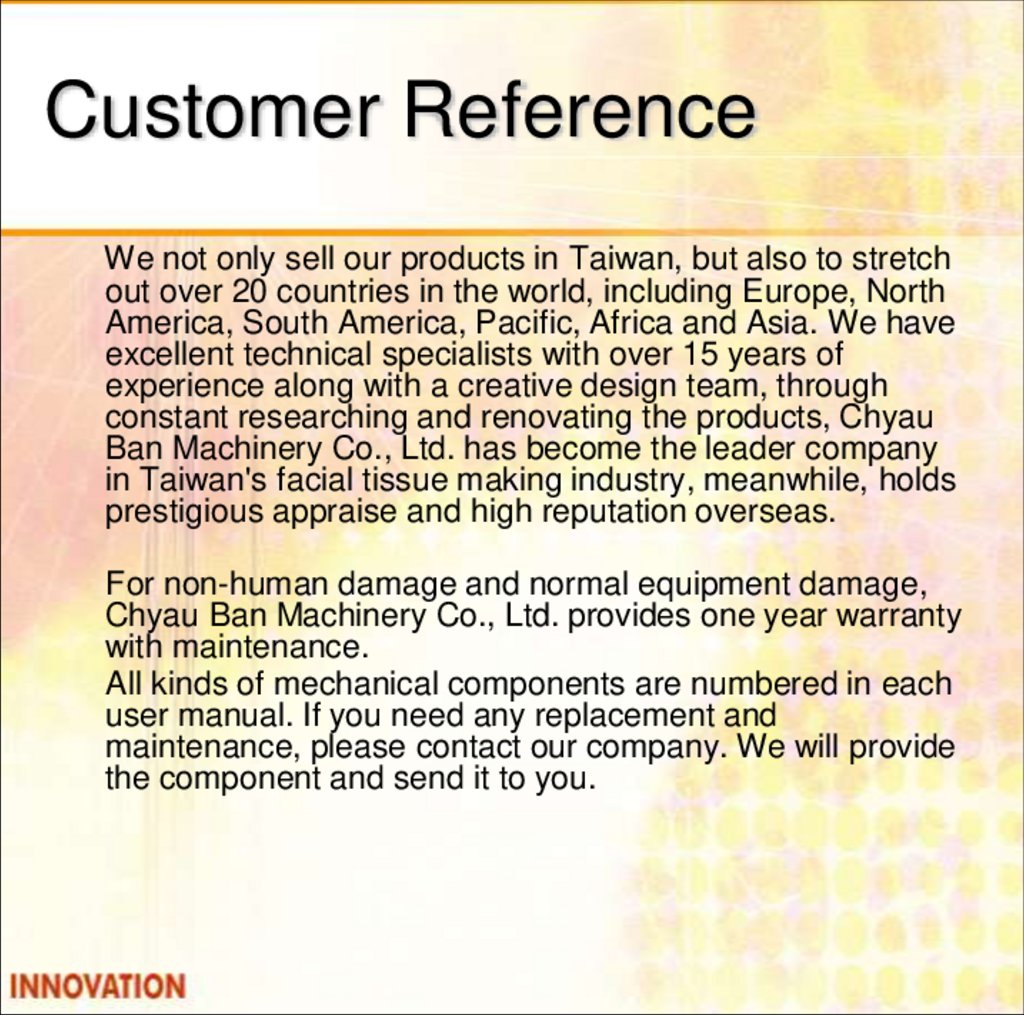

Customer Reference
We not only sell our products in Taiwan, but also to stretch
out over 20 countries in the world, including Europe, North
America, South America, Pacific, Africa and Asia. We have
excellent technical specialists with over 15 years of
experience along with a creative design team, through
constant researching and renovating the products, Chyau
Ban Machinery Co., Ltd. has become the leader company
in Taiwan's facial tissue making industry, meanwhile, holds
prestigious appraise and high reputation overseas.
For non-human damage and normal equipment damage,
Chyau Ban Machinery Co., Ltd. provides one year warranty
with maintenance.
All kinds of mechanical components are numbered in each
user manual. If you need any replacement and
maintenance, please contact our company. We will provide
the component and send it to you.
