Замечания 4733. Щетка для пола. Floor brush

1.

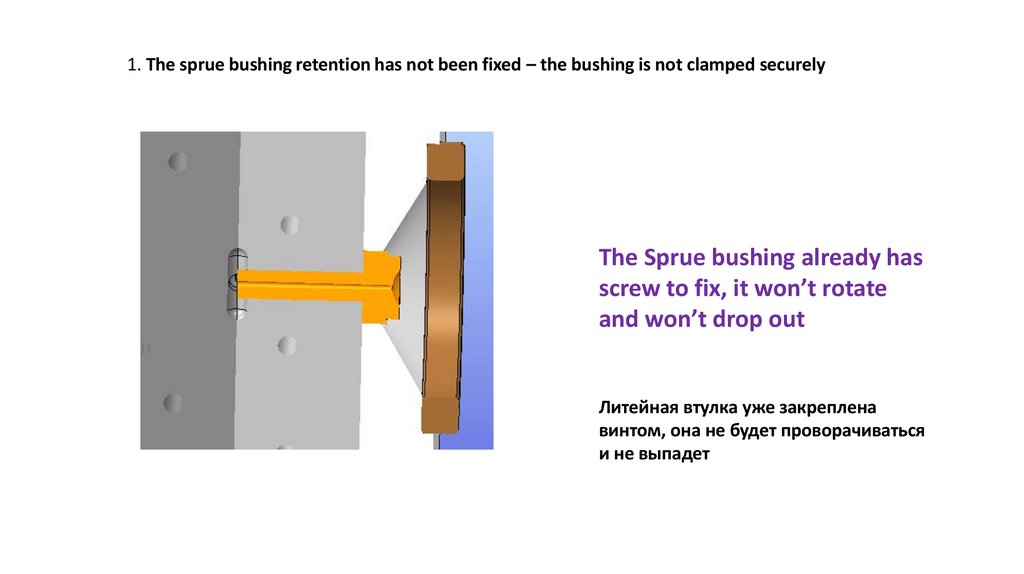

1. The sprue bushing retention has not been fixed – the bushing is not clamped securely
The Sprue bushing already has
screw to fix, it won’t rotate
and won’t drop out
Литейная втулка уже закреплена
винтом, она не будет проворачиваться
и не выпадет

2.

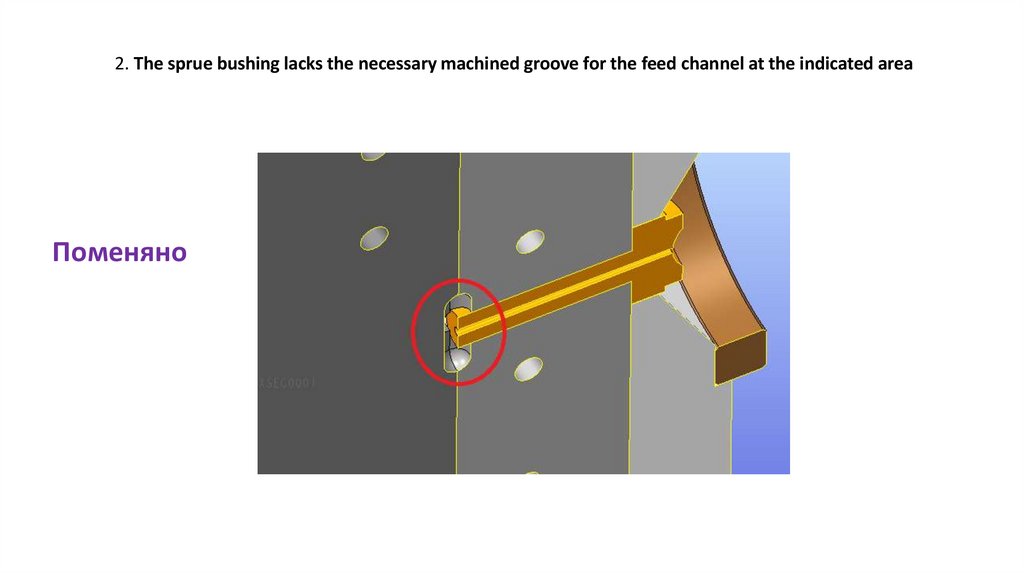

2. The sprue bushing lacks the necessary machined groove for the feed channel at the indicated area
Поменяно

3.

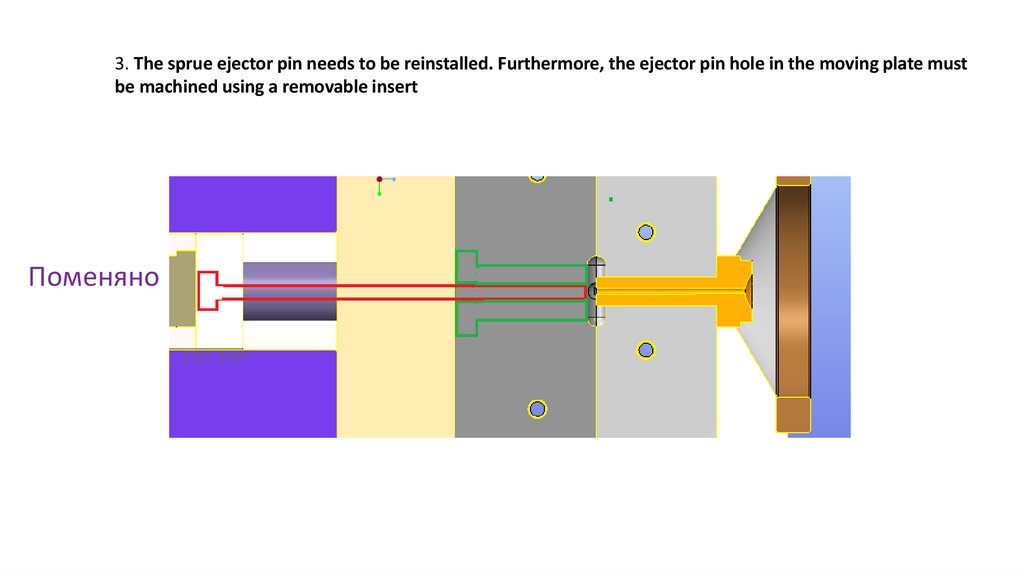

3. The sprue ejector pin needs to be reinstalled. Furthermore, the ejector pin hole in the moving plate must
be machined using a removable insert
Поменяно

4.

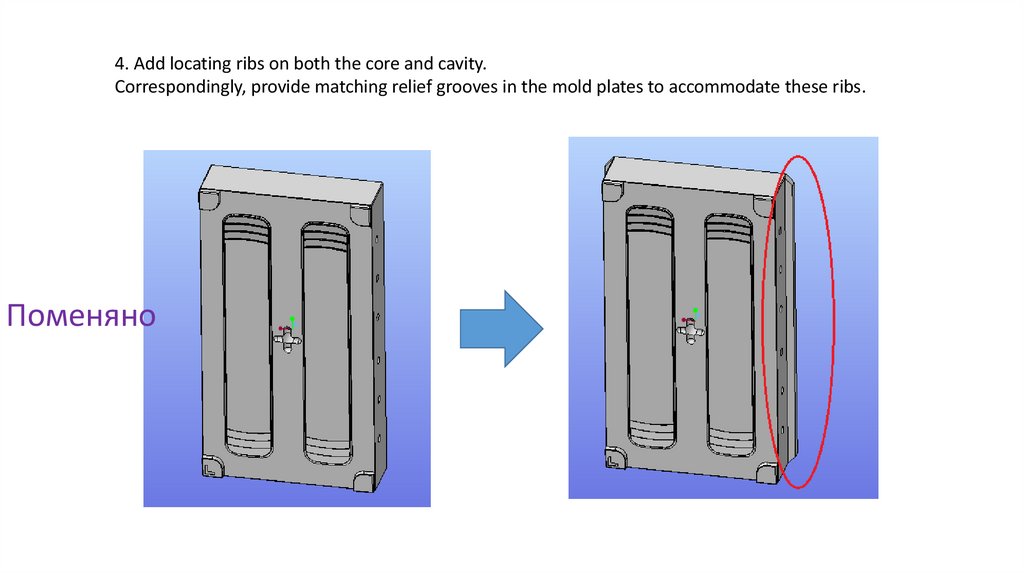

4. Add locating ribs on both the core and cavity.
Correspondingly, provide matching relief grooves in the mold plates to accommodate these ribs.
Поменяно

5.

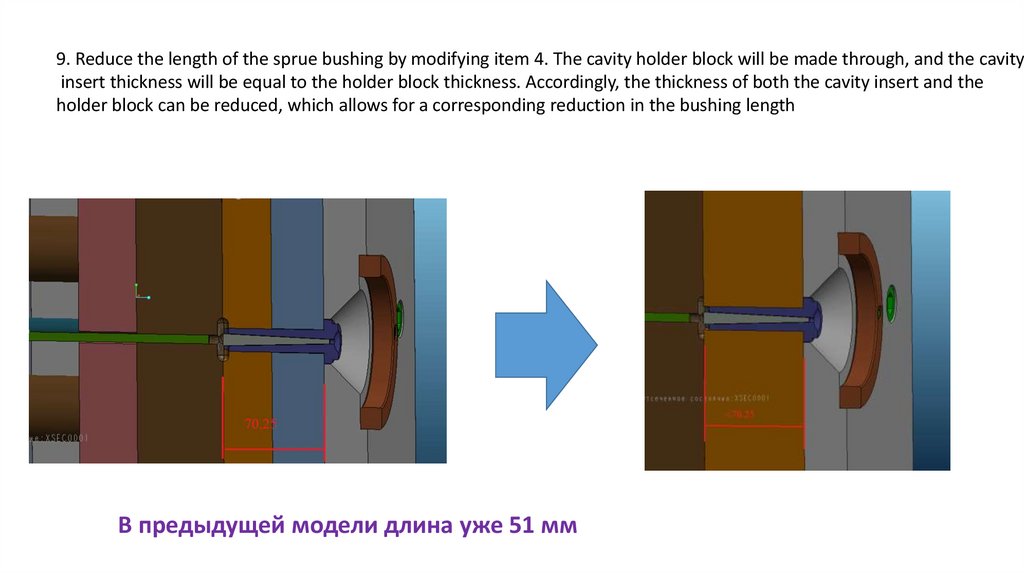

9. Reduce the length of the sprue bushing by modifying item 4. The cavity holder block will be made through, and the cavity
insert thickness will be equal to the holder block thickness. Accordingly, the thickness of both the cavity insert and the
holder block can be reduced, which allows for a corresponding reduction in the bushing length
В предыдущей модели длина уже 51 мм
