Lab 1 CAD Spring 2025

1.

Lab 1 CAD Spring 2025
• Please save each exersice as a part file and zip all the files together in
folder and submit through brightspace. Addtionally, please submit
your answers through this form.

2.

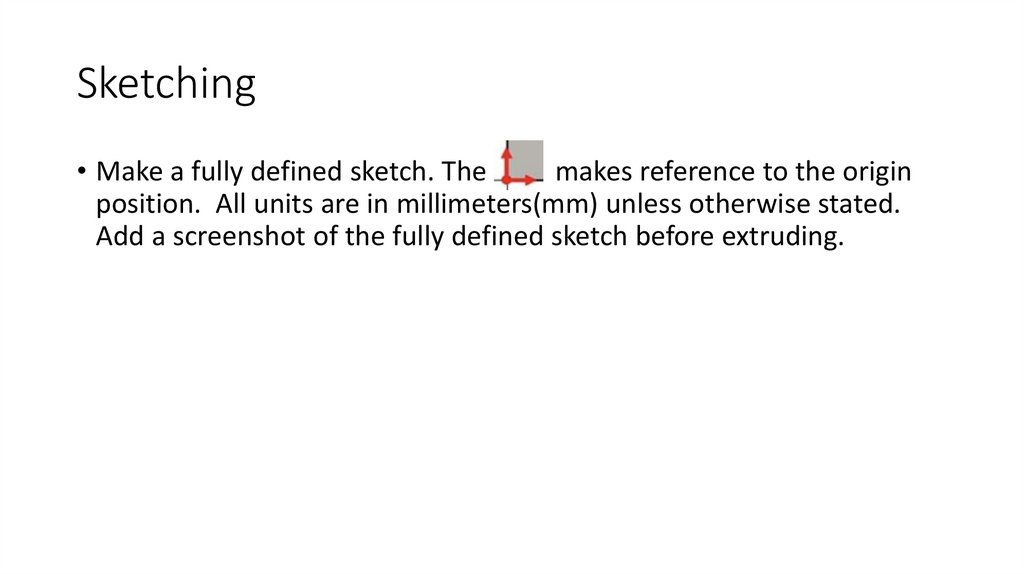

Sketching
• Make a fully defined sketch. The
makes reference to the origin
position. All units are in millimeters(mm) unless otherwise stated.
Add a screenshot of the fully defined sketch before extruding.

3.

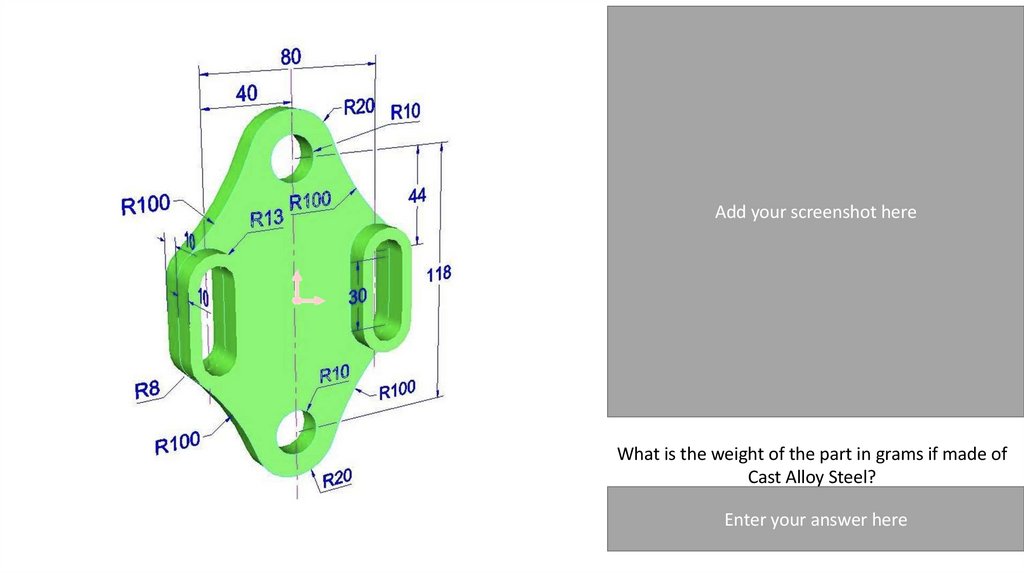

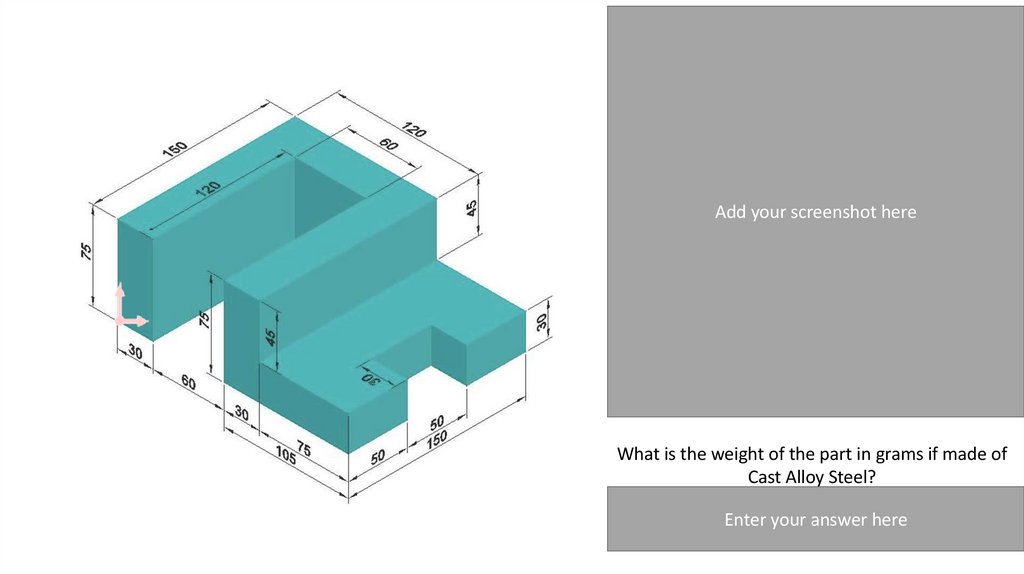

Add your screenshot here
What is the weight of the part in grams if made of
Cast Alloy Steel?
Enter your answer here

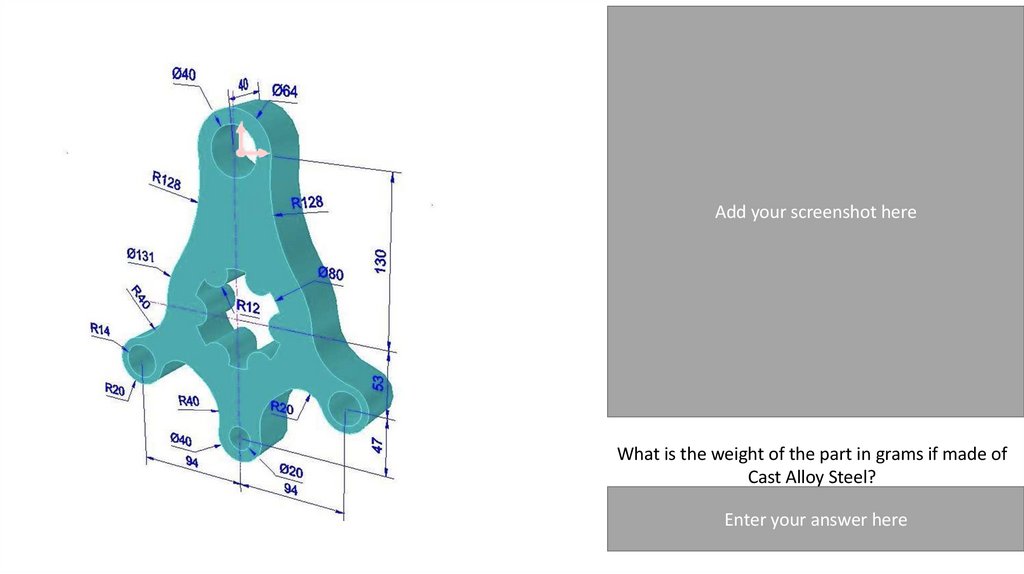

4.

Add your screenshot here
What is the weight of the part in grams if made of
Cast Alloy Steel?
Enter your answer here

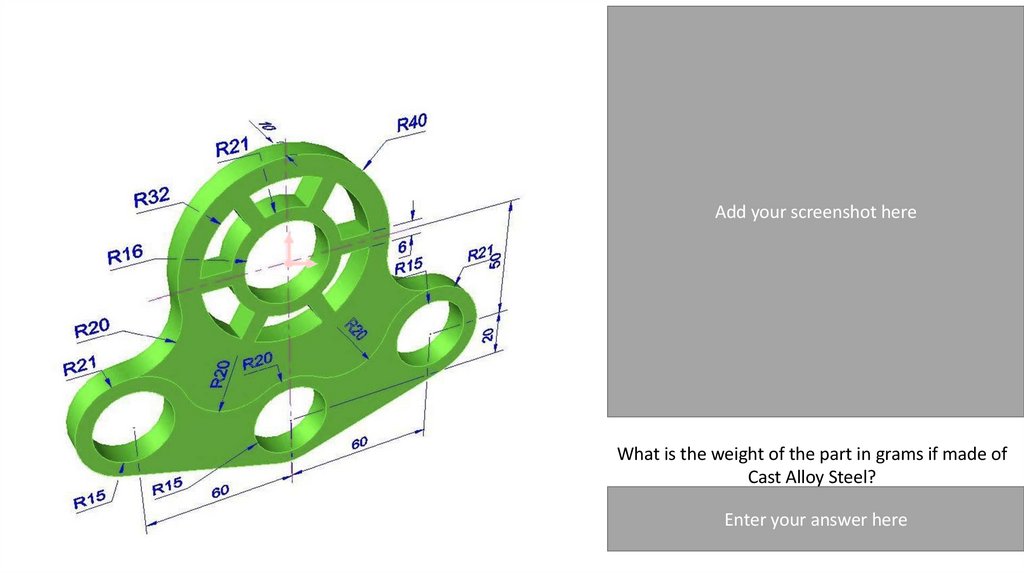

5.

Add your screenshot here
What is the weight of the part in grams if made of
Cast Alloy Steel?
Enter your answer here

6.

Add your screenshot here
What is the weight of the part in grams if made of
Cast Alloy Steel?
Enter your answer here

7.

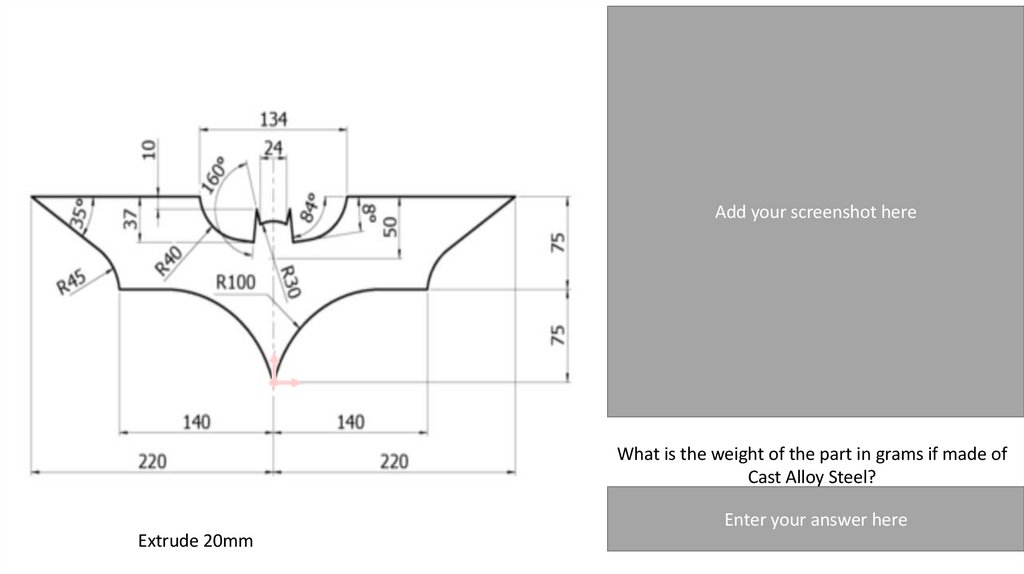

Add your screenshot here
What is the weight of the part in grams if made of
Cast Alloy Steel?
Enter your answer here
Extrude 20mm

8.

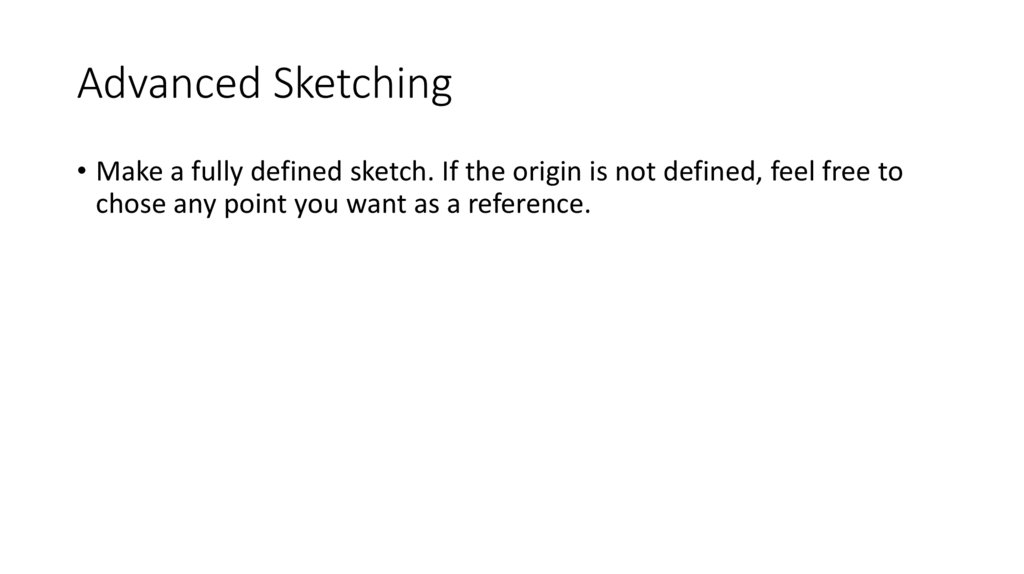

Advanced Sketching
• Make a fully defined sketch. If the origin is not defined, feel free to
chose any point you want as a reference.

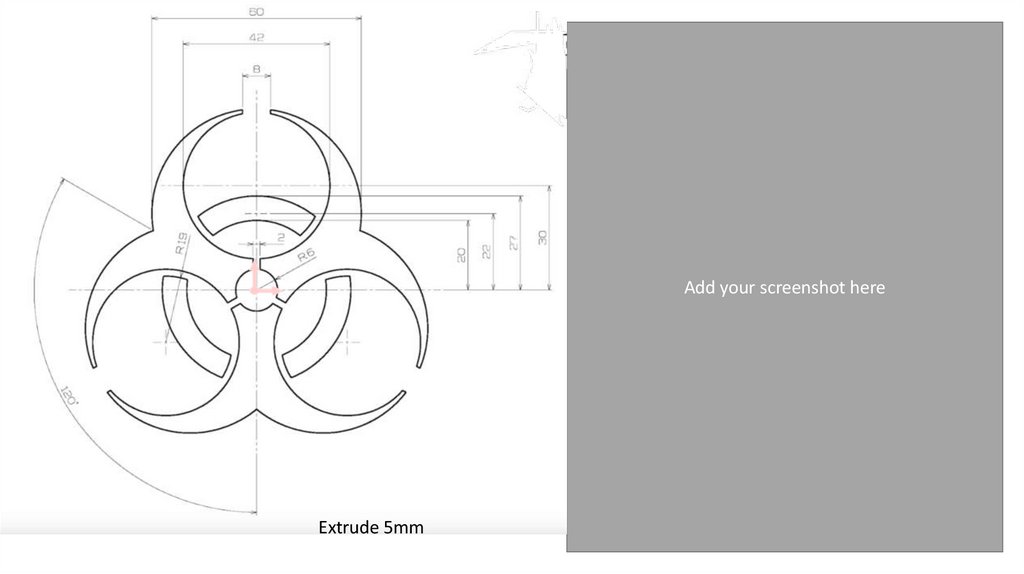

9.

Add your screenshot here
Extrude 5mm

10.

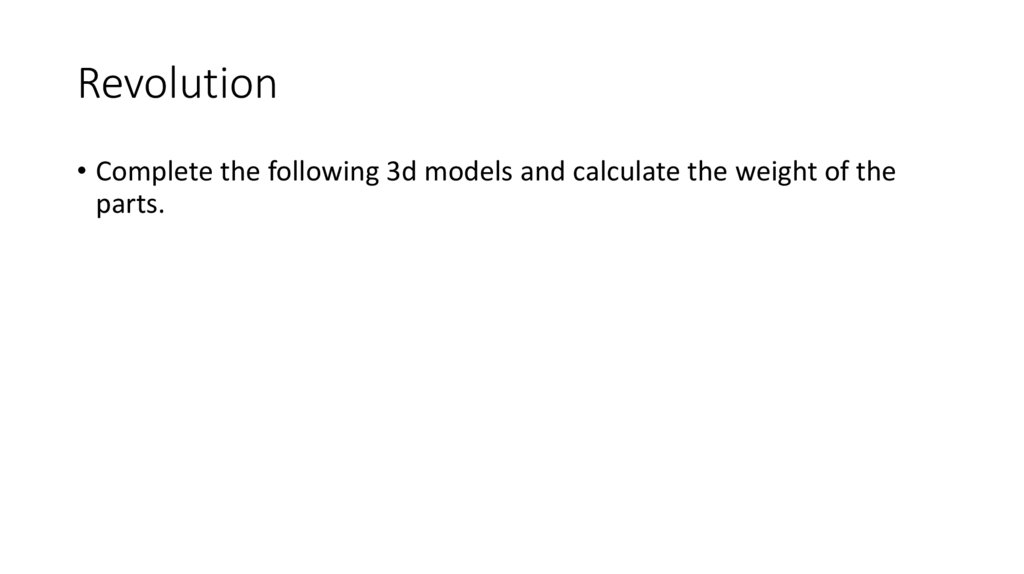

Revolution
• Complete the following 3d models and calculate the weight of the
parts.

11.

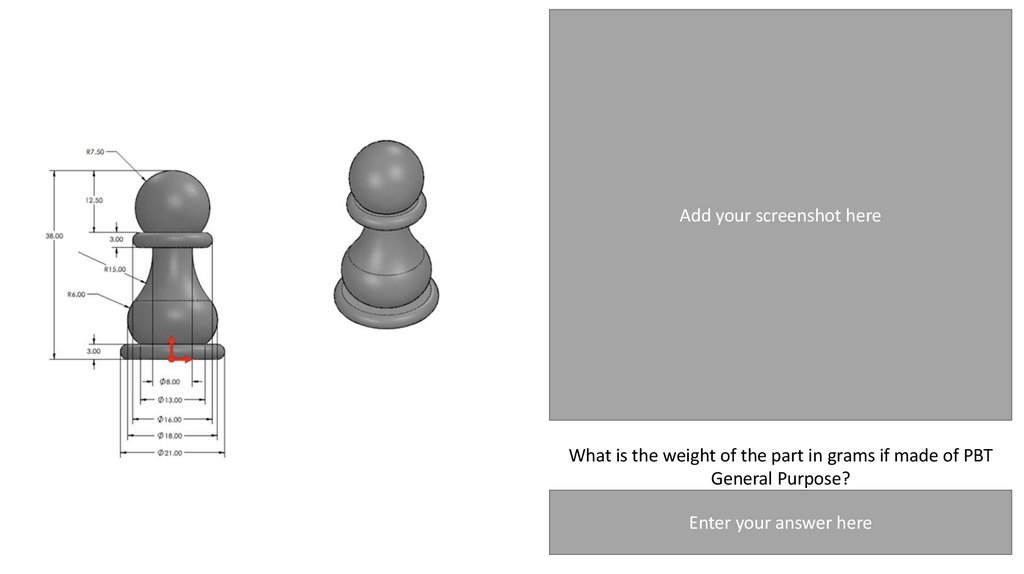

Add your screenshot here
What is the weight of the part in grams if made of PBT
General Purpose?
Enter your answer here

12.

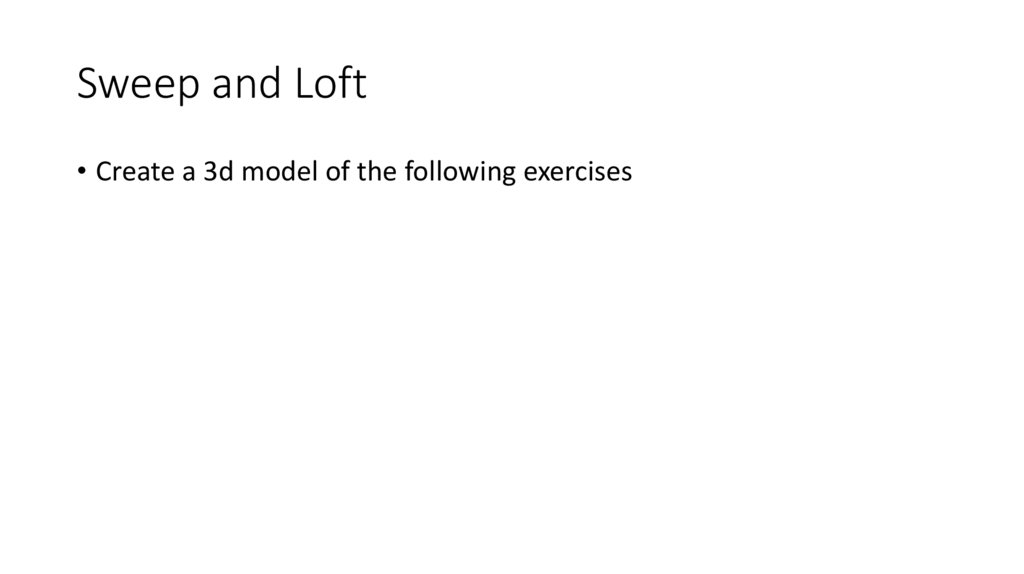

Sweep and Loft
• Create a 3d model of the following exercises

13.

Add your screenshot here
What is the weight of the part in grams if made of
Cast Alloy Steel?
Enter your answer here

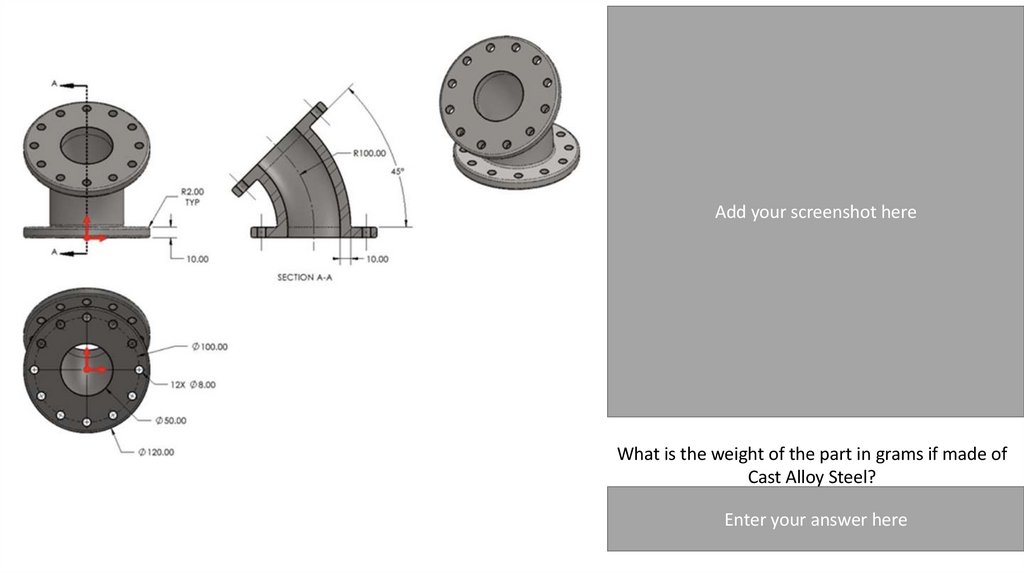

14.

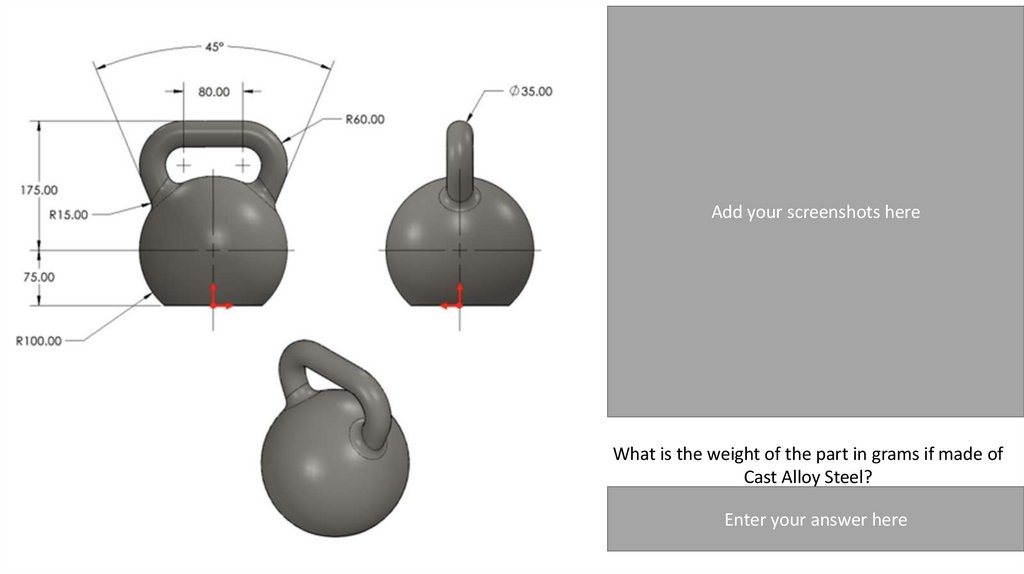

Add your screenshots here
What is the weight of the part in grams if made of
Cast Alloy Steel?
Enter your answer here

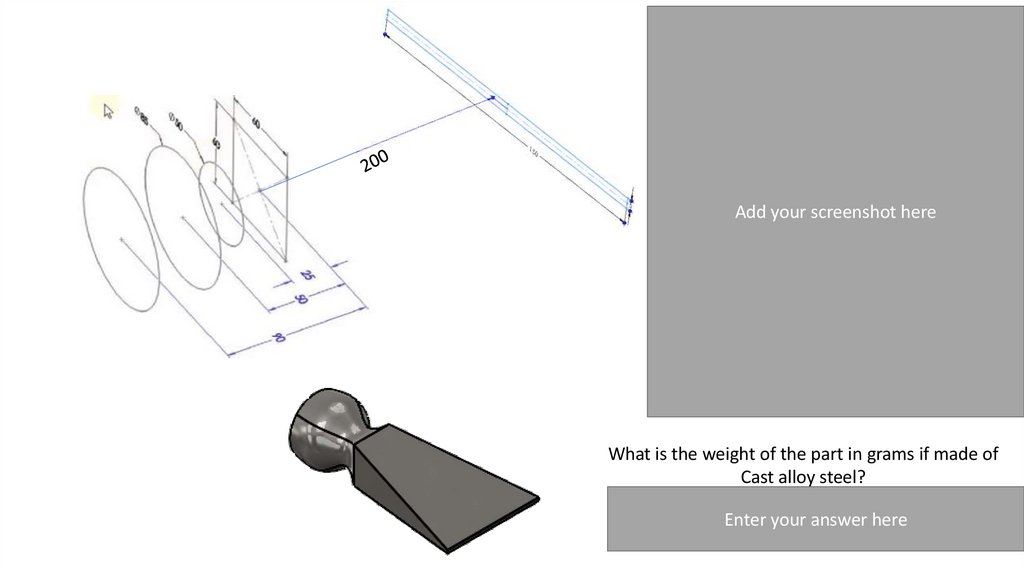

15.

Add your screenshot here
What is the weight of the part in grams if made of
Cast alloy steel?
Enter your answer here
