Trion electrostatic air filter
1. საუკეთესო გადაწყვეტილება ჰაერის გასაწმენდად
Air Purification SystemsGeo Trans Service LLC
Official Distribution Company of TRION in Georgia
www.gts-group.ge

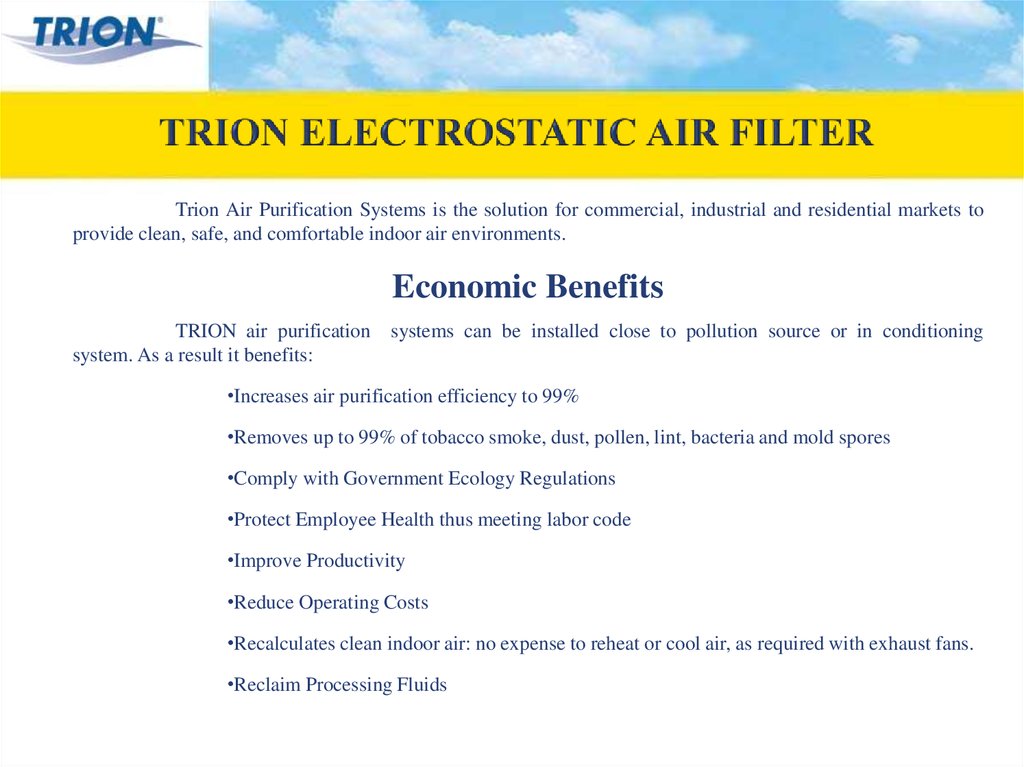

2. TRION ELECTROSTATIC AIR FILTER
Trion Air Purification Systems is the solution for commercial, industrial and residential markets toprovide clean, safe, and comfortable indoor air environments.
Economic Benefits
TRION air purification
system. As a result it benefits:
systems can be installed close to pollution source or in conditioning
•Increases air purification efficiency to 99%
•Removes up to 99% of tobacco smoke, dust, pollen, lint, bacteria and mold spores
•Comply with Government Ecology Regulations
•Protect Employee Health thus meeting labor code
•Improve Productivity
•Reduce Operating Costs
•Recalculates clean indoor air: no expense to reheat or cool air, as required with exhaust fans.
•Reclaim Processing Fluids
3. TRION ELECTROSTATIC AIR FILTER
How It WorksPre Filter
Dirty Air
Collection Plates
Ionizer
Clean Air
4. TRION ELECTROSTATIC AIR FILTER
How It WorksTrion Air purification systems use electrostatic principle - gravitation of positive and
negative charges
Air is drawn into the unit and passes through a pre-filter to capture large particles.
The airborne particles then pass through an electrostatic field - Forever Filter - and
receive an ionized charge.
The charged particles move into a collector section, where each alternate plate is
charged with the same polarity as the particles, which drives the particles of similar
charge to the second set of grounded plates to attract and collect the up to 0.01 micron
size particles
As a result clean air is coming out

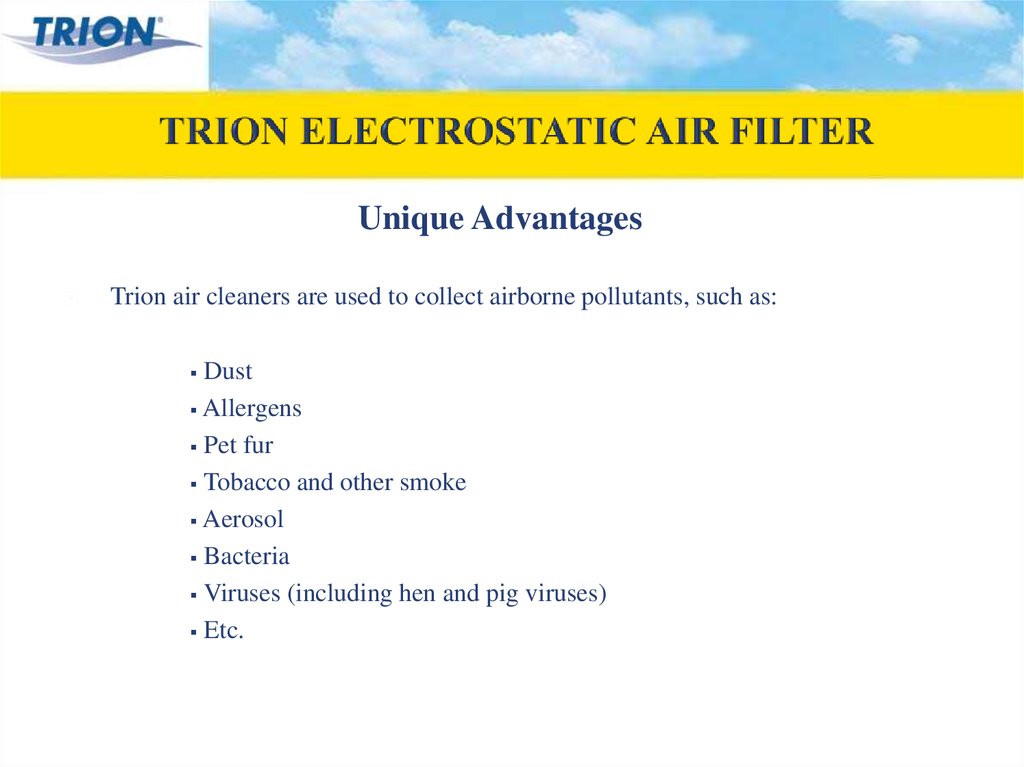

5. TRION ELECTROSTATIC AIR FILTER
Unique AdvantagesTrion air cleaners are used to collect airborne pollutants, such as:
Dust
Allergens
Pet fur
Tobacco and other smoke
Aerosol
Bacteria
Viruses (including hen and pig viruses)
Etc.
6. TRION ELECTROSTATIC AIR FILTER
Where Is It UsedCafé, restaurants
Fitness Clubs
Game halls
Smoking areas
Waiting rooms, meeting rooms
Banks and offices
Hospitals, Airports
7. Serie 60
FeaturesSeries 60
Effectiveness % Standard ASHRAE 52.1
95
Length X Width X Thickness
572x572x242
Air Volume (m3/hour)
340-510-680
Electrical Phase (watts)
130
Main Filter Forever Filter TM
1
Case Color
Ivory
Blower
1 unit
Temperature Range
From -5 Till +65
Sound Rating
38-55-62
Weight
19 Kg
Controls (Speed)
3
Remote Control
Optional
Voltage
230/1/50
» Guarantee 3 Years

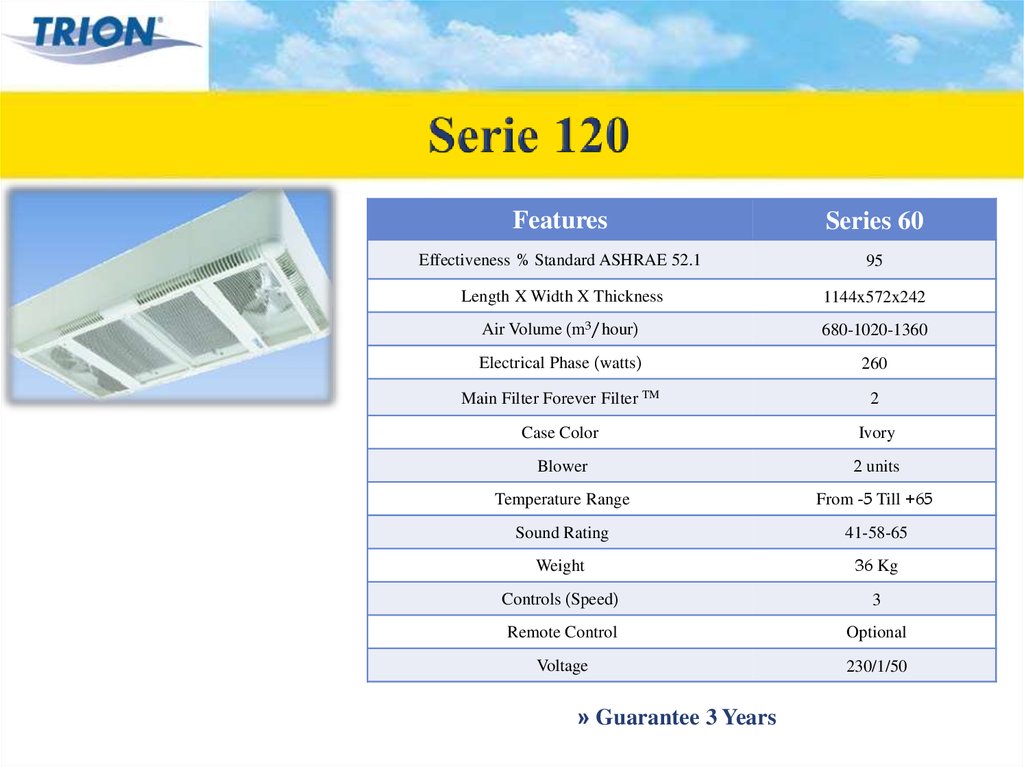

8. Serie 120
FeaturesSeries 60
Effectiveness % Standard ASHRAE 52.1
95
Length X Width X Thickness
1144x572x242
Air Volume (m3/hour)
680-1020-1360
Electrical Phase (watts)
260
Main Filter Forever Filter TM
2
Case Color
Ivory
Blower
2 units
Temperature Range
From -5 Till +65
Sound Rating
41-58-65
Weight
36 Kg
Controls (Speed)
3
Remote Control
Optional
Voltage
230/1/50
» Guarantee 3 Years
9. Space Saver
SpecificationsSpace Saver
Effectiveness % Standard ASHRAE 52.1
95
Length X Width X Thickness
578x578x407
Air Volume (m3/hour)
680-1010
Electrical Phase (watts)
290
Main Filter Forever Filter TM
1
Case Color
Light Grey
Blower
1
Temperature Range
From -5 Till +65
Sound Rating
41-53-58
Weight
32 Kg
Controls (Speed)
3
Remote Control
Carbon Filter
Voltage
230/1/50
» Guarantee 3 Years
10. საუკეთესო გადაწყვეტილება ჰაერის გასაწმენდად
The Only ChoiceGeo Trans Service LLC
Official Distribution Company of TRION In Georgia
Contact Information:
Tel : (995 32) 790 510 510
Cell : (995 93) 943 100
[email protected]
www.gts-group.ge
