Project Background
Template
What is in the Current Scope?
1. Layout – Area Introduction

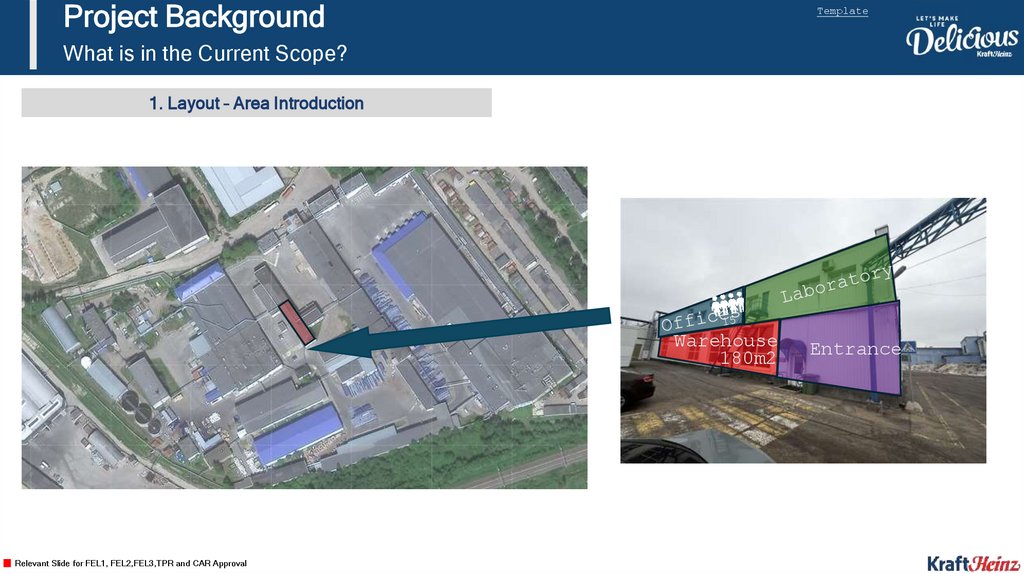

Pic.1: Site plan
RnD Centre Building(G)
Relevant Slide for FEL1, FEL2,FEL3,TPR and CAR Approval
Warehouse
180m2
Entrance

3.

Project Background
Template
What is in the Current Scope?
1. Layout – Area Introduction

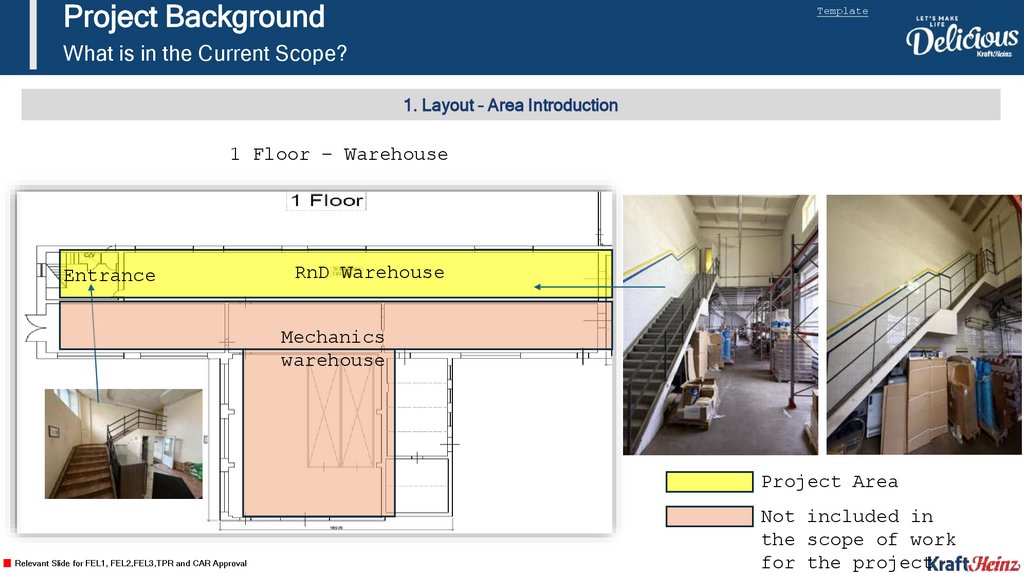

1 Floor – Warehouse
Entrance
RnD Warehouse
Mechanics
warehouse
Project Area
Relevant Slide for FEL1, FEL2,FEL3,TPR and CAR Approval
Not included in
the scope of work
for the project

4.

Project Background
Template
What is in the Current Scope?
1. Layout – Area Introduction

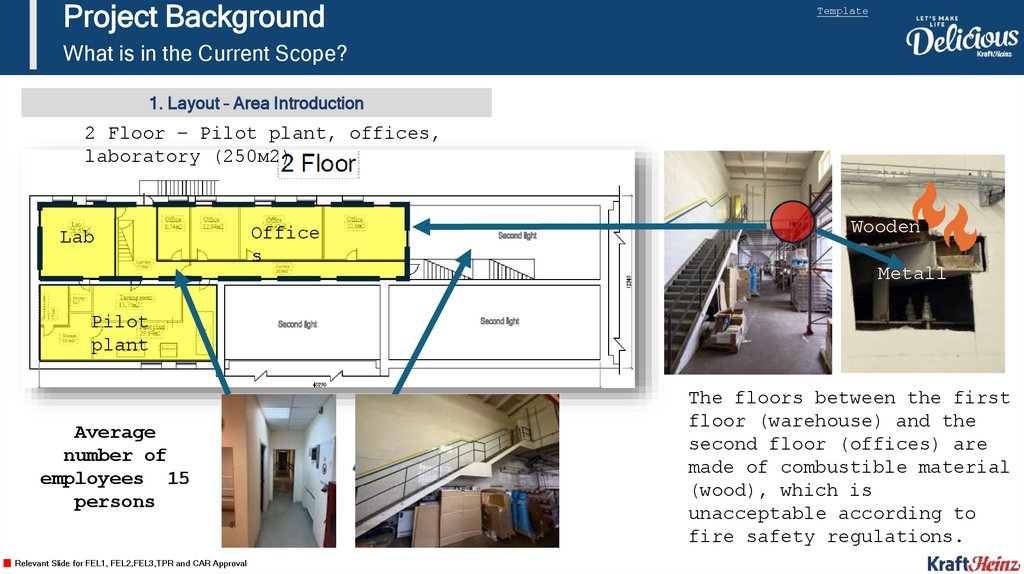

2 Floor – Pilot plant, offices,
laboratory (250м2)
Lab
Office
s
Wooden
Metall
Pilot
plant
Average
number of
employees 15
persons
Relevant Slide for FEL1, FEL2,FEL3,TPR and CAR Approval
The floors between the first
floor (warehouse) and the
second floor (offices) are
made of combustible material
(wood), which is
unacceptable according to
fire safety regulations.

5.

Project Background
Template
What is in the Current Scope?
2. Current Field Status
3. Relevant Data

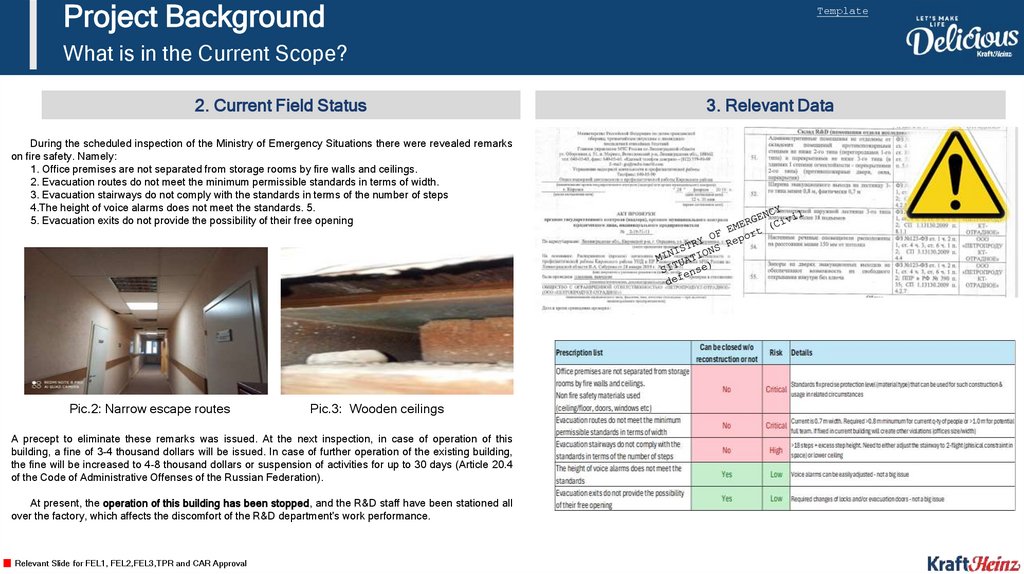

During the scheduled inspection of the Ministry of Emergency Situations there were revealed remarks
on fire safety. Namely:
1. Office premises are not separated from storage rooms by fire walls and ceilings.
2. Evacuation routes do not meet the minimum permissible standards in terms of width.
3. Evacuation stairways do not comply with the standards in terms of the number of steps
4.The height of voice alarms does not meet the standards. 5.
5. Evacuation exits do not provide the possibility of their free opening
Wooden
Pic.2: Narrow escape routes
Pic.3: Wooden ceilings
A precept to eliminate these remarks was issued. At the next inspection, in case of operation of this
building, a fine of 3-4 thousand dollars will be issued. In case of further operation of the existing building,
the fine will be increased to 4-8 thousand dollars or suspension of activities for up to 30 days (Article 20.4
of the Code of Administrative Offenses of the Russian Federation).
At present, the operation of this building has been stopped, and the R&D staff have been stationed all
over the factory, which affects the discomfort of the R&D department's work performance.
Relevant Slide for FEL1, FEL2,FEL3,TPR and CAR Approval
Metall

6.

Project Background
Template
What is in the Current Scope?
4. Project Area
Empty area
(building E)
Current R&D
area
(building G)

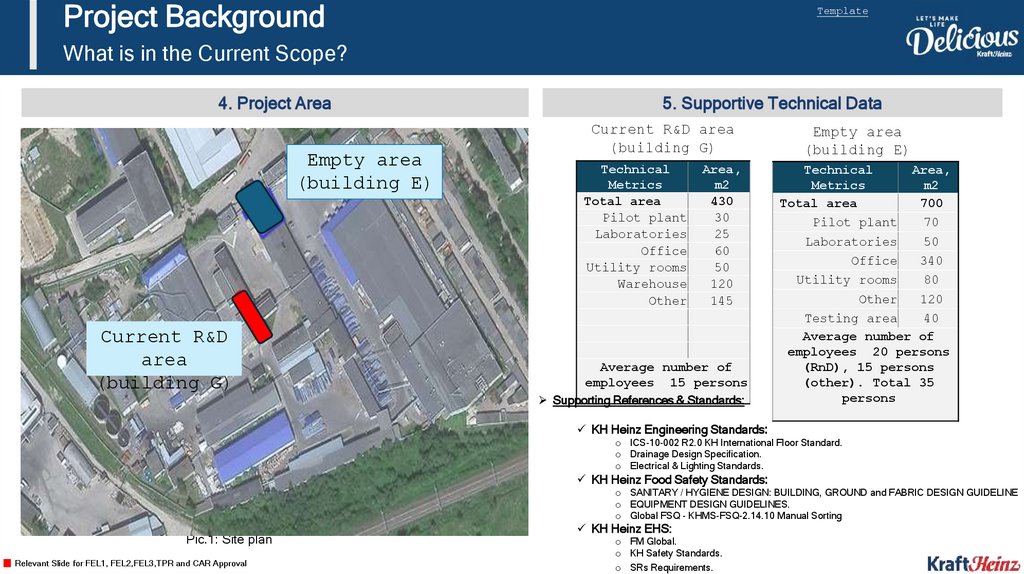

5. Supportive Technical Data
Current R&D area
(building G)
Technical
Metrics
Total area
Pilot plant
Laboratories
Office
Utility rooms
Warehouse
Other
Area,
m2
430
30
25
60
50
120
145
Average number of
employees 15 persons
Supporting References & Standards:
Empty area
(building E)
Technical
Area,
Metrics
m2
Total area
700
Pilot plant
70
Laboratories
50
Office
340
Utility rooms
80
Other
120
Testing area
40
Average number of
employees 20 persons
(RnD), 15 persons
(other). Total 35
persons
KH Heinz Engineering Standards:
o ICS-10-002 R2.0 KH International Floor Standard.
o Drainage Design Specification.
o Electrical & Lighting Standards.
KH Heinz Food Safety Standards:
o SANITARY / HYGIENE DESIGN: BUILDING, GROUND and FABRIC DESIGN GUIDELINE
o EQUIPMENT DESIGN GUIDELINES.
o Global FSQ - KHMS-FSQ-2.14.10 Manual Sorting
Pic.1: Site plan
Relevant Slide for FEL1, FEL2,FEL3,TPR and CAR Approval
KH Heinz EHS:
o FM Global.
o KH Safety Standards.
o SRs Requirements.
