3D brief

1.

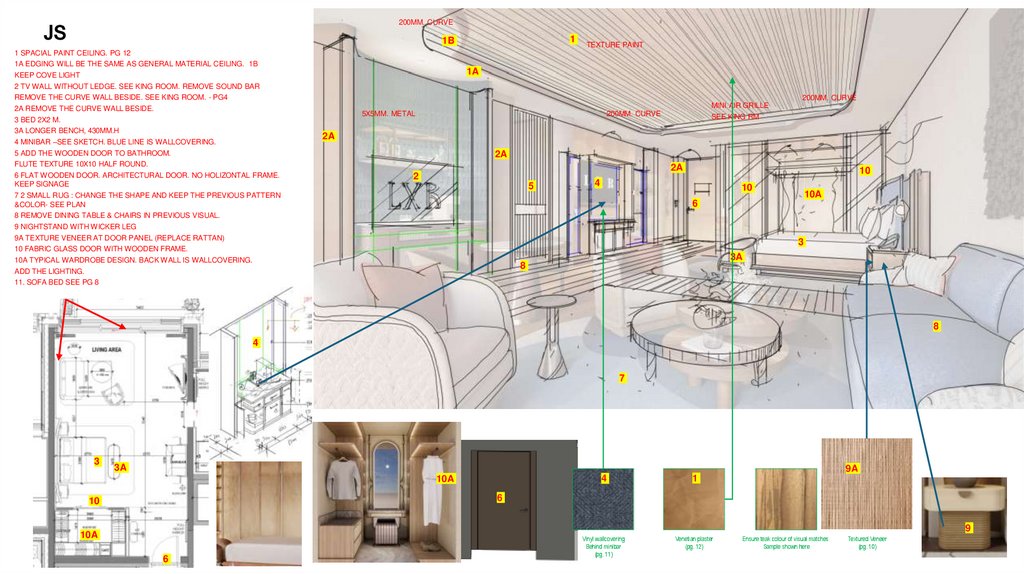

3D BRIEF
GUESTROOM
JS

2.

3.

200MM. CURVE
JS
1
1B
1 SPACIAL PAINT CEILING. PG 12
1A EDGING WILL BE THE SAME AS GENERAL MATERIAL CEILING. 1B
1A
KEEP COVE LIGHT
2 TV WALL WITHOUT LEDGE. SEE KING ROOM. REMOVE SOUND BAR
REMOVE THE CURVE WALL BESIDE. SEE KING ROOM. - PG4
2A REMOVE THE CURVE WALL BESIDE.
3 BED 2X2 M.
3A LONGER BENCH, 430MM.H
4 MINIBAR –SEE SKETCH. BLUE LINE IS WALLCOVERING.
5 ADD THE WOODEN DOOR TO BATHROOM.
FLUTE TEXTURE 10X10 HALF ROUND.
6 FLAT WOODEN DOOR. ARCHITECTURAL DOOR. NO HOLIZONTAL FRAME.
KEEP SIGNAGE
TEXTURE PAINT
200MM. CURVE
5X5MM. METAL
MINI AIR GRILLE
SEE KING RM
200MM. CURVE
2A
2A
2A
2
5
7 2 SMALL RUG : CHANGE THE SHAPE AND KEEP THE PREVIOUS PATTERN
&COLOR- SEE PLAN
8 REMOVE DINING TABLE & CHAIRS IN PREVIOUS VISUAL.
9 NIGHTSTAND WITH WICKER LEG
9A TEXTURE VENEER AT DOOR PANEL (REPLACE RATTAN)
10 FABRIC GLASS DOOR WITH WOODEN FRAME.
10A TYPICAL WARDROBE DESIGN. BACK WALL IS WALLCOVERING.
ADD THE LIGHTING.
11. SOFA BED SEE PG 8
10
4
10
10A
6
3
3A
8
8
4
7
3
3A
9A
10A
4
1
Vinyl wallcovering
Behind minibar
(pg. 11)
Venetian plaster
(pg. 12)
6
10
9
10A
6
Ensure teak colour of visual matches
Sample shown here
Textured Veneer
(pg. 10)

4.

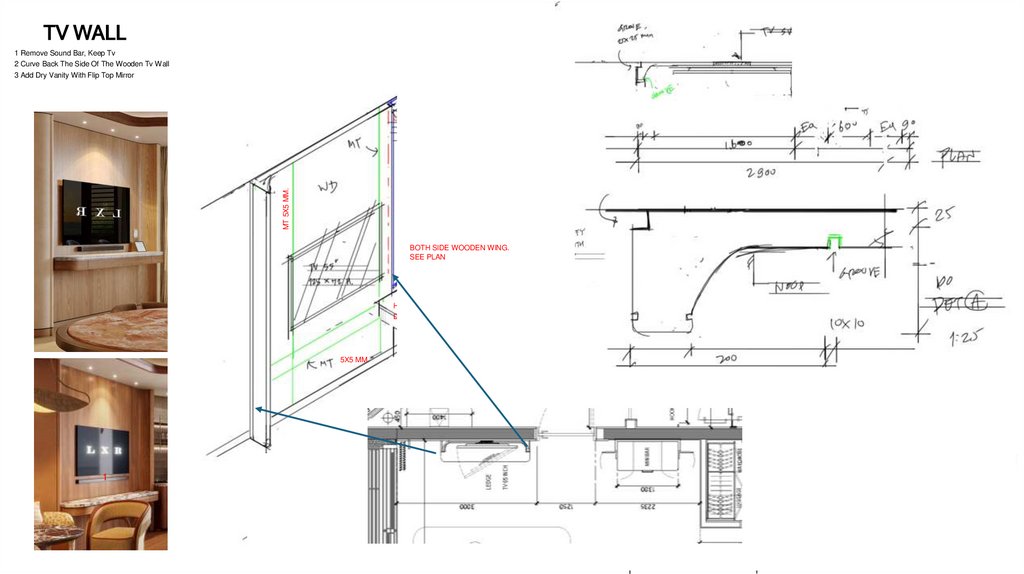

TV WALL
1 Remove Sound Bar, Keep Tv
2 Curve Back The Side Of The Wooden Tv Wall
3 Add Dry Vanity With Flip Top Mirror
MT 5X5 MM.
H +750mm.
D 450 mm.
BOTH SIDE WOODEN WING.
SEE PLAN
H +750mm.
D 450 mm.
5X5 MM.
1

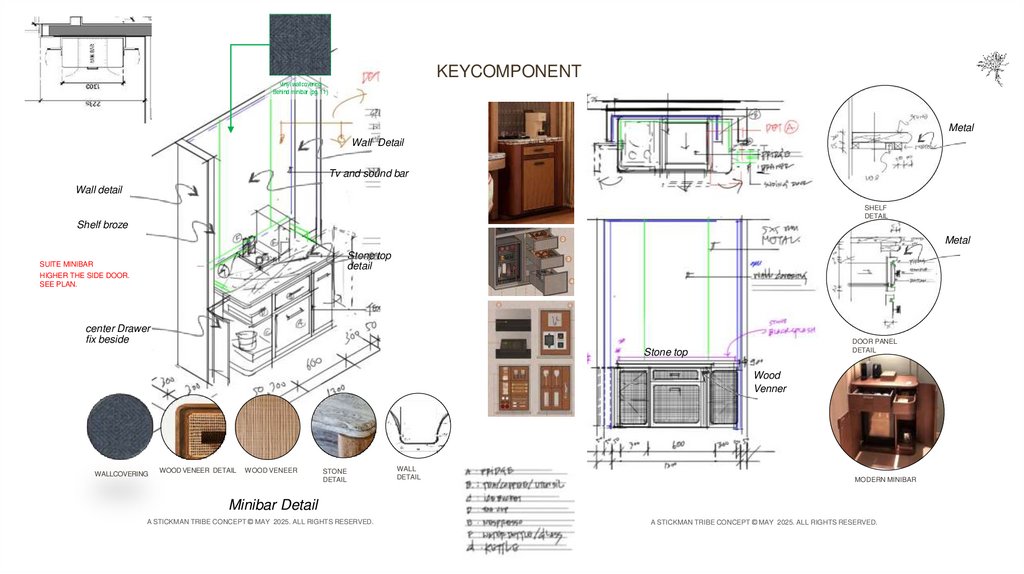

5. KEYCOMPONENT

Vinyl wallcovering
Behind minibar (pg. 11)
Metal
Wall Detail
Tv and sound bar
Wall detail
SHELF
DETAIL
Shelf broze
Metal
Stone top
detail

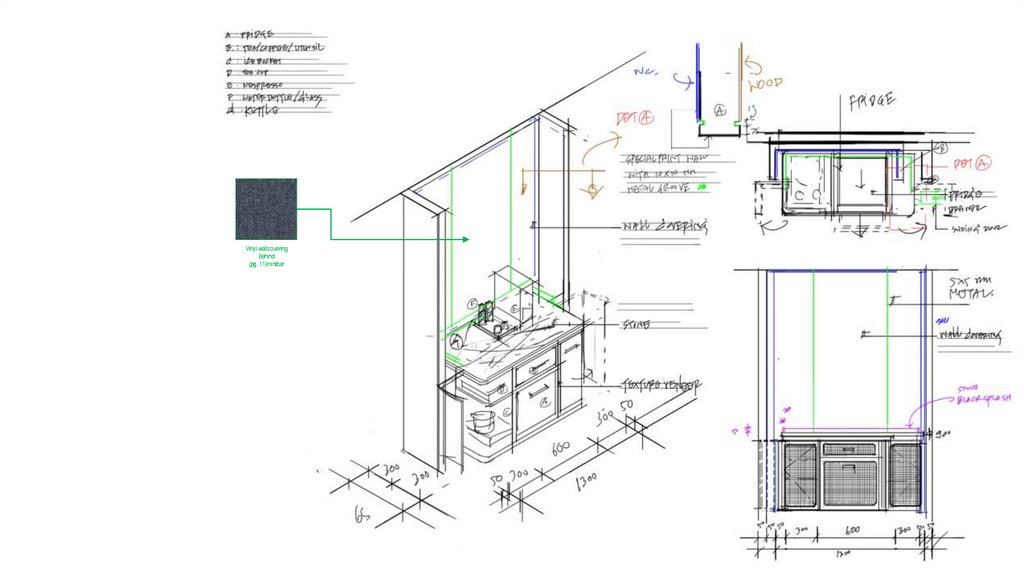

SUITE MINIBAR
HIGHER THE SIDE DOOR.
SEE PLAN.
center Drawer
fix beside
DOOR PANEL
DETAIL
Stone top
Wood
Venner
WALLCOVERING
WOOD VENEER DETAIL
WOOD VENEER
STONE
DETAIL
WALL
DETAIL
MODERN MINIBAR
Minibar Detail
A STICKMAN TRIBE CONCEPT © MAY 2025. ALL RIGHTS RESERVED.
A STICKMAN TRIBE CONCEPT © MAY 2025. ALL RIGHTS RESERVED.

6.

Vinyl wallcovering
Behind
(pg. 11)minibar

7.

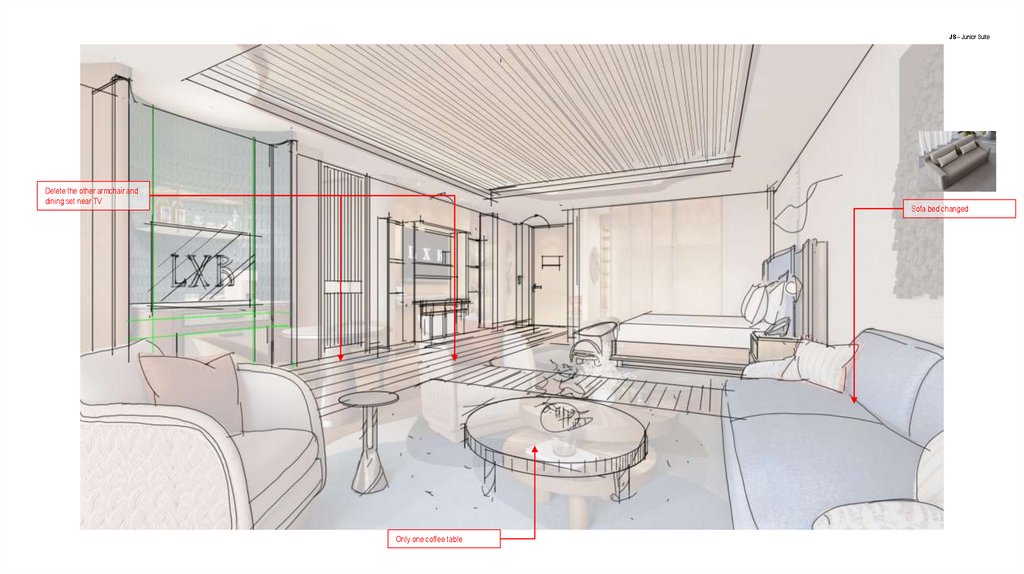

JS – Junior Suite
Delete the other armchair and
dining set near TV
Sofa bed changed
Only one coffee table

8.

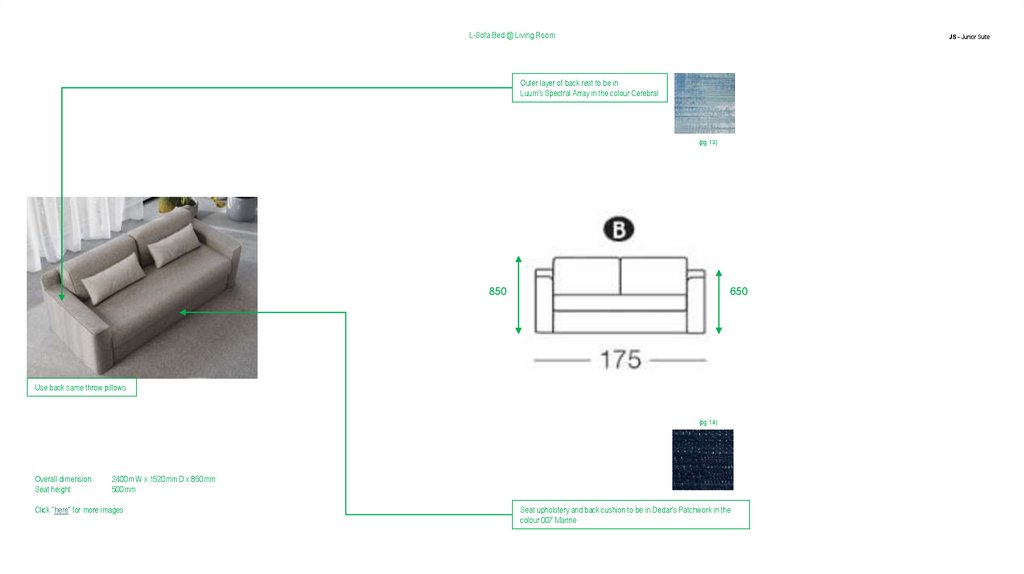

L-Sofa Bed @ Living Room
JS – Junior Suite
Outer layer of back rest to be in
Luum’s Spectral Array in the colour Cerebral
(pg. 13)
850
650
Use back same throw pillows
(pg. 14)
Overall dimension:
Seat height:
2400m W x 1520mm D x 850mm
500mm
Click “here” for more images
Seat upholstery and back cushion to be in Dedar’s Patchwork in the
colour 007 Marine

9.

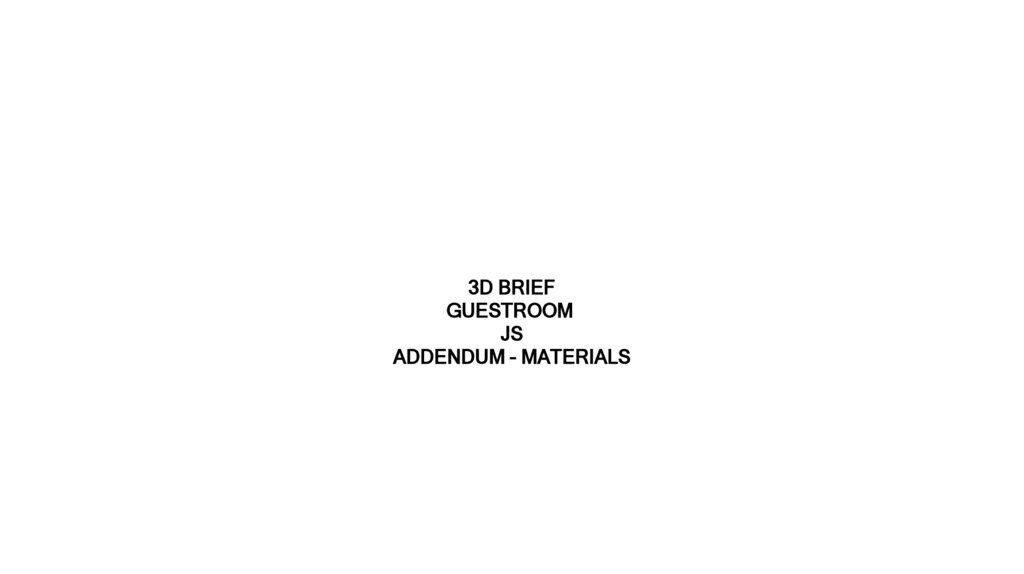

3D BRIEF
GUESTROOM
JS
ADDENDUM - MATERIALS

10.

Textured Veneer @ Nightstand Fascia/Cabinet Doors
Custom colour for visual
MUR
Close-up of texture

11.

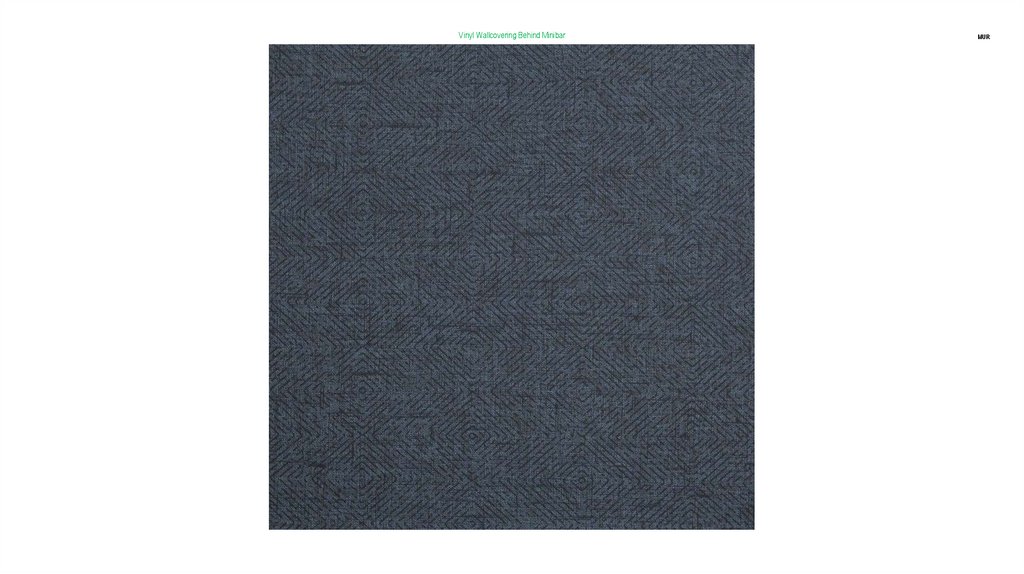

Vinyl Wallcovering Behind Minibar
MUR

12.

Venetian Plaster (30% sheen) @ Accent Ceiling
Colour to match teak wood
Matt Finish
Pattern mapping only. NOT colour.
MUR

13.

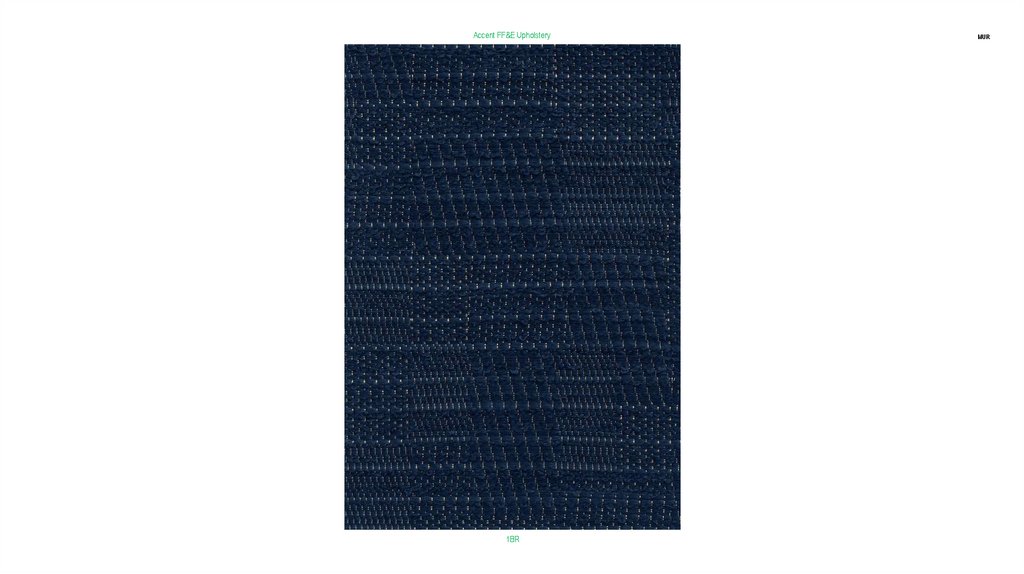

Accent FF&E Upholstery
1BR
MUR

14.

Accent FF&E Upholstery
1BR
MUR

15.

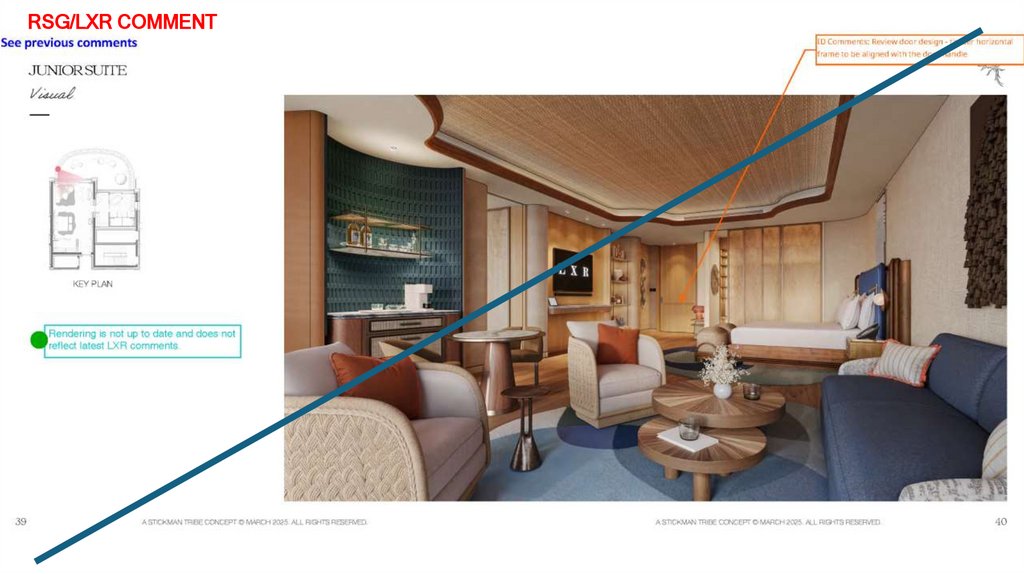

RSG/LXR COMMENT

16.

RSG/LXR COMMENT

17.

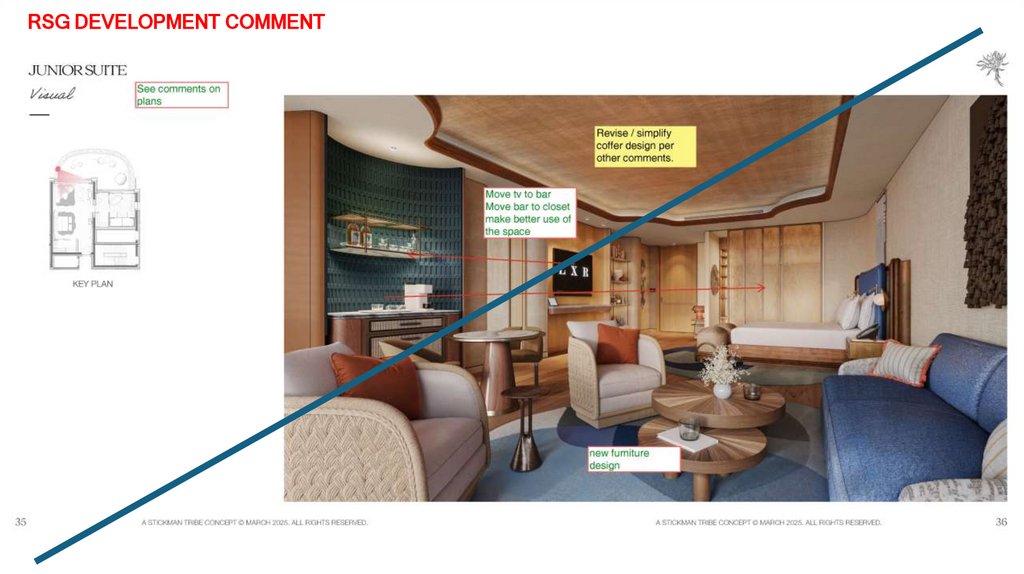

RSG DEVELOPMENT COMMENT
